Sleep current (when the battery is over-discharged)
≤10uA
Operating temperature
-30℃~+80℃

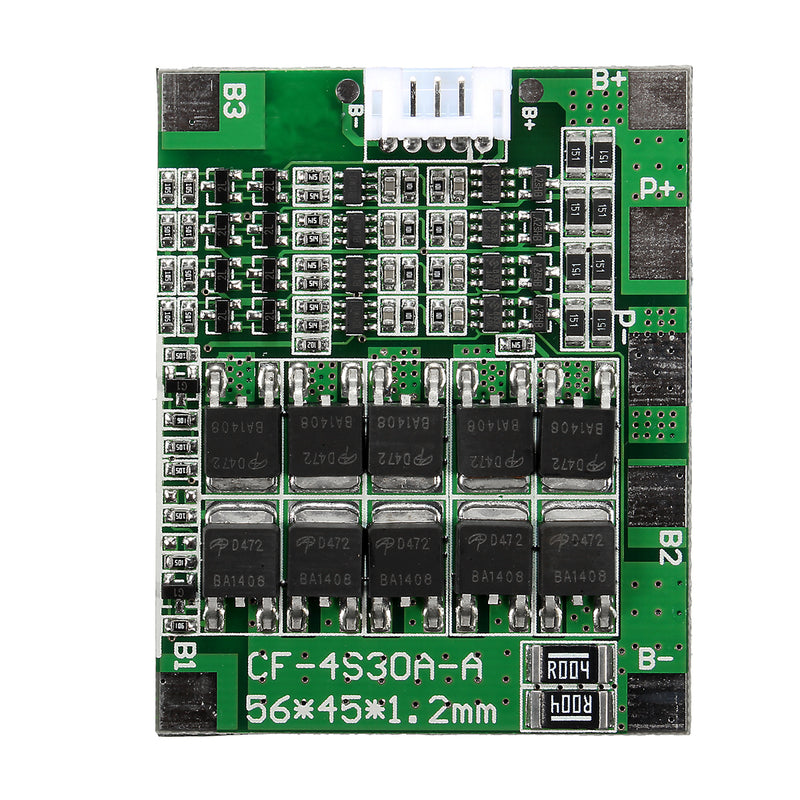

Size
45x56mm
Main function:
Over charge protection, over discharge protection function, short circuit protection function, over current protection function, band balance.
Interface definition:
Charging port of the plate and the discharge port is the same, both positive and B- connecting battery"-", P- charging port and port on the negative electrode; B-, N-, P- pads are all over the hole, the hole diameter of the pad is 3.5mm; The battery charging detection interface with DC output in the form of needle. Do the same mouth when the N- is not wiring.
