For discharge products above 3A, the battery discharge rate should be more than 3C.
Magnification calculation formula: 1C rate battery, 2000 capacity is equal to 2AH*1=2A working current.
3C rate battery, 2000 capacity is equal to 2AH*3=6A working current. In the use of the battery is hot, that means the battery rate is not applicable, this situation can not be used for a long time, the battery will be damaged quickly.
Details
Item
Specification
Unit
Remark
Discharge
Continuous discharge current
100
A
Attention temperature
Instantaneous discharge current
120
A
Charging
Charging voltage
Iron lithium charger 12.8V
V
Switching power supply 15-16V
Charging current
10(MAX)
A
Overcharge protection
Overcharge detection voltage
3.75±0.05
V
Single core
Overcharge protection delay
1300
MS
Overcharge release voltage
3.6±0.05
V
Single core
Electricity balance
Battery balance detection voltage
3.60±0.05
V
Battery balance release voltage
3.59±0.05
V
Battery balance current
58
mA
Overdischarge protection
Overdischarge detection voltage
2.1±0.08
V
Overdischarge detection delay
145
S
Overdischarge release voltage
2.3±0.1
V
Overcurrent protection
Overcurrent detection voltage
200
mV
Overcurrent detection delay
20
mS
Overcurrent protection current
120±10
A
Overcurrent protection release condition
Disconnect load
Short circuit protection
Short circuit protection condition
External load short circuit
Short circuit detection delay
300
uS
Short circuit protection release condition
Disconnect negative
Temperature protection
Temperature protection
/
℃
Can add external temperature switch
Internal resistance
Main circuit conduction internal resistance
≤20
mΩ
Self-consumption
Working current
≤30
uA
Sleep current (when the battery is over-discharged)
≤20
uA
Operating temperature
Temperature range
-20 to +80
℃
Dimension
70*60*8.5
mm

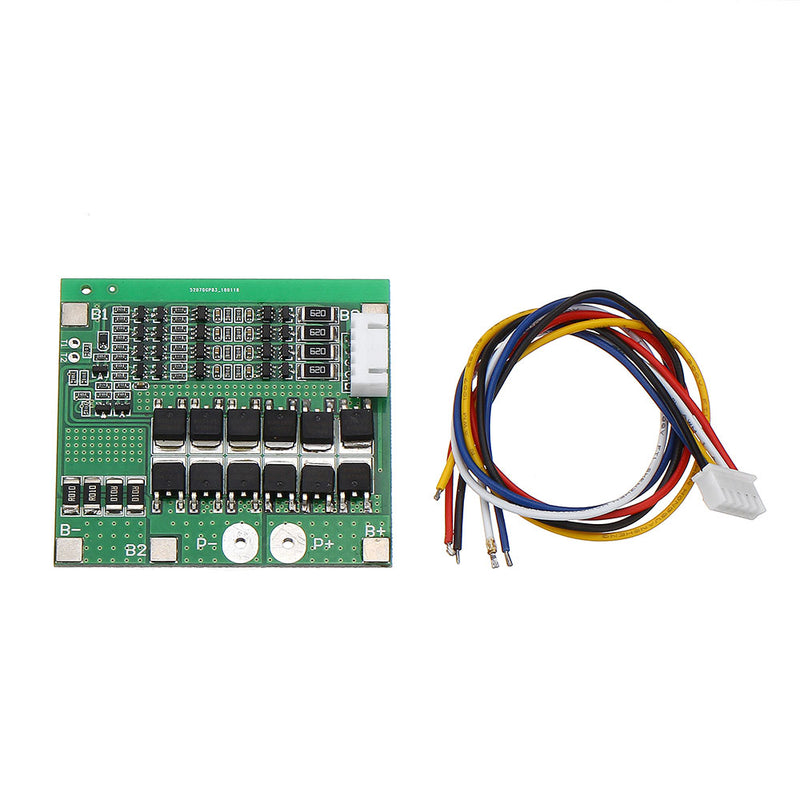

Package includes:

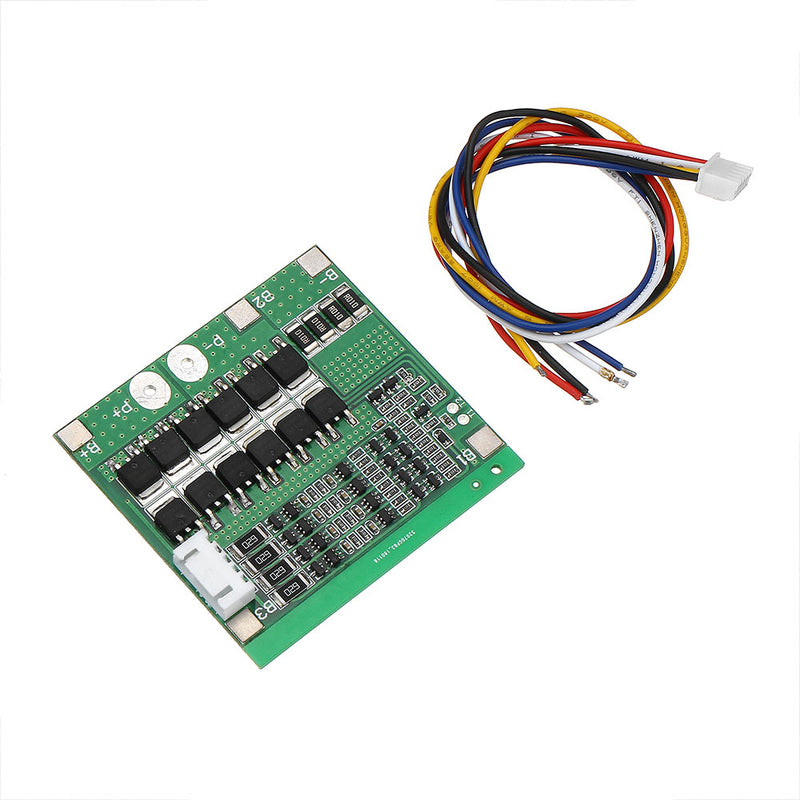

1 x Battery Protection Board
