Applications:
The amplifier has a wide frequency range, gain stability, low noise figure, dynamic range +20 dBm @ 1dBP), etc., especially for a variety of RF front-end receiver circuit to increase the communication distance! Widely used in short-wave, FM radio, remote control receiver, cable TV signal amplifier, Compass, GPS satellite navigation, 2.4G bluetooth, WIFI receiver RF front-end and other low-noise small signal RF amplification! The amplifier is sold by default bare board.
Amplifier parameters indicators:
Operating frequency: 5-3500MHz
Amplification gain: 20dB (typical)
Noise figure: 1.3 (typical)
Maximum output power: +20 dBm (100mW) @ 1dB compression point
Operating Current: 80mA (5V)
Supply voltage: 3.3-6VDC
System impedance: 50 ohms
Amplifier gain:
F=5MHz, gain=23dB
F=30MHz, gain=23dB
F=100MHz, gain=23dB
F=150MHz, gain=23dB
F=420MHz, gain=22dB
F=1500MHz, gain=20dB
F=3000MHz, gain=18.7dB
F=3500MHz, gain=17.6dB
Package includes:

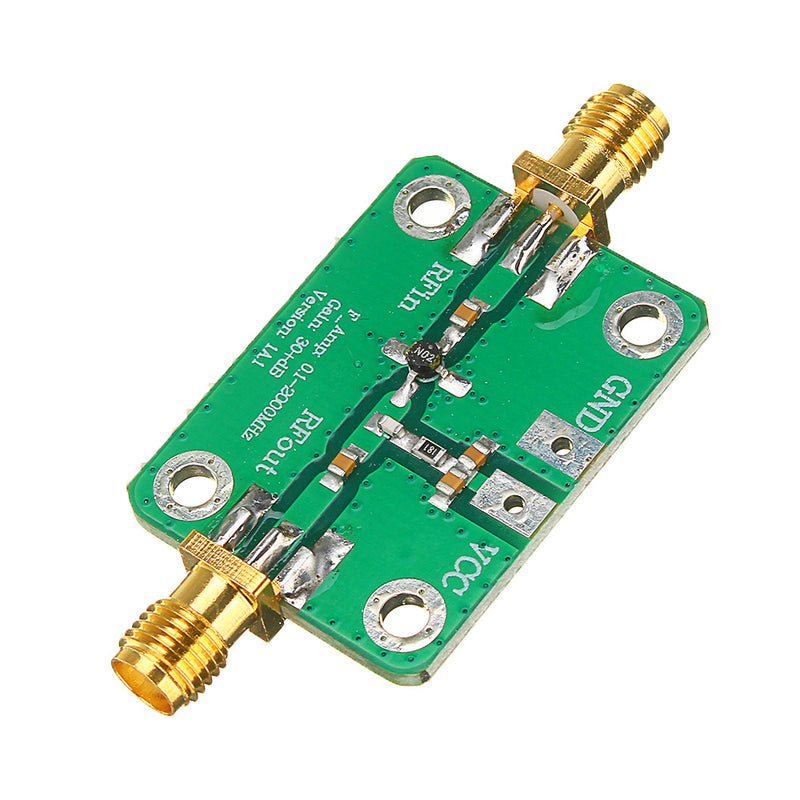

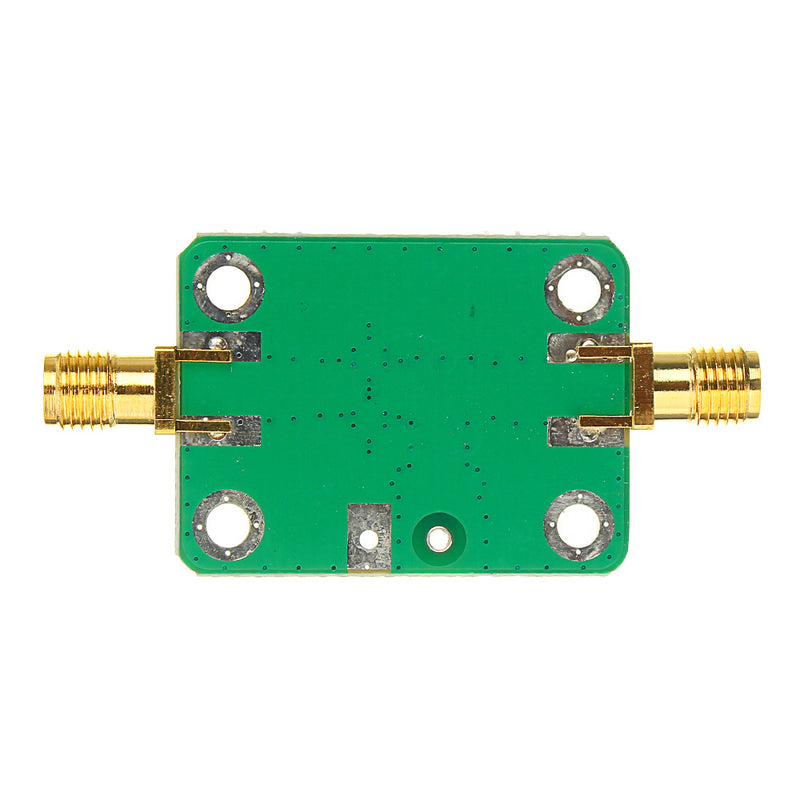

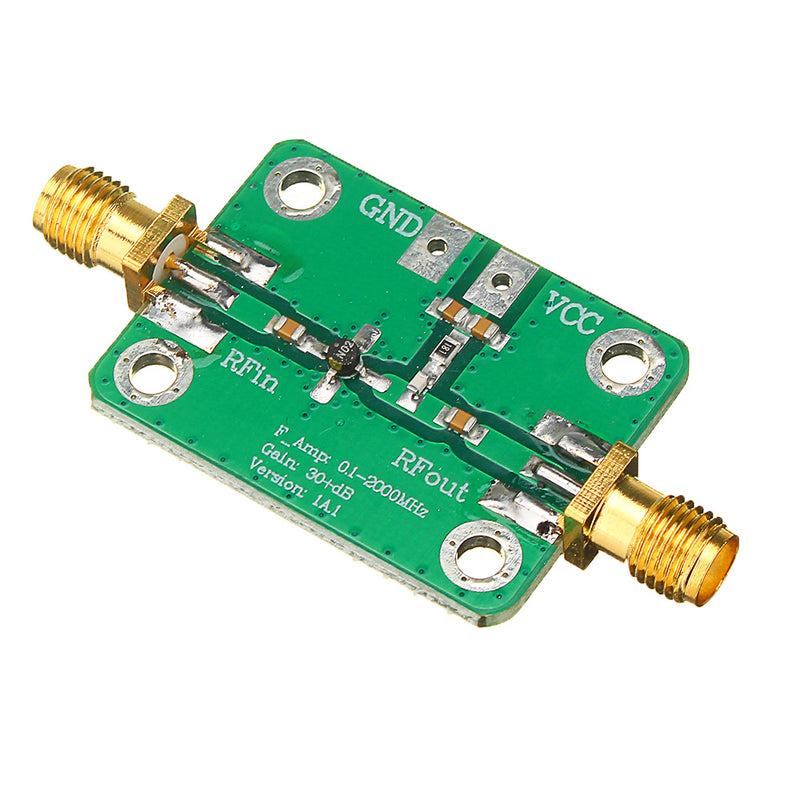

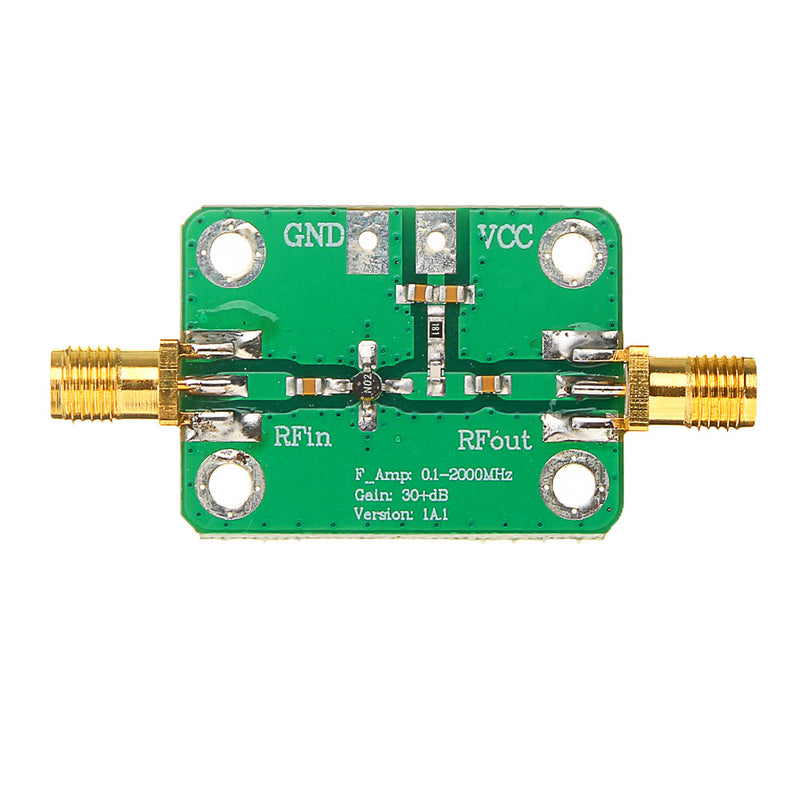

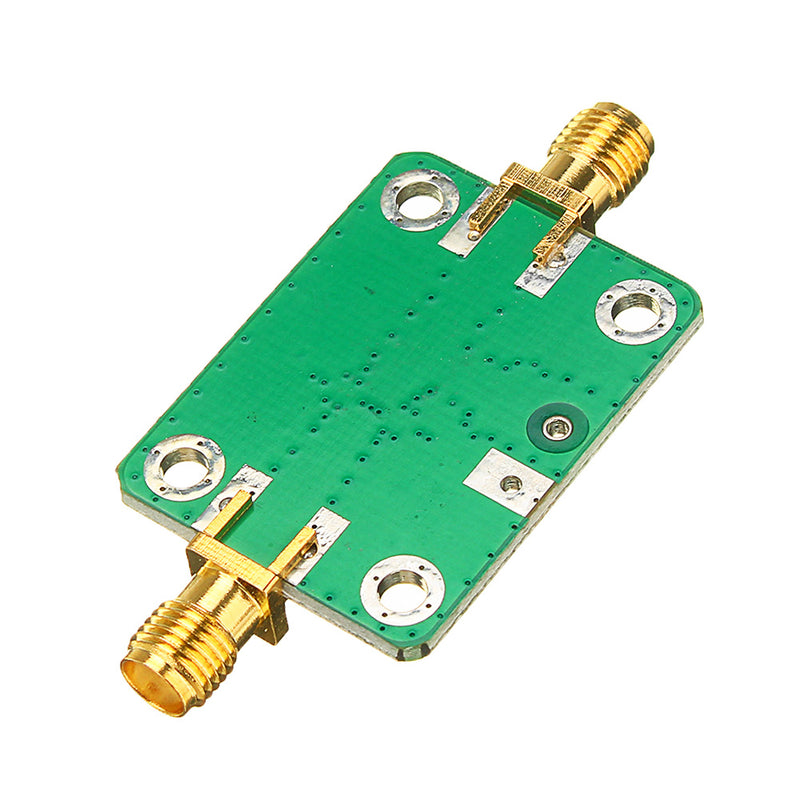

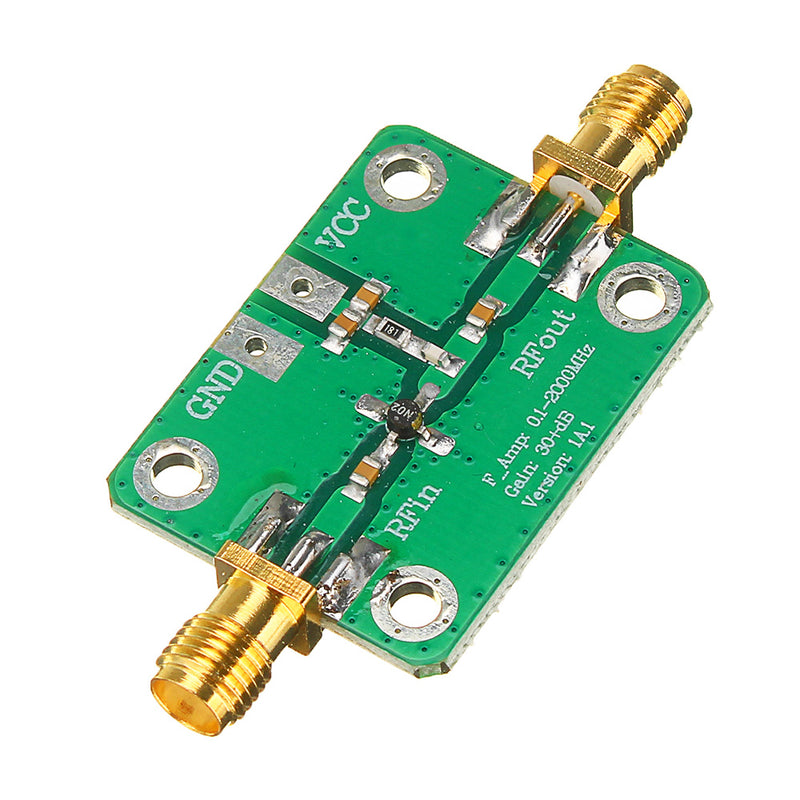

1 x RF amplifier
