Specifications:
Interface:3.0V TTL signal .by PC show date. three wire serial interface ( the single chip microcomputer UART interface), 19.2 KHZ.Start bit 1 + 8 + 1 stop bit and no flow contro
2 mA electrical flow: DC3V, standby, measuring 120 mA;
Laser type: 635nm, 1 mw.(red)
Range: 0.02 to 50 meters;
Measurement speed: 0.3-3 s
Typical accuracy: + / - 1 mm
Storage temperature: - 20-60 use temperature: -10-40
Module size: Approx 45*25*12mm
Communication and Control:
Communication interface: serial communication (TTL), 19.2K, baud rate parity bit: no parity, data bits: 8;
Function: send capital letters "O" to open the laser, capital letters "C" to close the laser, capital letters "D" for measuring distance, capital letters "S" to view the module temperature and power supply
Instructions: open the laser, laser, a single measurement, gets to the power supply voltage and temperature.

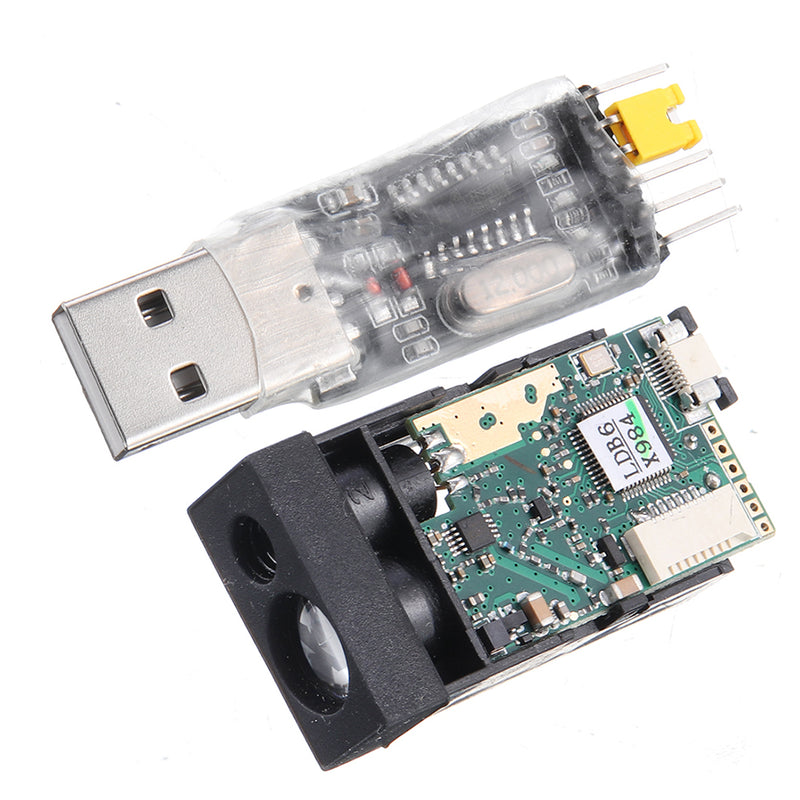

Package Included:

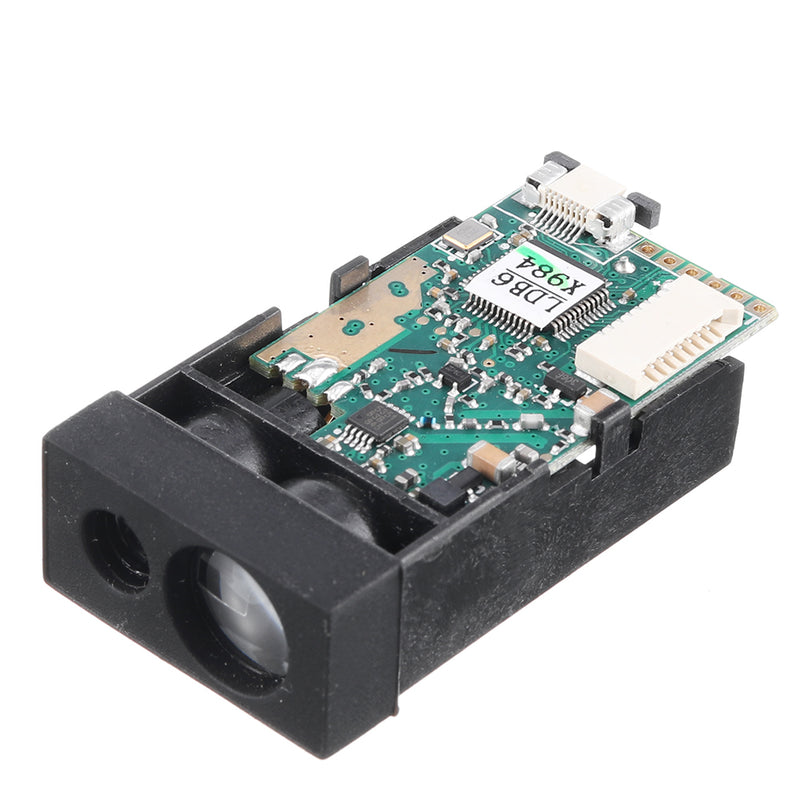

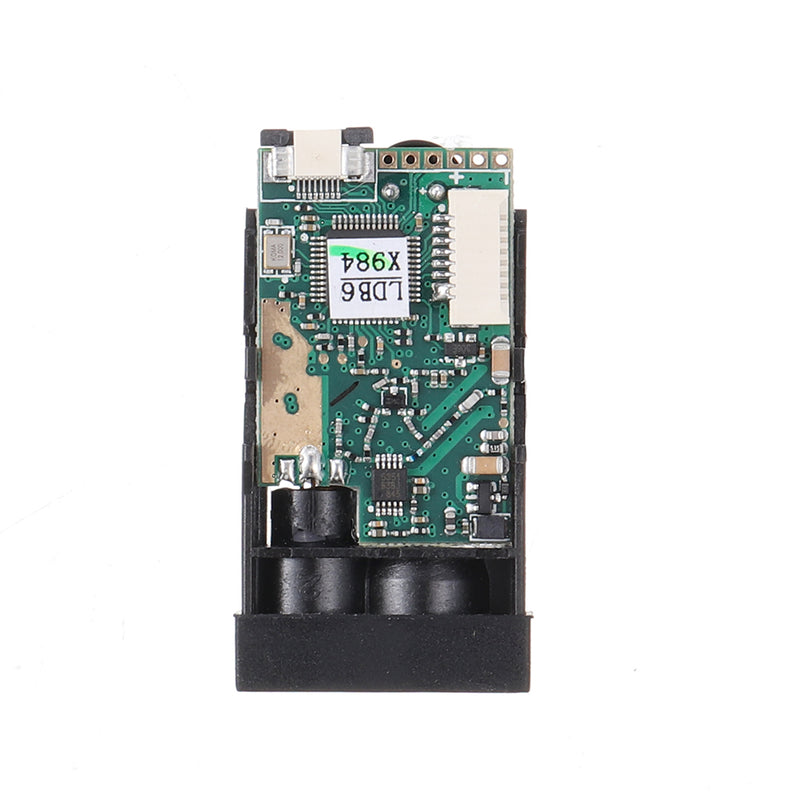

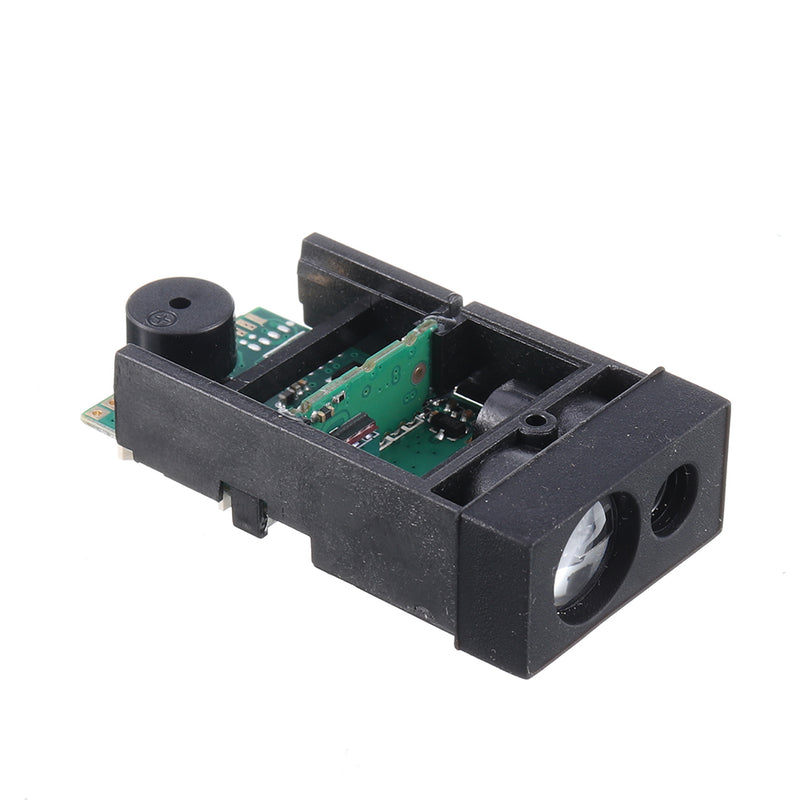

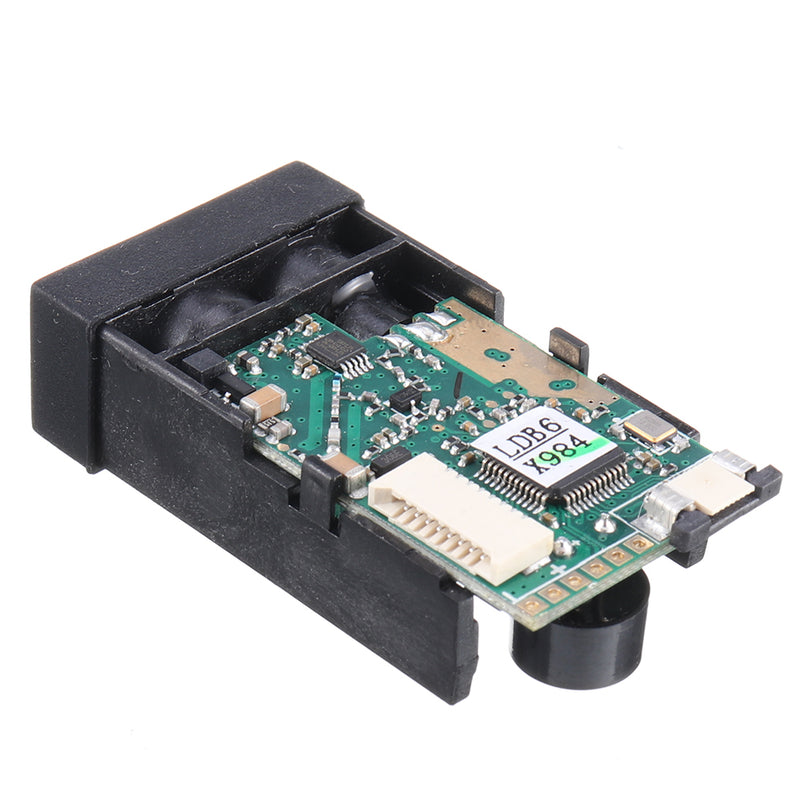

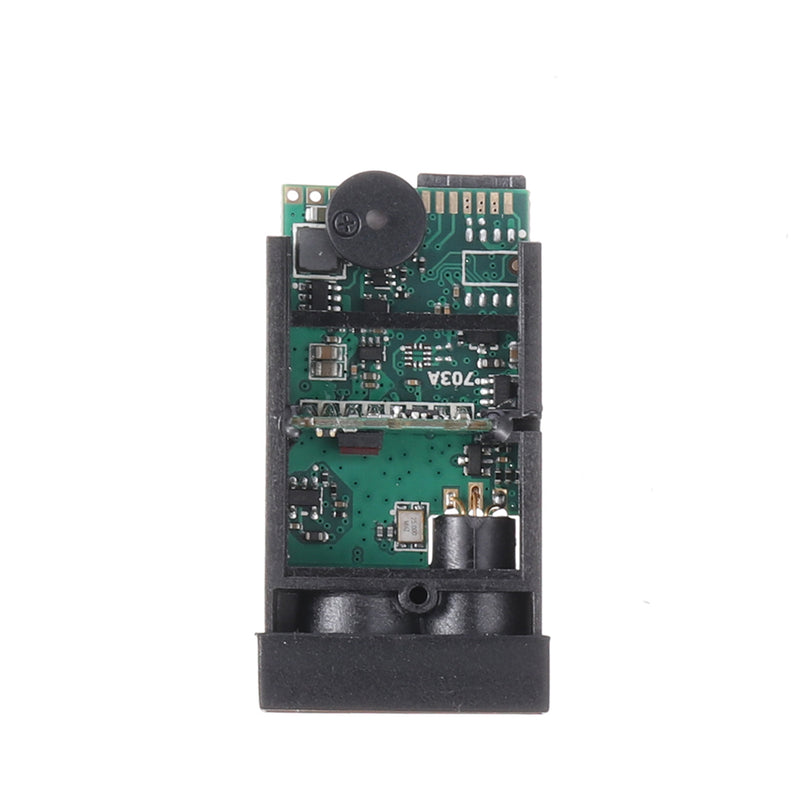

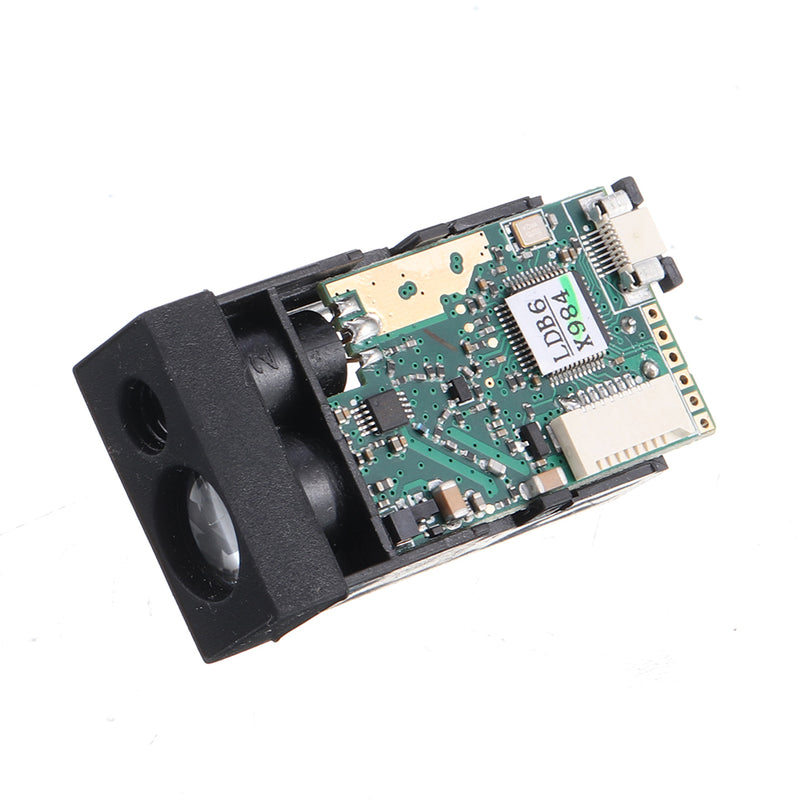

1 X 50M/164FT Laser Distance Measuring Sensor Range Finder Module

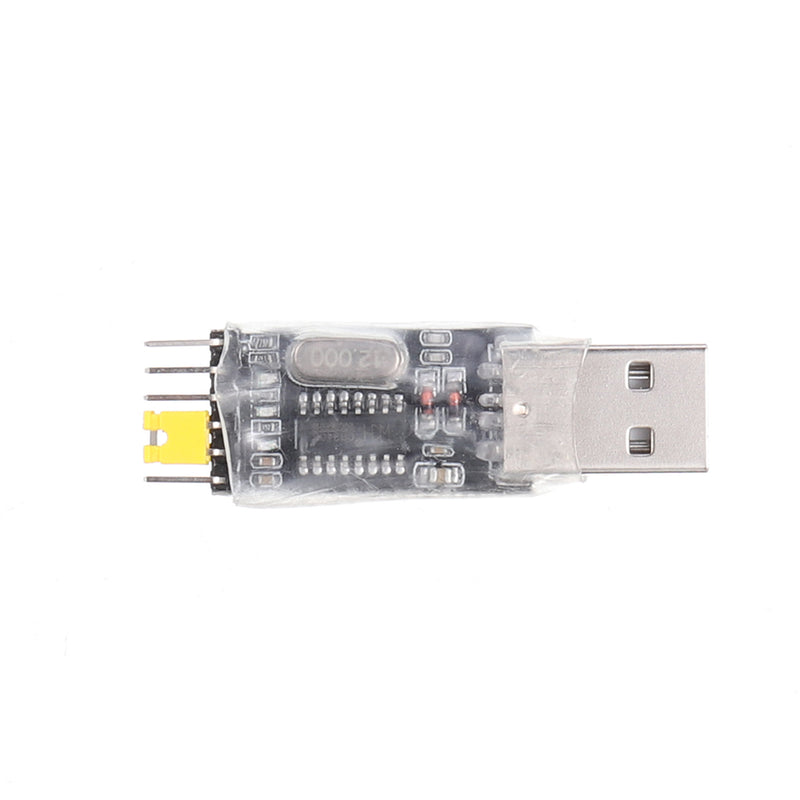

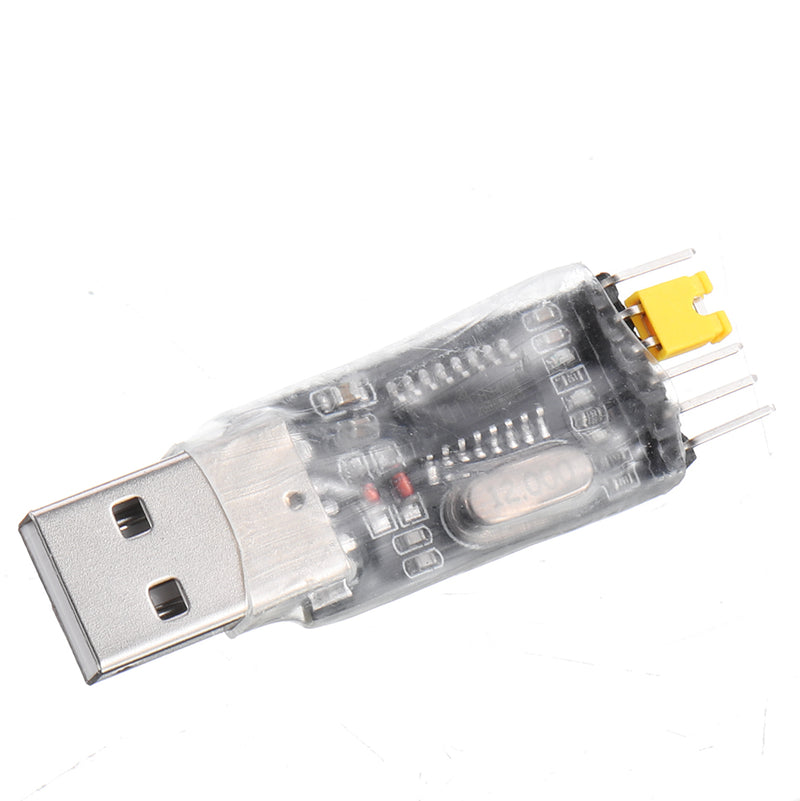

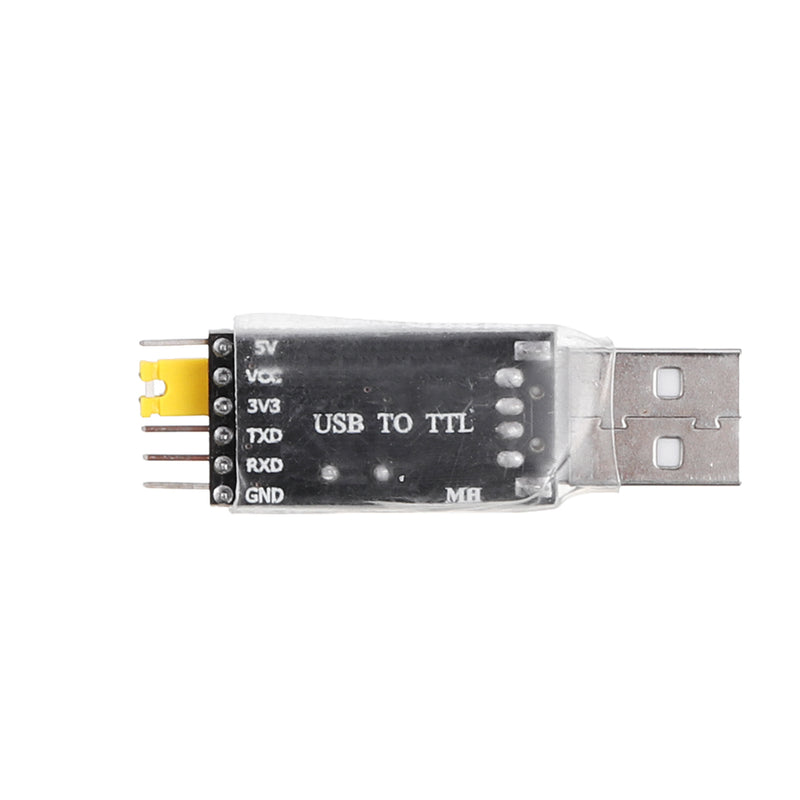

1 x USB to TTL Module
