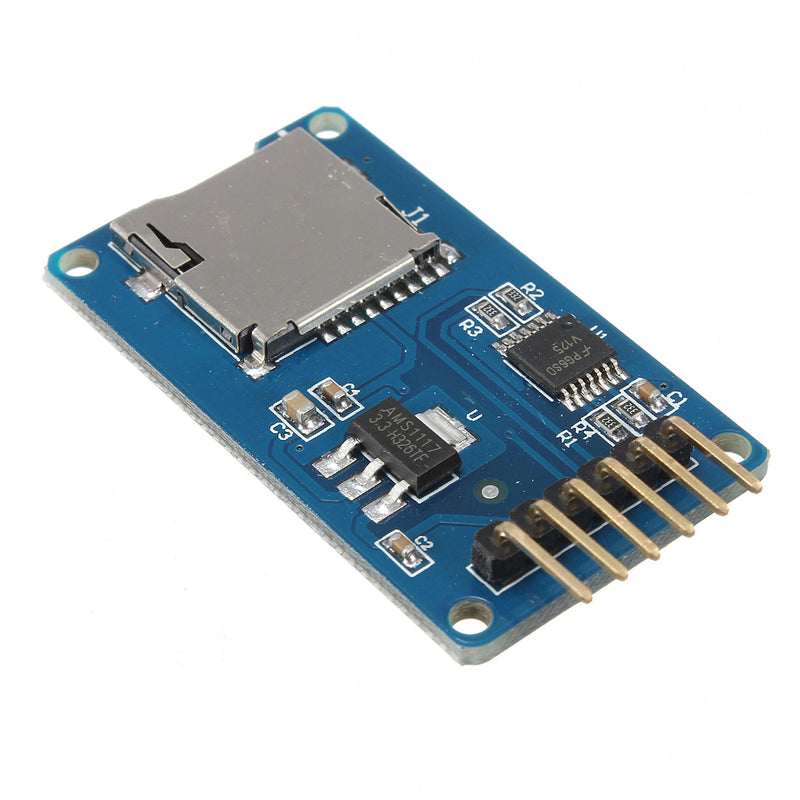

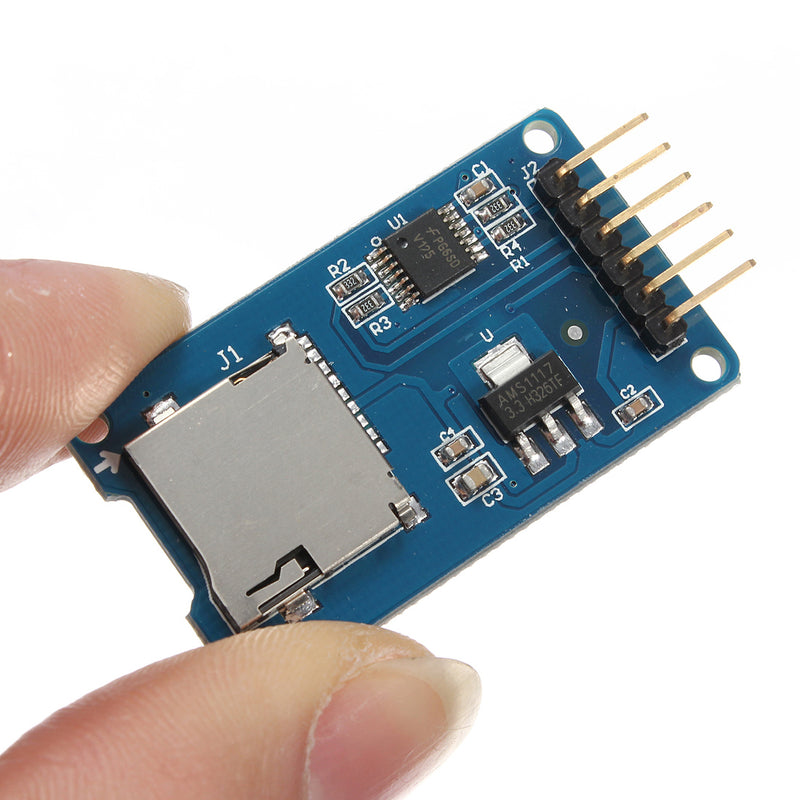

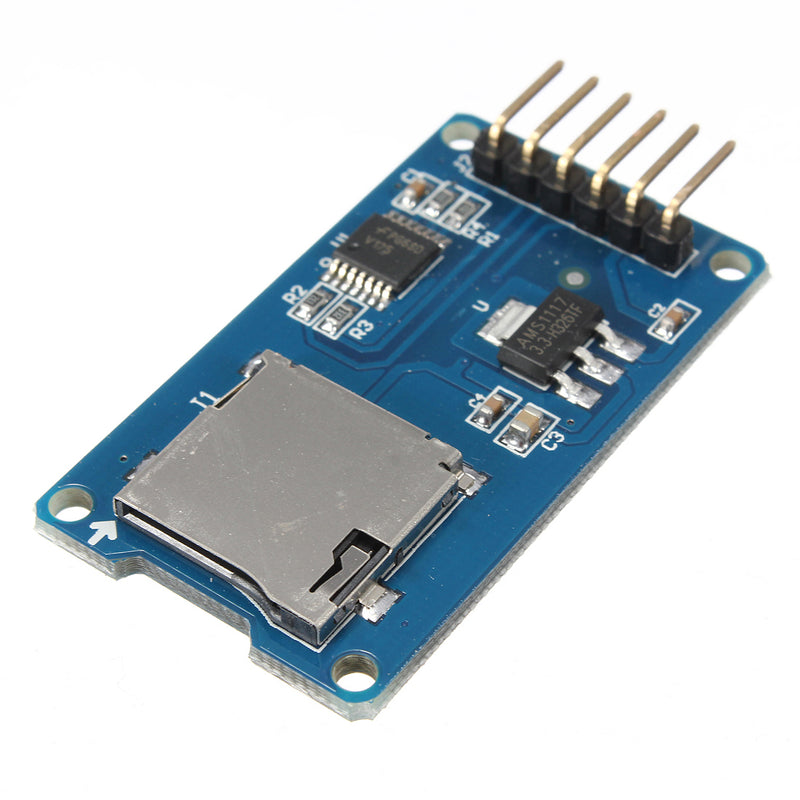

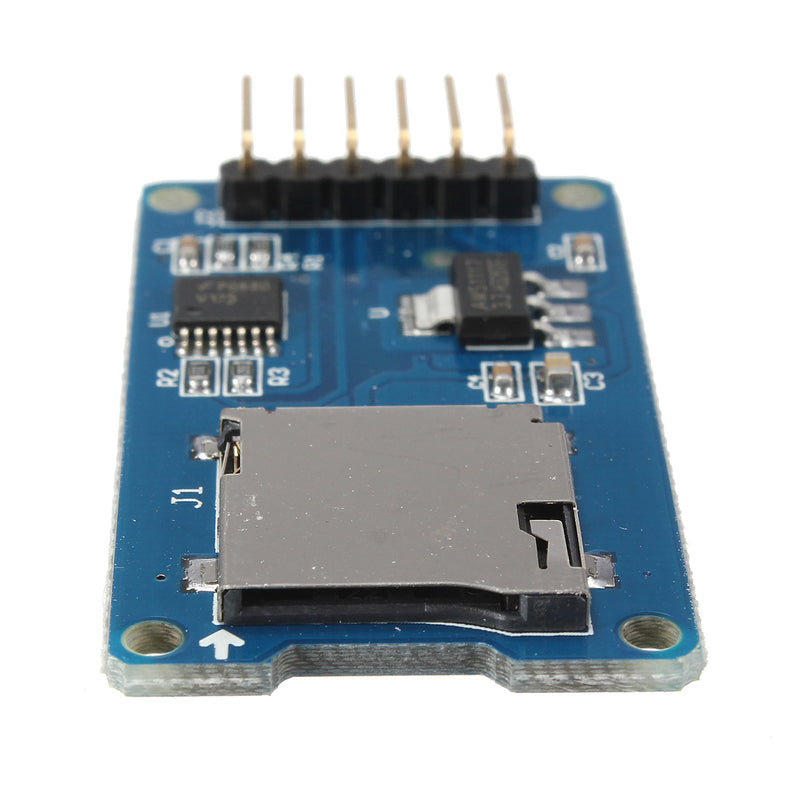

The module (MicroSD Card Adapter) is a Micro SD card reader module, and the SPI interface via the file system driver, microcontroller system to complete the MicroSD card read and write files. users can directly use the IDE comes with an SD card to complete the library card initialization and read-write
Module features are as follows:
Support Micro SD Card (<=2G), Micro SDHC card (<=32G) (high-speed card) The level conversion circuit board that can interface level is 5V or 3.3V Power supply is 4.5V ~ 5.5V, 3.3V voltage regulator circuit board Communication interface is a standard SPI interface 4 M2 screw positioning holes for easy installation Size: 4.1 x 2.4cm
Control Interface: A total of six pins (GND, VCC, MISO, MOSI, SCK, CS), GND to ground, VCC is the power supply, MISO, MOSI, SCK is the SPI bus, CS is the chip select signal pin
Level conversion circuit: Micro SD card into the direction of signals into 3.3V, MicroSD card toward the direction of the control interface MISO signal is also converted to 3.3V, general AVR microcontroller system can read the signal
Micro SD card connector: It is a self-drilling card holder for easy insertion and removal of the card.
Positioning holes: 4 M2 screws positioning hole diameter of 2.2mm, the module is easy to install positioning, to achieve inter-module combination
Package included:
50 x Micro SD TF card module
