Specifications:
Length: 320-600mm
Width: 4mm
Lamp beads: 2835 8-9LM
Color temperature: 7500K

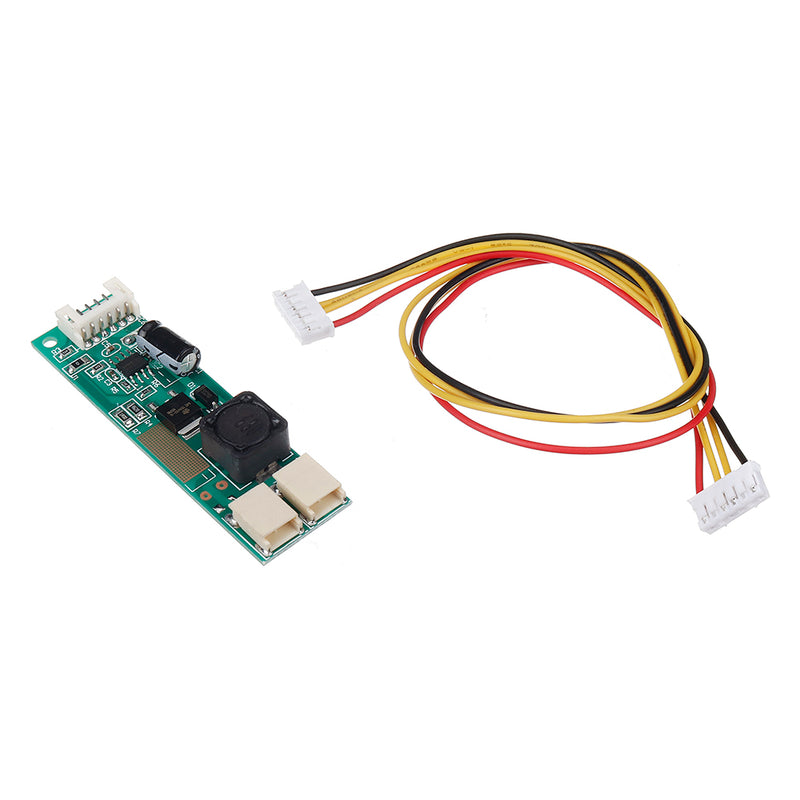

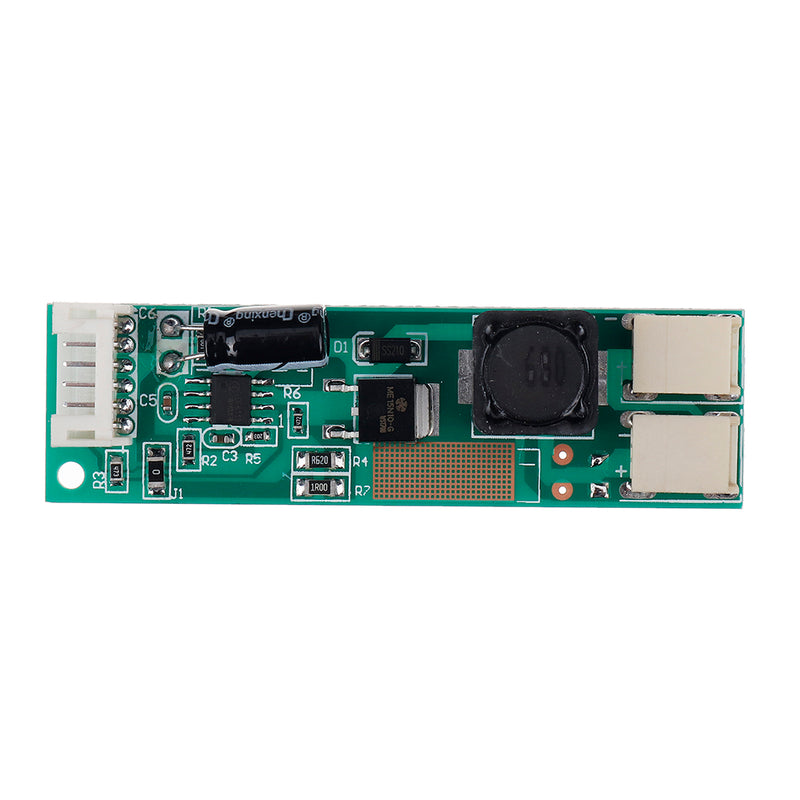

Constant current board: It is a universal constant current board. The standard small port input voltage is 10-30V and the output voltage is 9.6V.

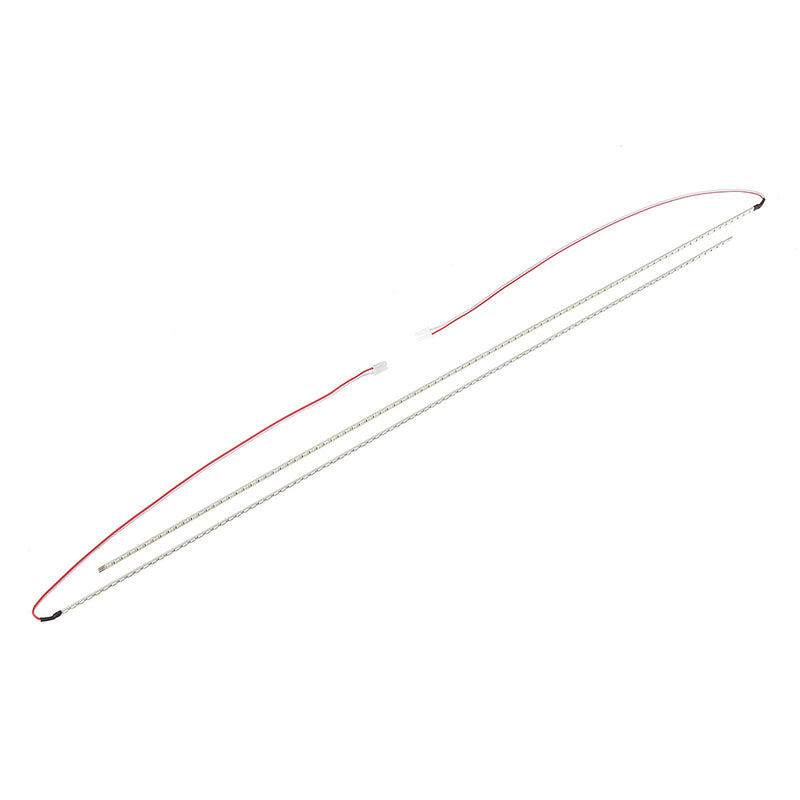

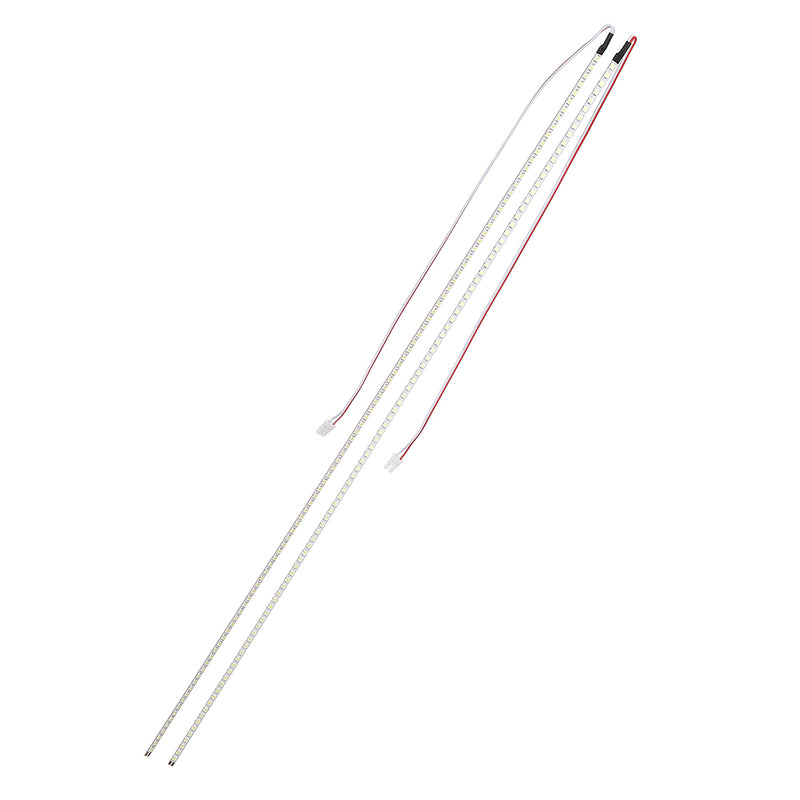

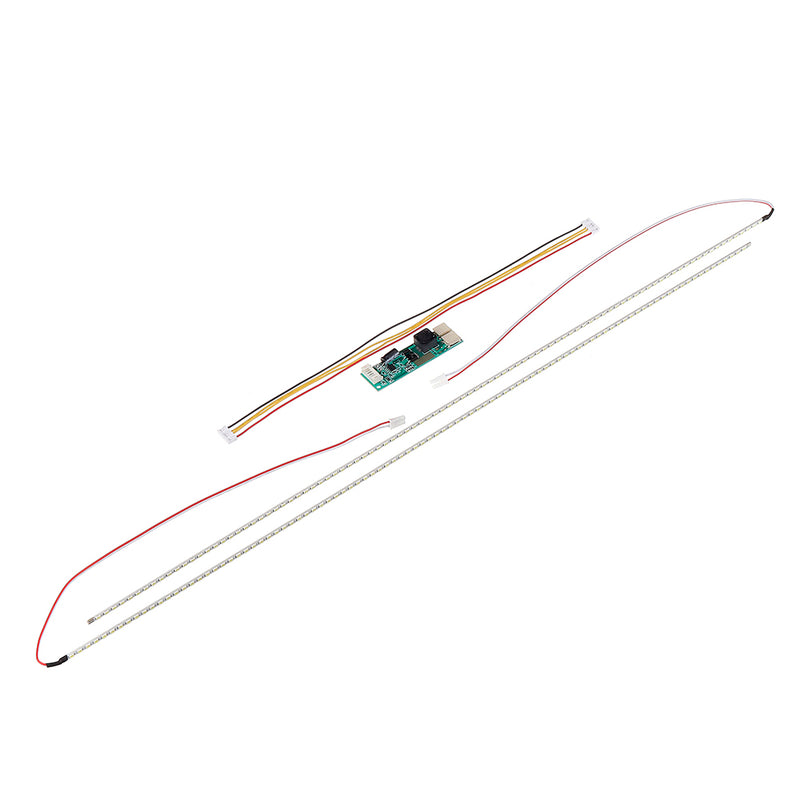

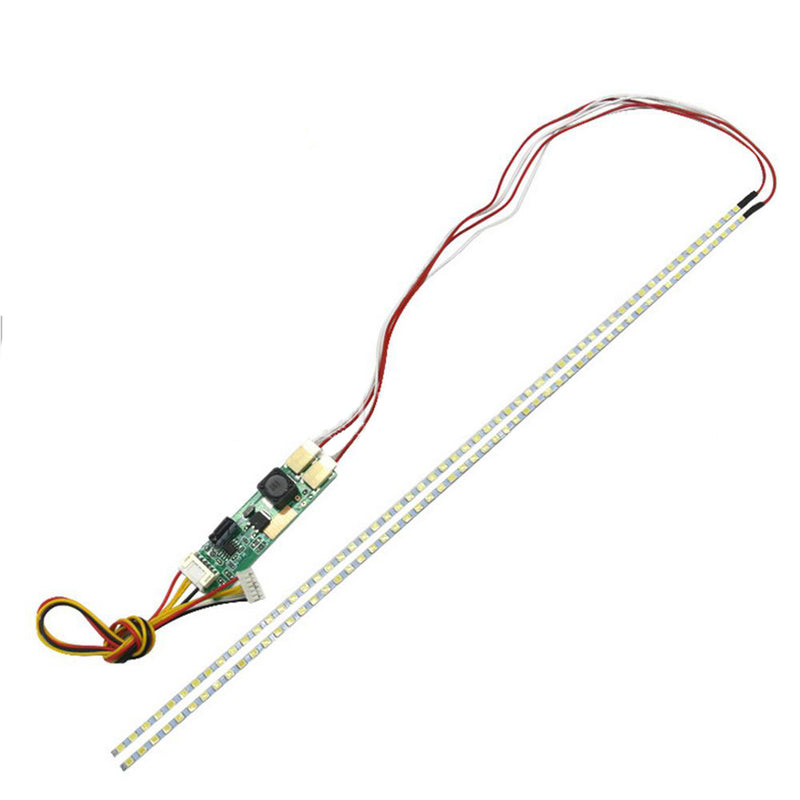

This set comes standard with: dual light bar + constant current board (all wiring)
Features:
1. This product is a special light bar for the original display.

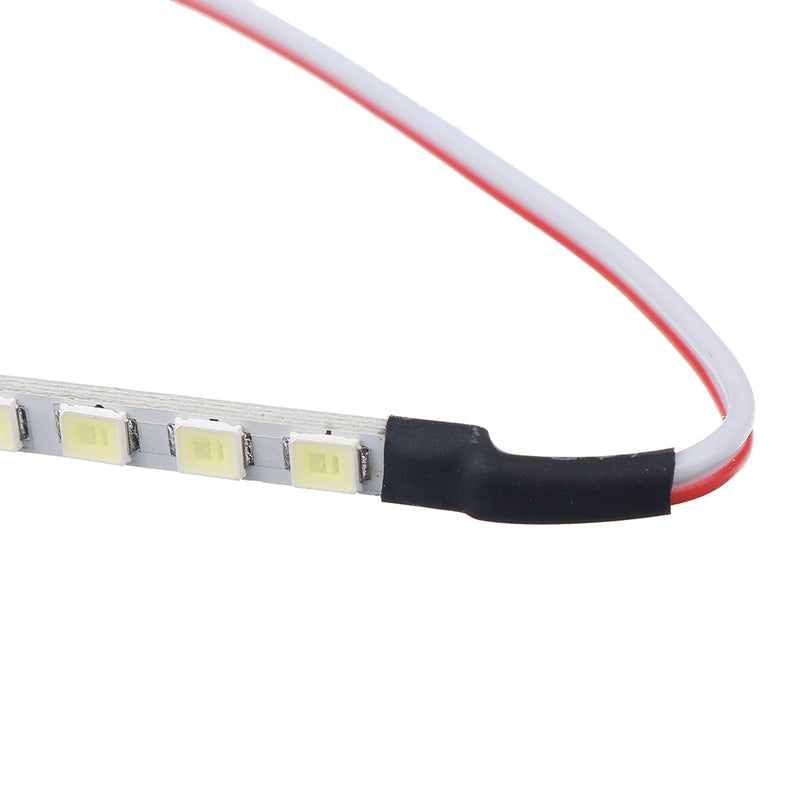

2. LED particles are compact, and high-density imported LED patches are arranged in high density
3. Can be adapted for most LCD displays on the market
4. Long life, designed for display, its life is up to 100,000 hours
5. Easy to install, you can use double-sided tape to stick to the original LCD slot of the monitor, or stick it elsewhere
6. Energy saving and power saving, the power is only 8W. The original 4 LCD power is generally 24W.
Modified LED backlight advantages:
(1) The brightness of the backlight made by ordinary lamps is very dark when it is turned on. The brightness of the backlight can be normal only after the lamp is fully warmed up, and the backlight made of LED does not need to wait for normal brightness as soon as it starts.
(2) Backlights made by ordinary tubes consume no power and do not save energy. LED backlights are both energy-saving and environmentally friendly.
(3) And the life is more than three times that of the backlight made by ordinary light tubes. You don't need to change the backlight for life, and you can be nefit from one investment for life.
For this reason, we now introduce a LED backlight suitable for DIY conversion
15 inches: 325mm-320mm
17 inches: 355mm
18.5 inches: 420mm with 425mm scissors
19 inches: 395mm
19 width: 425mm
20.1 inch: 455mm with 490mm scissors
22 inches: 490mm
23.6 inches: 530mm
24 inches: 540mm
25 inches: 560mm with 600mm scissors
26 inches: 600mm
As long as the length of the light bar is less than 600mm, it can be cut, and the LEDs are in groups of three.
Brief installation instructions:
If your display is a high-voltage board, then this set is a direct replacement of the high-voltage board and plugged into the driver board. If your display is a power high-voltage integrated board, then: After the high-voltage integrated version is powered on, find 12V (capacitor), and then unplug it. Turn off the power and use a multimeter to find the original connected to the 12V (capacitor) negative electrode. Connect the three wires 12V, ON, and GND on the boost board. The 12V on the boost board is connected to the 12V positive pole on the high-voltage integrated board. The GND is connected to the negative pole. Connected, ON connected ON / OFF. Simply put, the original high-voltage power supply is disconnected and the booster board is replaced by the original high-voltage front-end power supply.
Package Included:
1 x 540mm Adjustable Brightness LED Backlight Strip Light Kit
