Specification:
RF range: 902-928MHz
Polarization mode: Circular polarization.
Belt width: 26
Gain: 5 dBi
VSWR: ≤1.4
Half-power angle: 70o
Input impedance: 50Ω
Maximum input power: 100W
Mechanical properties:

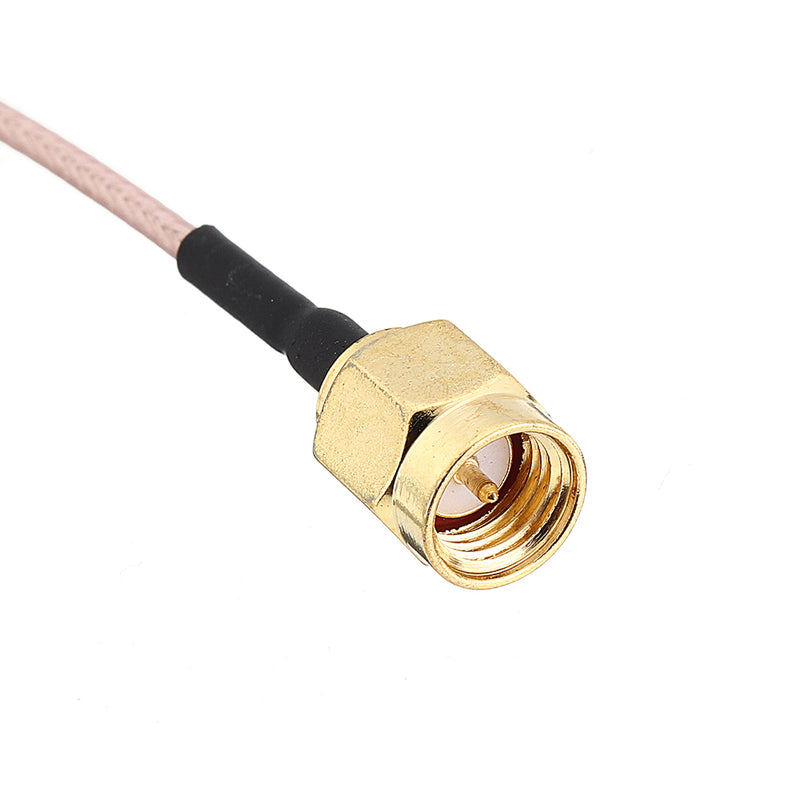

Connector: MMCX internal lines and SMA (Optional)
Measurement(length x width x height): 4.5cm * 4.1cm * 0.3cm
Weight: 20g
Working temperature: -40°C ~ +70°C
We have the SMA and MMCX connector, please leave the message to us, or we will send you the MMCX connector.
Feature:
1. RF optional standards: European 865-868MHz; United States 902-928MHz;
2. Polarization optional modes: circular polarization and linear polarization. Choose according to demands.
3. Optional connectors: normal ones are N series, SMA series, TNC series and etc.
4. Optional appearances. Gains are different from high to low according to the size of the antenna. We have several antennas. You may choose as you need.
Package includes:

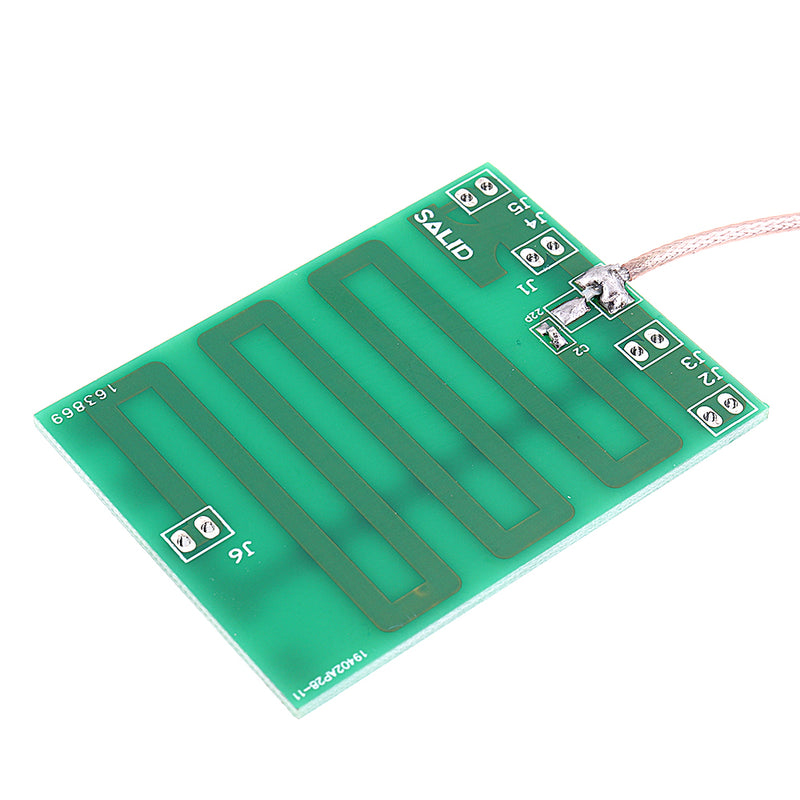

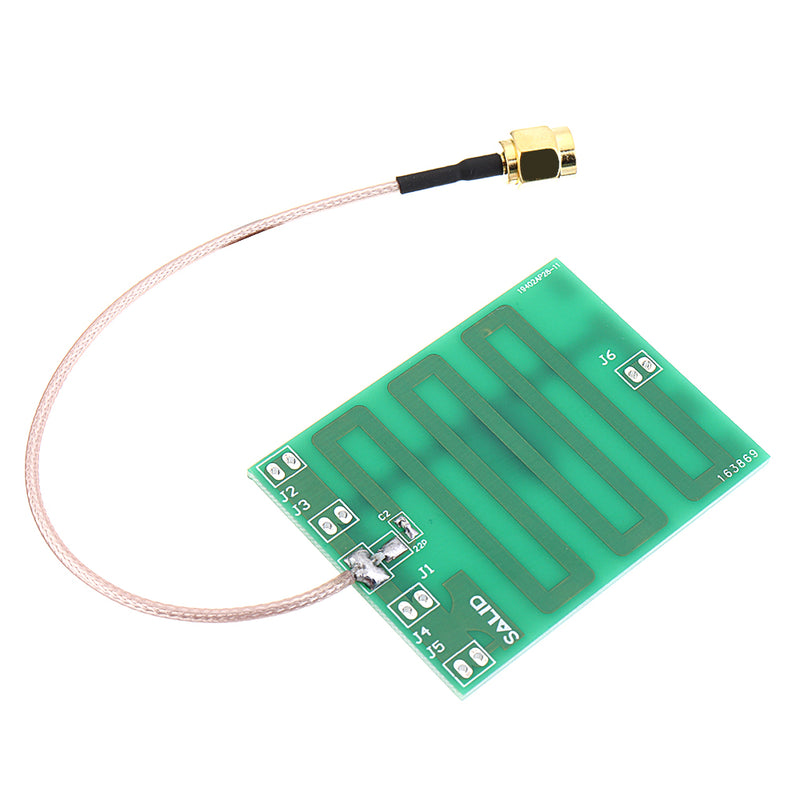

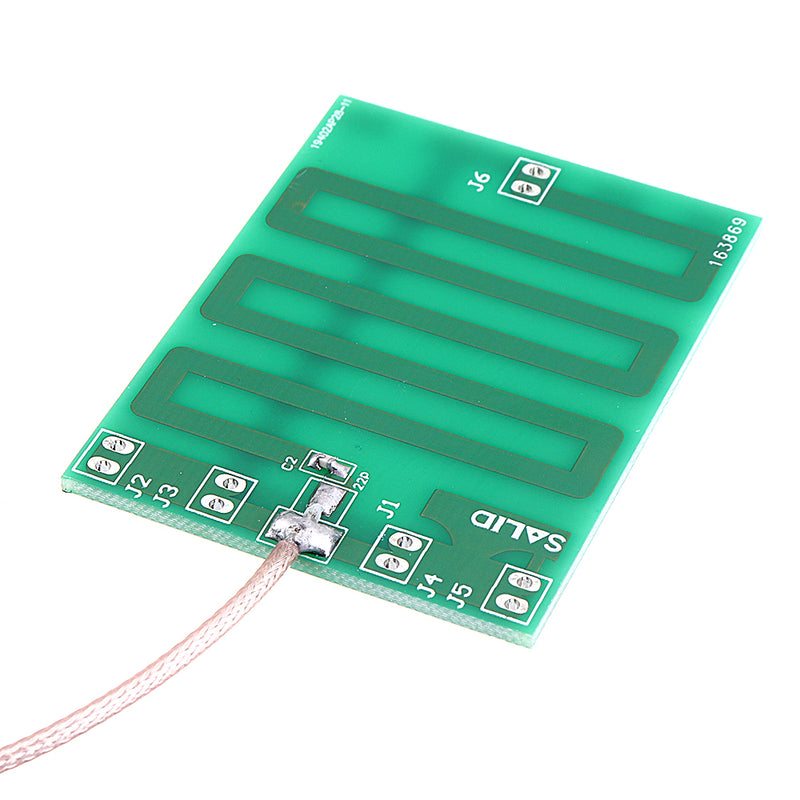

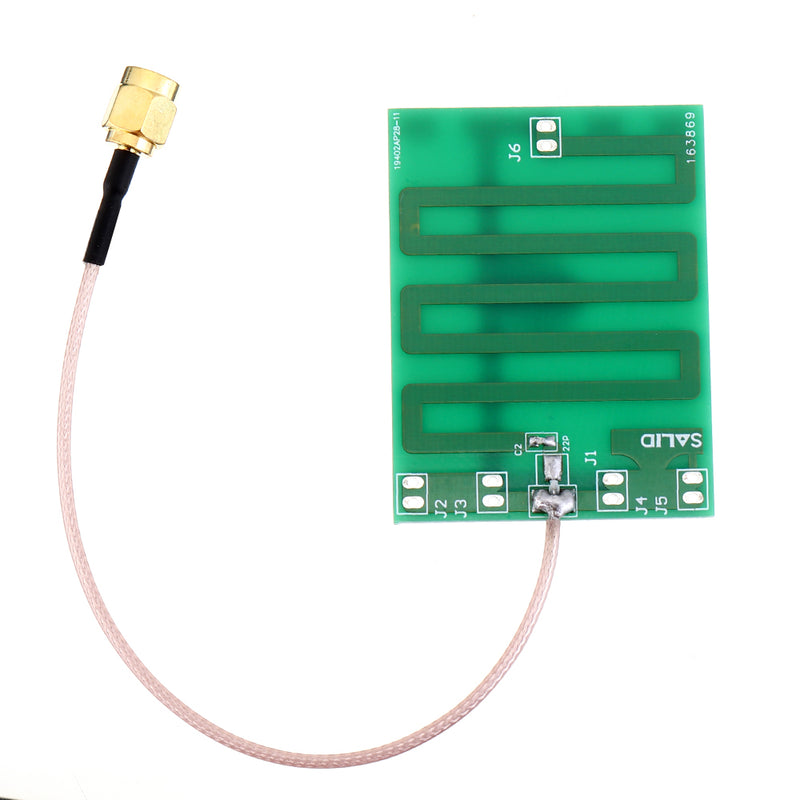

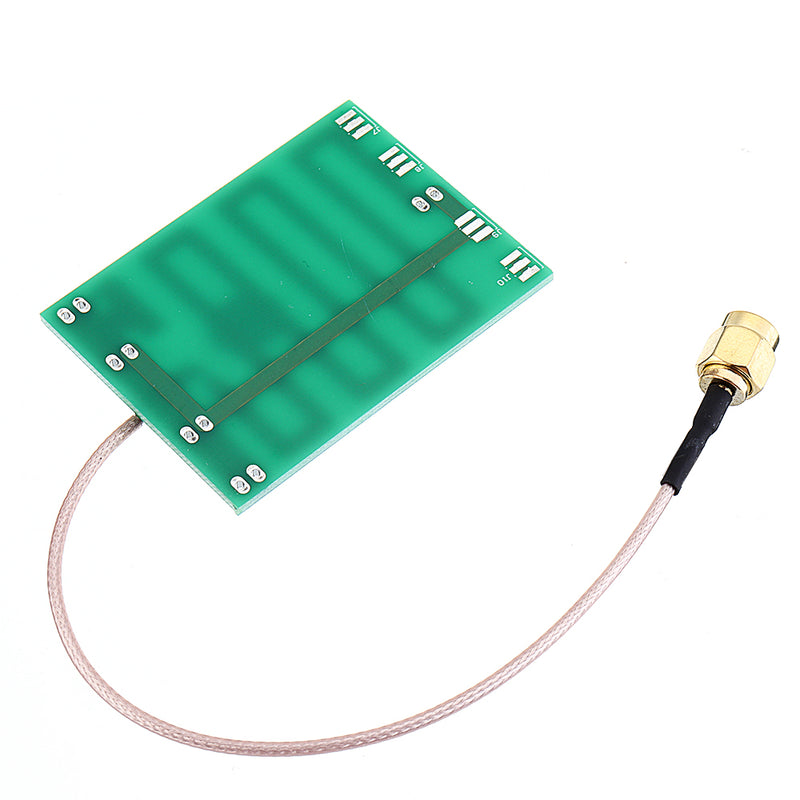

1 x 5dBi PCB UHF RFID 902-928M Antenna 5cmX5cm with SMA Connector
