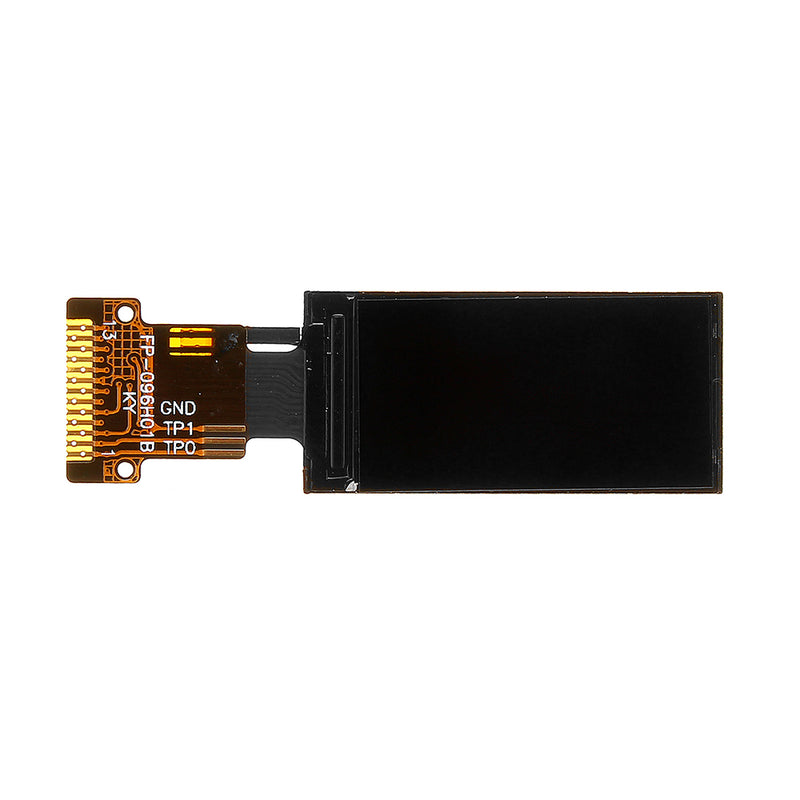

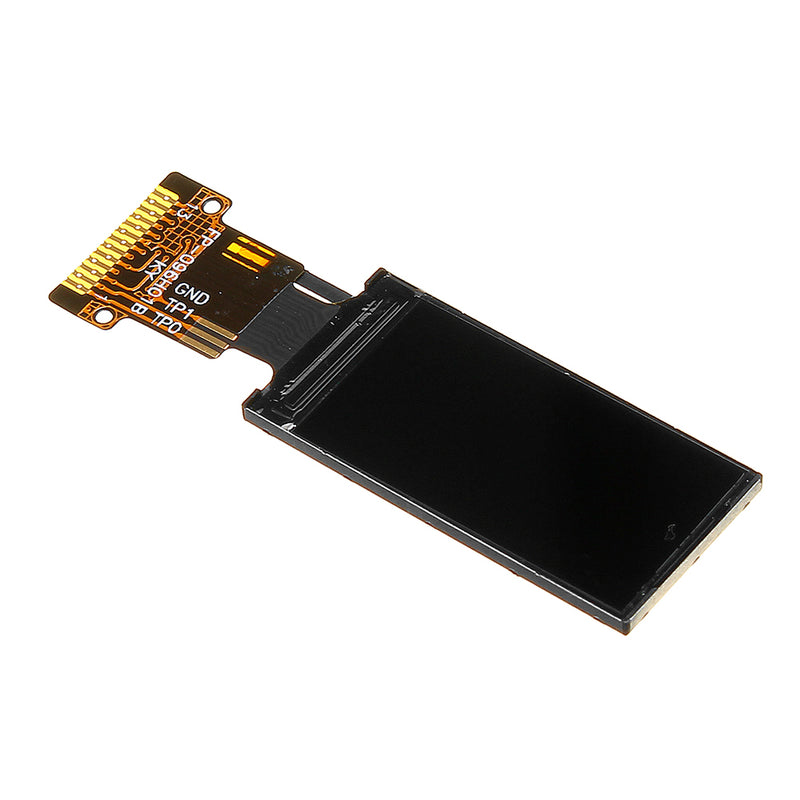

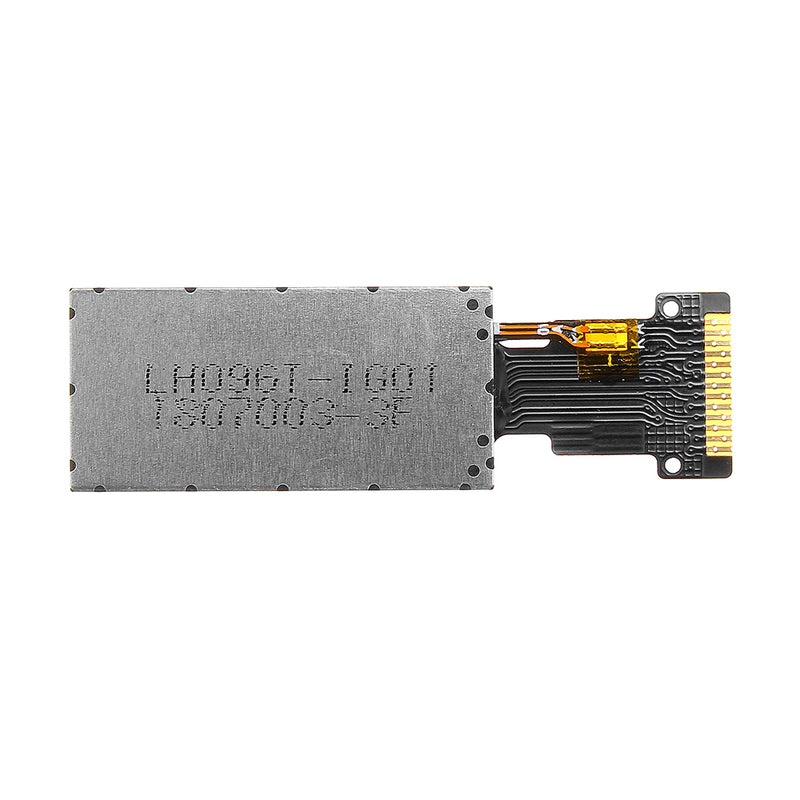

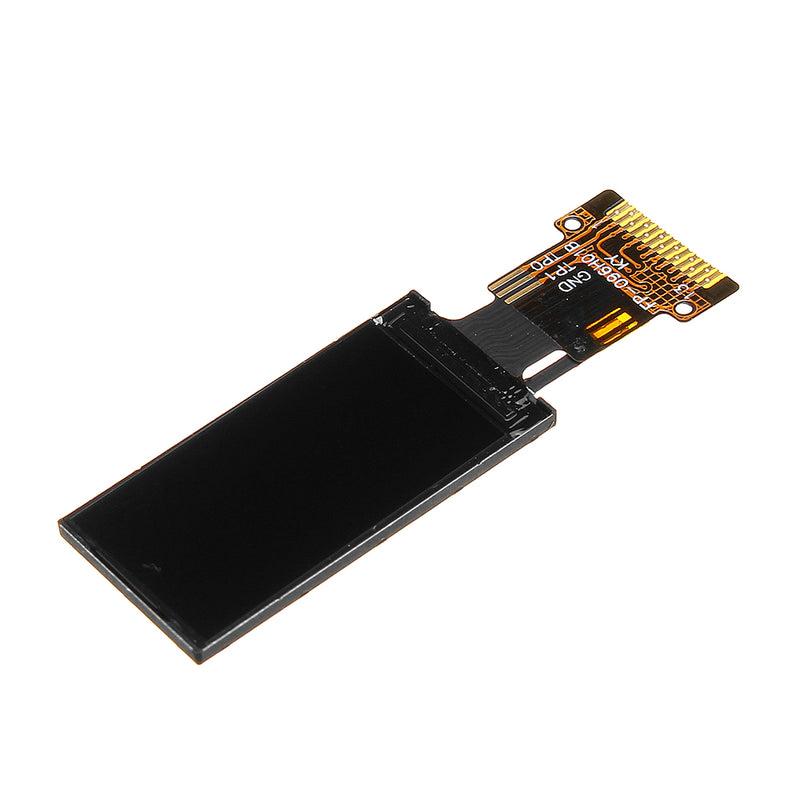

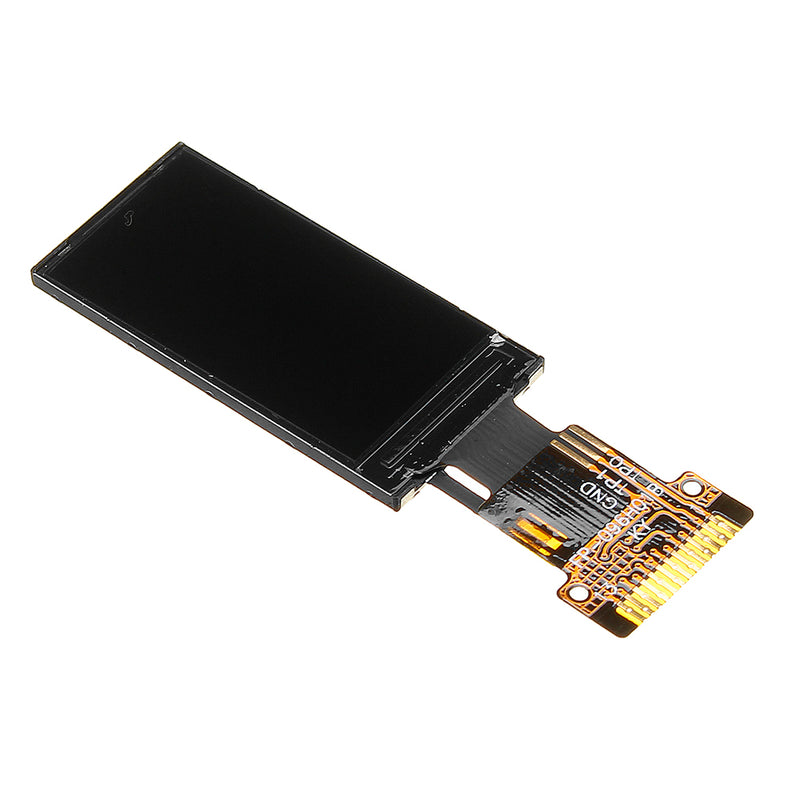

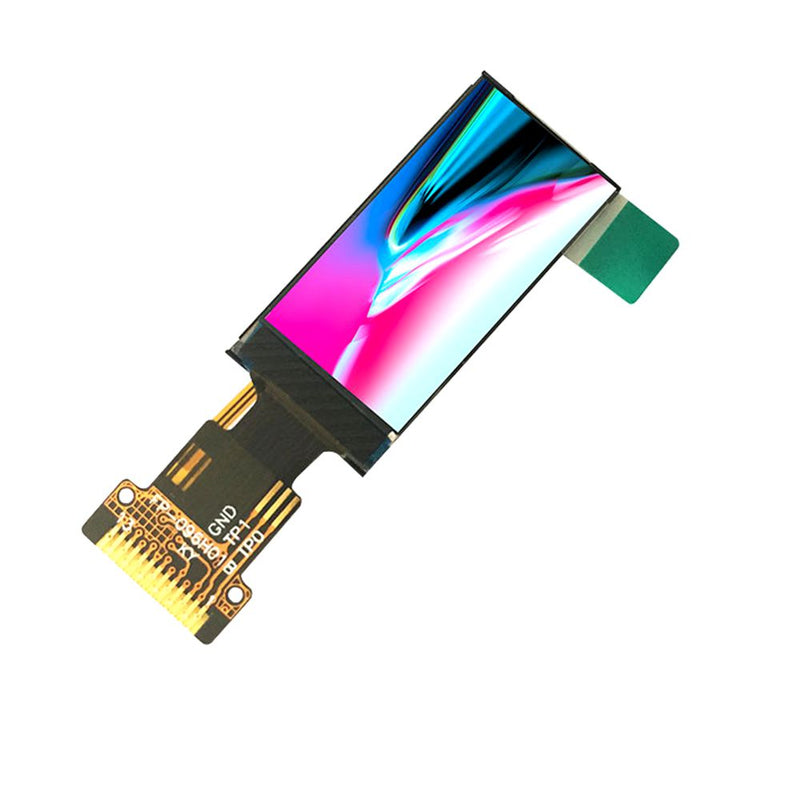

Parameter:
1. LCD Size: 0.96 inches
2. Dot Matrix Size: 80*160 (Display direction can be adjusted, horizontal screen and vertical screen are ok)
3. LCD Color: 65K Full Color
4. Hardware Interface: SPI interface
5. Driver IC: ST7735
6. Operating Temperature: -20℃ to 70℃
7. Working Power Supply: 3.3V
8. PIN NO: 13Pin
9. Display Area: 10.8x 21.696mm

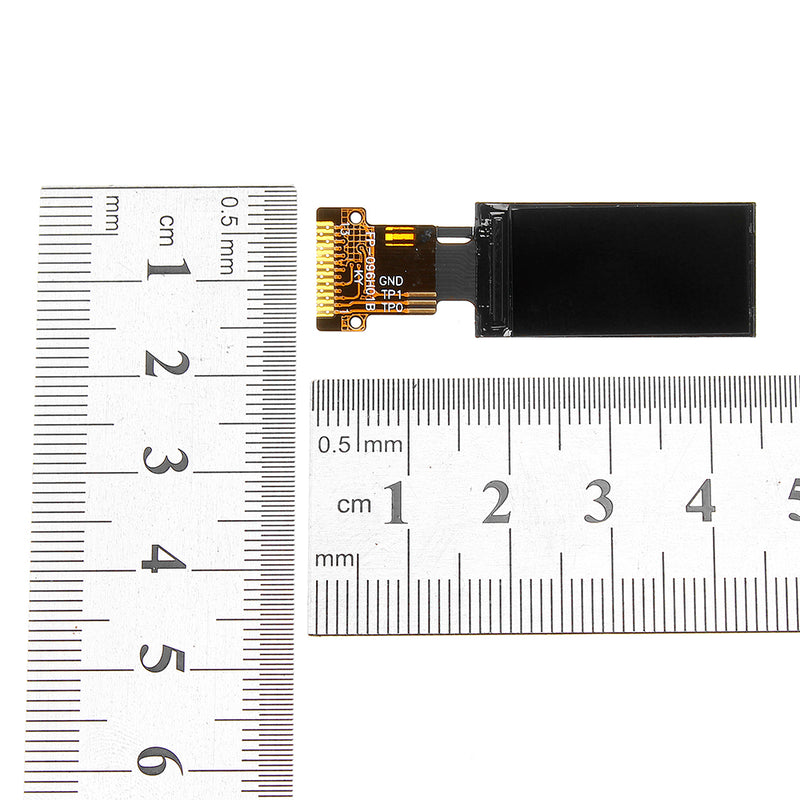

10. Size: 13.3*27.95mm
11 Viewing Direction: Full viewing angle (IPS)

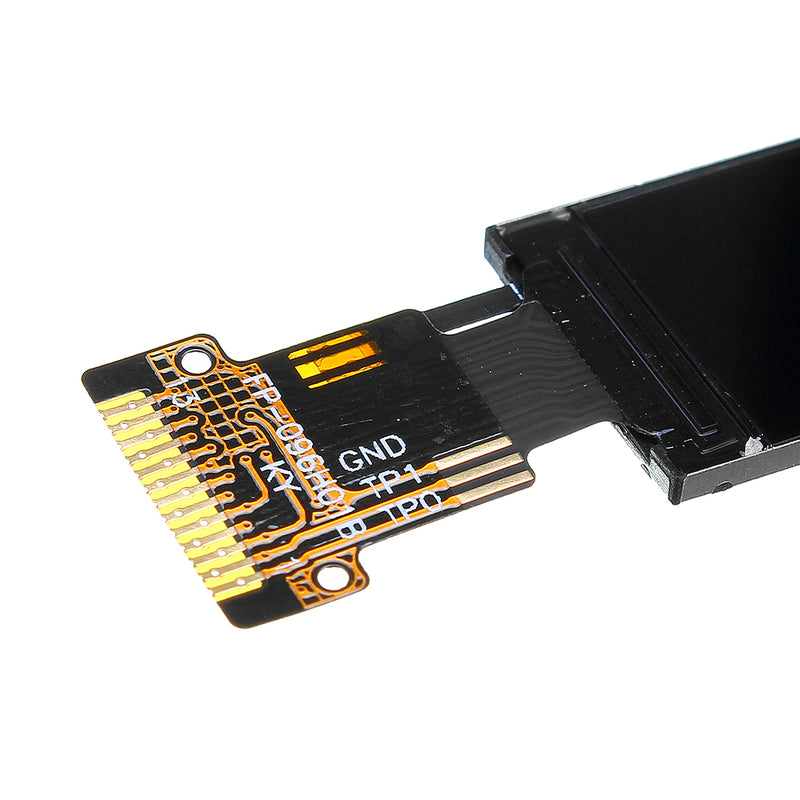

Interface Definition:
1: TPO
2: TP1
3: SDA
4: SCL
5: RS
6: RES
7: CS
8: GND
9: NC
10: VCC
11: LEDK
12: LEDA
13: GND
Package Included:

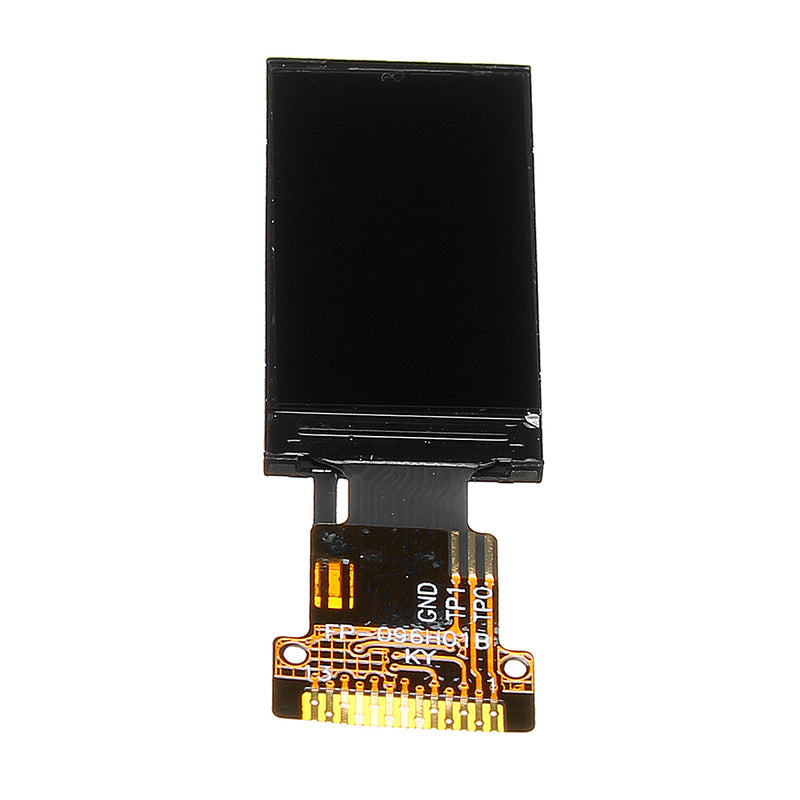

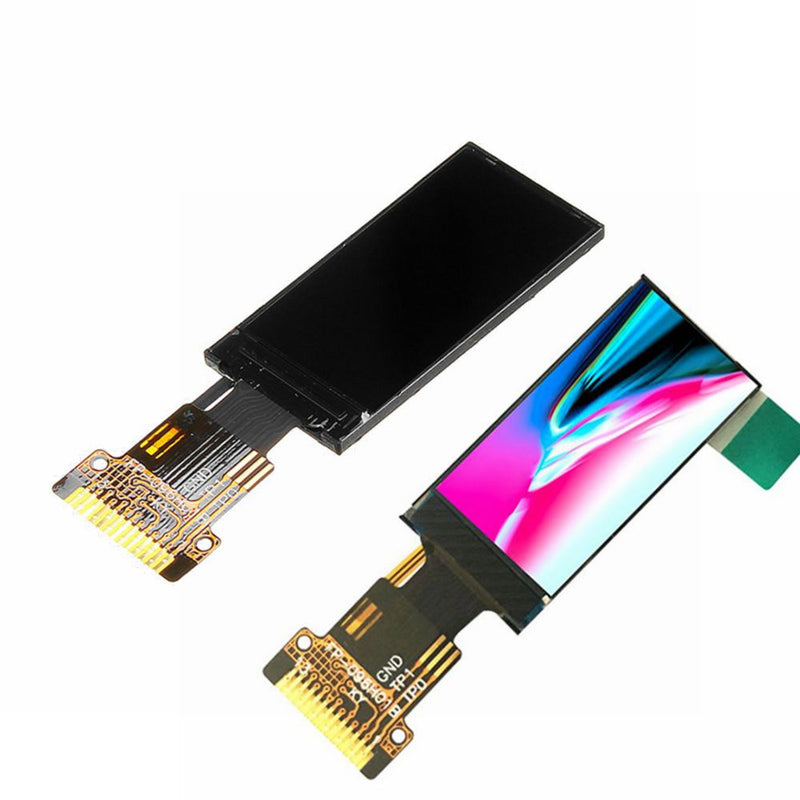

5 x 0.96 Inch HD RGB IPS LCD Display Screen
