Specification:
Marterial: Aluminium Alloy
Size: 80 x 12.7 x 12.7mm
Parameter:
Rated output temperature drift (% F.S / 10 ℃): ≤0.15
Zero output (mV / V): ± 0.1
Input resistance (Ω): 1000 ± 50
Output Resistance (Ω): 1000 ± 50
Insulation Resistance (MΩ): ≥2000 (100VDC)
Recommended excitation voltage: 5 ~ 10V
Operating Temp.Range (℃): - 10 to + 50
Overload (% F.S): 150
Interface:
Red: + (input)
White: - (output)
Black: - (input)
Green: + (output)

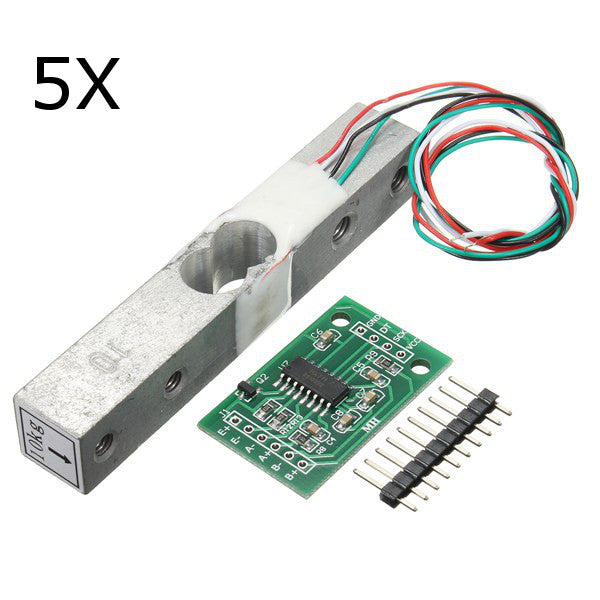

Package included:

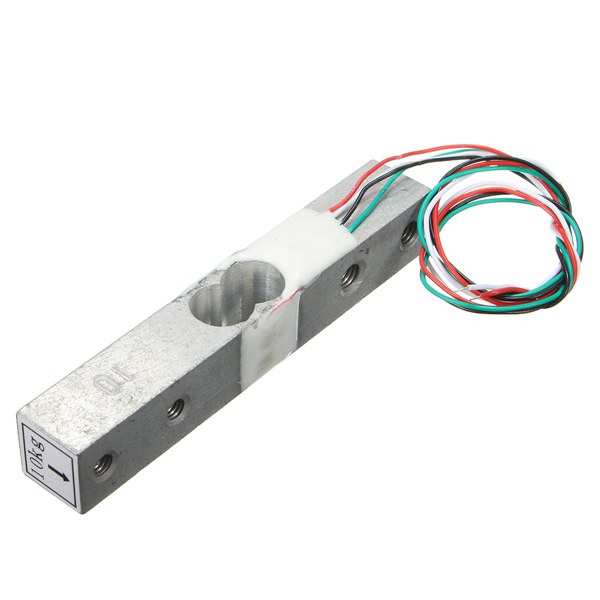

5 x Pressure Sensor

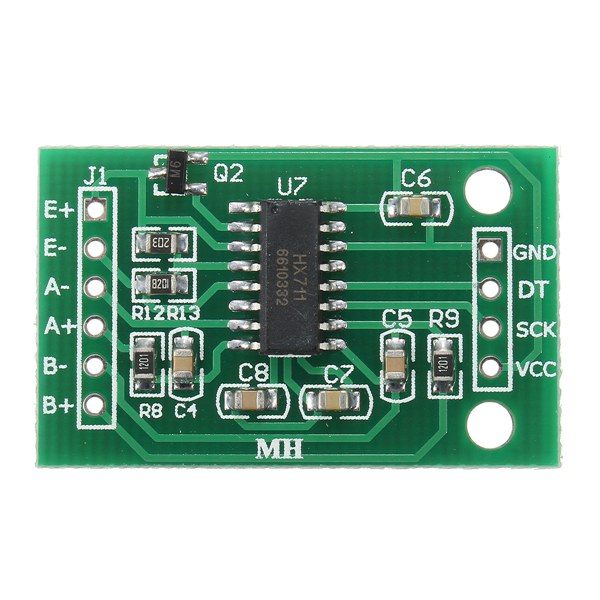

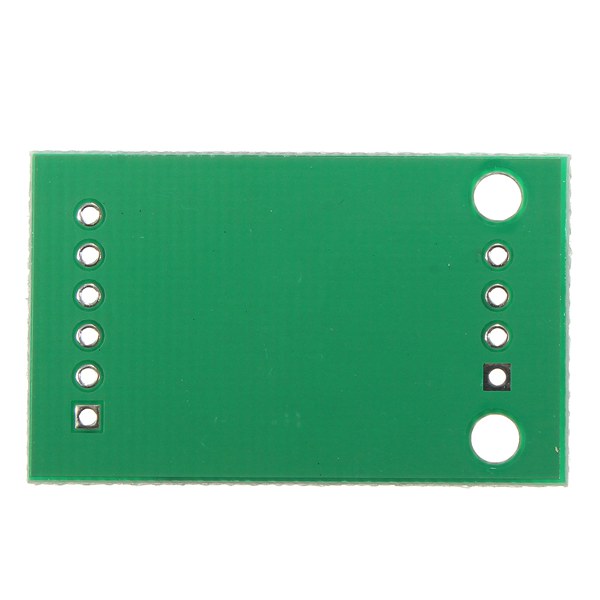

5 x HX711 Weighing Sensors AD Module
