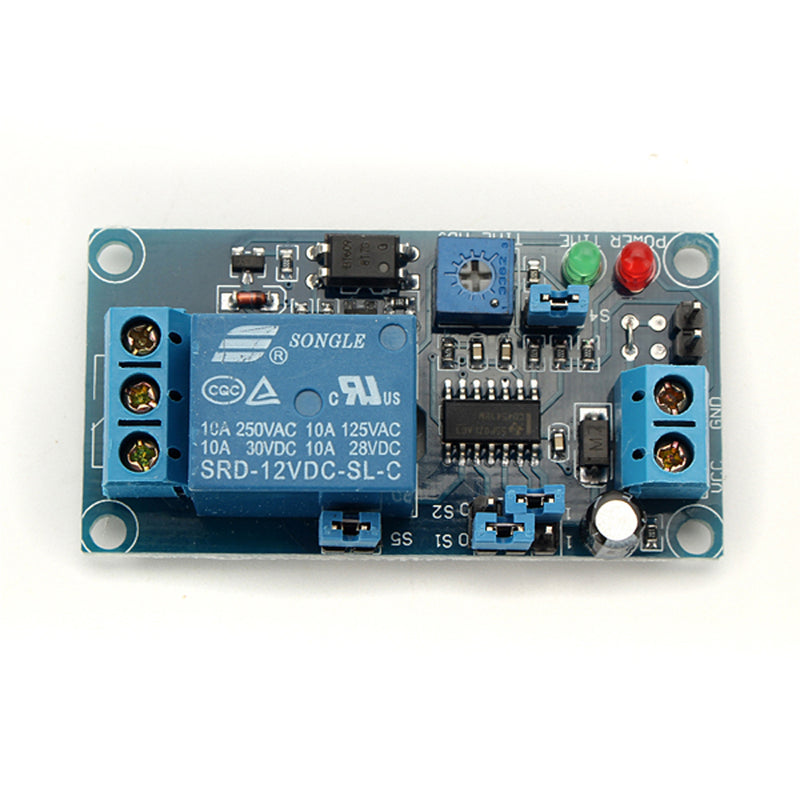

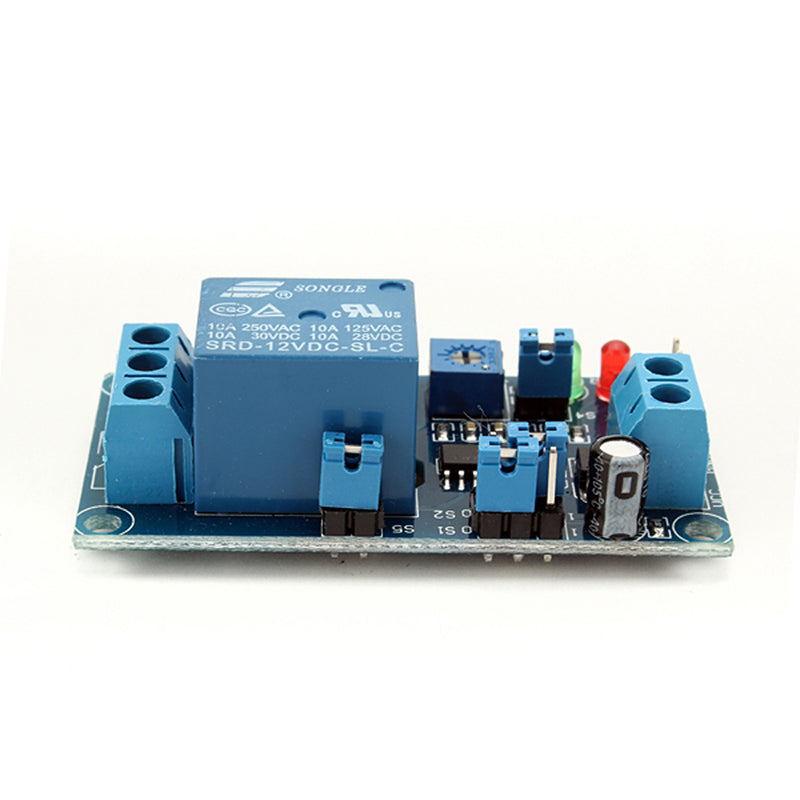

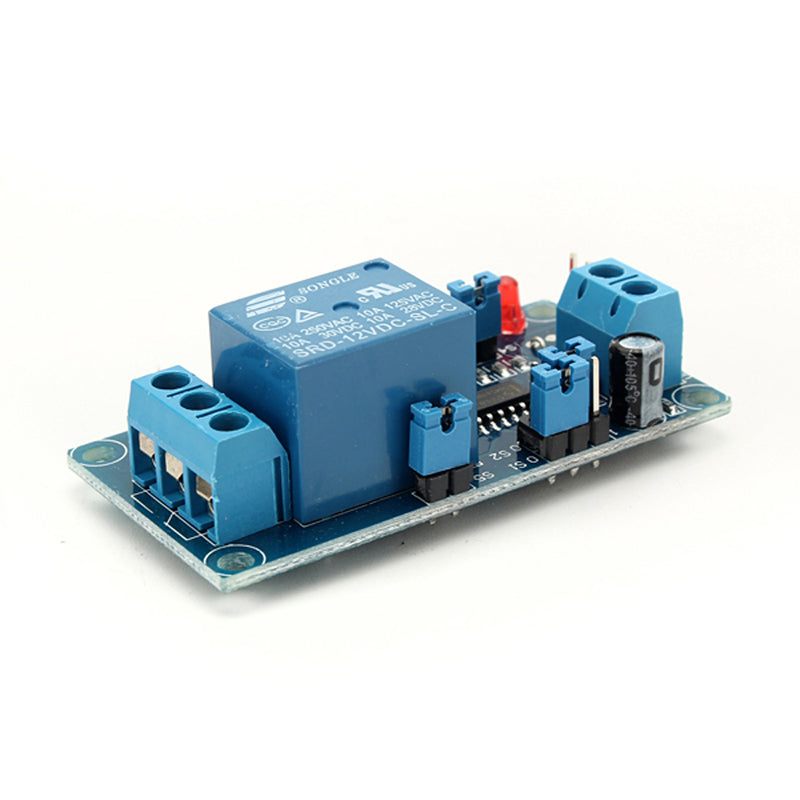

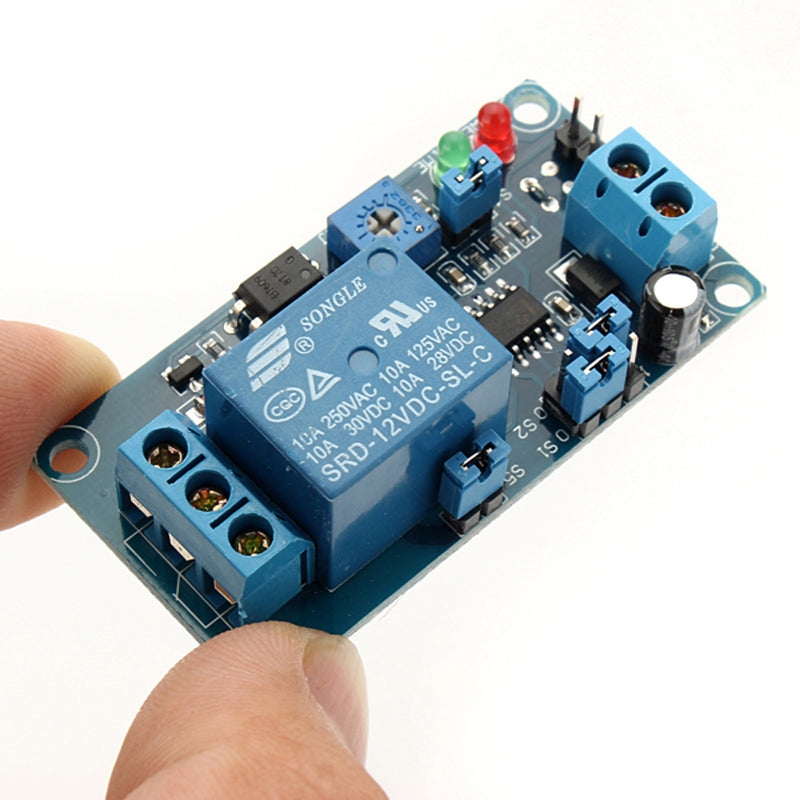

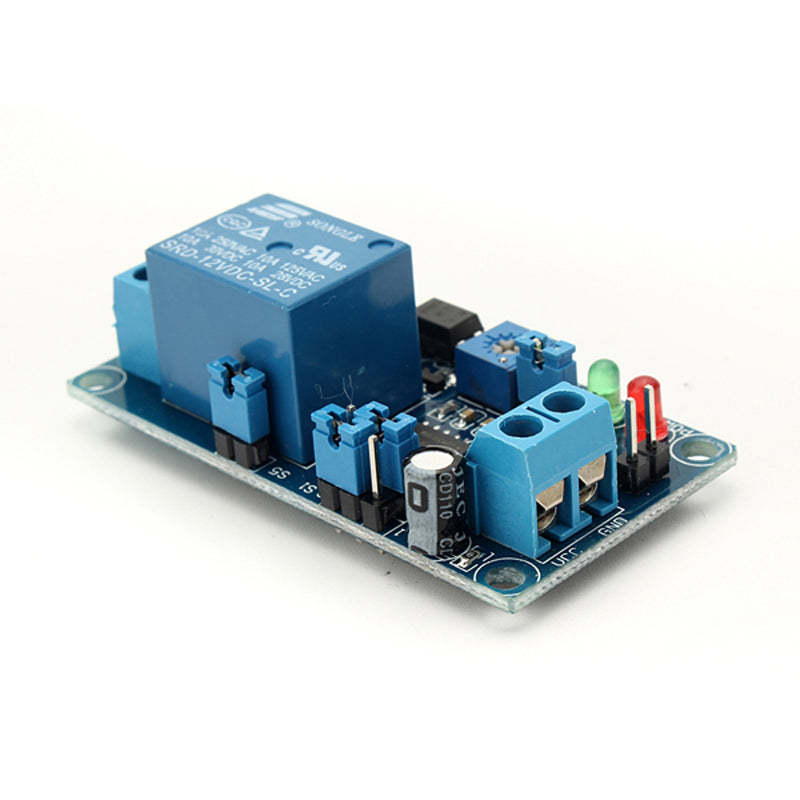

5pcs 12V Power On Delay Relay Module Delay Circuit Module NE555 Chip

Description:

The module when power is turned on, the timer is started immediately (time range is adjustable), the relay immediately pull switched common terminal of the relay and often the beginning of the end of the time delay, the relay is released, the common and normally closed terminal is turned on.

Feature:

Imported high quality delay chip design, the performance is far better than the 555 chip
Delay time range selection, the shortest 0.1 seconds, up to one hour, to meet most of the demand
Against power reversal protection diode, the effective protection of the product
Can be accessed by high current loads (AC 250V / 10A, DC 30V / 10A)
Time delay adjustment potentiometer clockwise adjustment will be more long

How it works:

When the module trigger terminal has sensed the switch momentary close, then the module start delay time function, at the same time the relay closed, when the time delay finish, the relay will returns to the normally closed terminal.
When the module is triggering delay, if there are trigger signal is received again, the module will restart timing, automatically trigger the last time until the end of the delay.

Delay time selection method, switch S1, S2, S4 to a different position, the potentiometer can adjust different time range.

Application:

The tachograph GPS start protection, household appliances, electronic equipment protection, sound protection, industrial control, PLC control, electronic experiments, robot, the range of applications is very wide range.

No instructions supply, please note about this before you order it.

Package included:

5 x 12V power-on delay relay module
