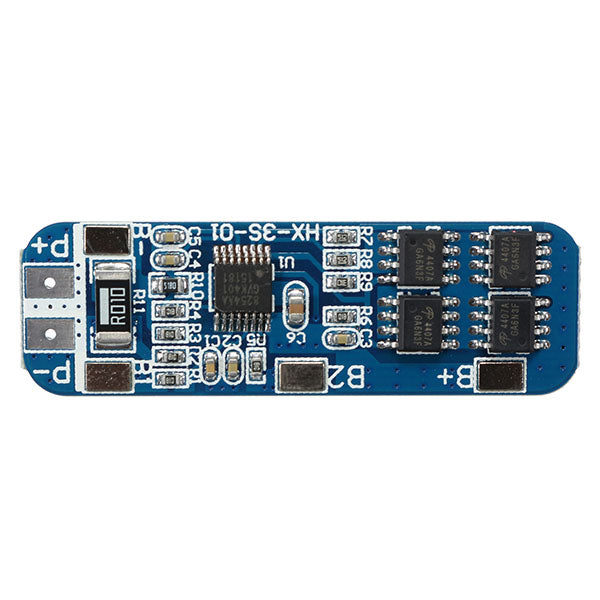

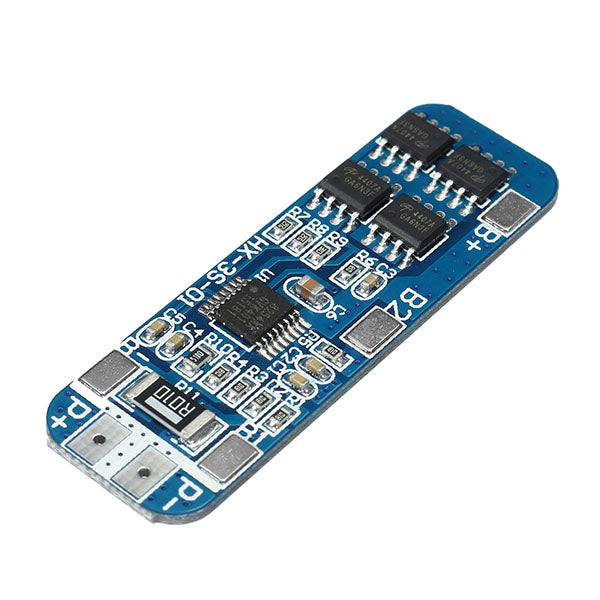

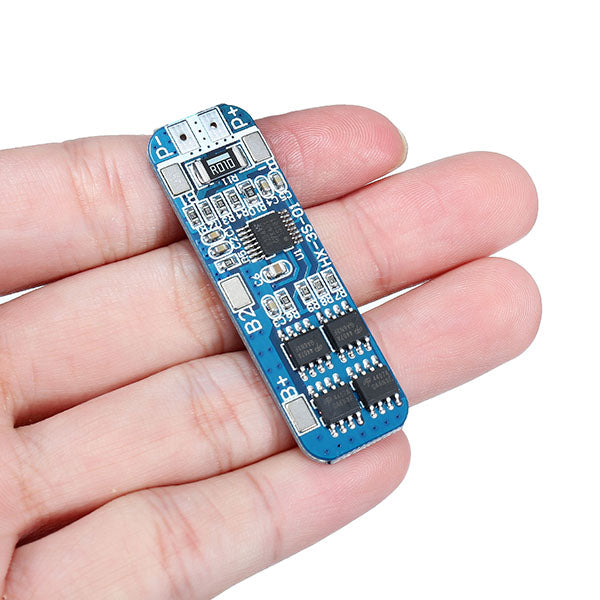

Specifications:Input voltage: 12.6VOver-charge voltage range: 4.25-4.35v ± 0.05vOver-dischage voltage range: 2.3-3.0v ± 0.05vSize: 50 x 16 x 1.0mmMaximum operating current: 5-8A Maximum instantaneous current: 9-10AOperating temperature: -40 -- +50 ℃Storage conditions: -40 -- +80 ℃Quiescent current: less than 6uAEffective life: more than 30,000 hoursInternal resistance: less than 60mΩShort circuit protection: protection, delay self-recovery.The protection board size and device descriptionThe protection board size is 50 x 16 x 1.0mm, components for the S-8254AA protection chip and genuine FDS 4435A x 4Note:
The protection board can not be used for iron from the polymer battery, hand drill battery pack, electric fish machine battery pack, electric bicycle battery pack, 2 and then in series 24V use, 775 (4A) above motor, 1W fisheye LED light.
The described power range is applicable to the following products:
Vacuum cleaner massager battery pack, LED light standby power supply, 12V electronic products, solar street lamp battery pack, monitor backup power supply, and other products.
Description explanation:
3S (for 3 18650 batteries or polymer lithium battery series combination)
10.8V (rated voltage for polymer battery)
11.1V (18650 or 3.7V lithium battery rated voltage)
12.6V (lithium battery is fully charged)
Discharge 10A (referring to the maximum dis-charge current limit)
Lithium battery protection board
Comes with: over-charge, over-discharge, over-current, short circuit protection
18650 lithium battery pack must!
Package included:
5 x 3S 12V 10A 18650 lithium battery charger protection board
