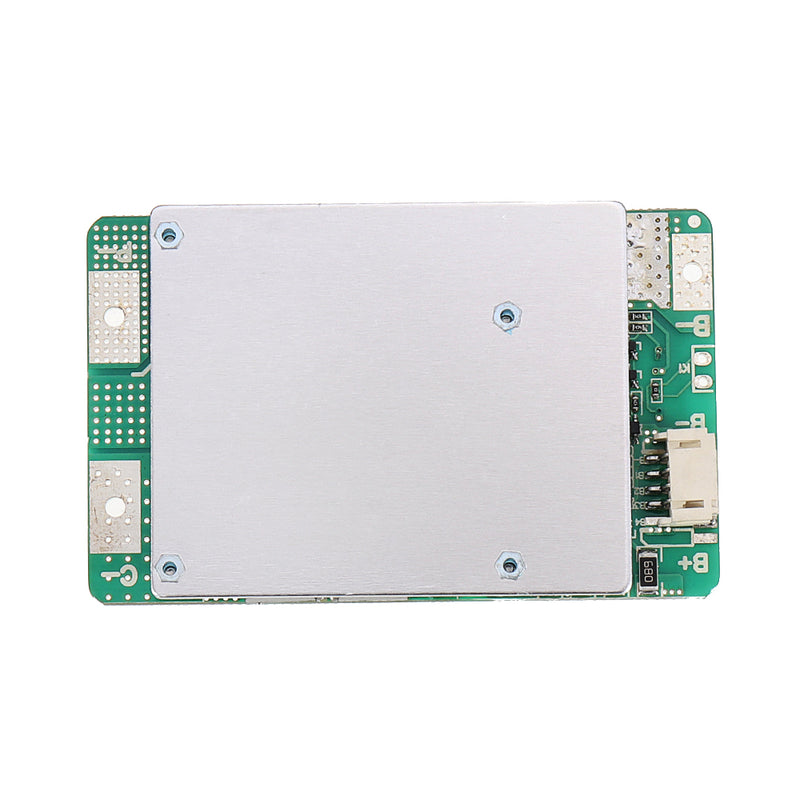

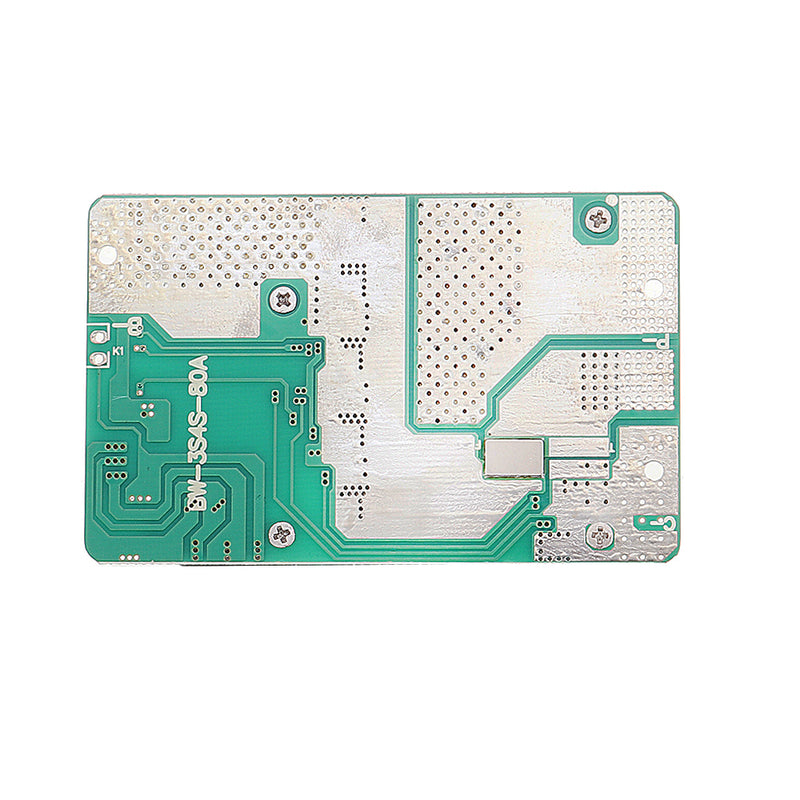

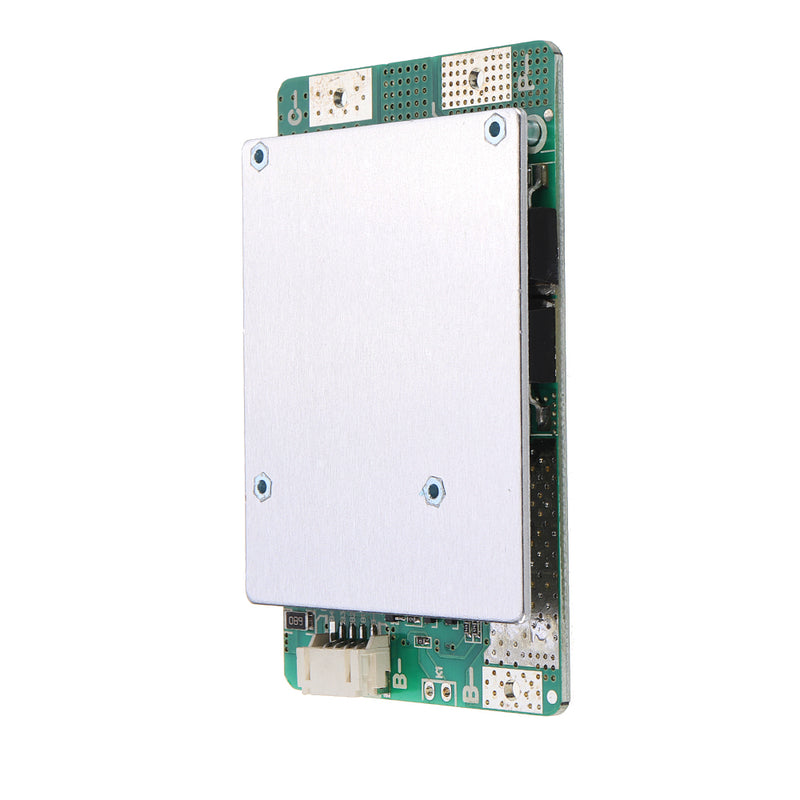

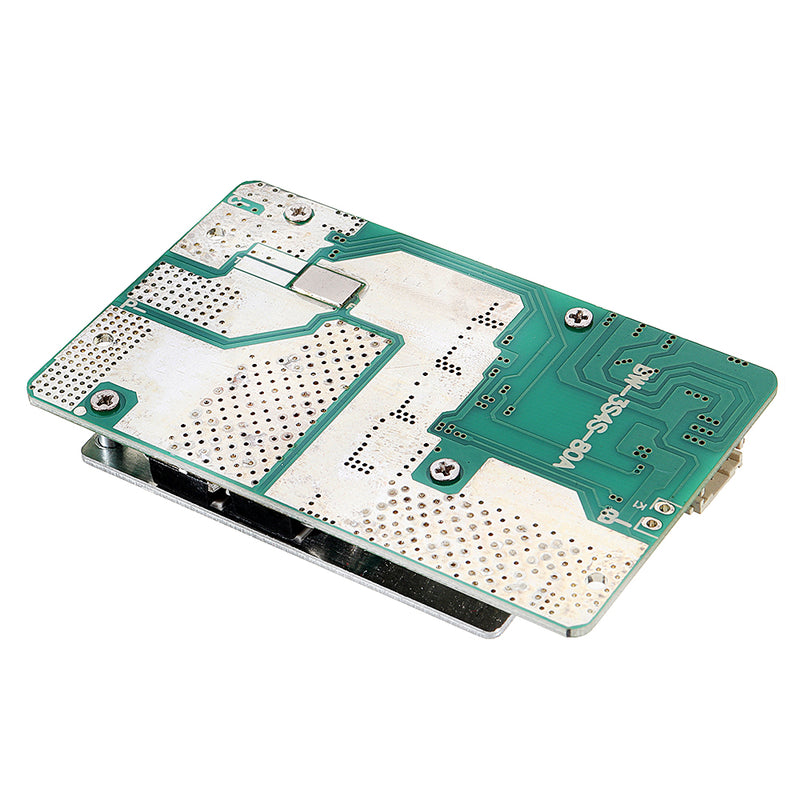

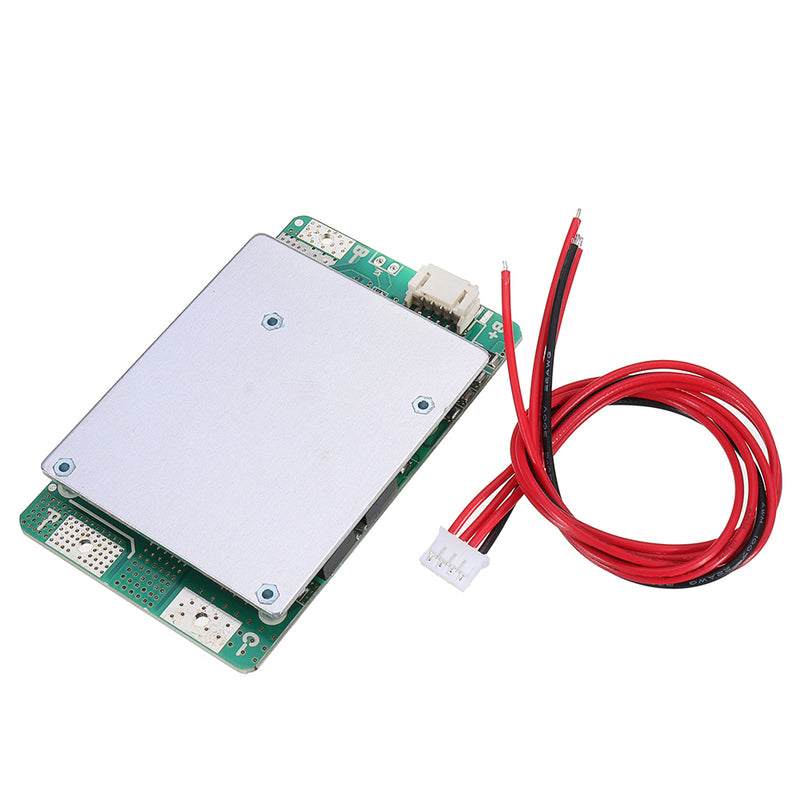

5pcs 3S string 12V Continuous Current 100A Lithium Battery Protection Board For Inverter Car Start Power Board

5pcs 3S string 12V Continuous Current 100A Lithium Battery Protection Board For Inverter Car Start Power Board

Name: 5pcs 3S string 12V Continuous Current 100A Lithium Battery Protection Board For Inverter Car Start Power Board
Brand: Banggood
SKU: U2I-BG-1619672
Price: 8,376.00 INR
Availability: InStock

SKU: U2I-BG-1619672

Share this product

Function:

Common Problem: Click here to open

Overcharge protection

Over discharge protection

Overcurrent protection

Short circuit protection

Equalization function

Feature:

Test items		Standard
Voltage	Charging voltage	DC: 12.6V -15V CC/CV
Voltage	Single-section equalization voltage	4.2V
Current	Single-phase equalization current	44 MA
	Working current	80A-100A
	Large continuous discharge current	150A
Overcharge protection	Overcharge detection voltage	4.275 V±0.025V
	Overcharge detection delay time	150-500 ms
	Overcharge recovery voltage	4.075V±0.025V
Overdischarge protection	Overdischarge detection voltage	2.9V±0.1V
	Overdischarge detection delay time	50-150ms
	Overdischarge recovery voltage	2.9V±0.10V
Overcurrent protection	Overcurrent detection voltage	150±30mv
	Overcurrent detection current	150A±0.5A
	Overcurrent detection delay time	5ms-15ms
	Recovery status	Automatic recovery
Short circuit protection	Detection status	External short circuit
	Detection delay time	≤50us
	Recovery status	Automatic recovery
Internal resistance	Protection line (MOSPET)	≤40mΩ
Temperature	Range of working temperature	-40 ~ +75℃
Temperature	Storage temperature range	-40 ~ +90℃

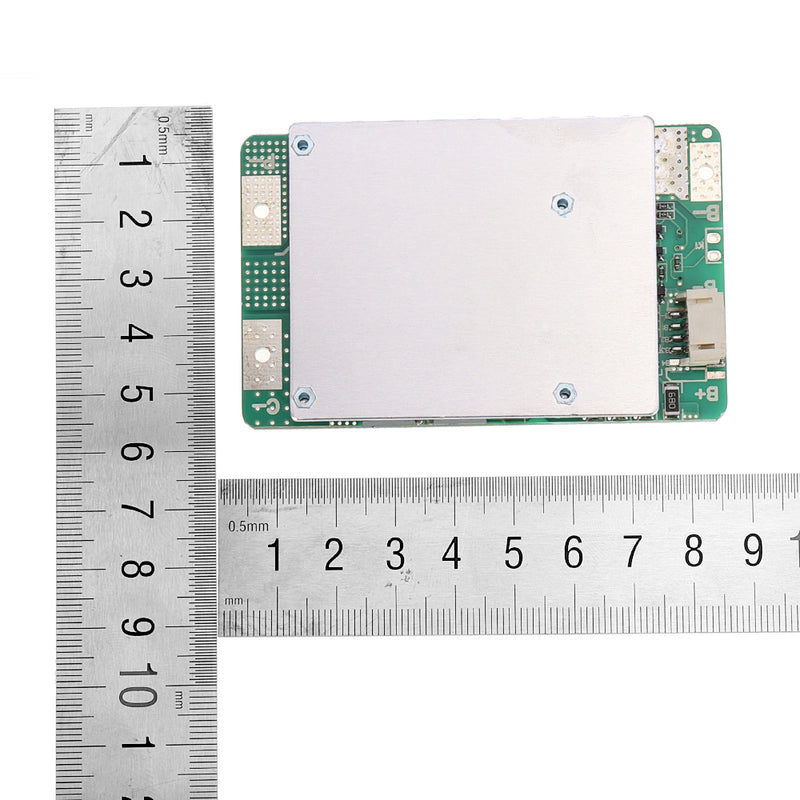

Size (LWH)	8251.48 MM

Package includes:

5 x Battery Protection Board
