Over charge detection voltage: 4.28+ 0.05 V Over charging voltage: 4.095-4.195V Over discharge voltage: 2.55±0.08 Over charge detection delay time 0.1s Temperature range -30-80 Short circuit detection delay time: 100ms Over current detection delay time: 500 ms Balanced current: 60mA Working current: 30A Over current: 60A Short circuit protection function: there is, disconnect the load can be self recovery. Size:45x56mm
Main function:
Over charge protection, over discharge protection function, short circuit protection function, over current protection function, band balance.
Interface definition:

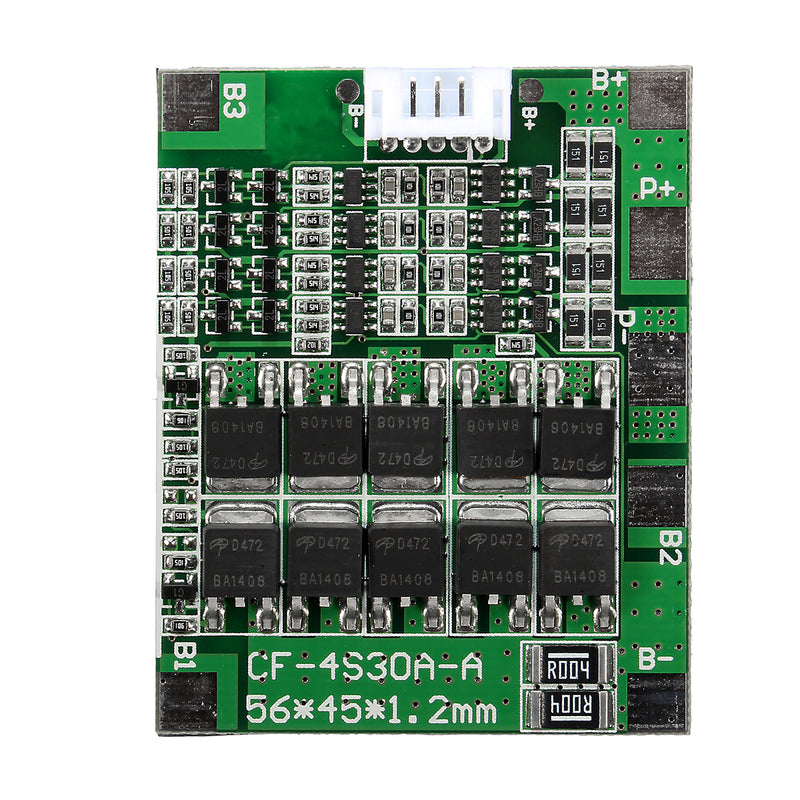

Charging port of the plate and the discharge port is the same, both positive and B- connecting battery"-", P- charging port and port on the negative electrode; B-, N-, P- pads are all over the hole, the hole diameter of the pad is 3.5mm; The battery charging detection interface with DC output in the form of needle. Do the same mouth when the N- is not wiring.
