5Pcs 5KG Small Scale Load Cell Weighing Pressure Sensor With A/D HX711AD Adapter

5Pcs 5KG Small Scale Load Cell Weighing Pressure Sensor With A/D HX711AD Adapter

Name: 5Pcs 5KG Small Scale Load Cell Weighing Pressure Sensor With A/D HX711AD Adapter
Brand: Banggood
SKU: U2I-BG-1136341
Price: 6,946.00 INR
Availability: InStock

SKU: U2I-BG-1136341

Share this product

Feature:

Size: 12.7 x 12.7 x 75mm
Force variation output: Voltage signal
Operating voltage range: 2.6 to 5.5V
Operating temperature range: -20 to + 85 ℃
Power consumption (including power supply circuit): Typical operating current: <1.7mA, shutdown current: <1μA
Output data rate: 10Hz or 80Hz optional
Chip FootPrint: SOP-16 16-pin

Specification:

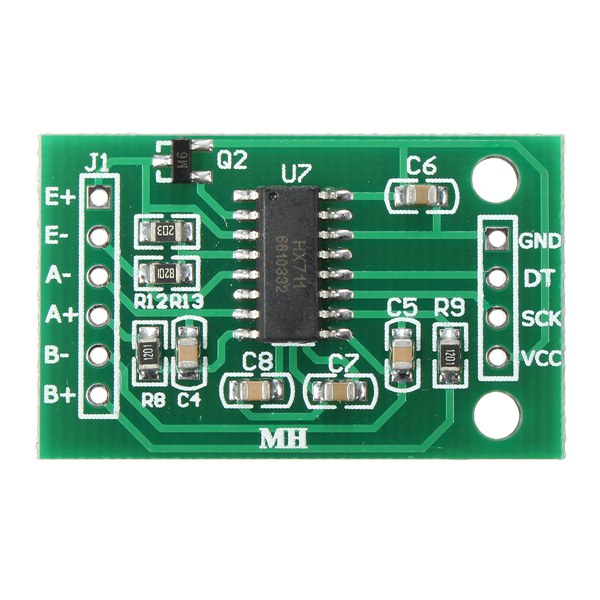

The module uses 24-bit A / D converter chip hx711
For high-precision electronic scale and design
The module has two analog channel inputs, programmable gain of 128 integrated amplifier.
The input circuit can be configured to provide an electrical bridge bridge voltage (e.g., pressure, load) Sensor Mode.
All are controlled by input pins, the chip registers without programming that simple digital control and serial communication.

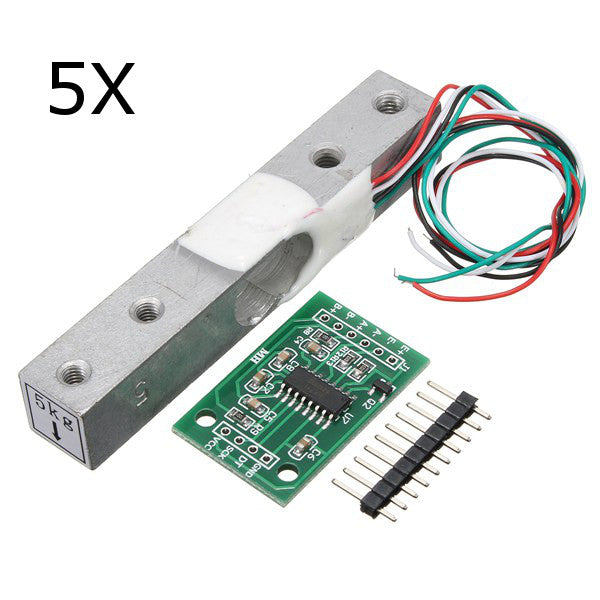

Package includes:

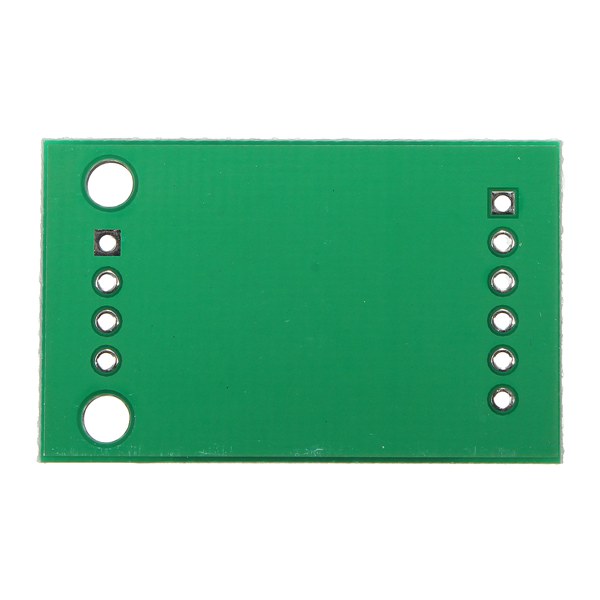

5 x HX711 Weighing Sensor 24-bit A/D Conversion Adapter Load Module

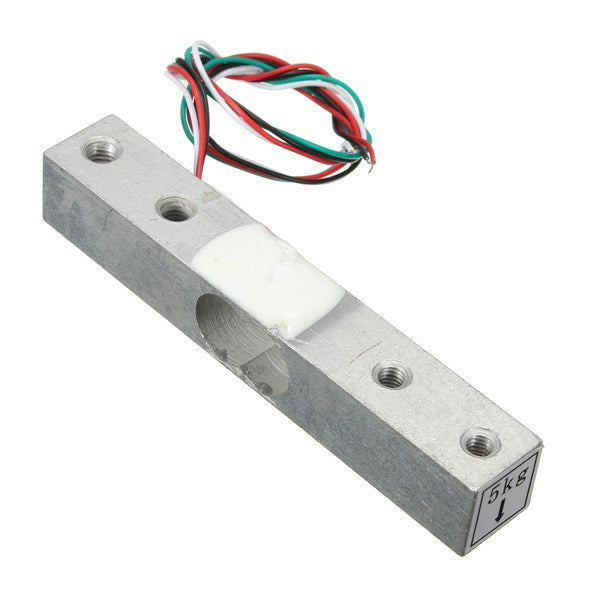

5 x 5KG Weighing Sensor
