Features:
-For driving micro line 3 or 4 lines no Hall brush-less motor such as Hard disk brush-less motor, Drive brush-less motor
-With Reverse Voltage Protection,OCP(over-current protection)
Specifications:
Material: PCB
Color: Green
Size: 31*45mm
Diameter of location hole: 3mm
Driving voltage: 5-12V
Working current: ≤1.2A
Speed adjustable range: 0%-100%
Note:
The brush-less motor line must be pressure sturdiness when receiving terminal drive plate , poor contact will burn out the chip phase operation deficiency. If there is a interval between the board terminals and fixed screw, please use coarser line connected to the board.
Package included:

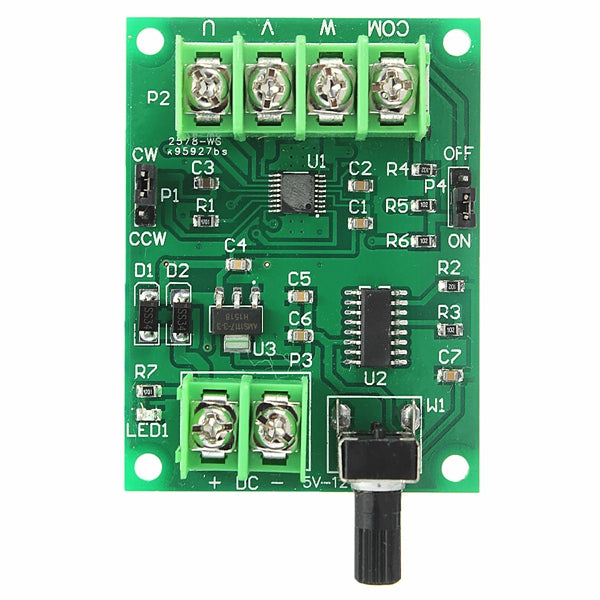

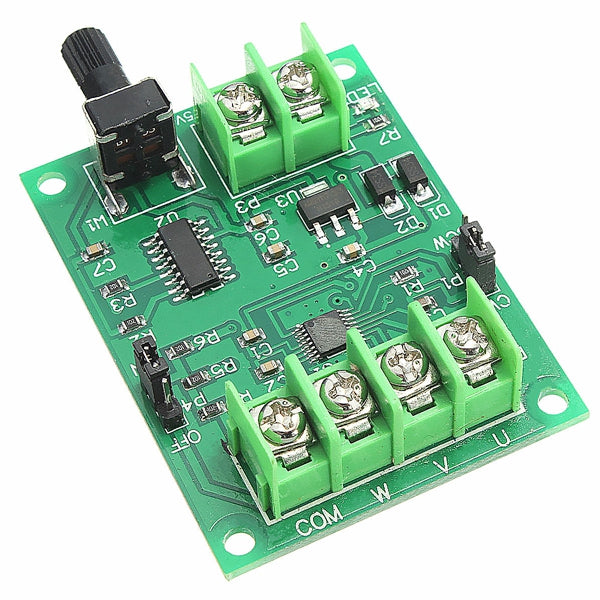

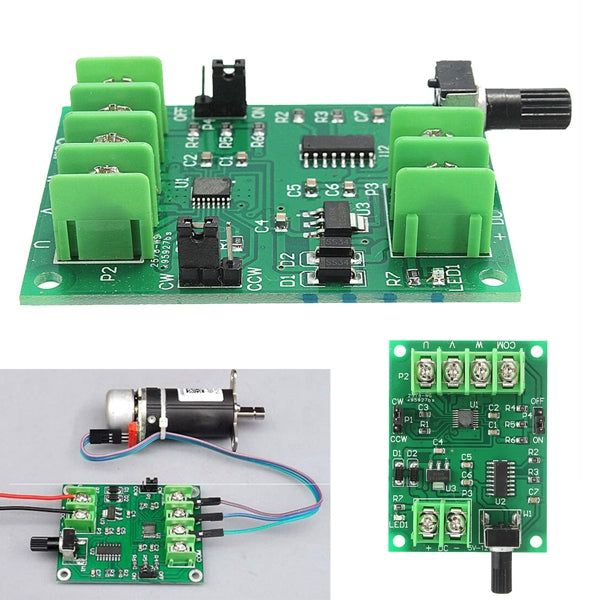

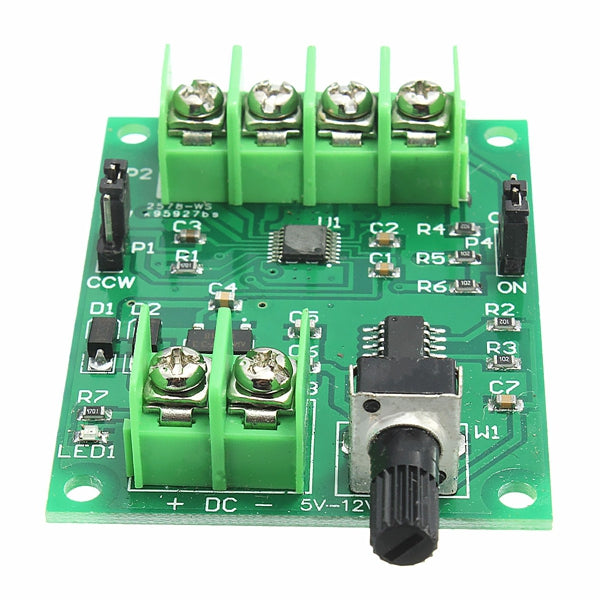

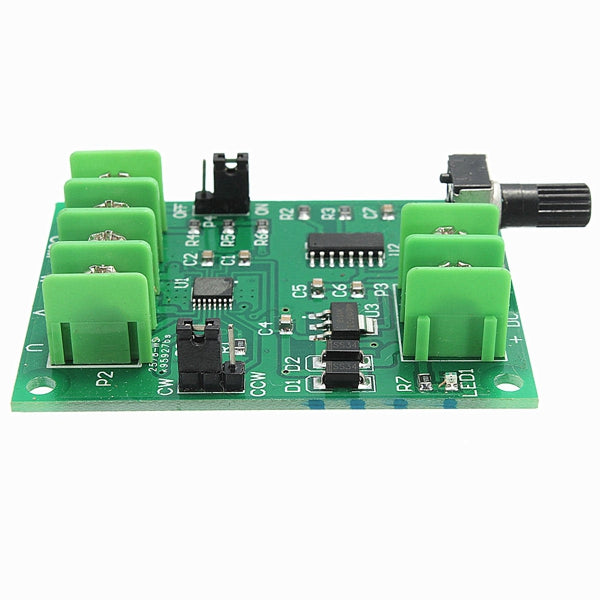

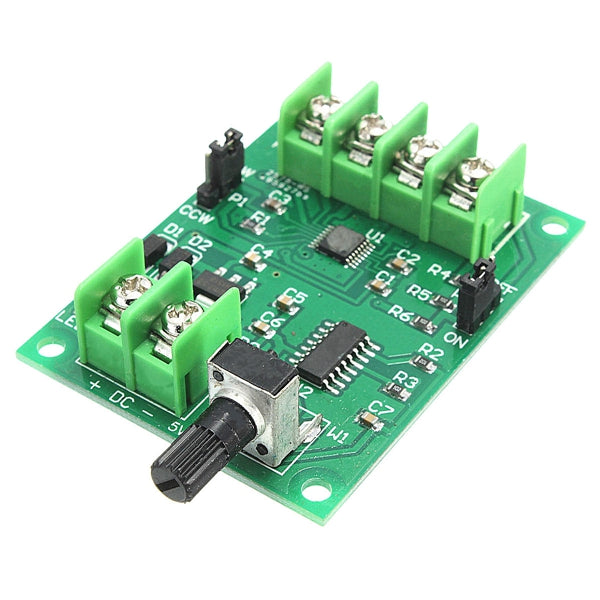

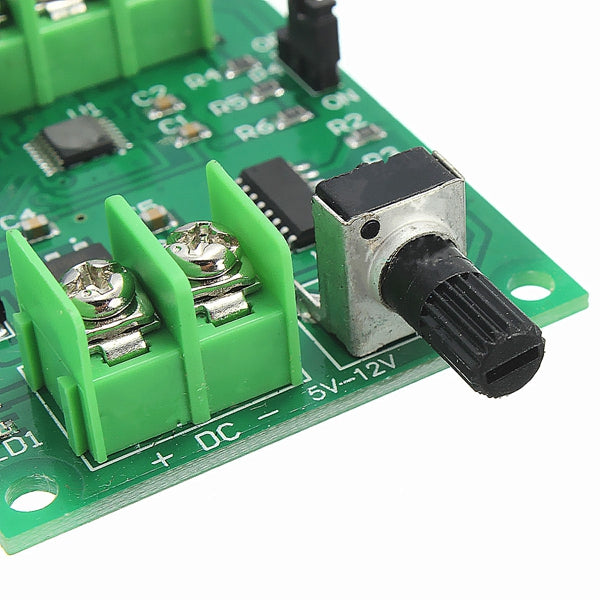

5 x Brushless Motor Driver Board Controller
