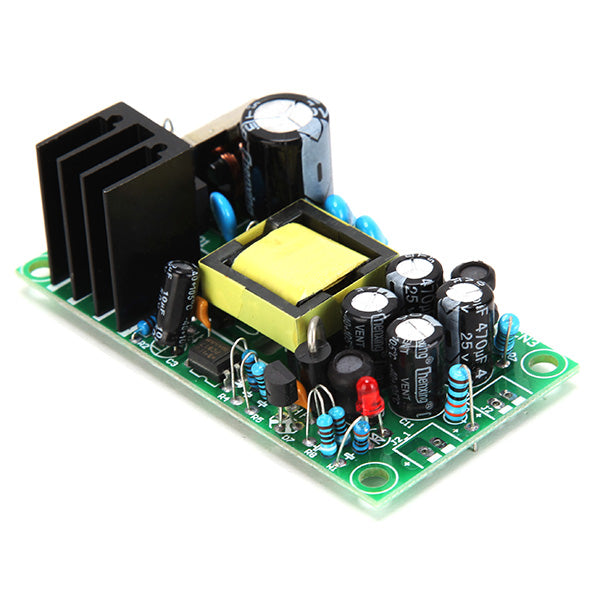

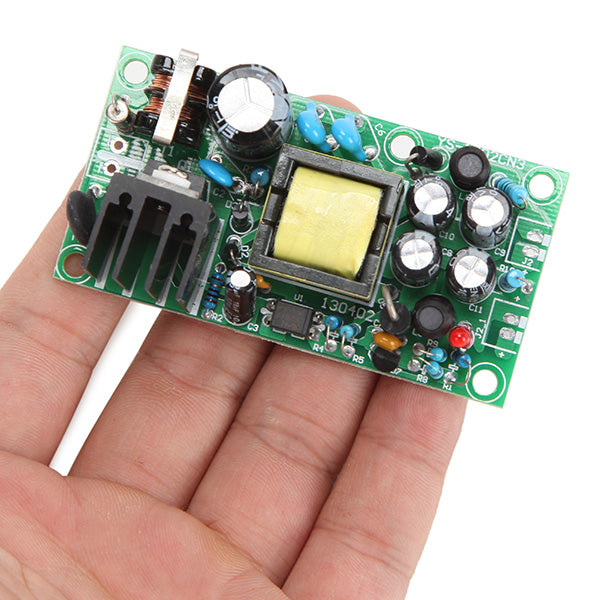

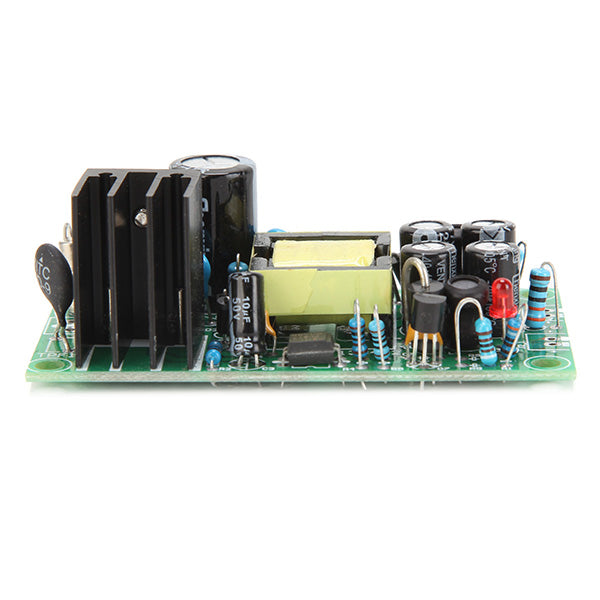

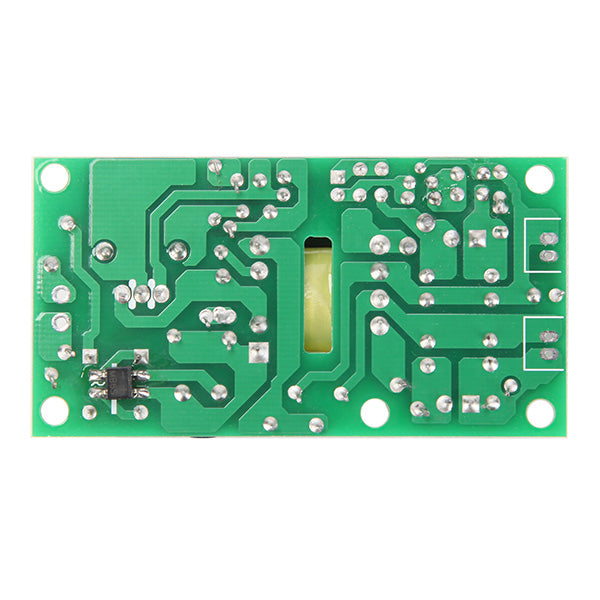

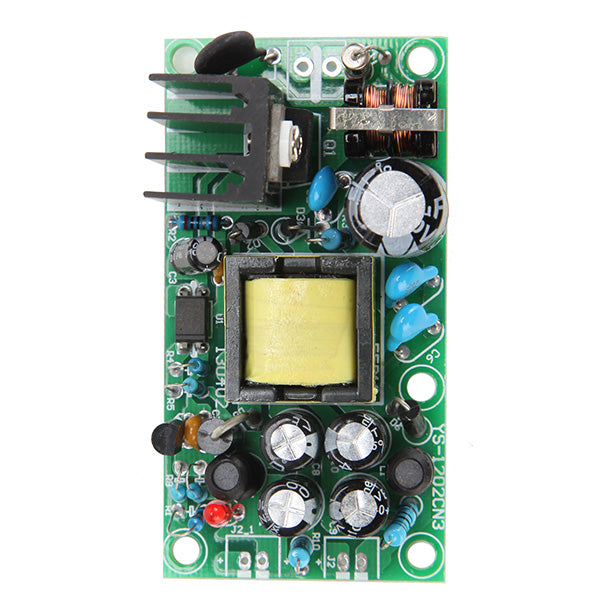

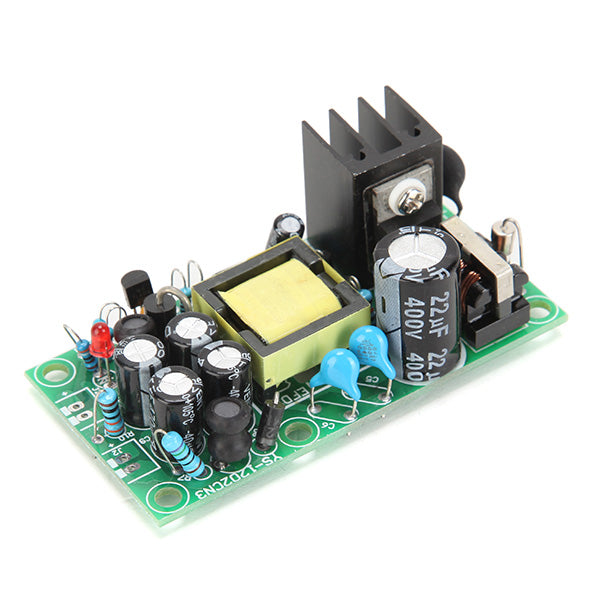

5Pcs AC-DC 220V to 12V 5V Fully Isolated Switching Power Supply Module
Save 0
SKU: U2I-BG-1148031
Share this product
Description
Feature:
The power supply is fully isolated industrial grade built-in power module with temperature protection, overcurrent protection and short circuit full protection, AC85 ~ 265V wide voltage input, high and low voltage isolation, DC12V1A 5V1A dual isolated output voltage, 431 regulated, output with EMI filter circuit, with light, with mounting holes, cost-effective.
Specification:
Working temperature: -20 ℃ to 60 ℃ Relative humidity: 40% RH - 90% RH Input voltage range: 85V - 265V (typical: 110/220) (under full load conditions) Input Current: 0.027 (AC110V) 0.0136 (AC220V) (under full load conditions) Input surge current: 20A (under full load conditions) Size: 7.5 x 4.0 x 4.0 (cm)
Output regulation characteristic:
Output voltage
Minimum current
Maximum current
Peak current
Output voltage range
Ripple
+12V
0A
1A
1.2A
11.80~12.5V
150mV
+5V
0A
1A
1.2A
4.90~5.1V
80mV
Other output characteristics:
Item
Unit
Min
Typical values
Max
Test Conditions
Output Power
W
0
17
18.5
DC output power
Output efficiency
%
84
Rated load
Boot shutdown overshoot
%
10
The output rise time
mS
100
Protection:
Item
Unit
Yes/No
Min
Typical values
Max
Recovery characteristics
Output voltage
V
13
13.5
Lock, restart after recovery
5
5.4
Lock, restart after recovery
Output Power Protection
Yes
17
19
Lock, restart after recovery
Short circuit protection
Yes
Lock, restart after recovery
Temperature Protection
Yes
90°C
105°C
Lock, restart after recovery
Overcurrent protection
Yes
Lock, restart after recovery
Package included:
5 x Fully Isolated Switching Power Supply
