VCC: 3.3-5V
GND: Ground
SCL: Serial Clock
SDA: Serial Data

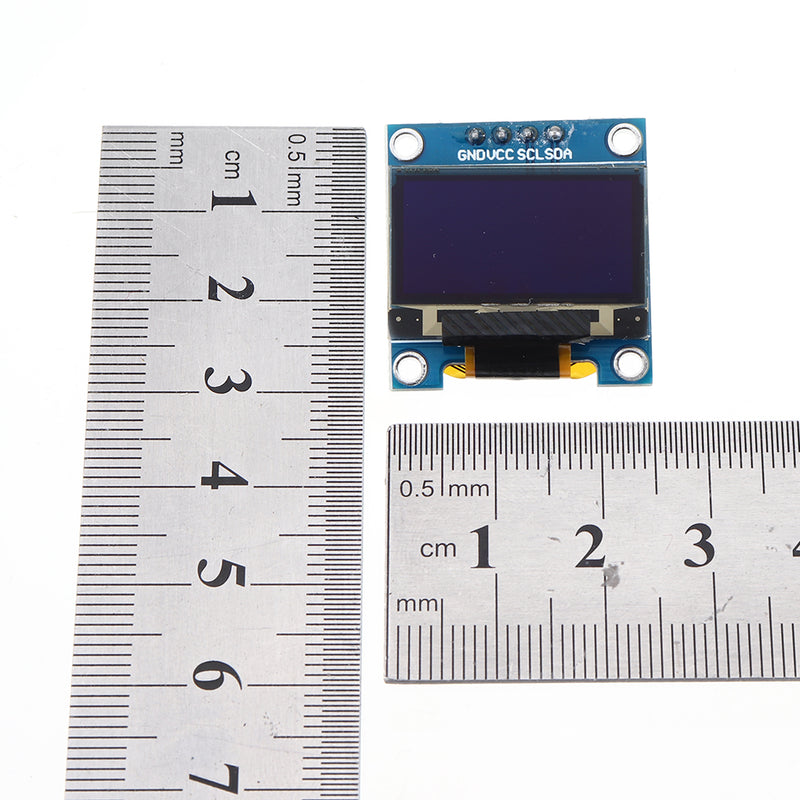

Feature: Size: 0.96 inch
Resolution: 128*64
Color: blue
Viewing angle: >160°
Support platform: , 51 series, MSP430 series, STM32/2, C S R chip, etc.
Ultra low power consumption: 0.04W during normal operation
Wide voltage support: DC 3.3V-5V
Working temperature: -30 ° C ~ 80 ° C
Driver chip: SSD1306
Communication method: IIC, only 2 I/O ports
Backlight: OLED self-illumination, no backlight required
Package includes:

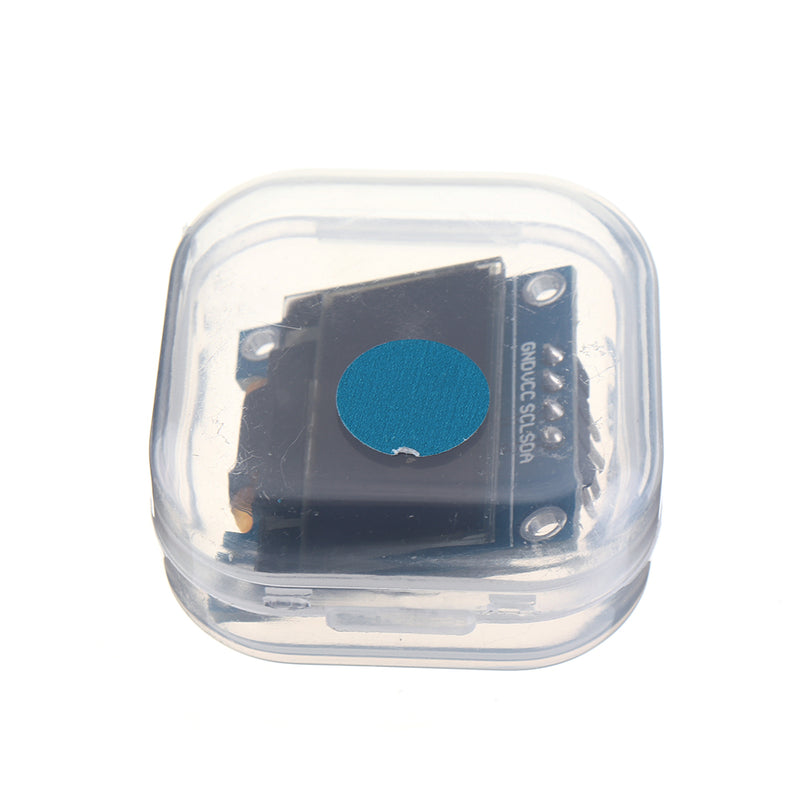

5 x OLED module
