Features:
The maximum power design of the governor is 10A. It is not vacant. Under normal working conditions, it can work long hours in a well-ventilated environment.
High-performance governor, no whistle whistle, with sufficient material, high power, small heat, high efficiency and large torque.
The governor adopts high-grade sealing potentiometer and has switch function
Technical Parameters:
Potentiometer: resistance B100K, opening 8mm
Operating voltage: DC10V to 60V ,output voltage is about 0-100% of input voltage.
Control power: 12V*8A=72W, 24V*8A=192W...60**8A=480W.
Rated current: 8A
Maximum current: 10A
Speed range: 0 to 100%
PWM frequency: 21KHZ
Size:73mm*39mm* 31mm (length *width *height)
Net weight: 61g
Package Inclided:

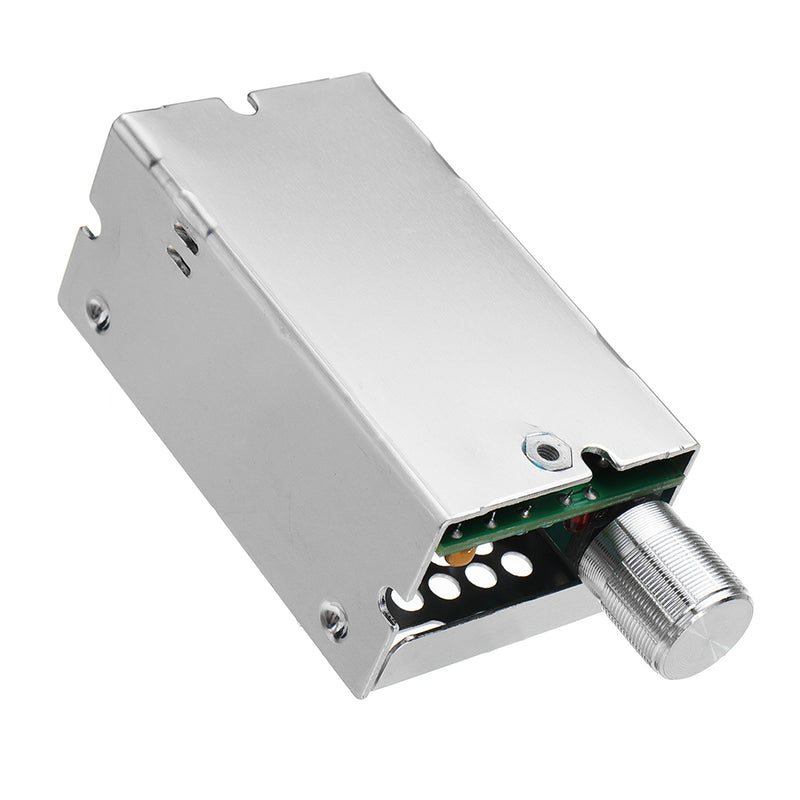

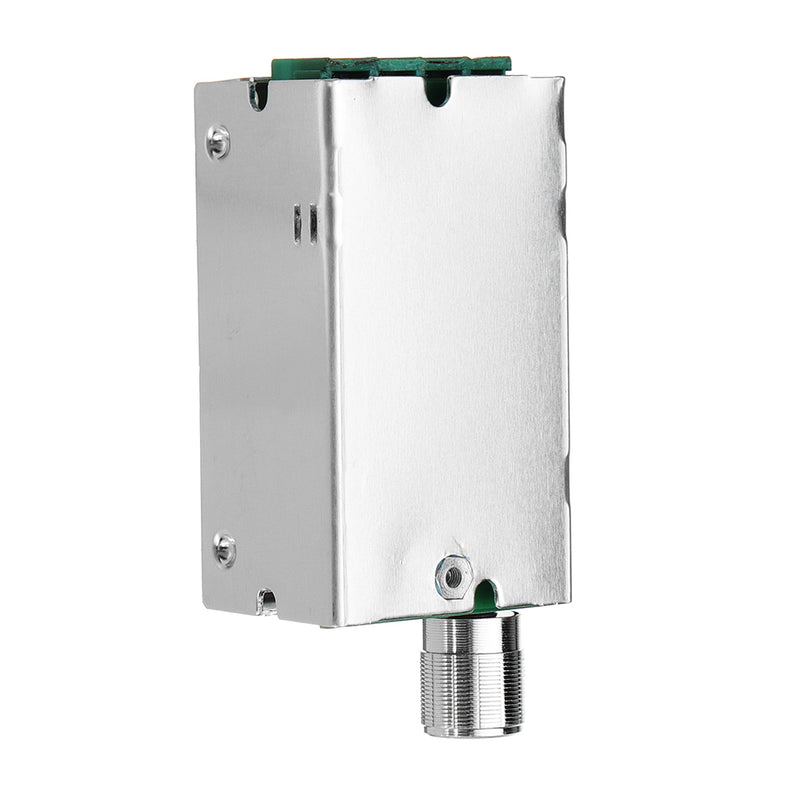

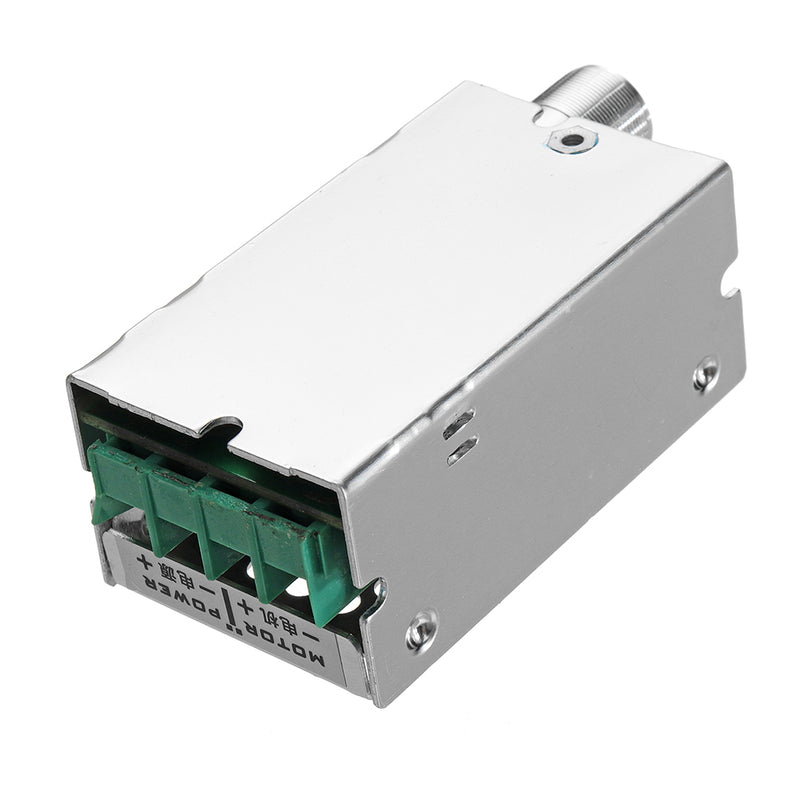

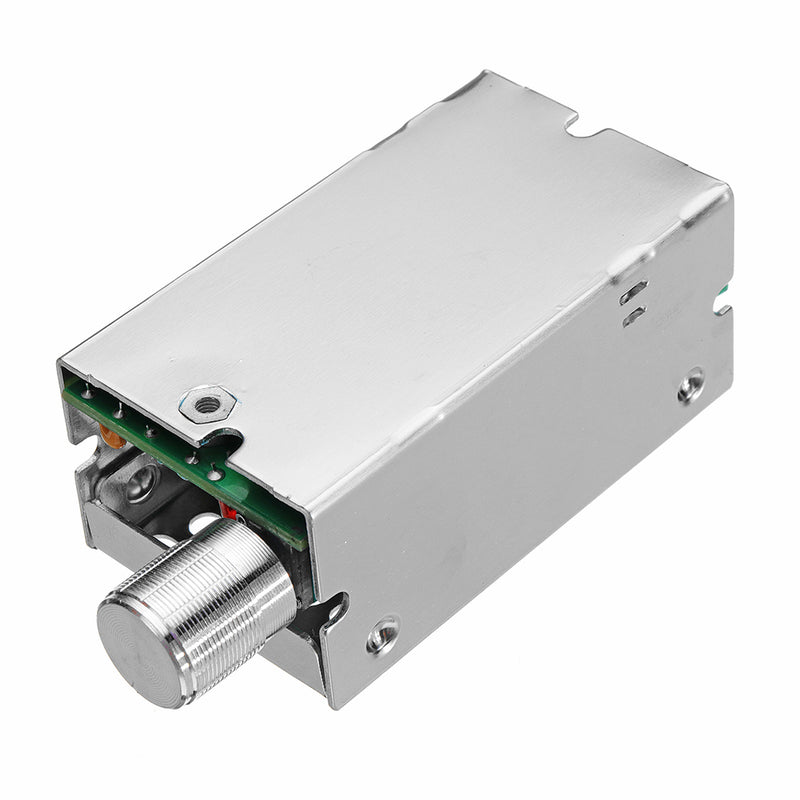

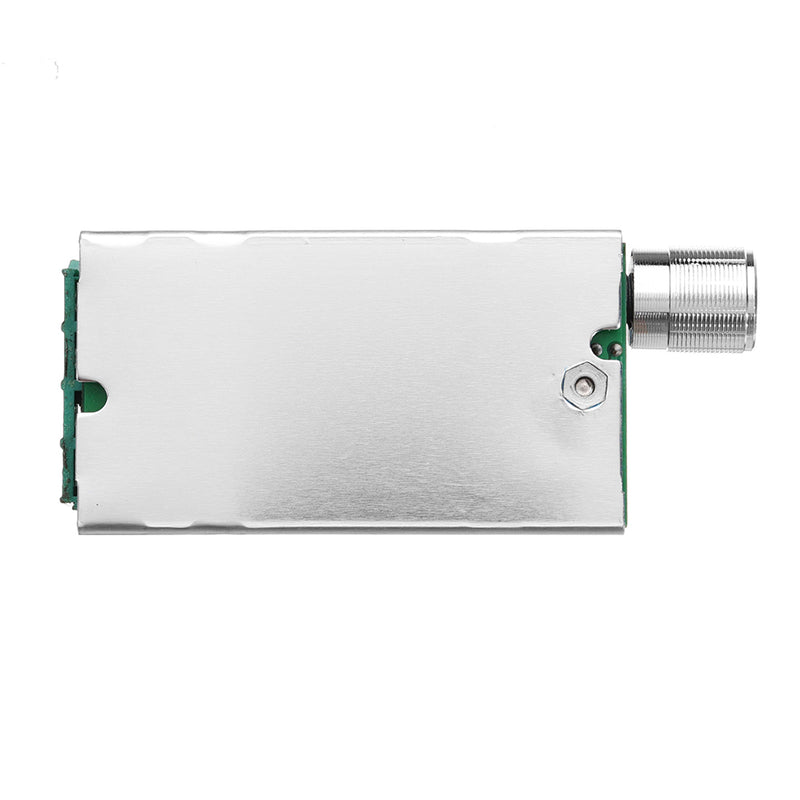

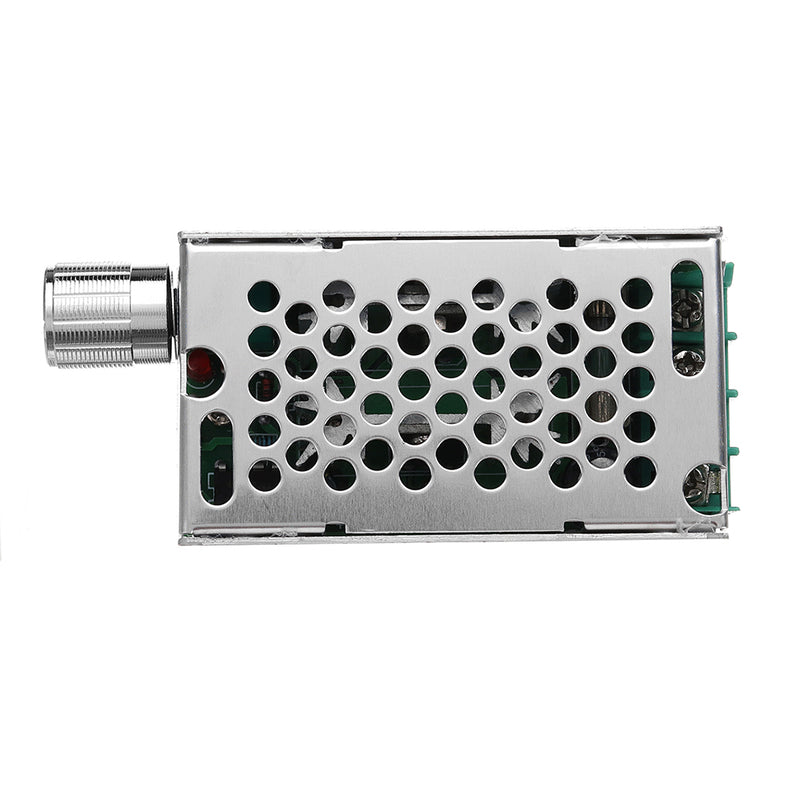

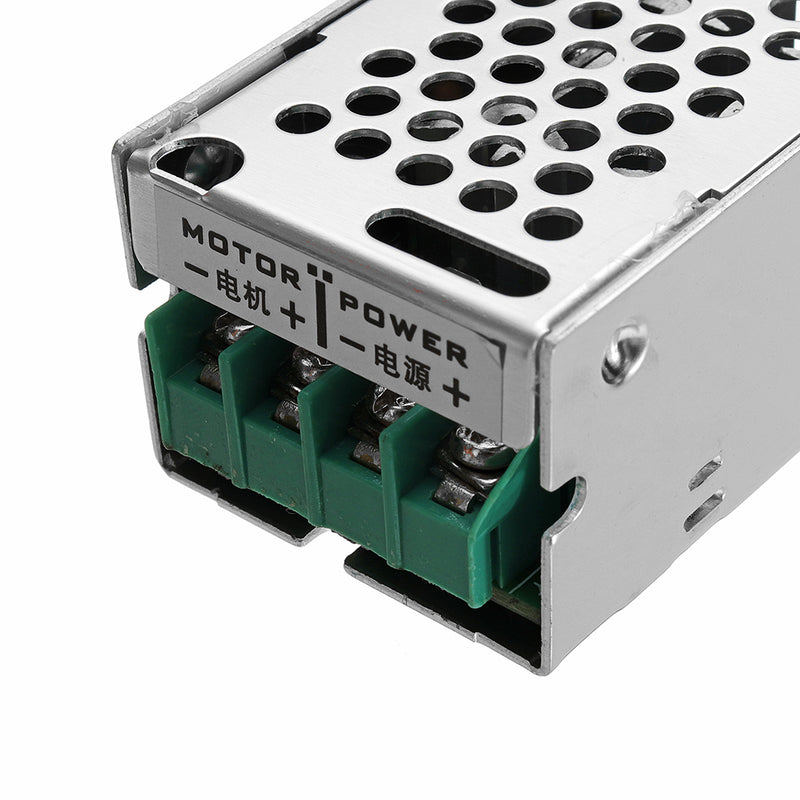

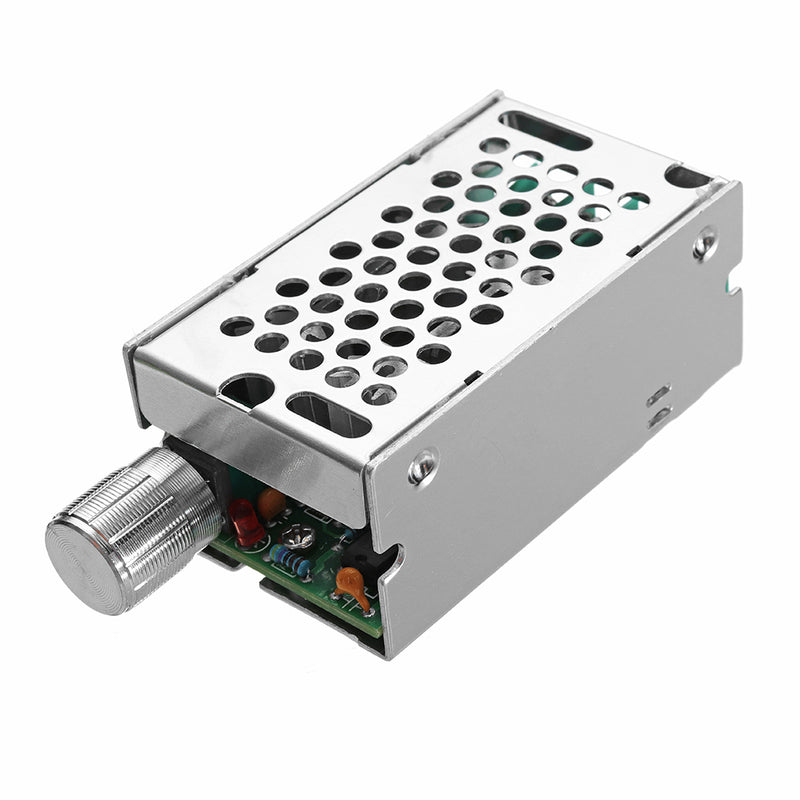

5 x DC Motor Governor with Stepless Speed Regulation
