5Pcs DC 12V/5V MP3 Decode Board LED USB AUX FM bluetooth Radio Amplifier With Remote
Save 0
SKU: U2I-BG-1136334
Share this product
Description
Description:
Stereo bluetooth 12V/5V lossless WAV music decoder, WMA / MP3 / FM speaker panel modules, support breakpoint memory
Features:
1. Support USB, SD, support for external signal directly switch 2. Support for stereo bluetooth (bluetooth3.0EDR) 3. Support USB / SD / bluetooth / FM / LINE switch automatically. 4. Support MP3 / WMA / WAV lossless songs. 5. Support USB / SD card switch, switch songs song selection 6. Support Bluetoot the song, the next song, adjust volume, EQ, play / pause, mute, shut down. 7. Support FAT16, FAT32 file system. 8. Support MP1 Layer3, MP2 Layer3, MP3 Layer3 version of the song. 9. Support 32-320kbps of MP3 songs. 10. Support power and memory function, continue playing the song played before the power and volume. 11. Support cycle mode 12. Power supply: DC 12V: 7-12V, DC5V: 3.7-5V 13. Panel dimensions: 92 * 35 * 40mm
How to connect:

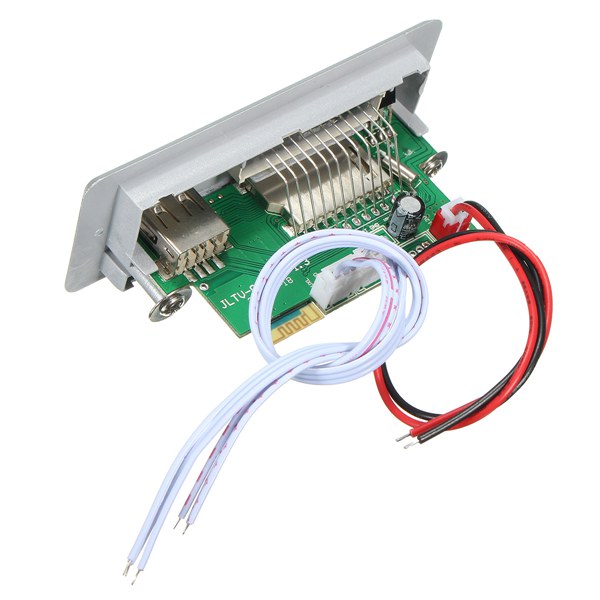

Connection: 2P circuit board electrically connected to 12V (GND Ground, + 12V positive); FM: ANT FM radio antenna connected to the welding hole; The audio output: 5P row seat then press the icon audio output R / L / GND; and your amplifier board R / L / GND pair are connected. Or connected to the AUX input jack The audio input (AUX): 3P-row seat according to the illustrated audio inputs L-IN / GND / R-IN
Note:
Can not connect two power supply in the same time (5V / 12V choose one)
Package included:

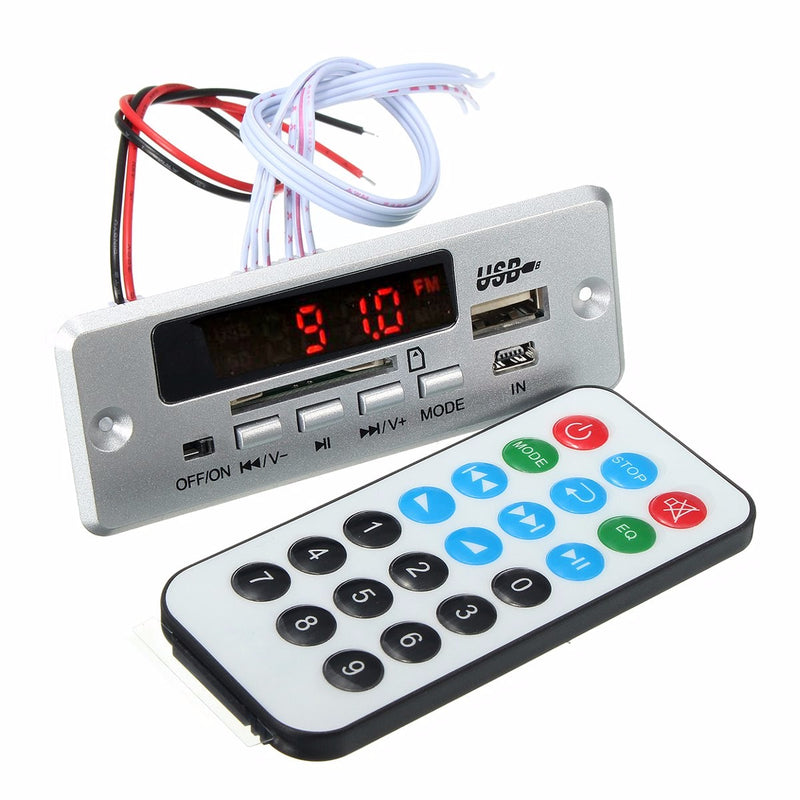

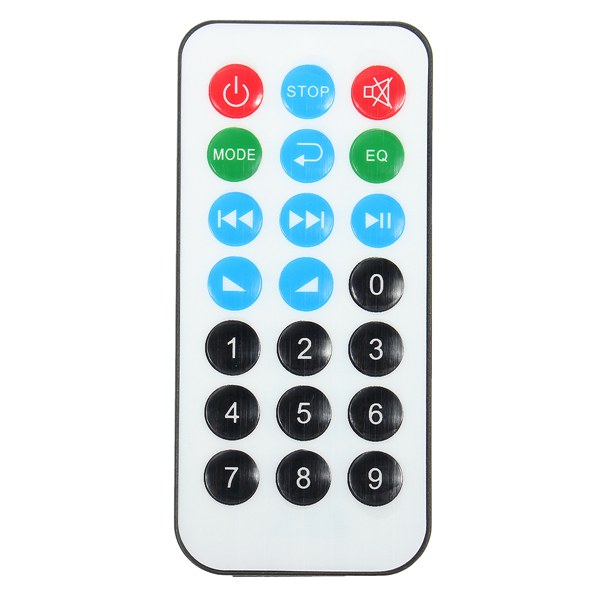

5 x Decoding panel 5 x Remote control
,,,,
