Features:
Mini wide voltage DC motor governor, using the latest low voltage drive technology, suitable for voltage wide DC5-35V (5-9V input needs to be shorted), with self-recovery fuse, also suitable for LED dimming.
Specifications:
Operating voltage: DC5V-35V
Output current: 0-5A
Output power: 90W (max)
PWM duty cycle: 1% -100%
PWM frequency: 10khz

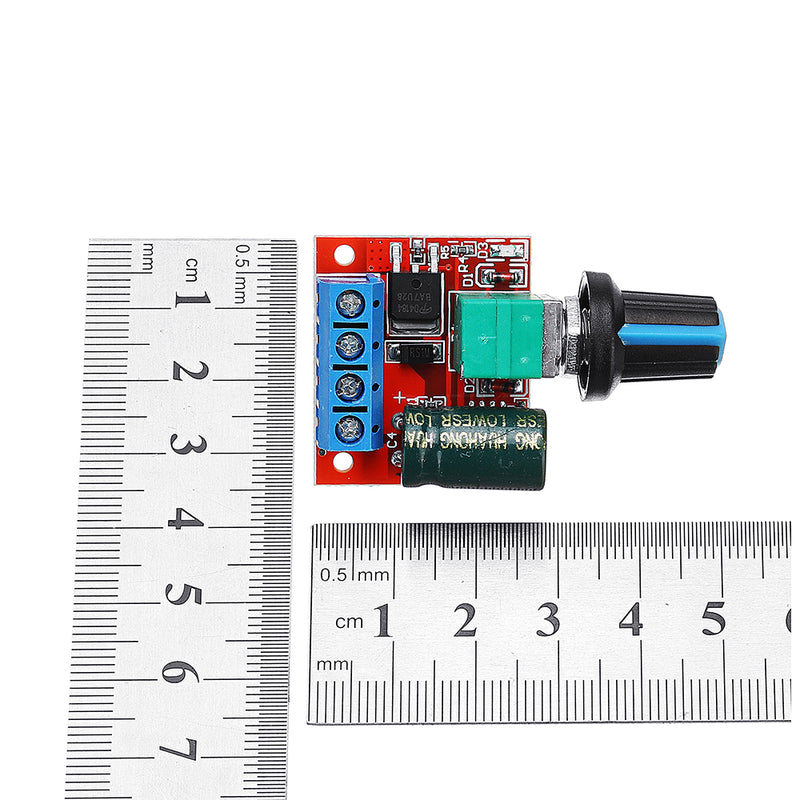

Size: 30mm x 24mm x 15mm (Without Handle)
Precautions:
- DC motor governor input is DC, can not directly connected to the AC (for example: home 220V AC), otherwise it will burn!
- DC power supply positive and negative terminals do not reverse, otherwise the governor may be damaged.
- The motor can be positive or negative, when the direction of operation and expectations do not match, you can adjust the line order to change the direction.

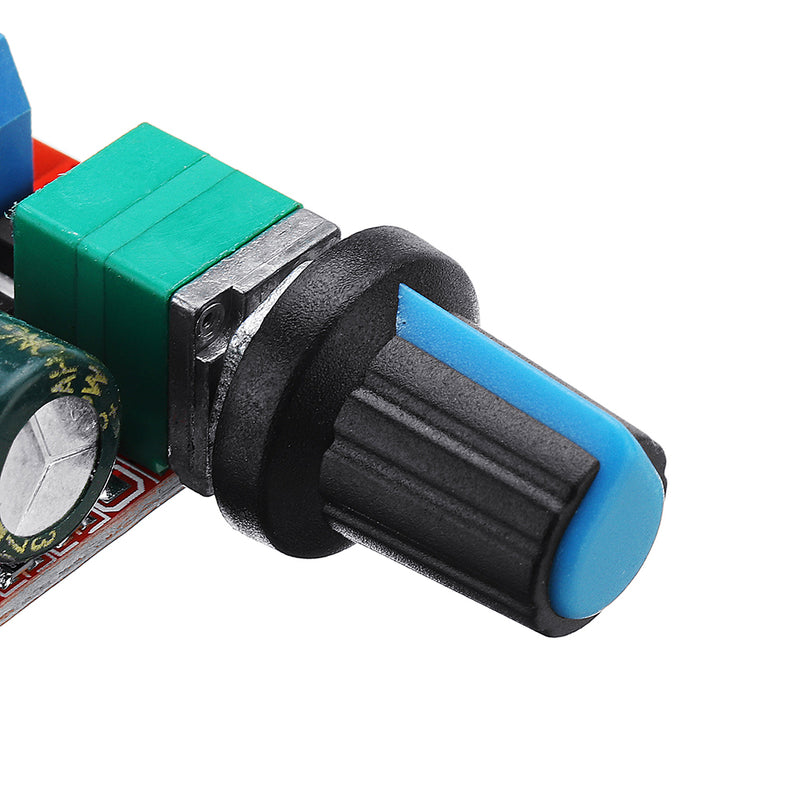

- Adjust the potentiometer knob to change the governor output duty cycle, the motor speed changes.
Package Included:

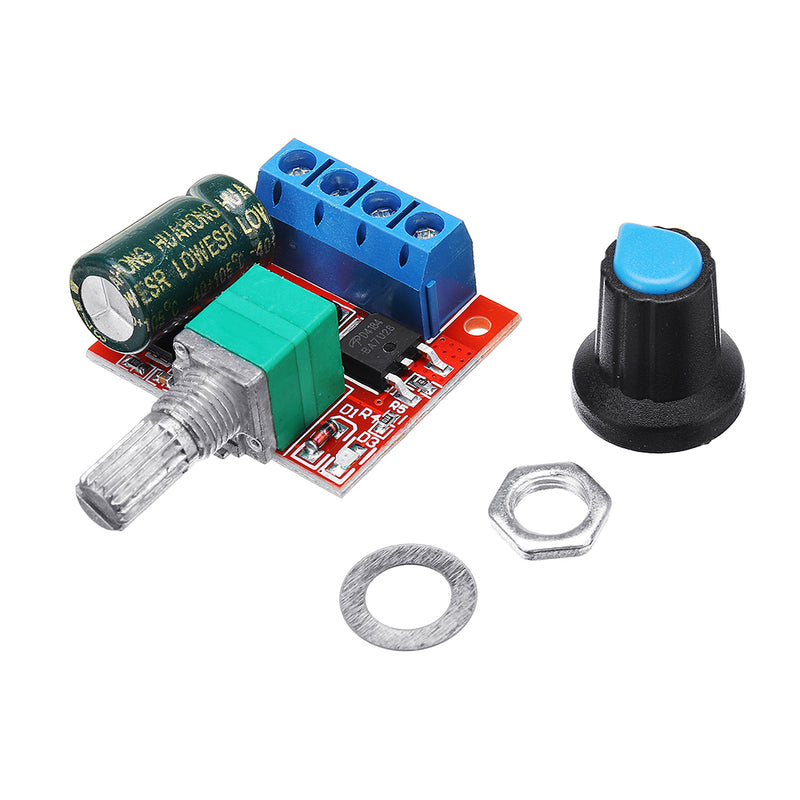

5 x PWM DC Motor Speed Controller
