Features:
The product is easy to install and can be used directly on the motherboard.
The four corners have fixed mounting holes to prevent the product from being powered off due to movement and vibration. The diameter of the fixing holes is 3.2mm.
Worldwide universal input voltage: AC 85-264V or DC 110-370V.
High efficiency, high power density, low output ripple, high output voltage accuracy.
High isolation between input and output.
Over current protection, short circuit protection and temperature protection.
Output built-in LC type filtering, no external filter circuit is required.
Parameters Introduced:
Input voltage :AC 85 To 264V / 110-370V DC
Output voltage: DC9V (± 0.2V)
Output current : 600mA
Power : 5.4W
Frequency Range: 47-63
Output voltage accuracy: 1%
Package Included:

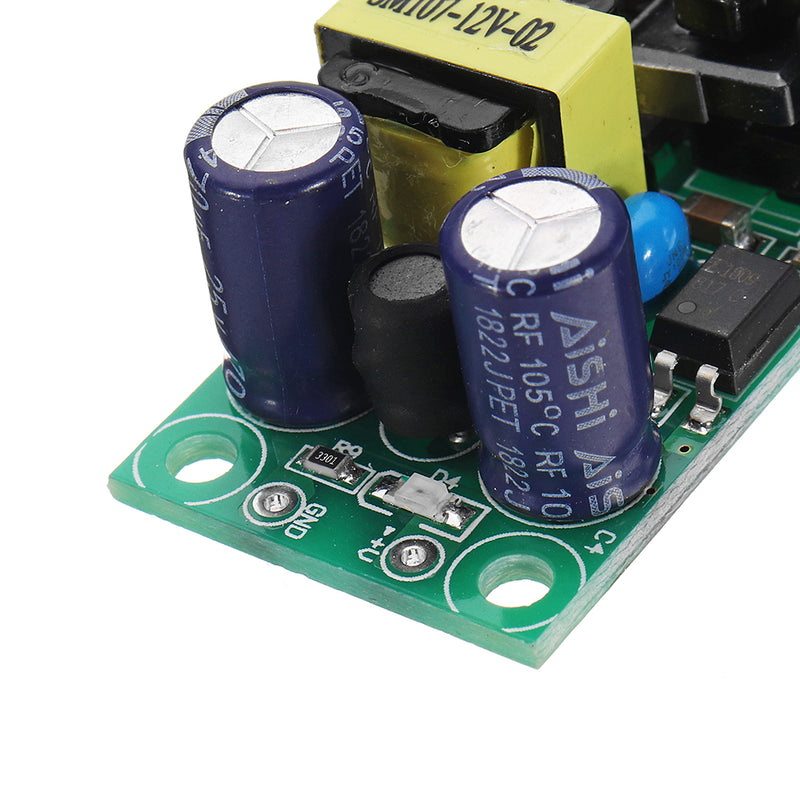

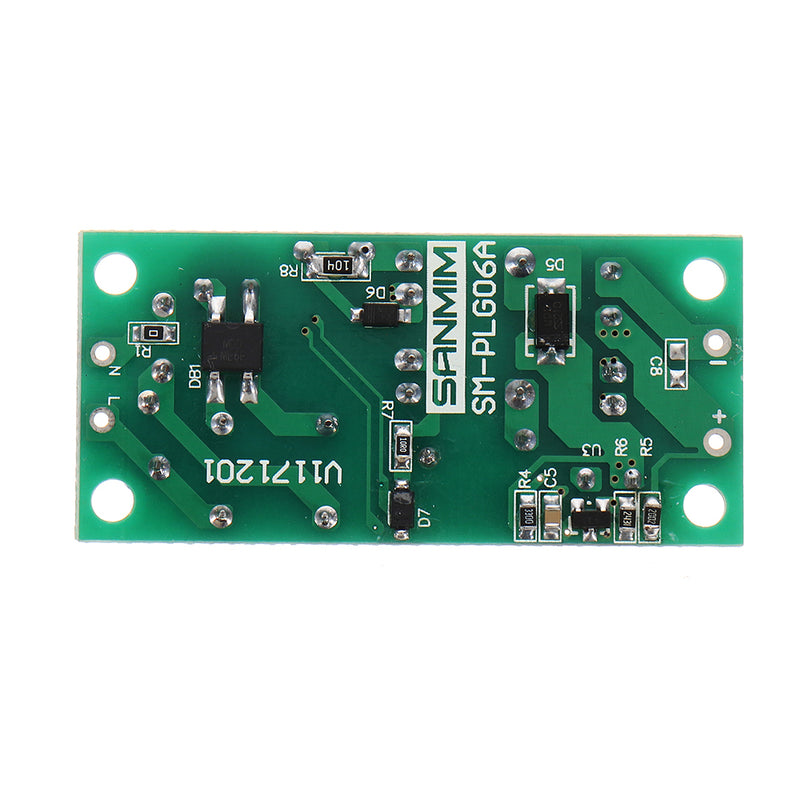

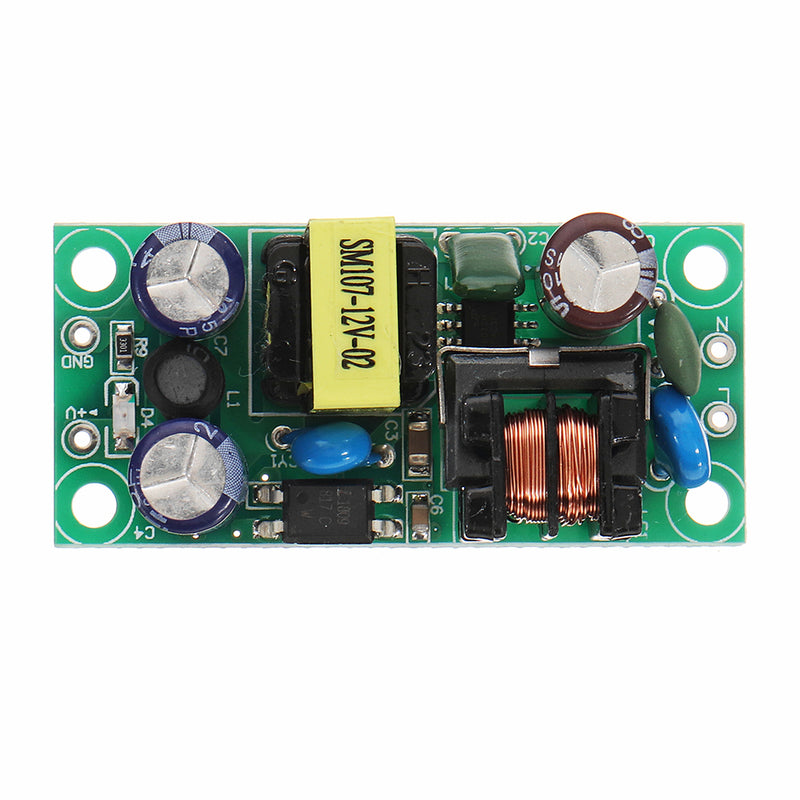

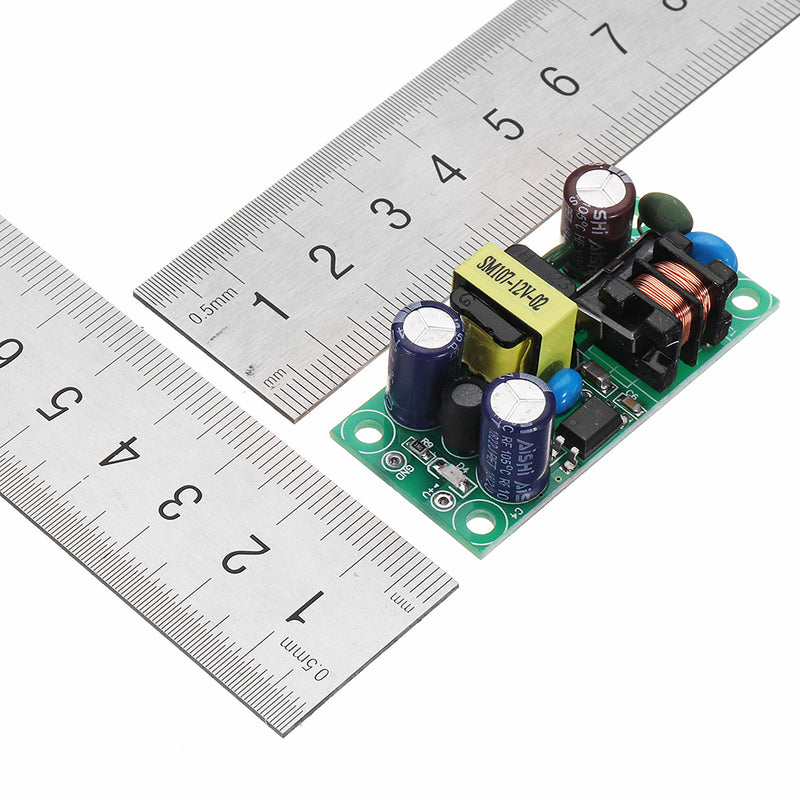

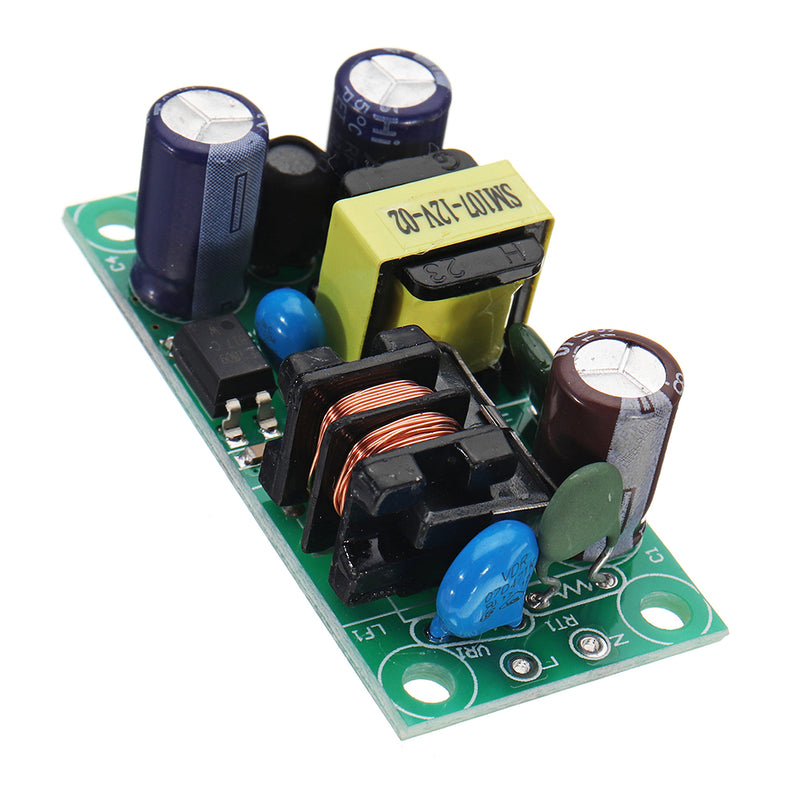

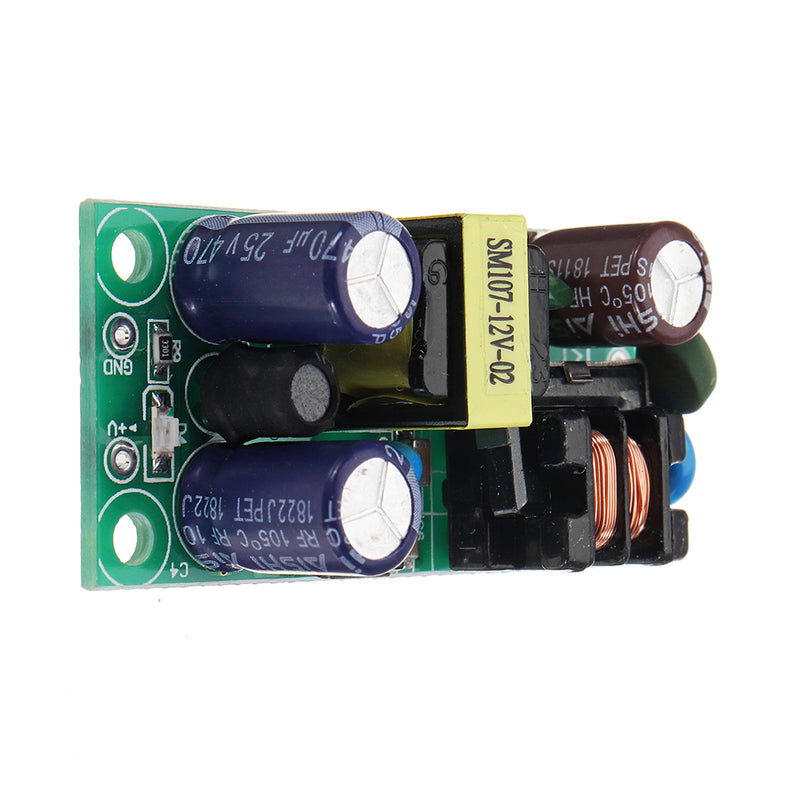

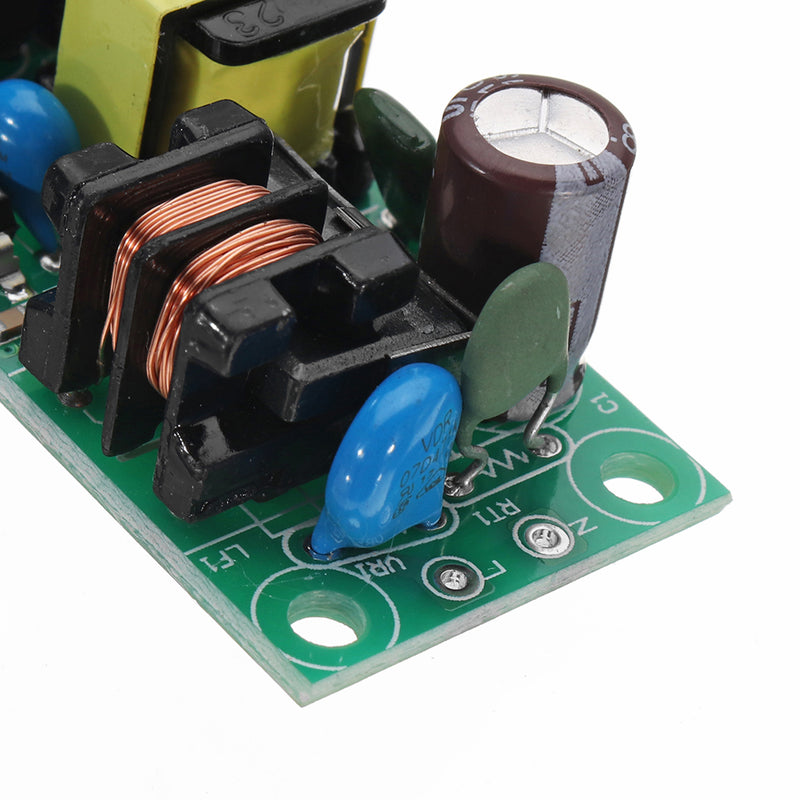

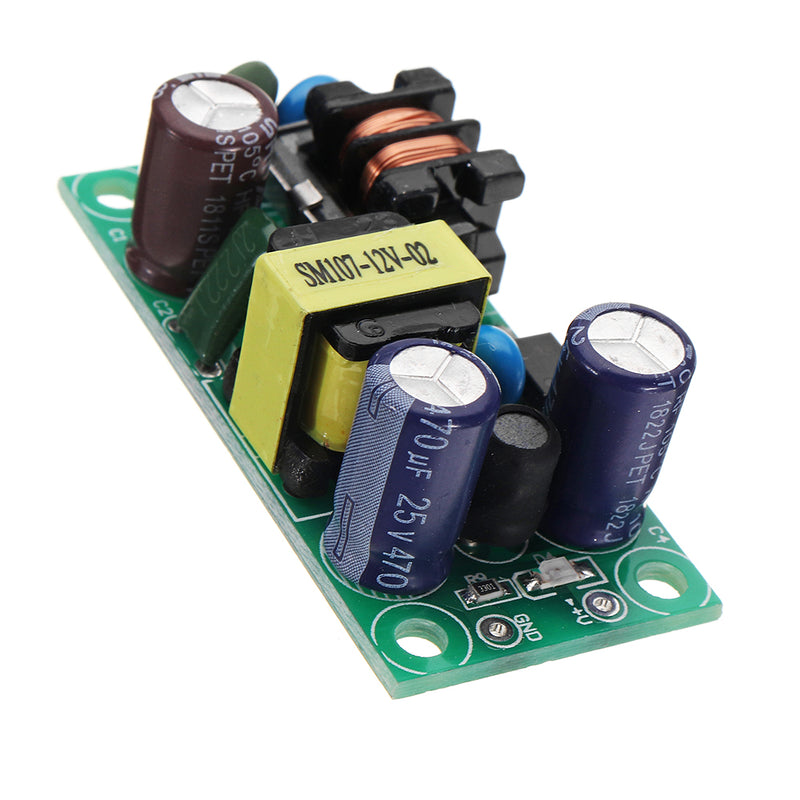

5 x Precision Switch Power Supply Module
