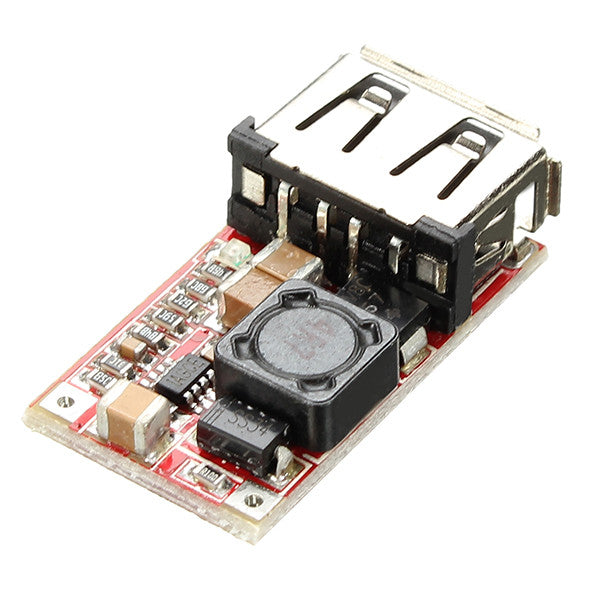

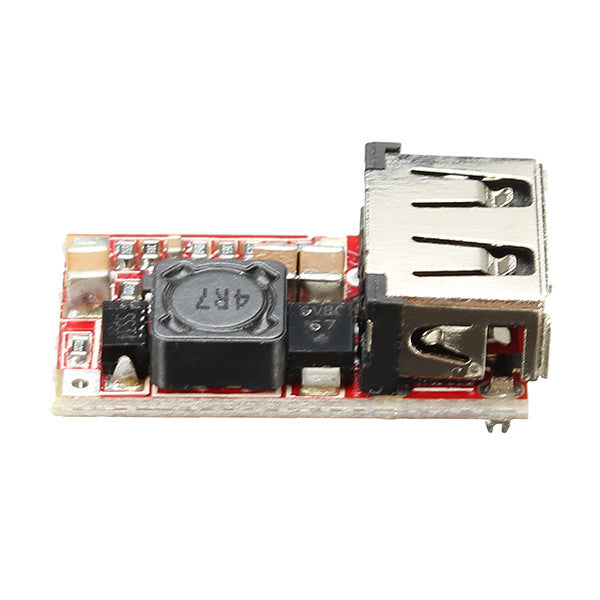

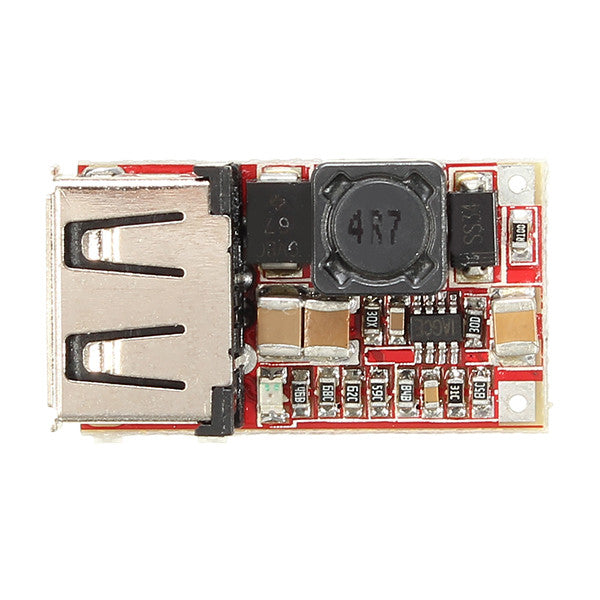

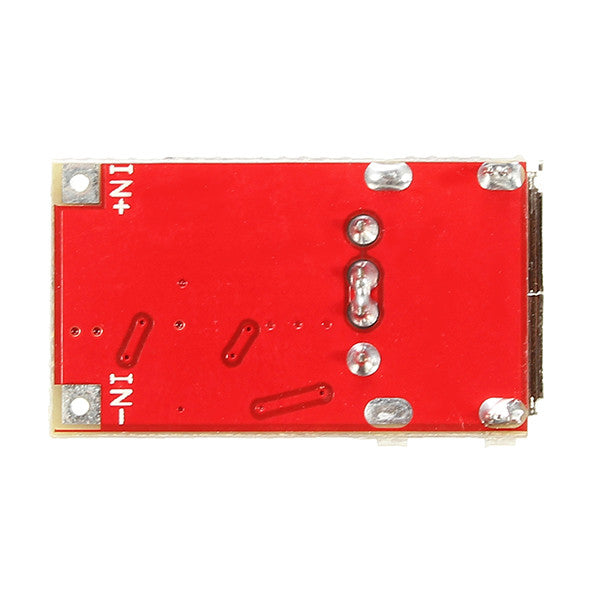

5Pcs DC-DC Buck Module 6-24V 12V/24V to 5V 3A USB Step Down Power Supply Charger Efficiency 97.5%
Save 0
SKU: U2I-BG-1106579
Share this product
Description
Features:
The max output current 3A, long time use 2.1A, enough use New design, 3 solid state ceramic capacitors(MCC), more safe and low ripple Synchronous rectification, High efficiency, 6.5V to 5V 0.7A can up to 97.5%, 12V to 5V 1A can up to 94% Flat copper inductor, improve conversion efficiency With output overvoltage protection. There is 1.5A fuse, output 5V have 300W TVS tube protect your USB device Using the latest USB identification circuit, perfectly compatible with IPHONE, the most of Android phones, IPAD etc High quality USB port Output voltage indicator (RED) Small size, 26.4 (L) * 15 (W) * 7.4 (H) mm Input with reverse polarity protection diode, will not damage when input connect incorrect Ultra-low static current, 0.85 mA only. Do not need to add swith when connected to the car battery, can be connected to car cigarette lighter cable or ACC power supply cable
Specification:
Properties: non-isolated buck module (BUCK) synchronous rectification Input voltage: DC 6-24V Output voltage: 5.1-5.2V Output current: 3A MAX (please enhance heat dissipation when full load using), the actual test result input 12V output current 2A do not need to enhance heat dissipation. Conversion efficiency: can up to 97.5% (6.5V step down to 5V 0.7A) (after short reverse protection and fuses test value) Switch frequency: 500KHz Output ripple: 10mV around (12V to 5V3A) 20M bandwidth Output indicator: Output voltage indicator is red Operating temperature: Industrial grade (-40 ° to + 85 °) (the higher the ambient temperature, the lower the output power) Output overvoltage protection: Yes, input 1.5A fuse, output 5V have 300W TVS tube clamp protection. Full load temperature: 30 °C Static current: 0.85 mA Load regulation: ± 1% Voltage regulation: ± 0.5% Dynamic response speed: 5% 200uS Output short circuit protection: Yes, but please do not short circuit for a long time Input reverse polarity protection: Yes, there is reverse polarity protection diode Connection mode: Soldering Input mode: Soldering Output mode: USB
Package includes:

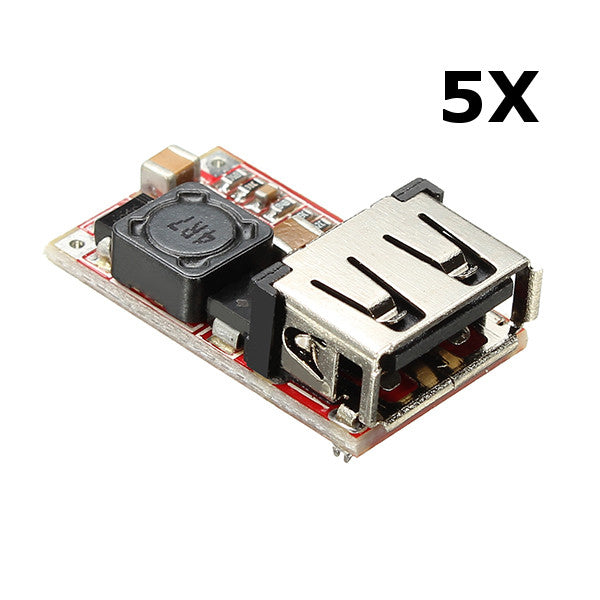

5 x USB DC Converter 5V 3A
