Features:
1. The product is small in size, high in sensitivity and strong in anti-interference ability;

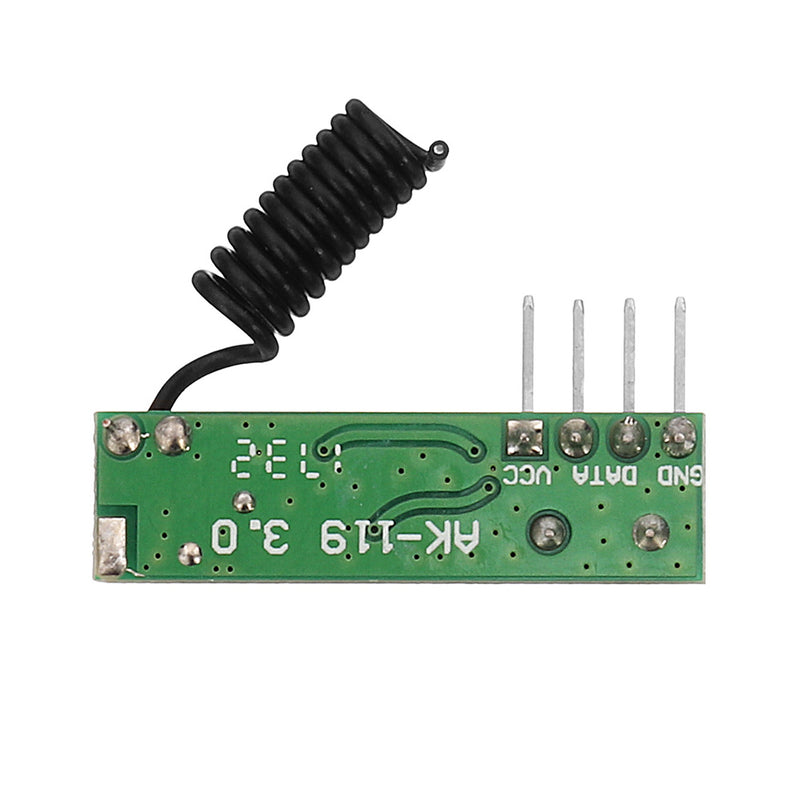

2. The same definition as the four-pin pin of RXB12, the usage is the same. The unit price is lower than RXB12 and can be directly replaced.
Technical Parameters:
Working voltage: DC3~5V
Transmission rate: 4.80KBPS
Quiescent current: 6mA
Receive sensitivity: -105dBm

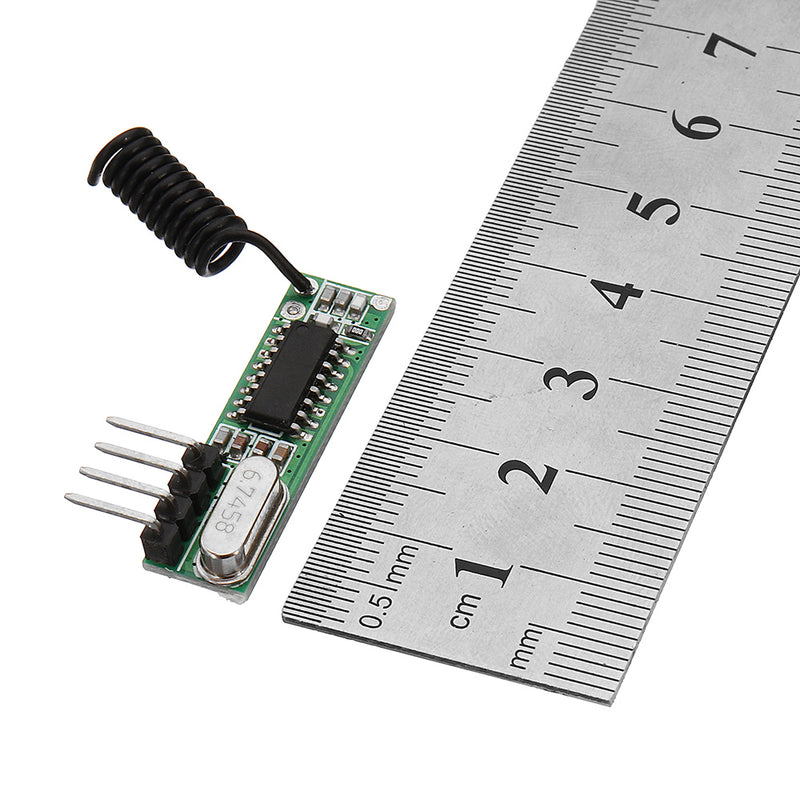

Dimensions: 30 × 9 × 5mm
Working temperature: -20 ° C ~ +80 ° C
Frequency: 433.92MHZ
The receiving structure is super-heterodyne, receives the OOK wireless signal, and directly outputs the COMS signal to the external decoding IC after receiving the signal.
Application areas:
Car alarm, security, learning machine, smart home, garage door, gate, central locking, electric curtains, industrial control, etc.
Package includes:

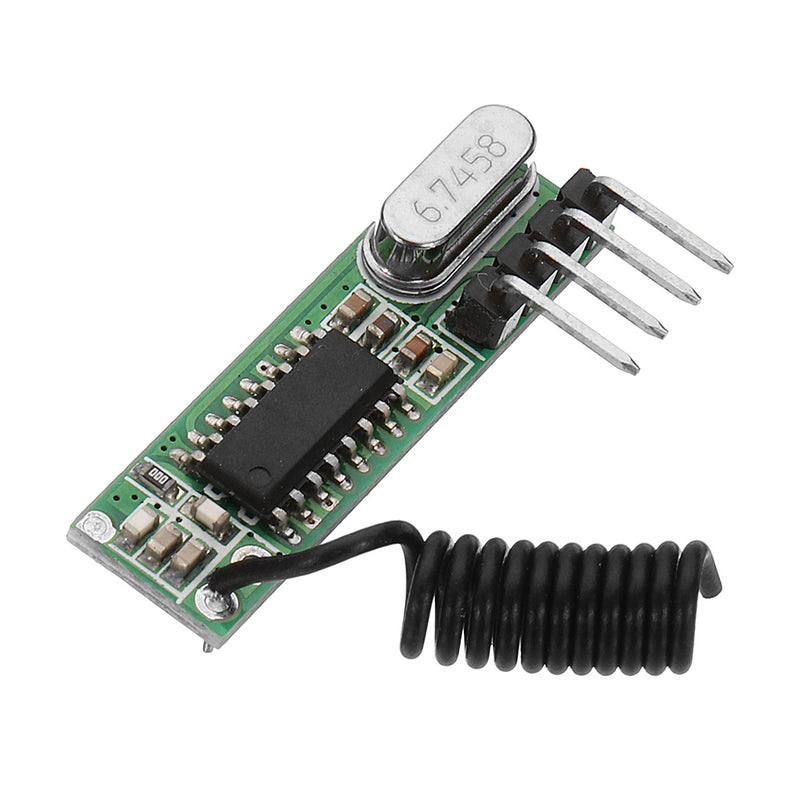

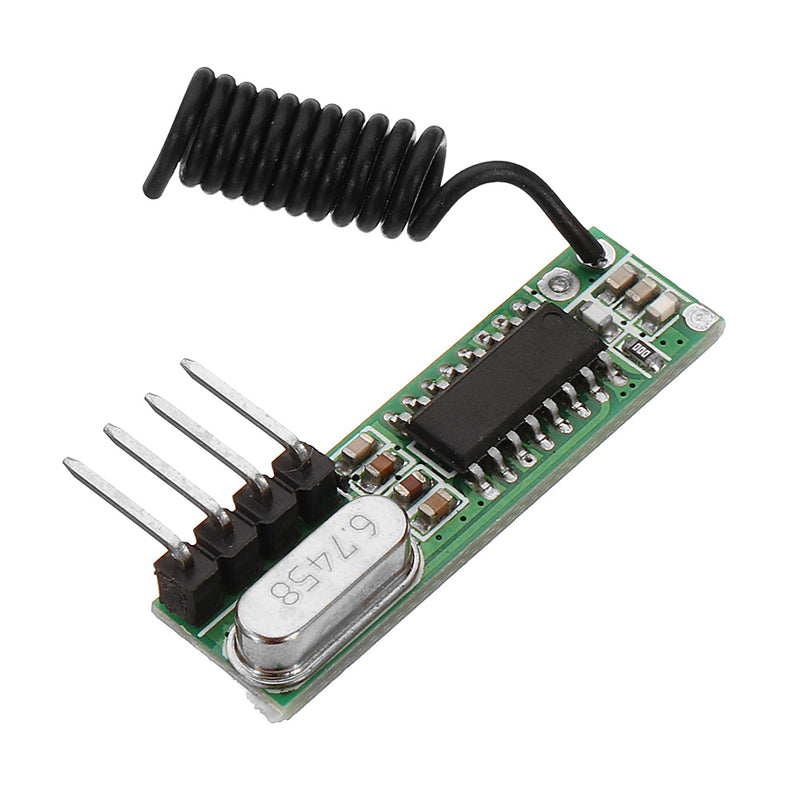

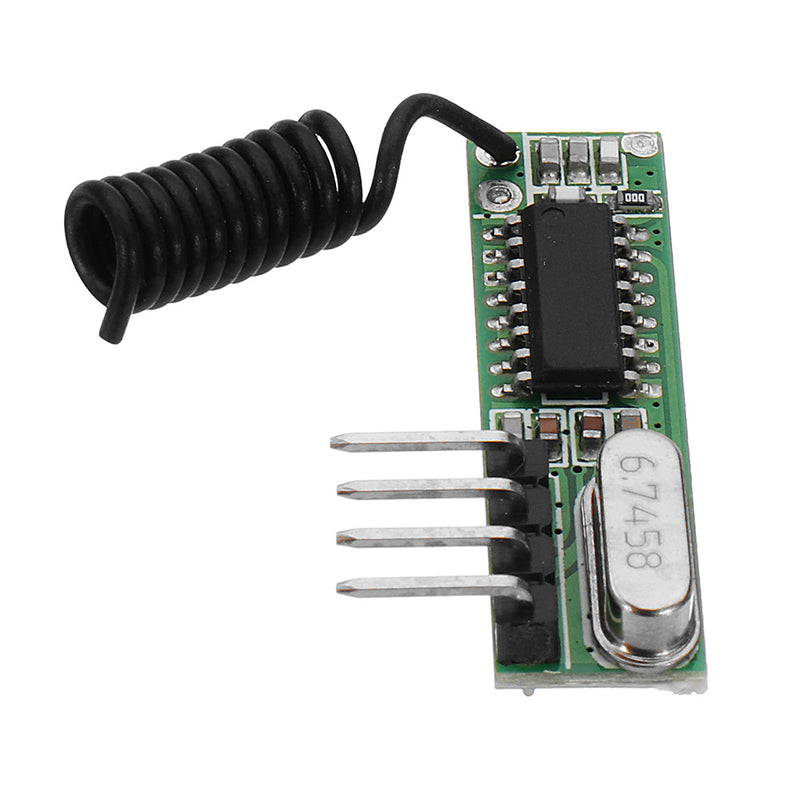

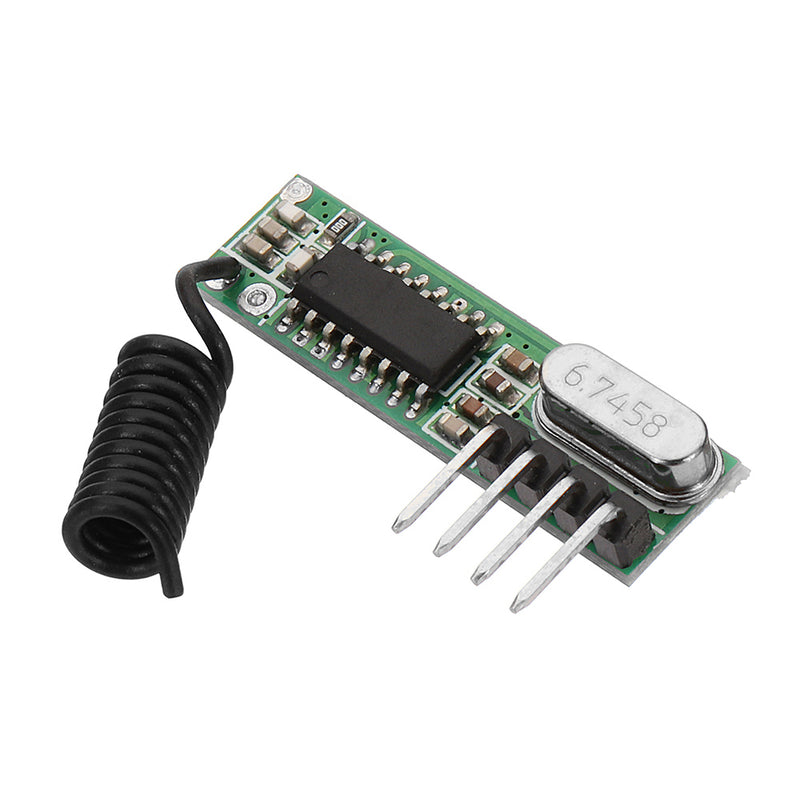

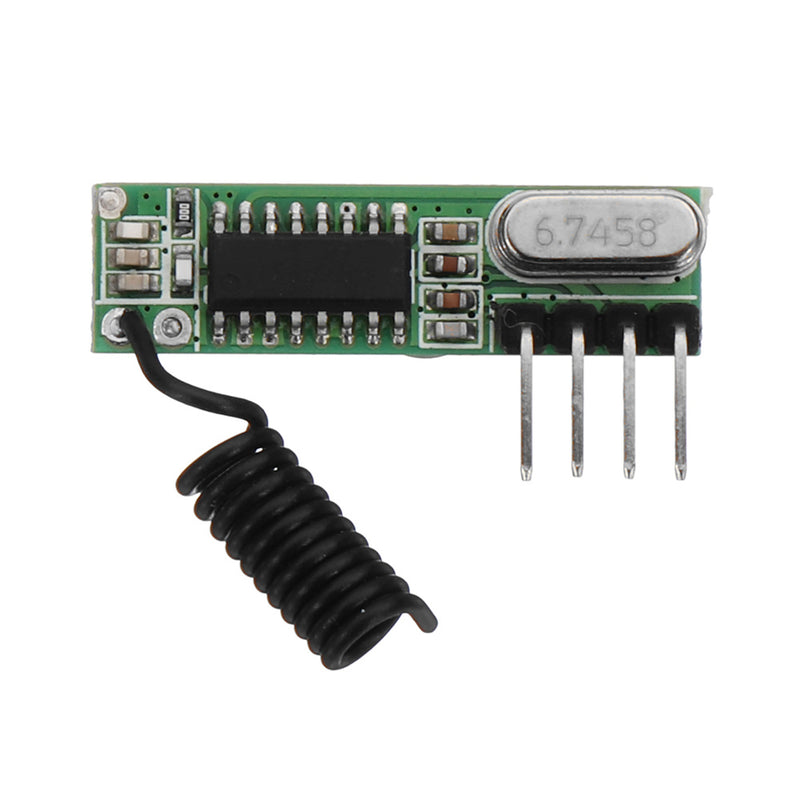

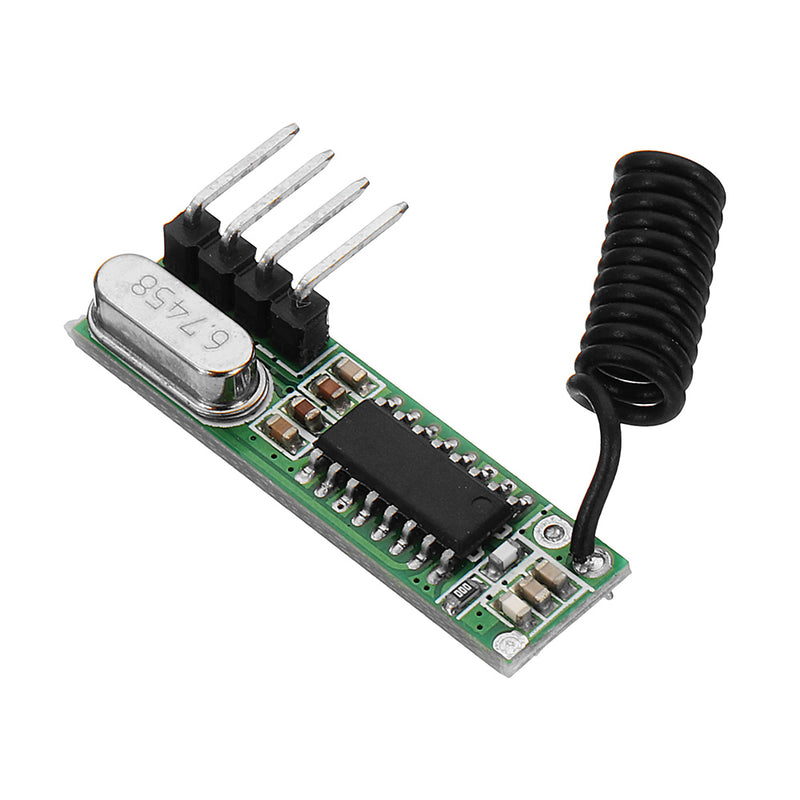

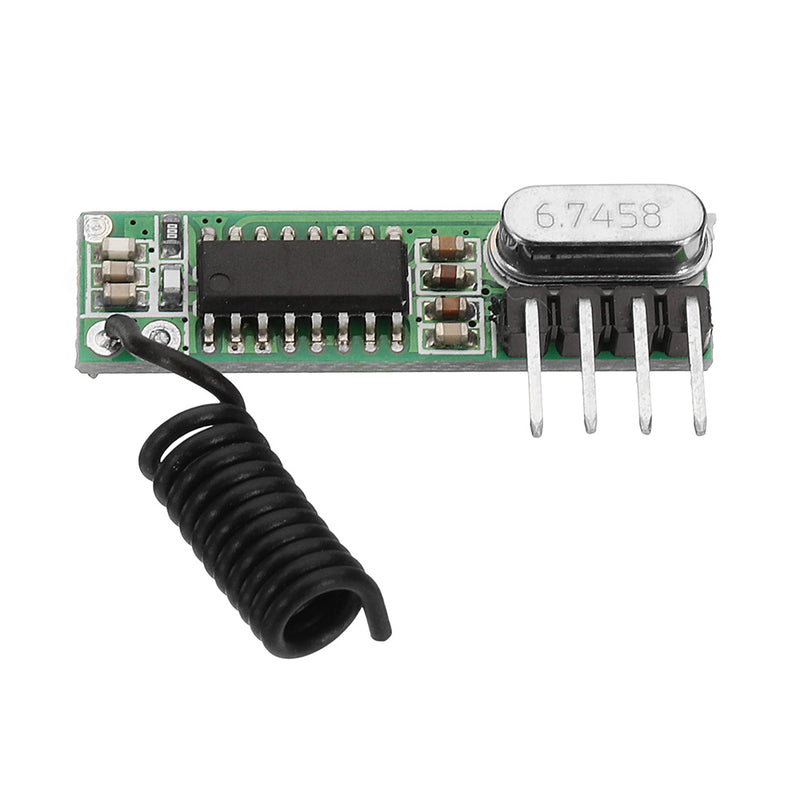

5 x Superheterodyne Module
