Description:
BMP180 is a high precision, small size, low energy consumption pressure sensor. It can be used in mobile devices. Its performance is excellent, the absolute accuracy can achieve 0.03hPa (minimum), and low power consumption, only 3μA.
The BMP180 uses a powerful 8-pin ceramic leadless chip carrier (LCC) ultra thin package that can be directly connected to various microprocessors via the I2C bus.
Features:
Pressure range: 300~1100hPa (elevation of 9000 meters to -500 meters)
Power supply voltage: 1.8V~3.6V (VDDA), 1.62V~3.6V (VDDD)
LCC8 package: leadless ceramic carrier package (LCC)
Size: 3.6 x 3.8 x 0.93mm
Low power consumption: 5μA in standard mode
High precision: low power mode, the resolution of 0.06hPa (0.5m)
In high linear mode, the resolution is 0.03hPa (0.25m)
Temperature output
I2C interface
Temperature compensation
Lead free, comply with RoHS specification
MSL 1 reaction time: 7.5ms
Standby current: 0.1 A
No external clock circuit is required
Typical applications:
GPS accurate navigation (dead reckoning, upper and lower bridge detection etc.)
Indoor and outdoor navigation
Leisure, sports and health care and other monitoring
Weather forecast
Vertical speed indicator (rising / sinking speed)
Fan power control
Package included:

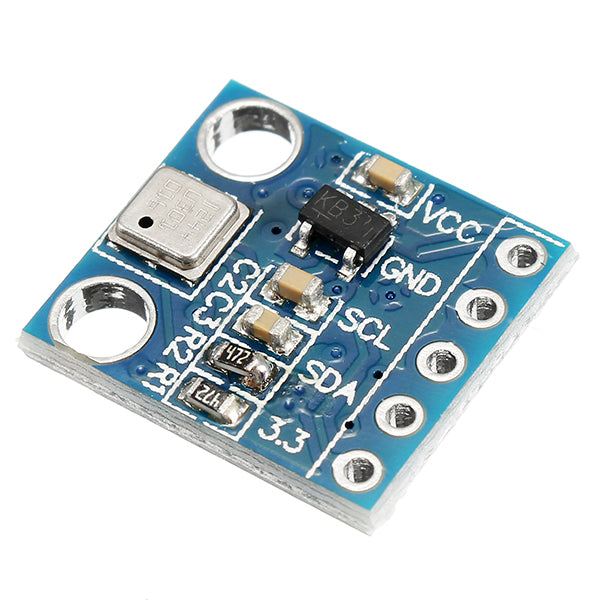

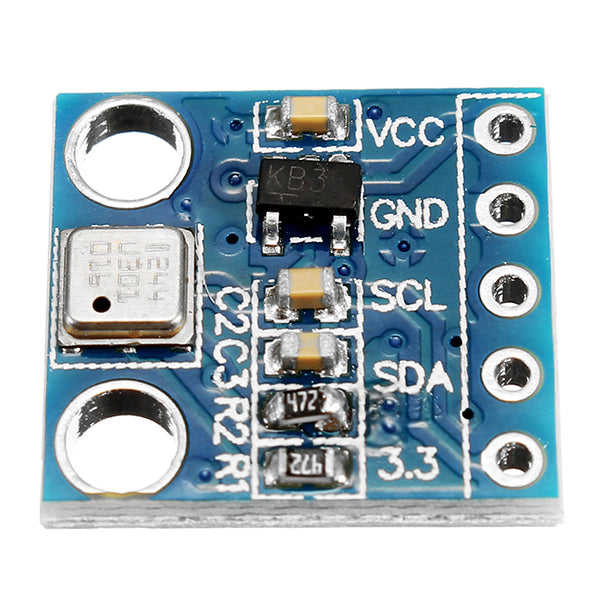

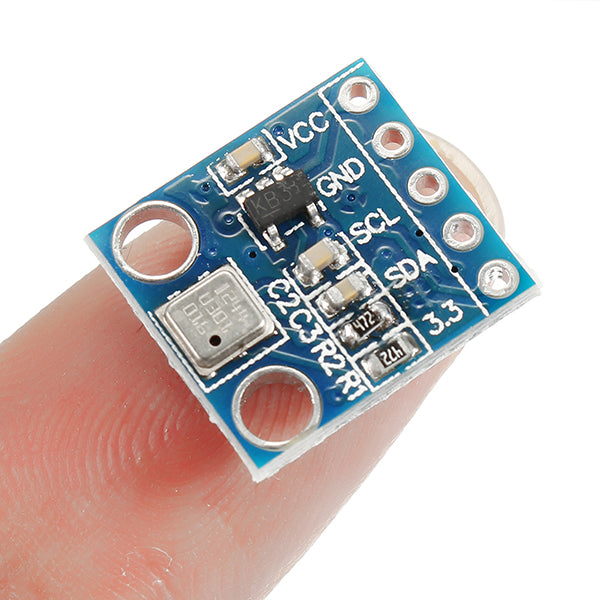

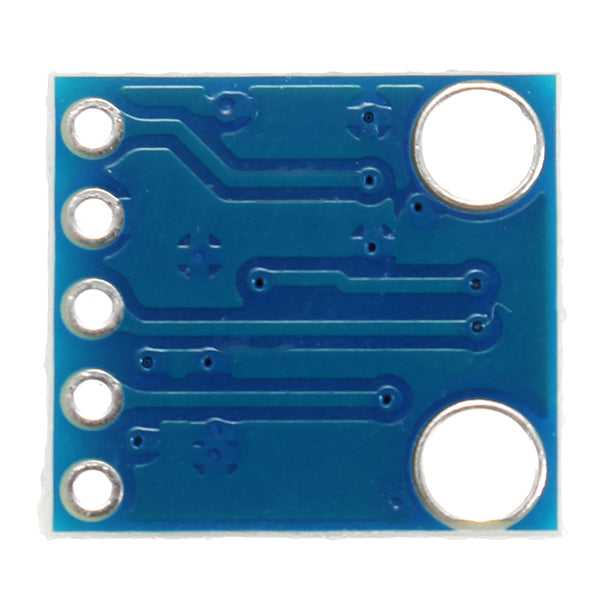

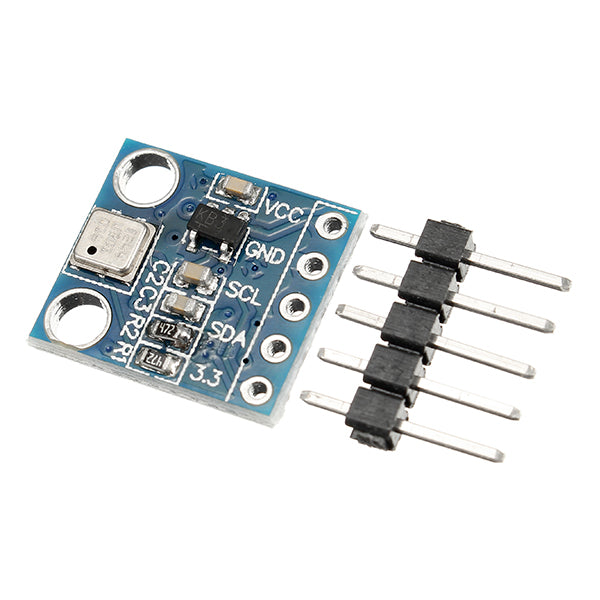

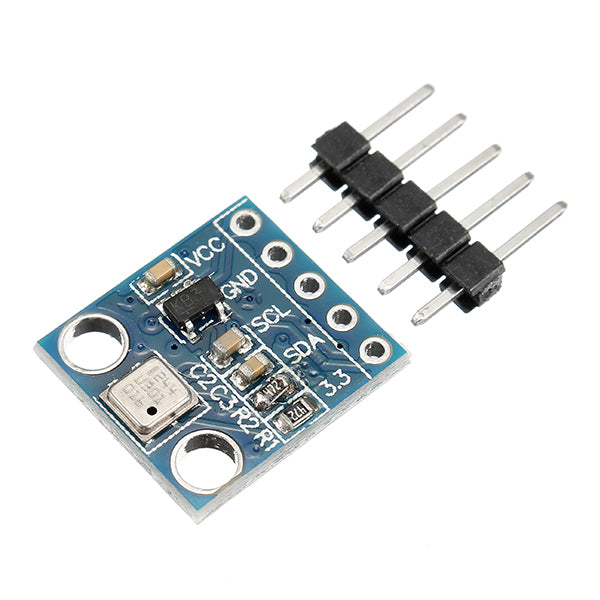

5 x GY-68 300-1100hPa BMP180 BOSCH temperature module
