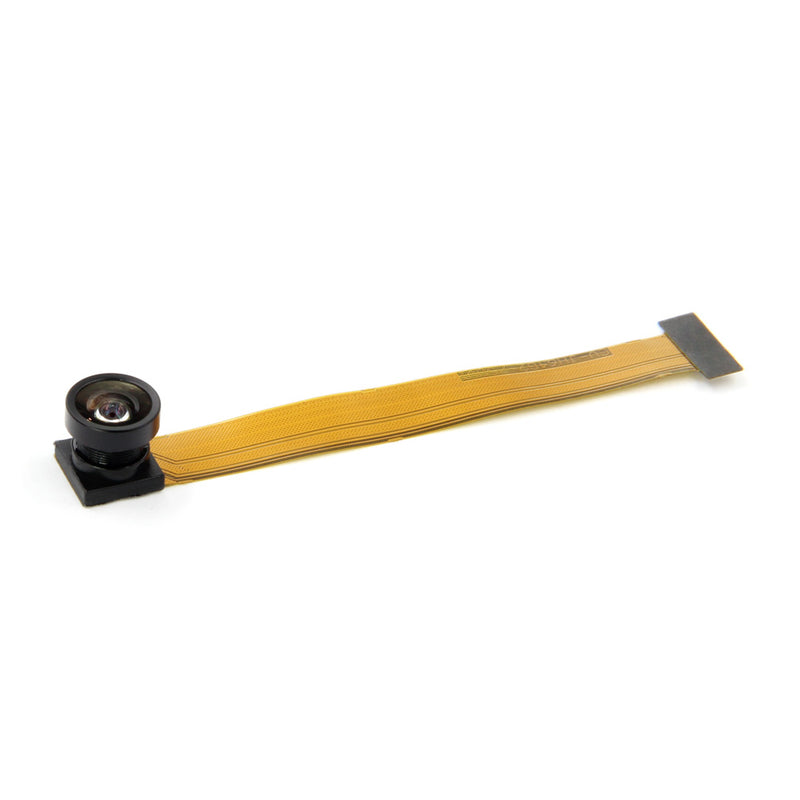

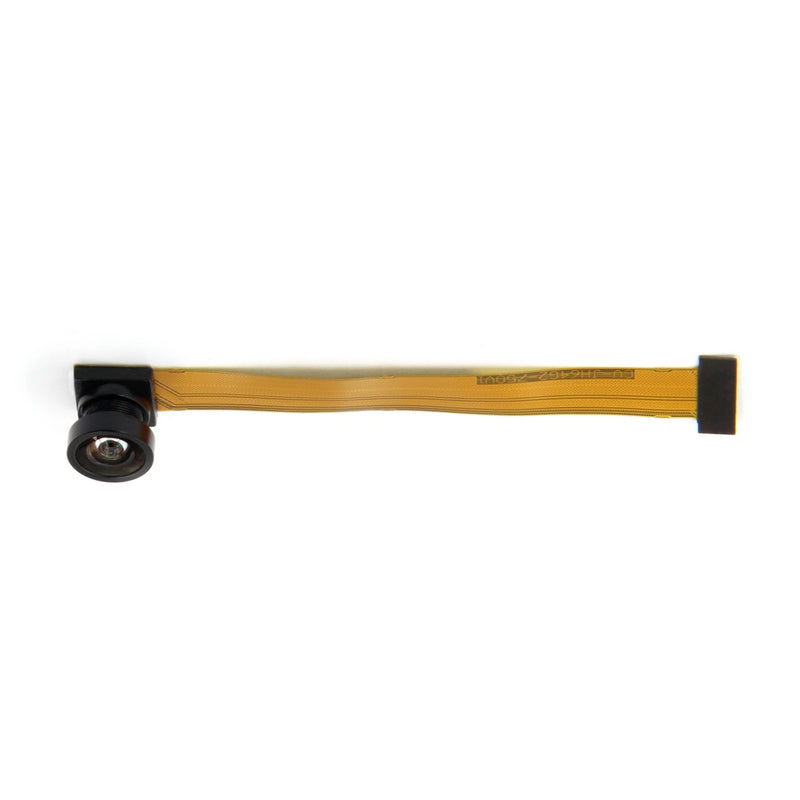

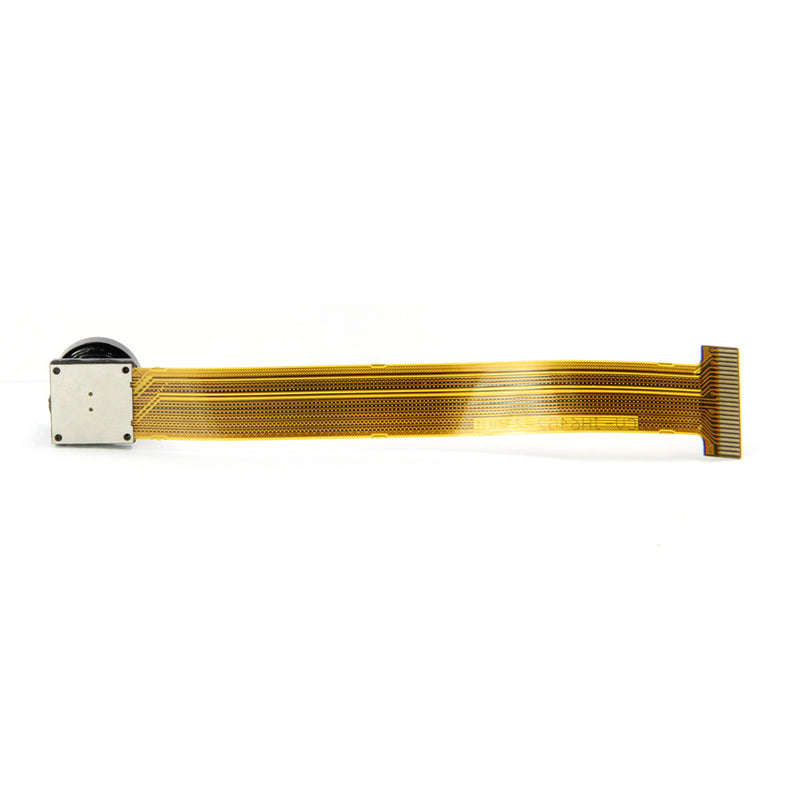

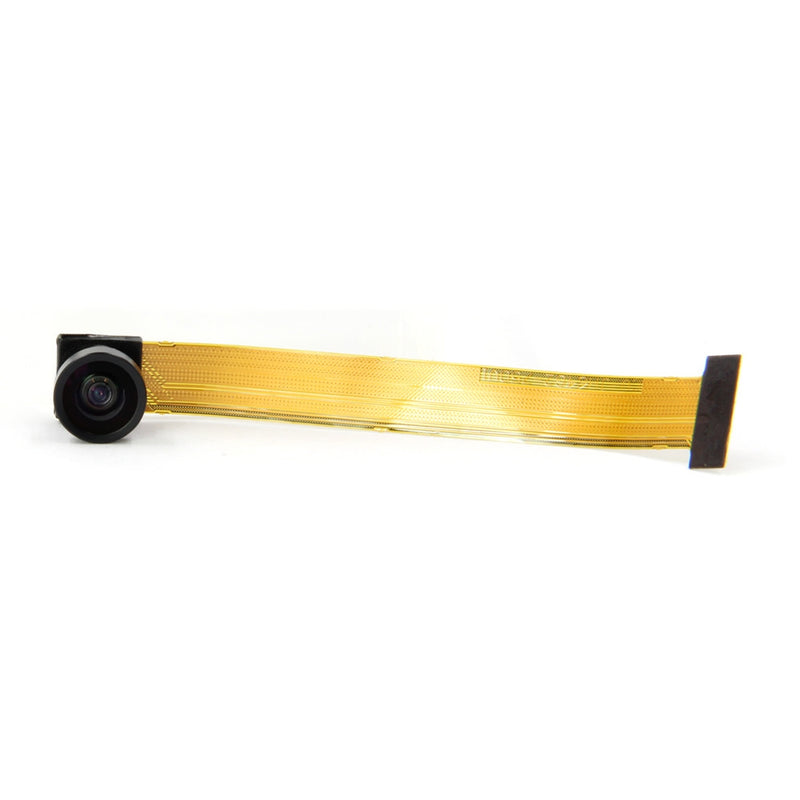

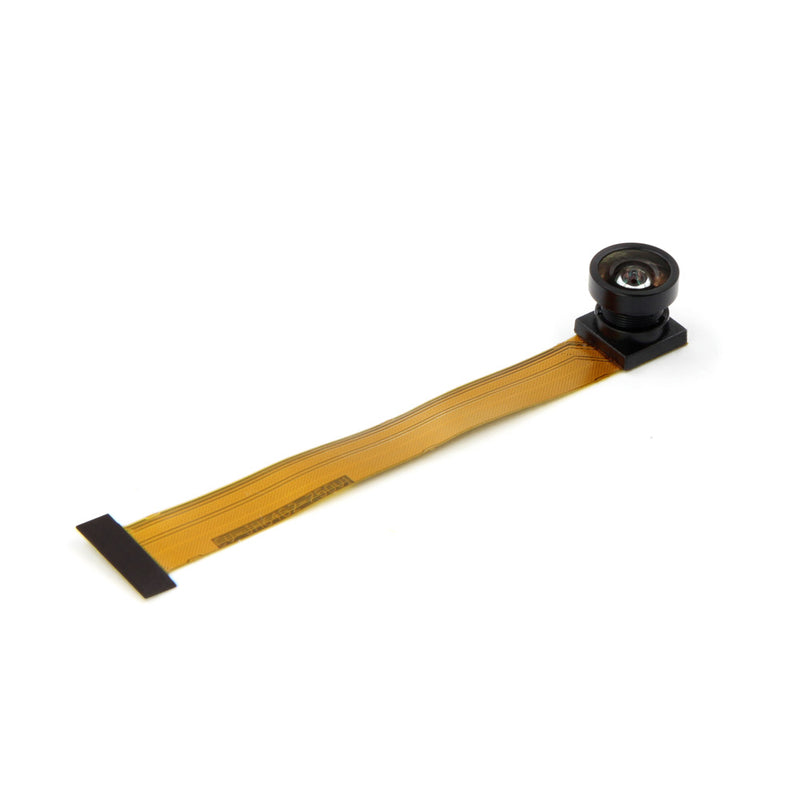

5pcs Lengthen Fisheye Lens TTGO Camera Module OV2640 2 Megapixel Adapter Support YUV RGB JPEG For T-Camera Plus ESP32-DOWDQ6 8MB SPRAM

5pcs Lengthen Fisheye Lens TTGO Camera Module OV2640 2 Megapixel Adapter Support YUV RGB JPEG For T-Camera Plus ESP32-DOWDQ6 8MB SPRAM

Name: 5pcs Lengthen Fisheye Lens TTGO Camera Module OV2640 2 Megapixel Adapter Support YUV RGB JPEG For T-Camera Plus ESP32-DOWDQ6 8MB SPRAM
Brand: Banggood
SKU: U2I-BG-1493567
Price: 10,230.00 INR
Availability: InStock

SKU: U2I-BG-1493567

Share this product

Feature:

Camera: OV2640

Camera Resolution: 2Megapixel
Type: Lengthened fisheye lens

Array Size	UXGA	1600 x 1200
Power Supply	Core	1.2VDC + 5%
	Analog	2.5 ~ 3.0VDC
	I/O	1.7V to 3.3V
Power Requirements	Active	125 mW (for 15 fps, UXGA YUV mode)
	Active	140 mW (for 15 fps, UXGA compressed mode)
	Standby	600 µA
Temperature	Operation	-30°C to 70°C
Range	Stable Image	0°C to 50°C
Output Formats (8-bit)		• YUV(422/420)/YCbCr422
		• RGB565/555
		• 8-bit compressed data
		• 8-/10-bit Raw RGB data
Lens Size		1/4"
Chief Ray Angle		25° non-linear
Maximum	UXGA/SXGA	15 fps
Image	SVGA	30 fps
Transfer Rate	CIF	60 fps
Sensitivity		0.6 V/Lux-sec
S/N Ratio		40 dB
Dynamic Range		50 dB
Scan Mode		Progressive
Maximum Exposure Interval		1247 x tROW
Gamma Correction		Programmable
Pixel Size		2.2 µm x 2.2 µm
Dark Current		15 mV/s at 60°C
Well Capacity		12 Ke
Fixed Pattern Noise		<1% of VPEAK-TO-PEAK
Image Area		3590 µm x 2684 µm
Package Dimensions		5725 µm x 6285 µm

Package includes:

5 x Camera
