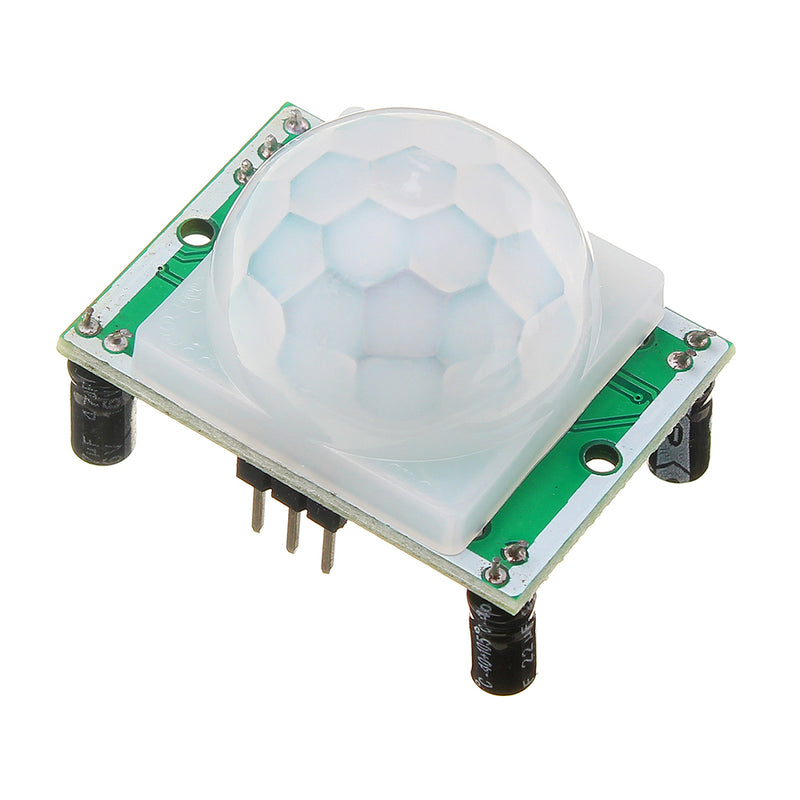

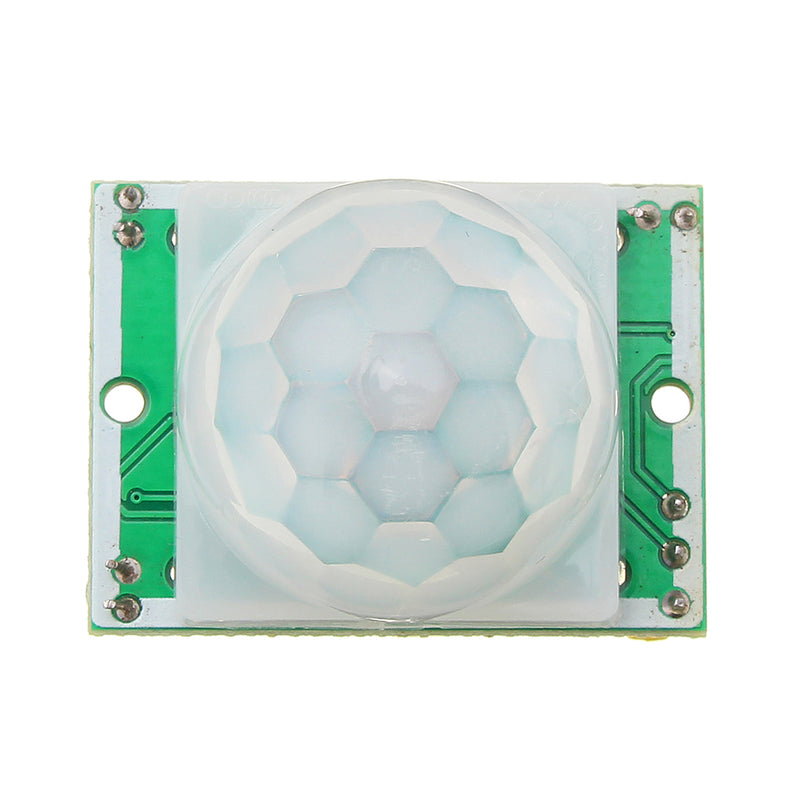

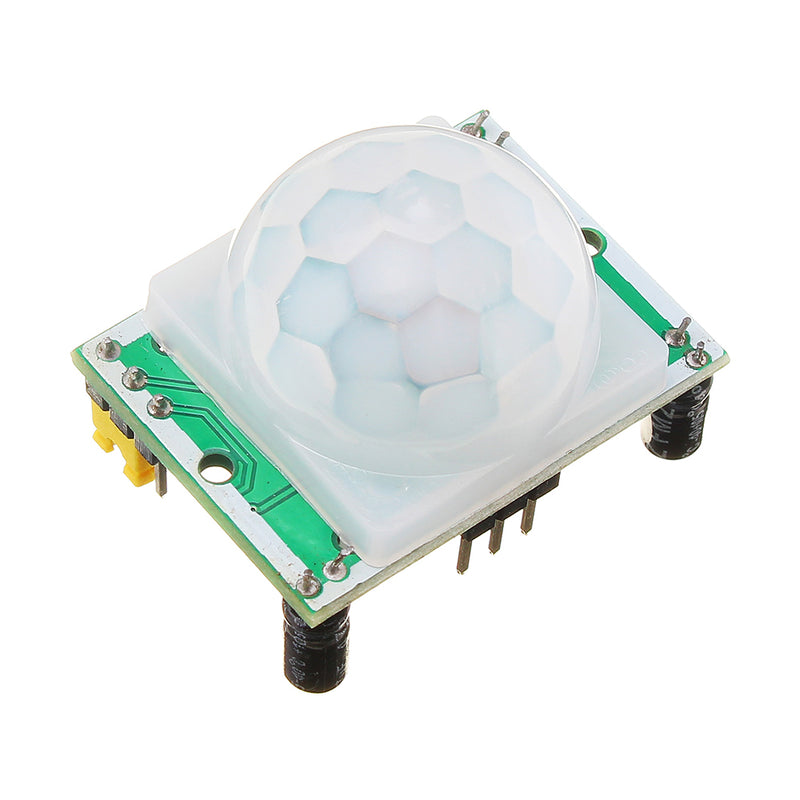

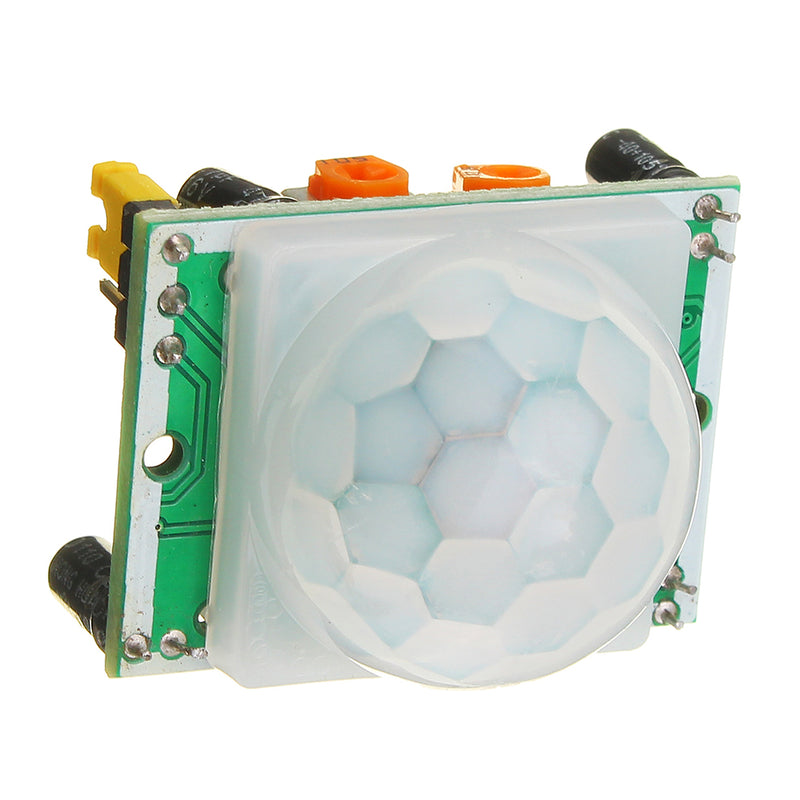

5pcs Mini IR Pyroelectric Infrared PIR Motion Human Body Sensor Detector Module
Save 0
SKU: U2I-BG-1430009
Share this product
Description
Features:

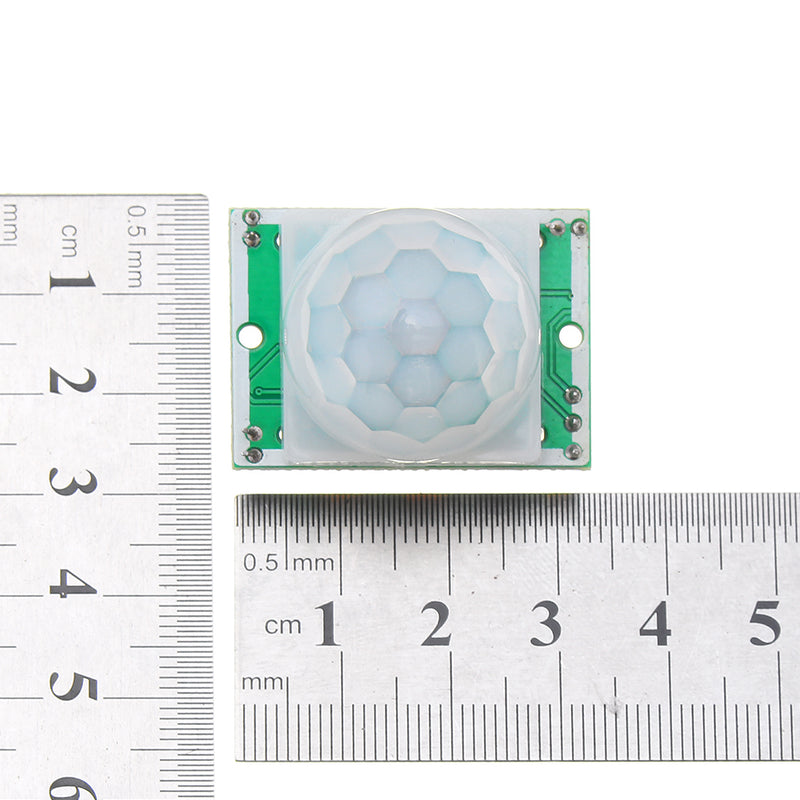

Weight: 7g (approx) Dimension: 3.2cm x 2.4cm x 2.8cm (approx) Infrared sensor with control circuit board The sensitivity and holding time can be adjusted Working voltage range: DC 4.5V- 20V Current drain:<60uA Voltage output: High/Low level signal:3.3V TTL output Detection distance: 3--7M(can be adjusted) Detection range: <140° Delay time: 5-200S(can be adjusted, default 5s +-3%) Blockade time: 2.5 S (default) Trigger: L: Non-repeatable trigger H: Repeat Trigger (default) Work temperature:-20-+80°C Trigger method: L unrepeatable trigger / H repeatable trigger
Note:

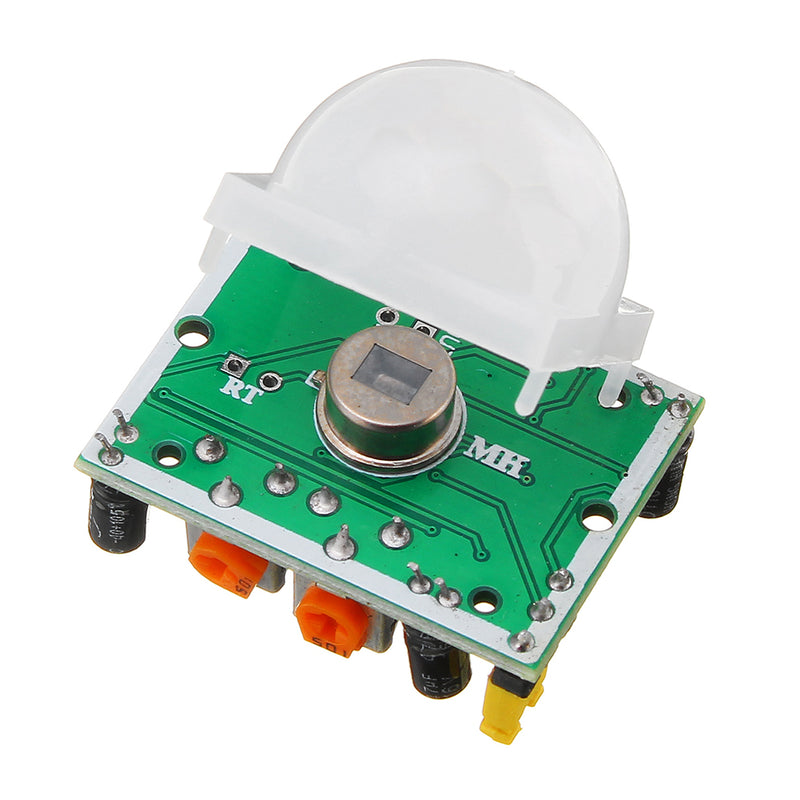

Sensitive Setting: turn to right, distance increases (About 7M); turn to left, distance reduce (About 3M) Time Setting: turn to right, time increases (About 300S); turn to left, time reduce (About 5S). Infrared sensor with control circuit board. The sensitivity and holding time can be adjusted.
Package Included:
5 x IR Detector Module
