OV2640 Camera
Click to download document: OV2640
Features:
1. The OV2640 is a 1/4-inch CMOS UXGA (1632*1232) image sensor. The sensor's small size and low operating voltage provide all the features of a single UXGA camera and image processor.
2. Through the SCCB bus control, it can output 8/10-bit image data of various resolutions such as full frame, sub-sampling, zooming and windowing. The UXGA image of this product can reach up to 15 frames per second (up to 30 frames for SVGA and 60 frames for CIF). Users have complete control over image quality, data format and transmission.
3. All image processing functions including gamma curve, white balance, contrast, chroma, etc. can be programmed via the SCCB interface. Image Sensors use unique sensor technology to improve image quality and reduce sharp and stable color images by reducing or eliminating optical or electronic defects such as fixed pattern noise, smearing, and floating.

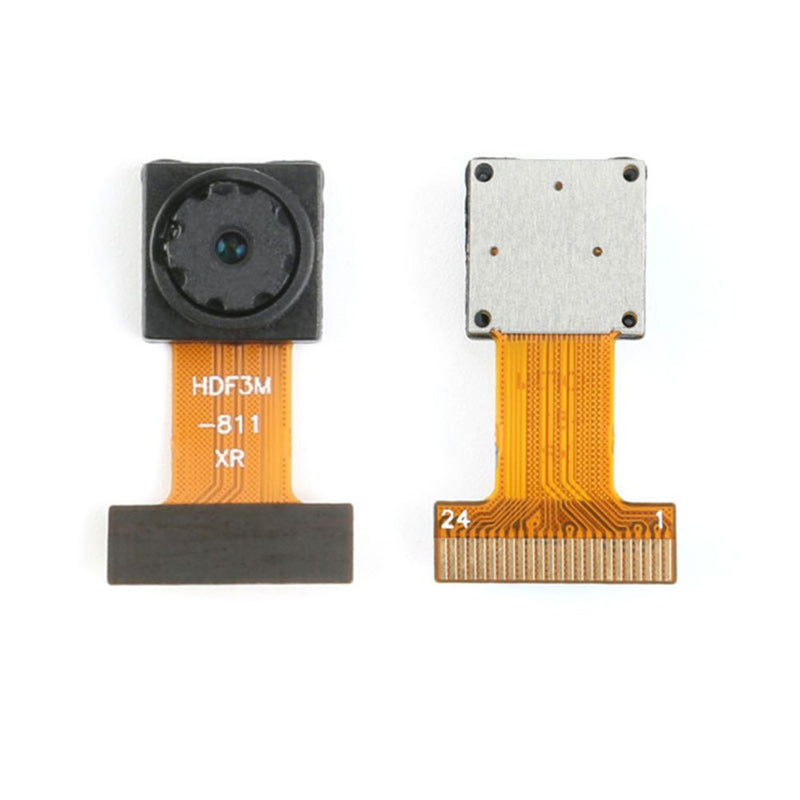

Note: This camera module only leads to some pins of the CSP package sensor chip and an optical lens. There is no integrated peripheral components, so you need to design it yourself.
Specifications:
Uses 1.4μm*1.4μm pixel size and uses technology for higher performance (high sensitivity,
Low crosstalk and low noise)
Automatic image control functions: automatic exposure (AEC), automatic white balance (AWB), automatic elimination of light streaks,
Automatic black level calibration (ABLC) and automatic band pass filter (ABF).
Support image quality control: color saturation adjustment, tone adjustment, gamma calibration, sharpness and lens calibration
Standard SCCB interface, compatible with IIC interface
Support RawRGB, RGB (RGB565/RGB555/RGB444), CCIR656, YUV (422/420),
YCbCr (422) and compressed image (JPEG) output formats
Support QSXGA (500W) image size output, and scale down to any other size
Flash support
Support for image scaling, panning, and window settings
Support image compression to output JPEG image data
Support for digital video interface (DVP) and MIPI interfaces
Support auto focus
Built-in embedded microprocessor
Note: This camera module only leads to some pins of the CSP package sensor chip and an optical lens. There is no integrated peripheral components, so you need to design it yourself.
Package Included:

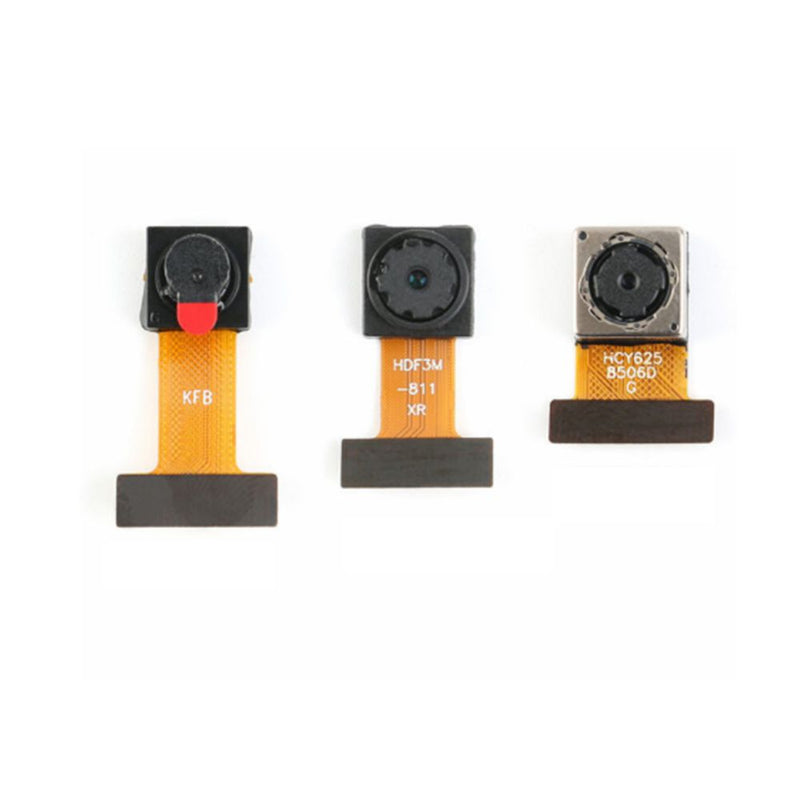

5 x Mini OV2640 Camera Module
