Download method:
You can directly program the program through the USB cable, or you can use the usb to serial port for serial communication.
Onboard high speed USB to serial communication chipCPU:
- Fully static 8-bit 1T 8051 core CMOS microcontroller.
- The instruction set is fully compatible with MCS-51.
- Level 4 priority interrupt configuration.
- Double Data Pointers (DPTRs)
Working conditions:
- Wide voltage operating range from 2.4V to 5.5V.
- Wide operating frequency up to 16MHz.
- Industrial operating temperature -40°C to +105°C.
Memory:
- Up to 18K bytes of APROM user program code area.
- Configurable 4K/3K/2K/1K/0K byte LDROM boot code area for flexible user configuration.
- All FLASH areas are separated by 128 bytes.
- Built-in IAP programming function.
- Code encryption.
- 256 bytes of on-chip direct access to RAM.
- Additional 768 bytes of on-chip indirect access RAM (XRAM) read and write via MOVX instructions.
Clock source:
- 16 MHz high speed internal oscillator with ±1% accuracy rating at 5.0V supply. Full working condition range ± 2% accuracy level.
- 10 kHz low speed internal oscillator.
- Support for external clock input.
- Support system clock real-time software switching (On-the-fly) function.
- Support software configuration clock divide by up to 1/512.
Features:
- Up to 17 standard universal pins, plus one pin that can only be used as input. All output pins can be configured with two output slopes via software.
Package includes:

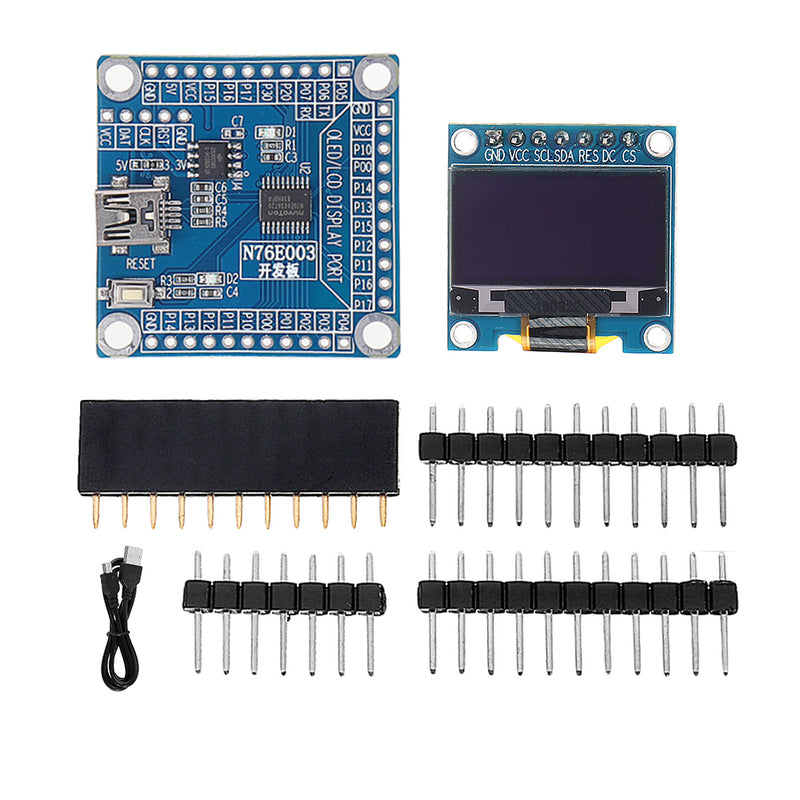

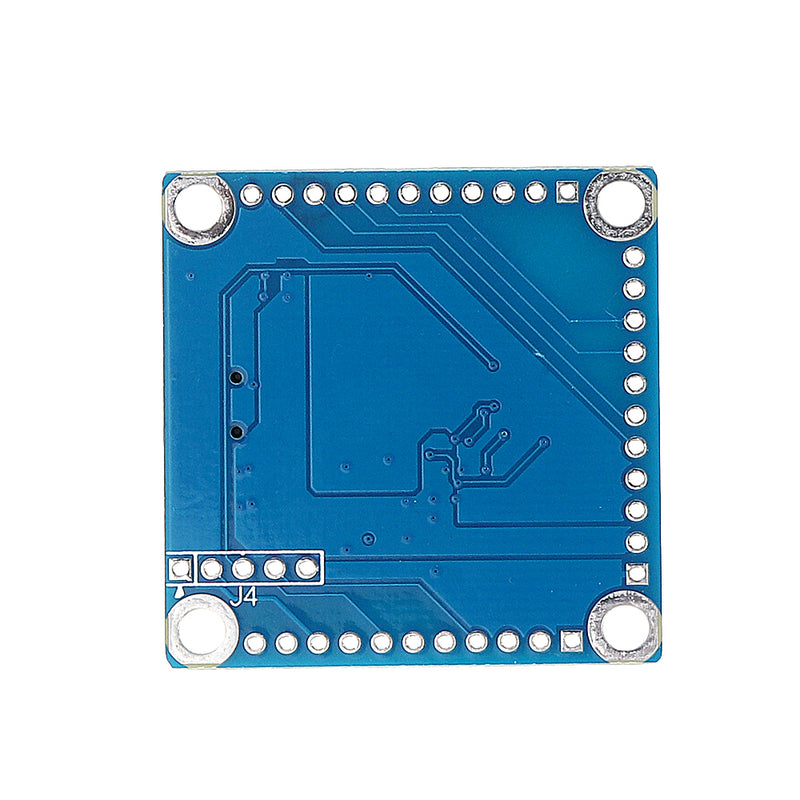

5 x N76E003AT20 Development Board

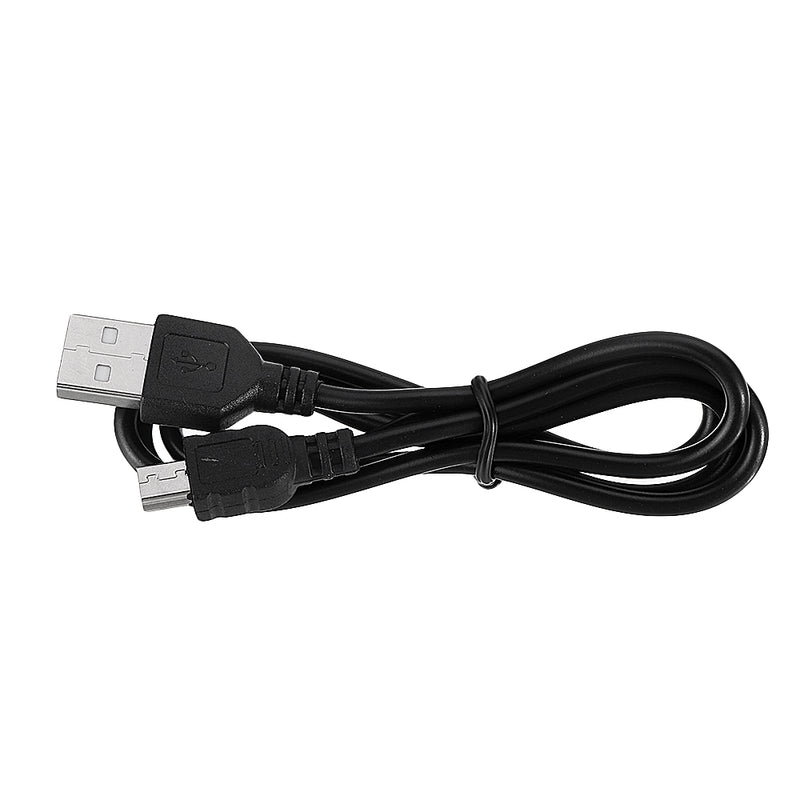

5 x USB cable

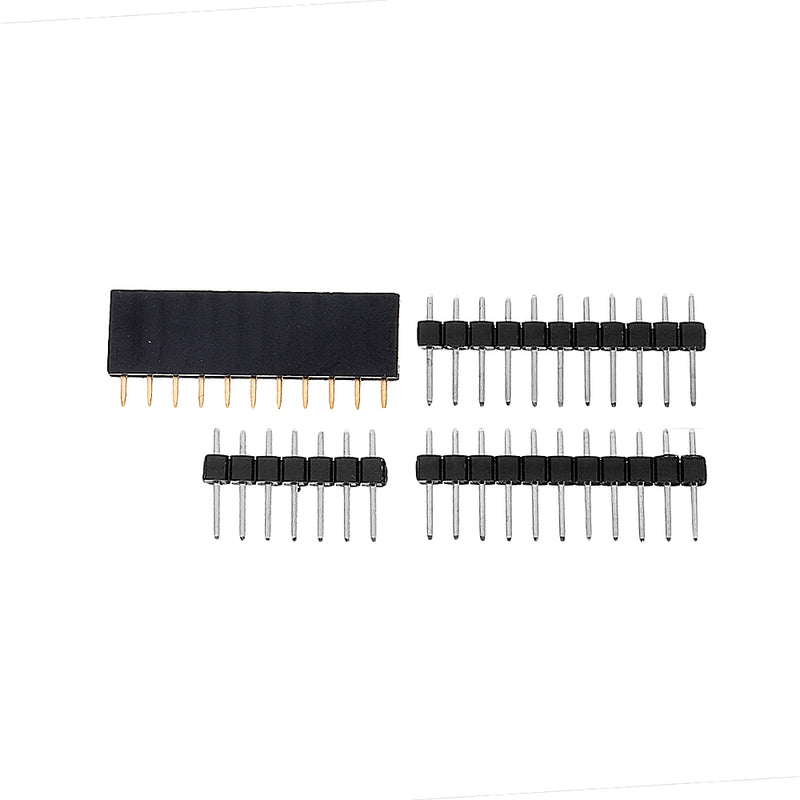

5 x Pins set (unsoldered)

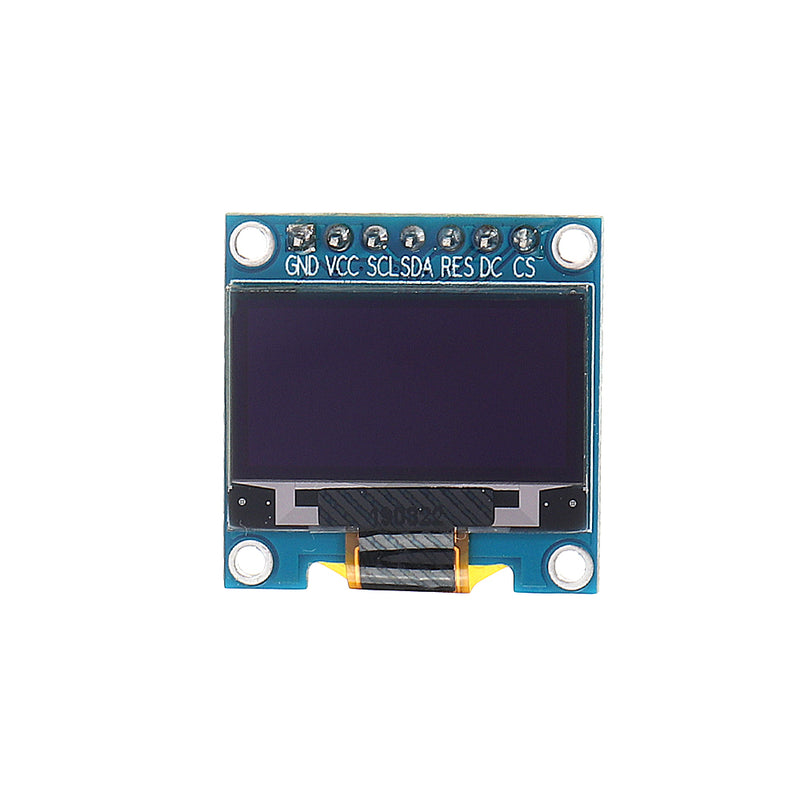

5 x 11pin leader for display
