Description:

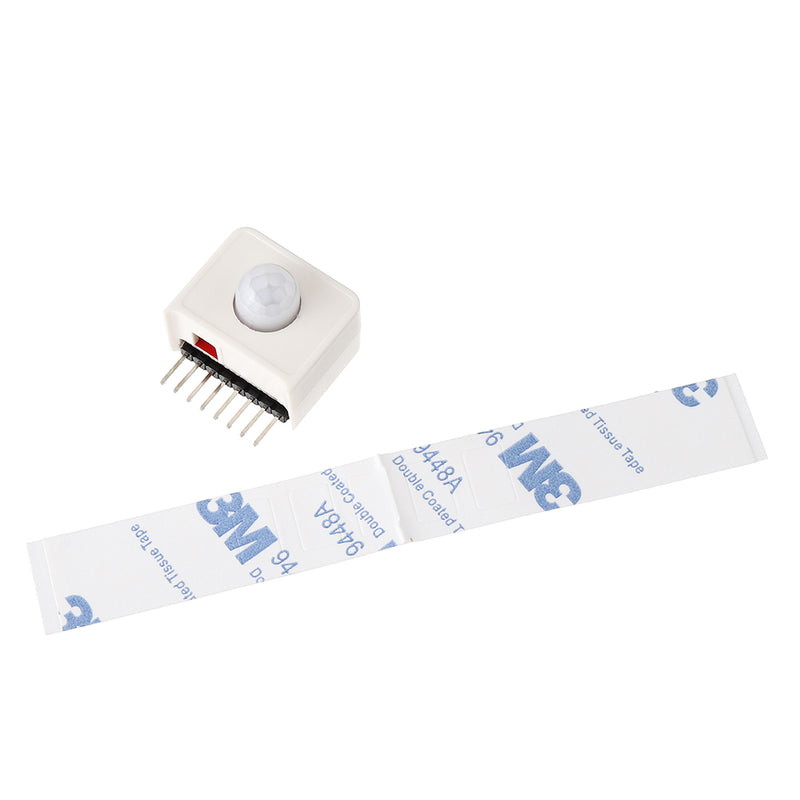

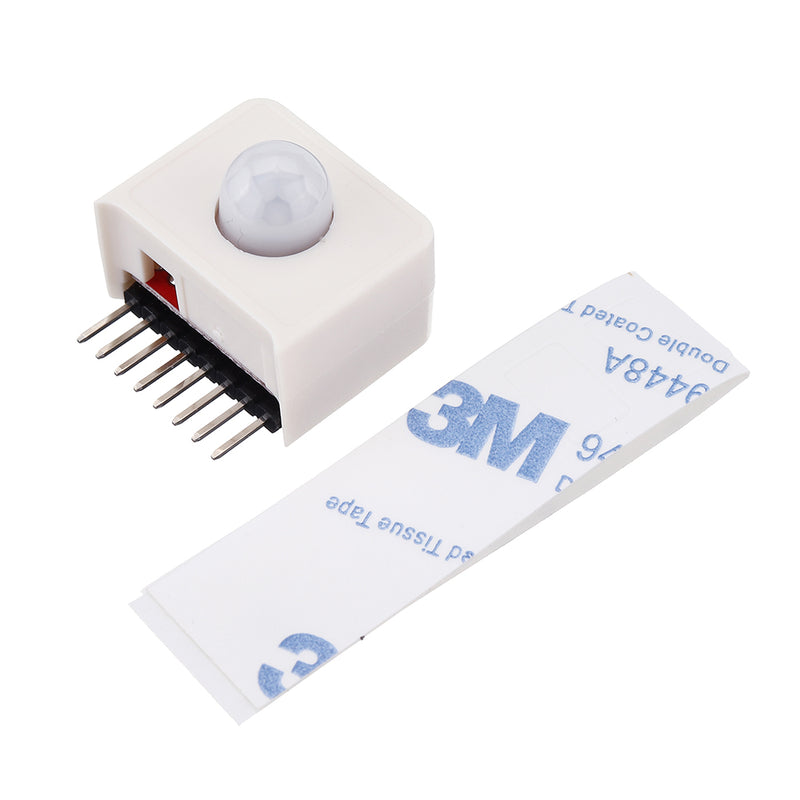

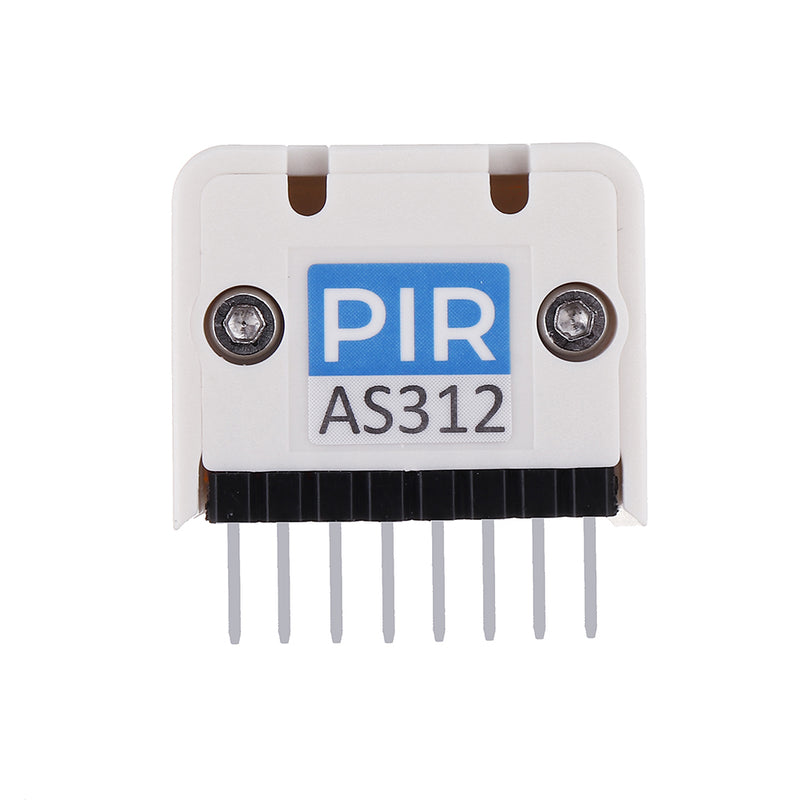

Hat PIR is an M5StickC compatible human body induction sensor, it belongs to "Passive pyroelectric infrared detector", that detect the infrared come from the human body. When the infrared is detected, the sensor will output HIGH and last for two seconds until the next detecting round.
Notice: There exist 2 seconds delay
Product Feature:
- Detecting Range: 150cm
- Delay time: 2s
- Induction Angle: < 100°
- IDDQ : < 60uA
- Op.T: -20 - 80 °C
package Includes:
Application:
- Hunman body induction lamp
- Security product
- Auto-induction
Schematic:
Links:
EasyLoader
1.EasyLoader is a simple and fast program burner, and each product page has a product-related case program for EasyLoader.
2.After downloading the software, double-click to run the application, connect the M5 device to the computer via the data cable, select the port parameters, and click "Burn" to start burning.
Example:
Pin Map:
| M5StickC | GPIO36 | 5V | GND |
| HAT PIR | OUT | 5V | GND
|
