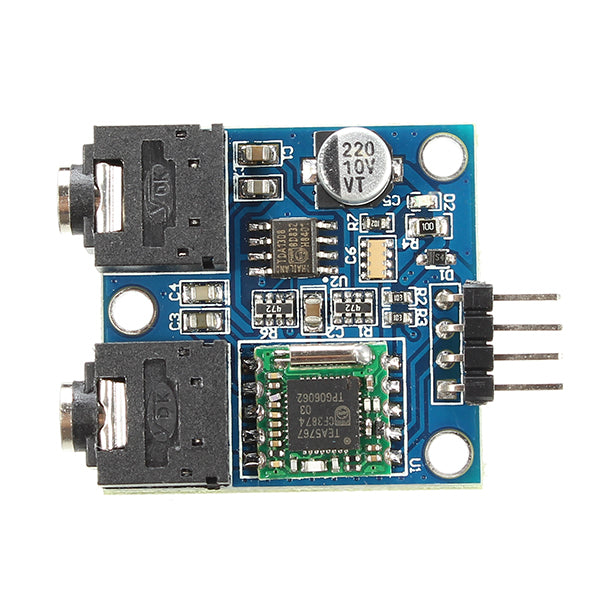

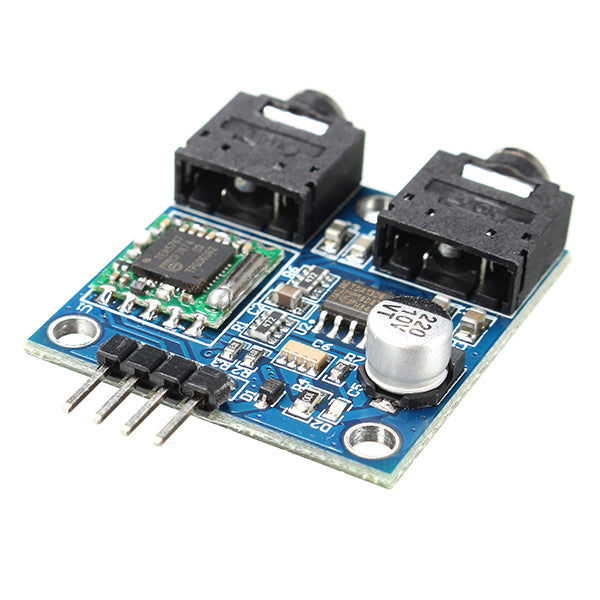

5Pcs TEA5767 76-108MHZ FM Stereo Radio Module For With Antenna
Save 0
SKU: U2I-BG-1146531
Share this product
Description
Feature:
Frequency range from 76-108MHZ automatic digital tuning. High sensitivity, high stability, low noise, radio module. A low-power electro-tuning FM stereo radio circuit, which integrates the IF frequency selection and demodulation network, can be completely free of tune. High sensitivity (Using low noise RF input amplifier) High-gain automatic gain control (AGC) circuit LC tuned oscillator fixed chip with low cost
Specification:

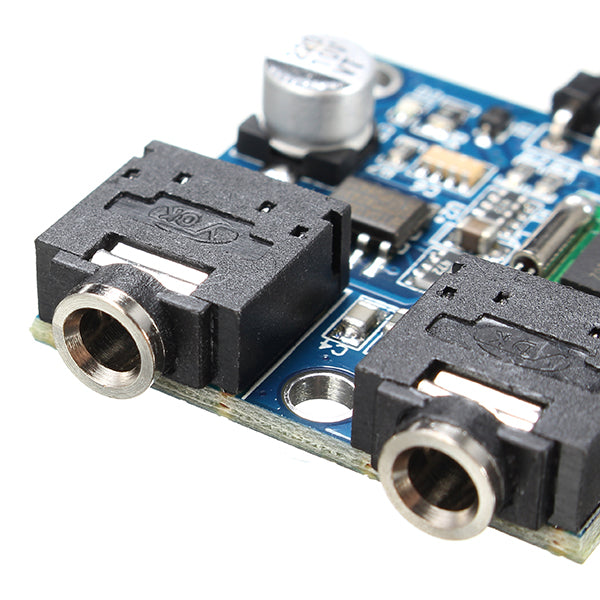

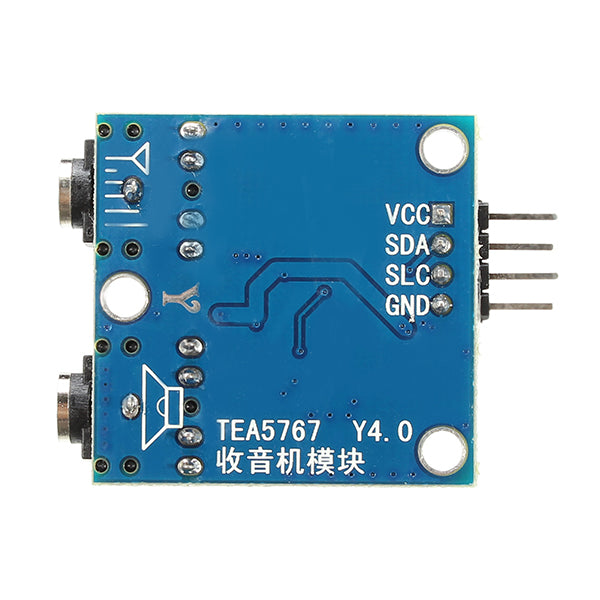

Board size: 31 x 30 mm With a power reverse-protection diode Board comes with power output filter inductor Multiple capacitor combination filter Blue power indicator You can directly pull and plug the antenna port I2C bus communication FM radio TEA5767 dedicated chip module Onboard headphone amplifier chip TDA1308 as audio amplification Onboard 3.5mm audio interface, can be directly connected headset amplifier If connects with singlechip, only need to connect the power ground and two I2C communication lines
Package includes:

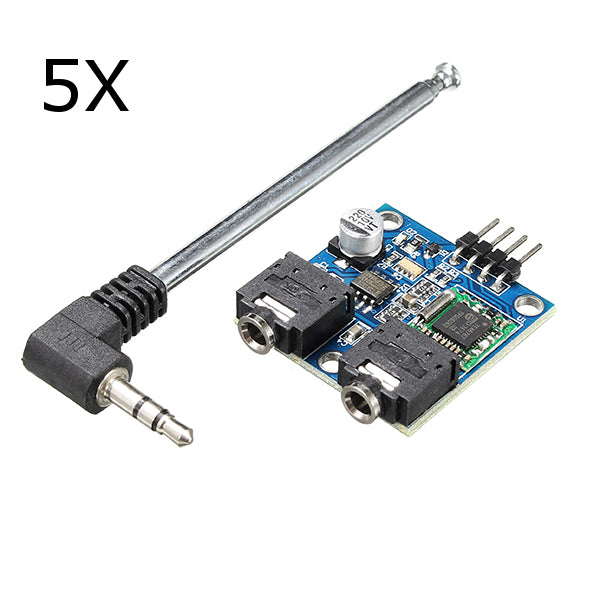

5 x TEA5767 Radio Module
,,,
