Description:
Color: Silver & Green & Black
Size: 87*16mm
Application:
For lithium battery
Detailed Parameter:
| |
Detail |
Specifications |
unit |
| Discharge |
Continuous discharge current |
15(max) |
A |
| Instantaneous discharge current |
25 |
A |
| Charge |
Charge voltage |
21 |
V |
| Charging current |
15(max) |
A |
| Overcharge Protect |
Over-charge detect |
4.28±0.05 |
V |
| Protect delay |
0.5 |
S |
| Over-charge release |
4.28±0.05 |
V |
| Balance |
Detect voltage |
/ |
V |
| Release voltage |
/ |
V |
| Balance current |
/ |
mA |
| Over-discharge Protect |
Over-discharge detect |
2.55±0.08 |
V |
| Over-discharge detect delay |
0.1 |
S |
| Release voltage |
2.9±0.1 |
V |
| Short-circuit Protect |
Protect condition |
Cut load |
|
| Detect delay |
250 |
uS |
| Release condition |
Cut load |
|
| Over-current Protect |
Detect voltage |
150 |
mV |
| Detect delay |
9 |
MS |
| Current detect |
30±3 |
A |
| Release condition |
Cut load |
|
| Temperature Protect |
/ |
/ |
℃ |
| Resistance |
Inner |
≤20 |
mΩ |
| Self-consumption |
Working current |
≤30 |
uA |
| Sleep current (when over-charge) |
≤10 |
uA |
| Working Temperature |
Range |
-30/+80 |
℃
|
Package included:

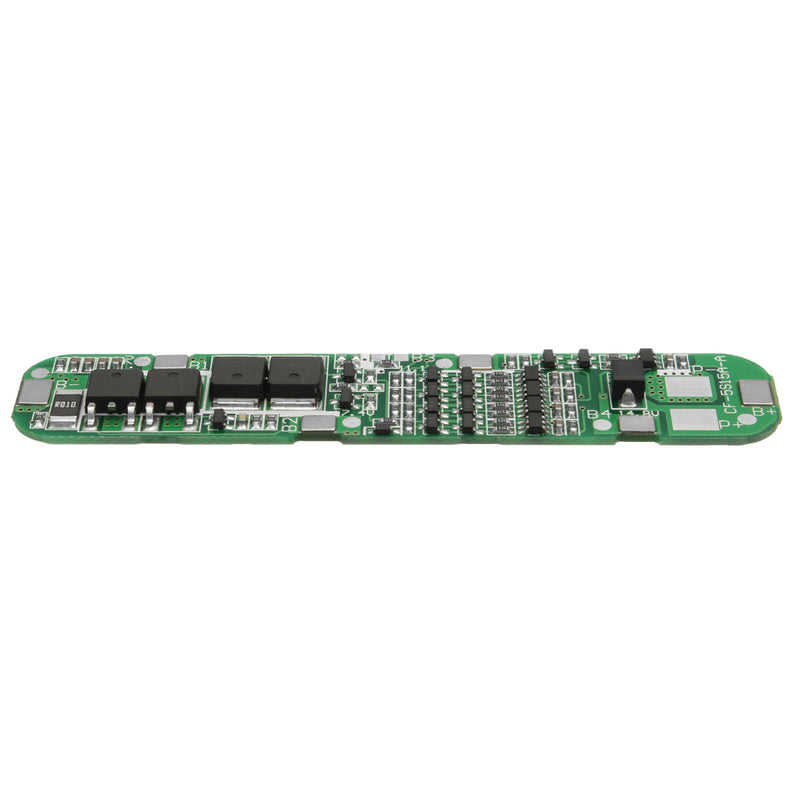

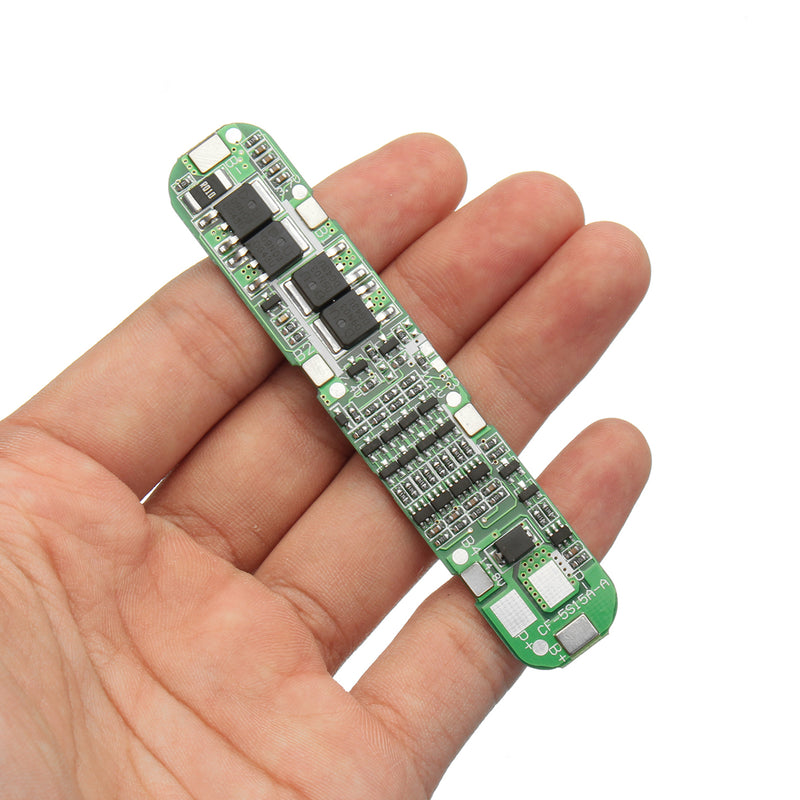

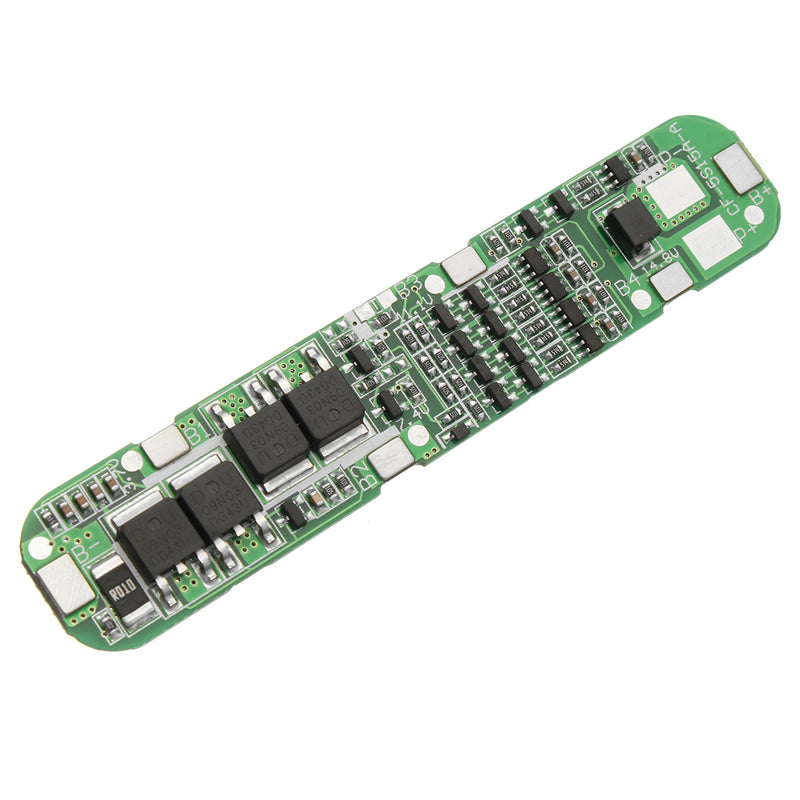

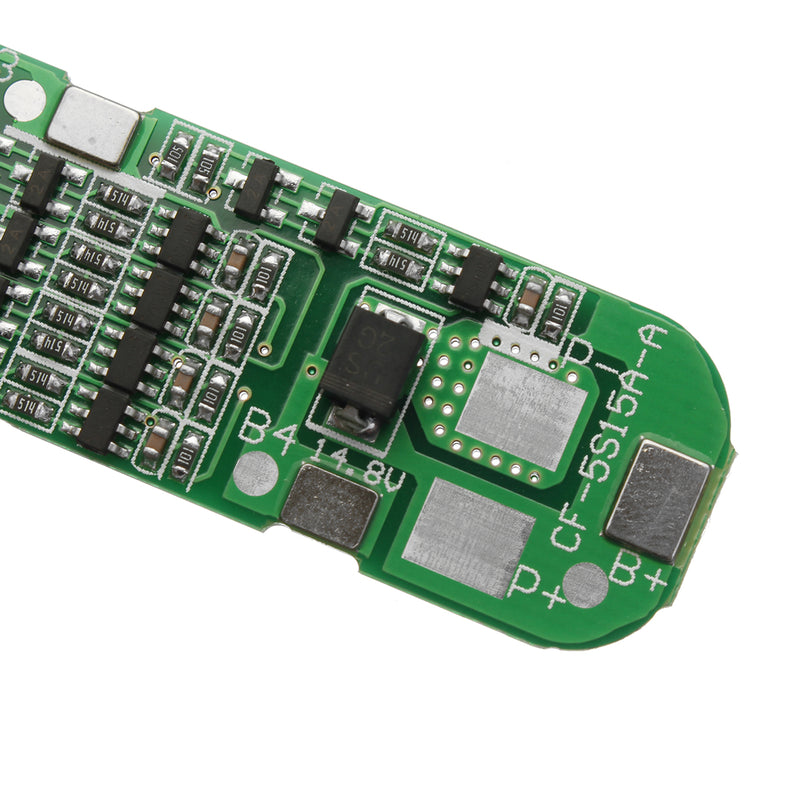

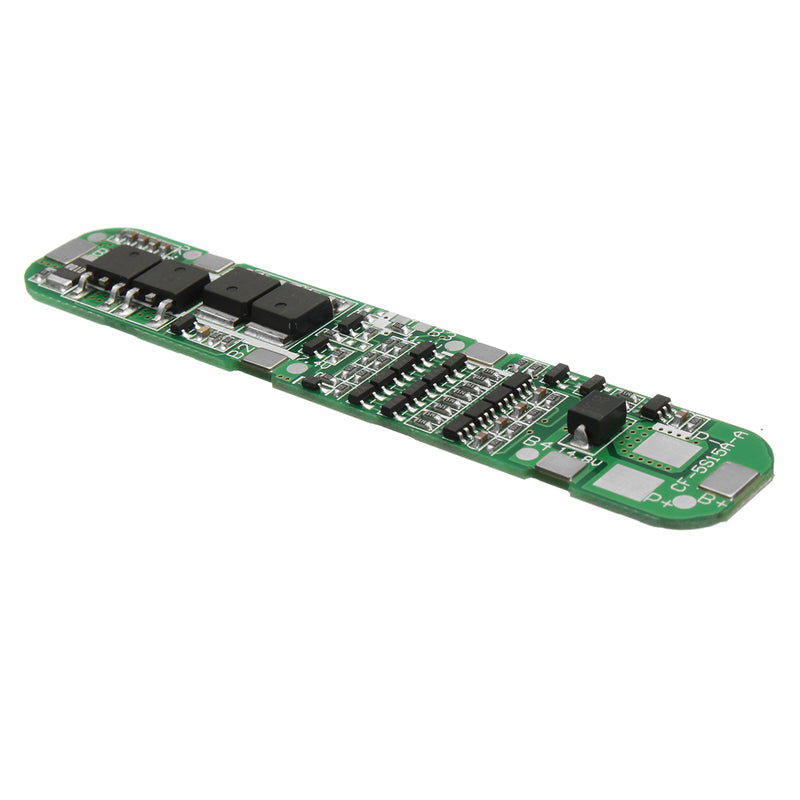

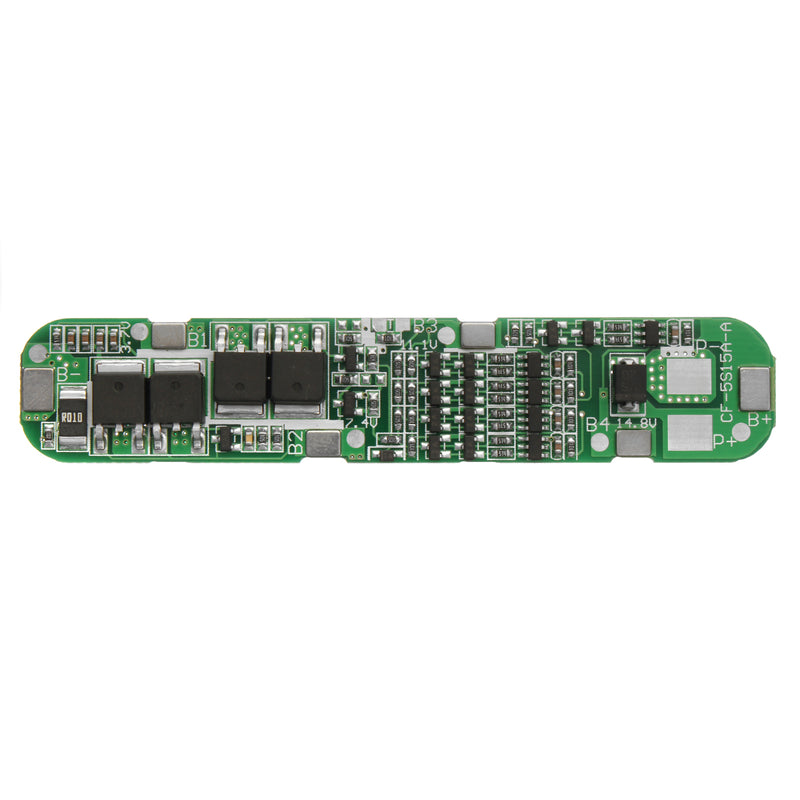

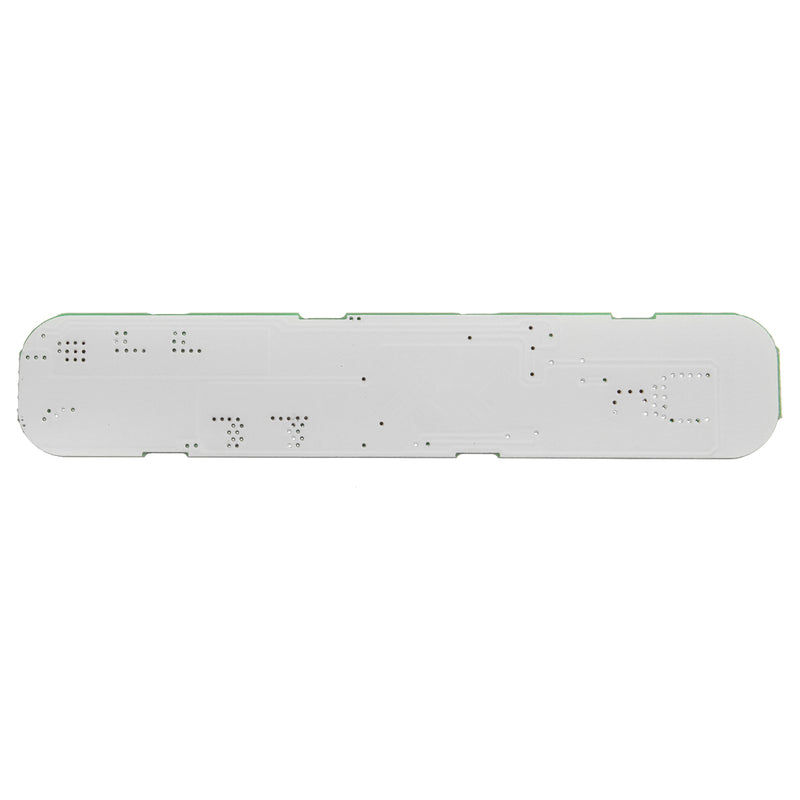

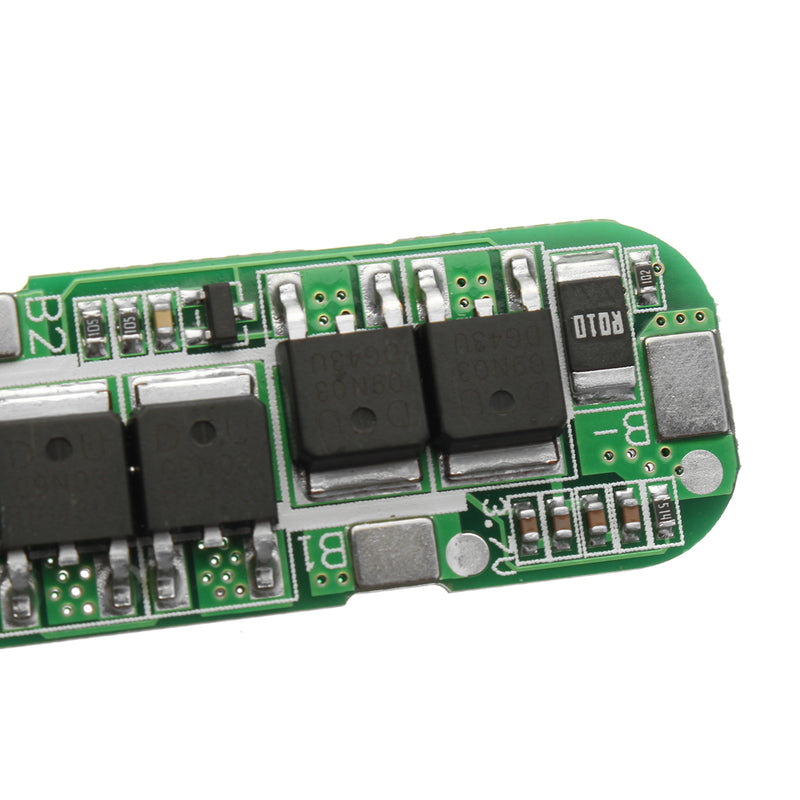

1 x Battery Protection Board
