Note:
There are 5V and 3.3V show as the picture, but the same function.
Show as 5V, it means output voltage 5V;
Show as 3.3V, it also means output voltage 5V, but with regulator chip, it can be output voltage 3.3V.
Feature:Input voltage: AC 85 ~ 265v 50 / 60HZ or DC100v-370v
Output voltage: DC5V (± 0.2V)
Output Current: 700mA
Power: 3.5W
Item |
Unit |
Minimum |
Typical values |
Maximum |
Test Conditions |
Input voltage range |
V ac |
85 |
110/220 |
265 |
Under full load condition |
| Input voltage range |
V dc |
100 |
150/300 |
370 |
|
Input Current |
A |
0.0273(AC110V) 0.014(AC220V) |
Under full load condition |
Input inrush current |
A |
20 |
Under full load condition
|
The output voltage |
Minimum current |
Maximum current |
Peak current |
Output voltage range |
Ripple |
+5V |
0A |
700mA |
800mA |
4.80~5.2V |
60mV
|
Package included:

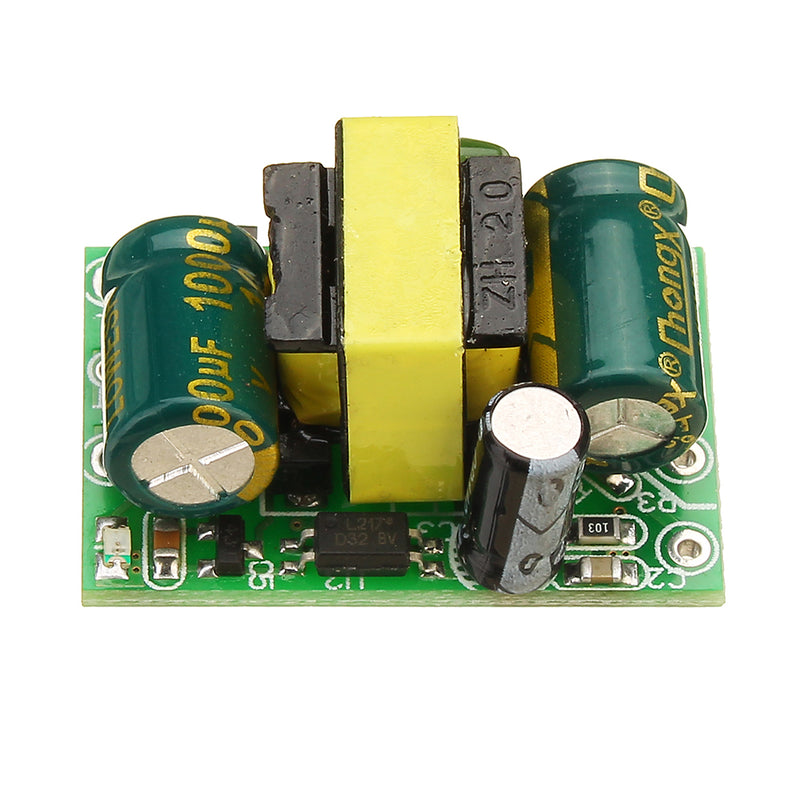

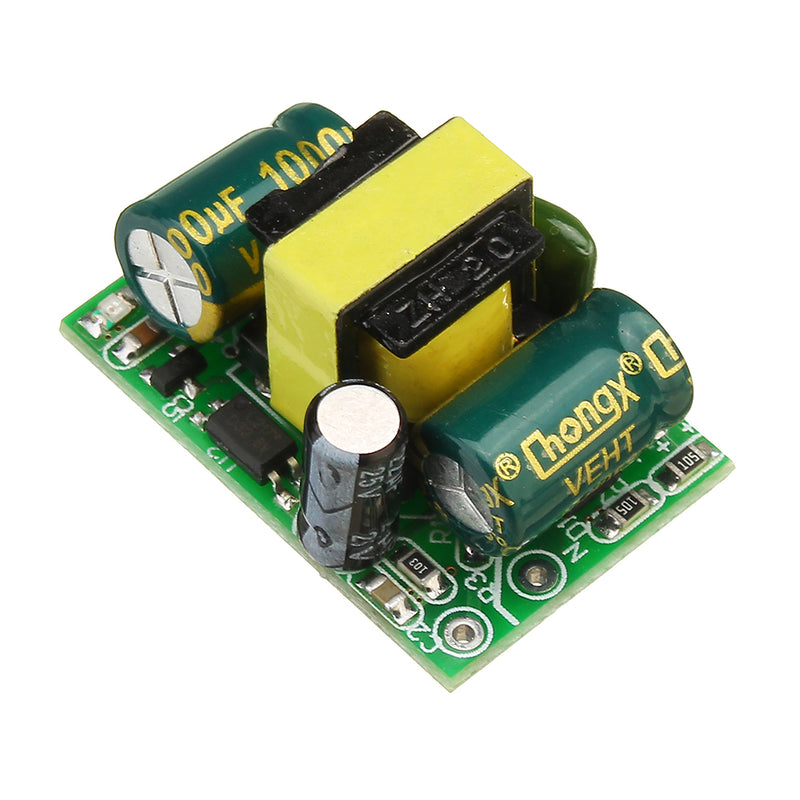

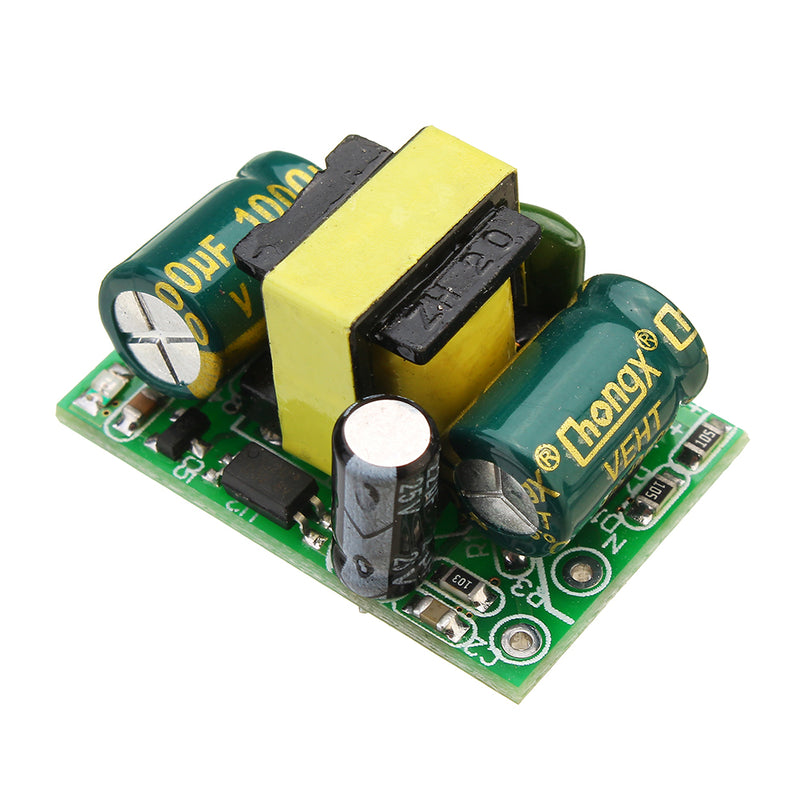

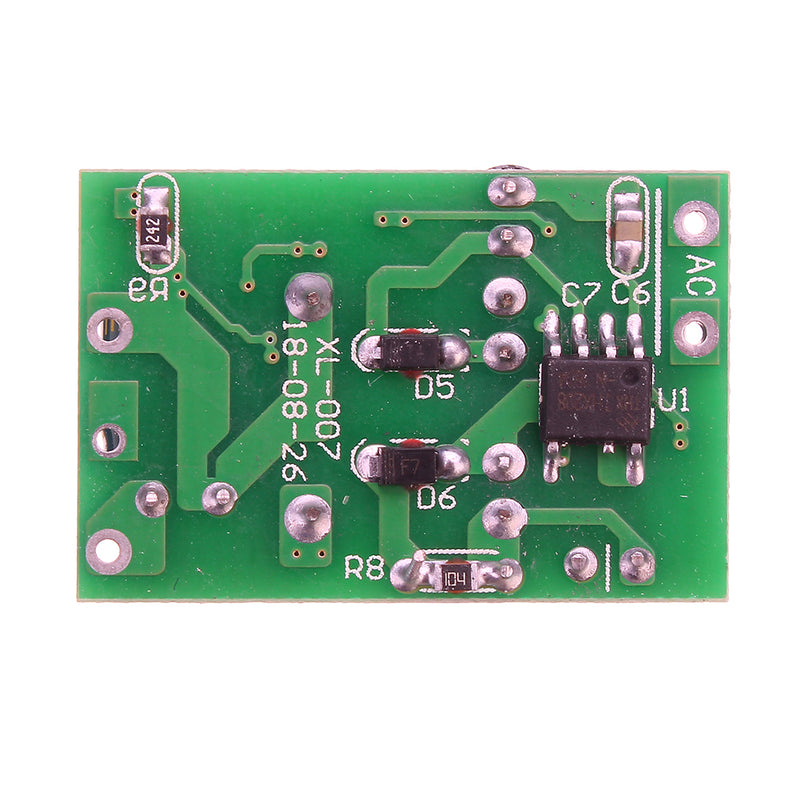

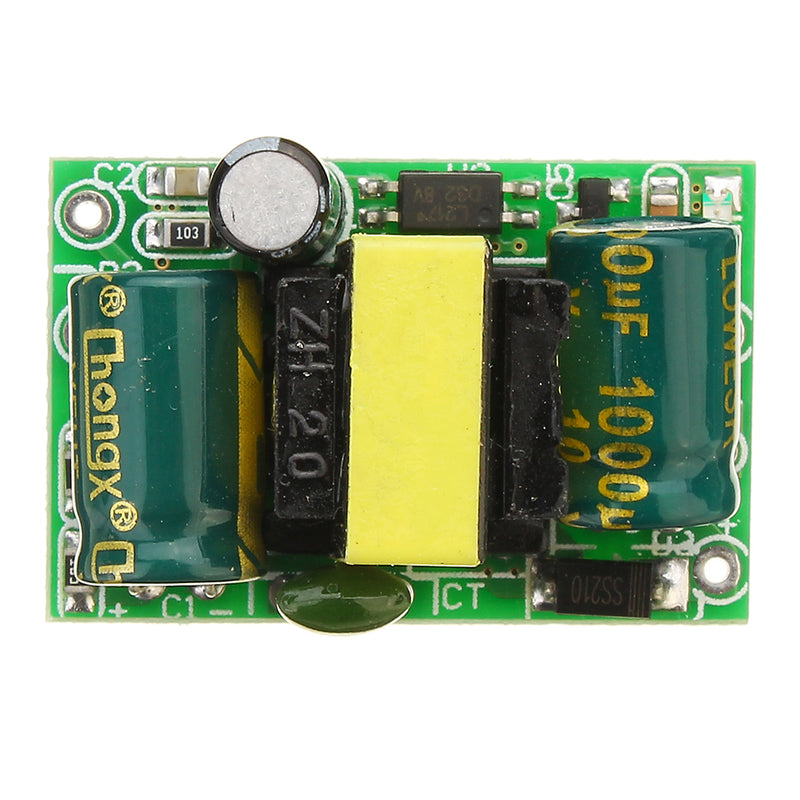

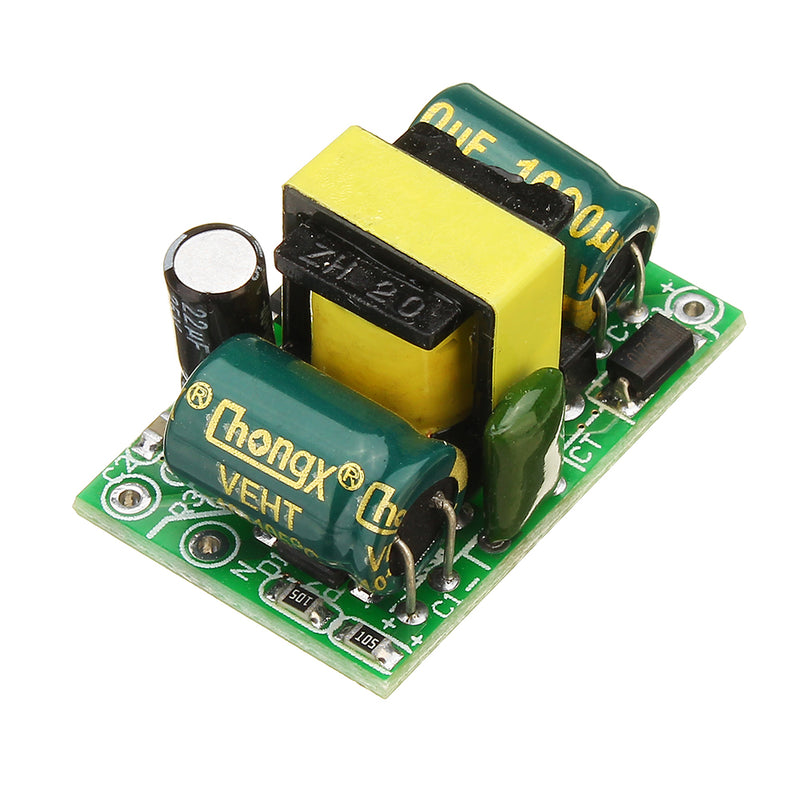

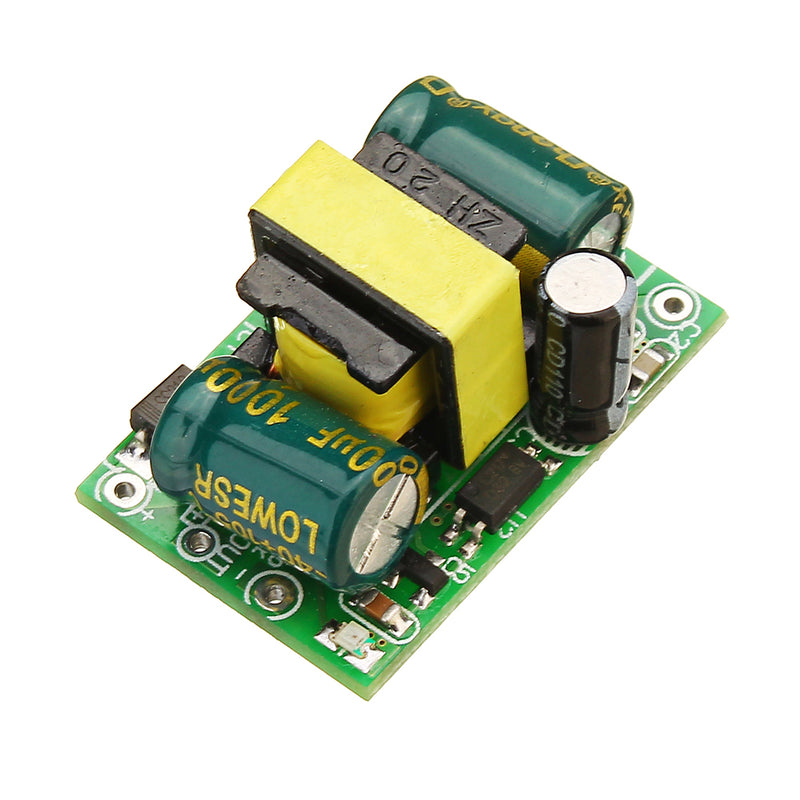

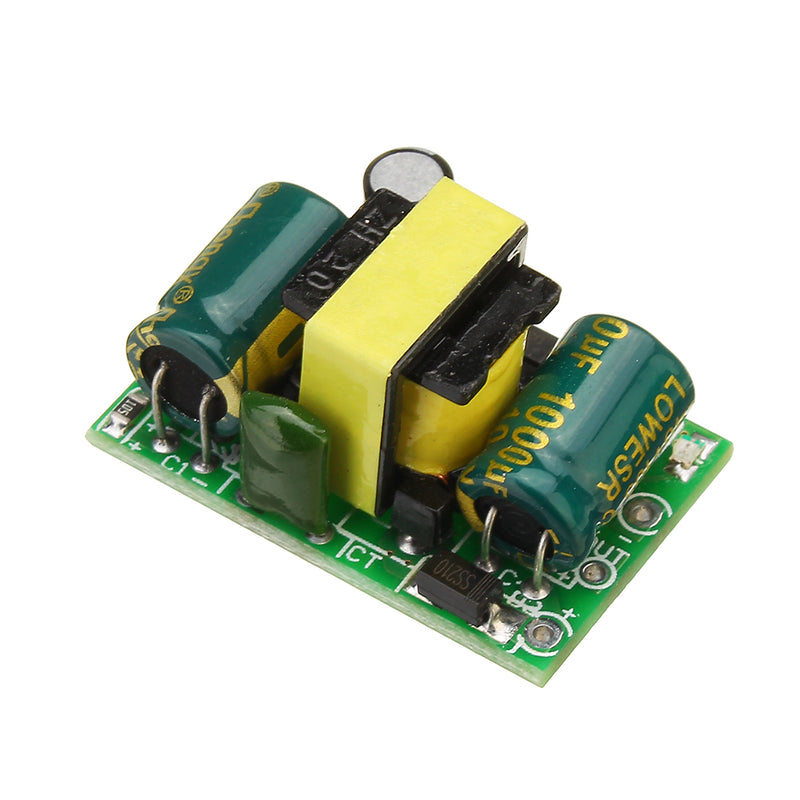

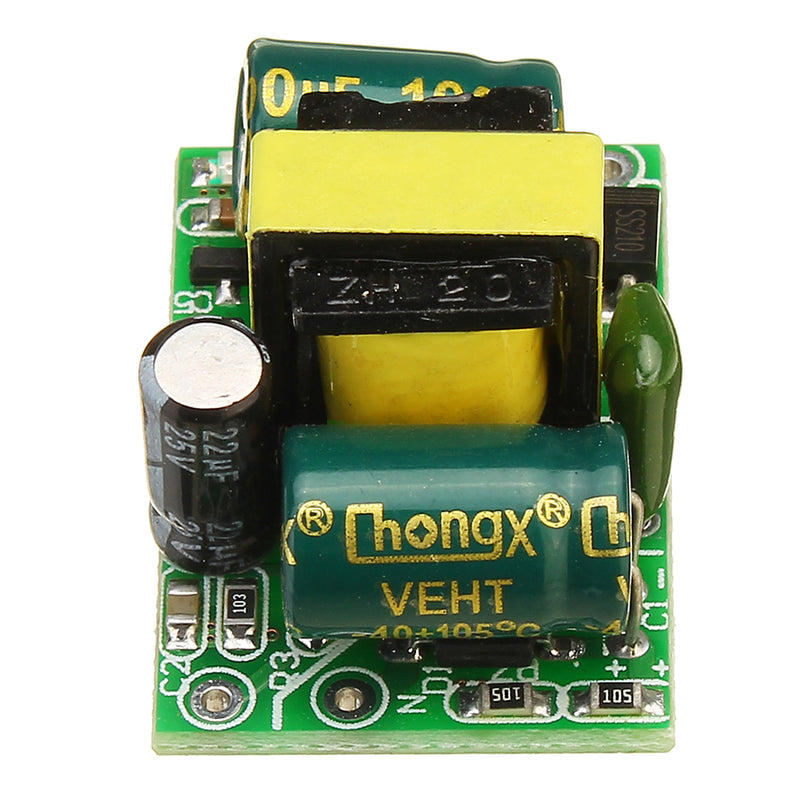

1 x 5V 700mA 3.5W AC-DC Step Down Isolated Switching Power Supply Module
