Features:
- Falling edge - triggered. Initial state after power no voltage output, once triggered, output terminal output the power supply votage, after once again trigger the output terminal no voltaged output, and so on.
- Low standby power consumption, high output power,Optical Isolation.
- Power supply voltage:9V-24V/3V-12V
- Size: 36 x 17.5 x 14mm
- Standby current:less than 0.11-1mA
- Driver IC is N-channel MOSFET AOD4184,Maximum drive current is 8A
Note:
inductive load, the load to the appropriate freewheeling diode in parallel to avoid damaged to the switching elements of the circuit.
Pin Description:
Vi+:Power Input +;
Vi- :Power Input -;
Vo+:Power Output +;
Vo- :Power Output -;
G:trigger signal input ground;
T:trigger signal input terminal(0.2-2 second low pulse trigger).
Applications:
Self-locking electronic switch
ARM MCU Development Board
Motor/Relay /Solenoid valve
IP PTZ camera
esp8266 WIFI Router MODULE
315M 433M Wireless remote controller
PLC MODBUS Device
Package Included:

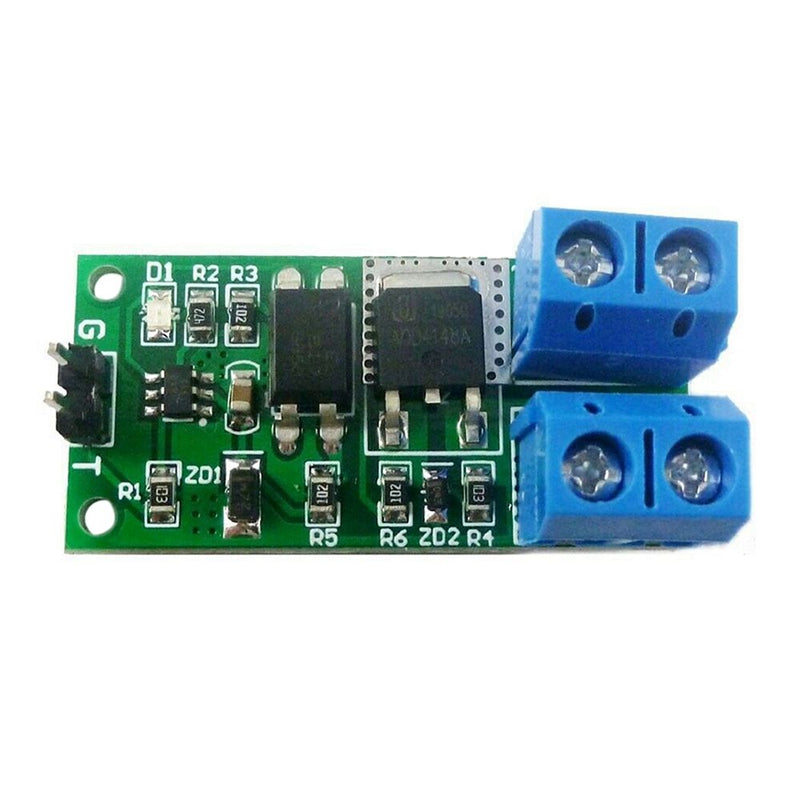

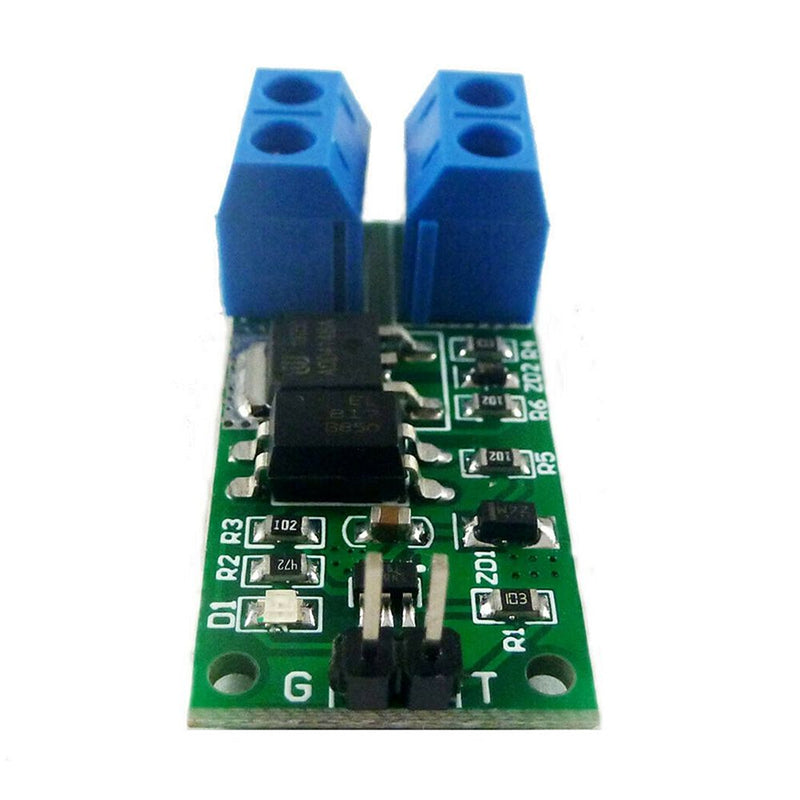

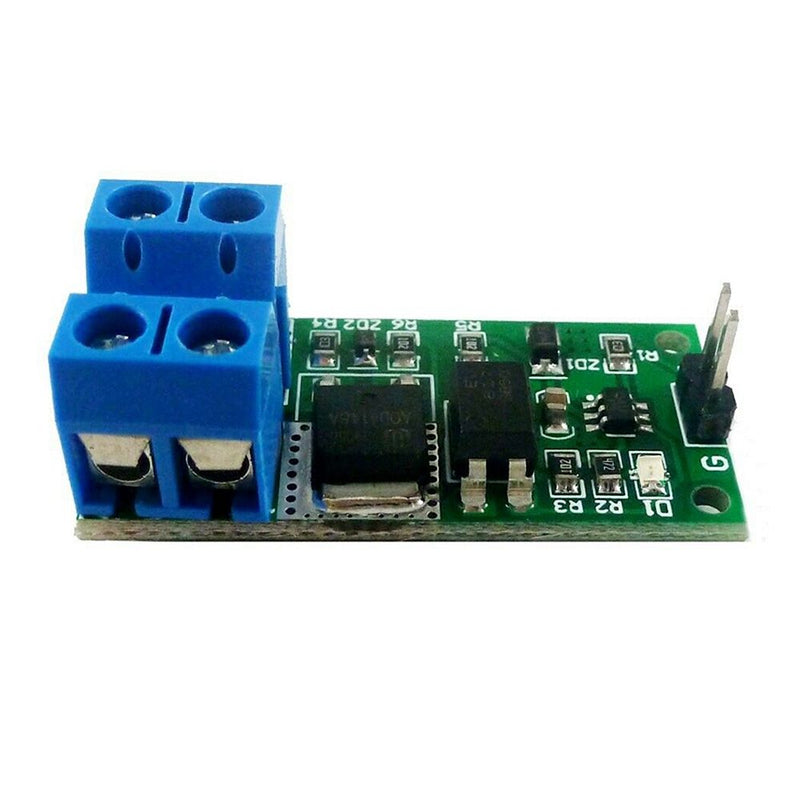

1 x 8A Flip-Flop Latch Switch Module
