Features:
1. Thin, small size, high efficiency and easy to install.
2. Multiple protection: over current protection/over voltage protection/over high temperature/ short-circuit protection.
3. Purpose: car alarms, radio, intercom, electric motors, audio, navigation, surveillance, LED car display, air conditioning, fans, solar energy, DVD, LED lights, motors, pumps, and industrial electrical equipment, etc.
Specification:
Material: aluminum
Color: silver
Shell size: 58X40.5X22 mm (LxWxH)
Input voltage: DC 9-36V
Output voltage: DC13.8V
Output current: 2A
Power:28W
Transform efficiency: over 93%
Ripple: 40MV
Protection Fuction: overcurrent, overvoltage, overtemperature, short circuit protection
Working temp: -40 ℃ ~+ 85 ℃
Installation wire length: 13 -14cm
Waterproof: IP67
Input wire color: (+) Red, (-) Black.
Output wire color: (+) Yellow, (-) Black.
Note: Please be remind to make sure wiring carefully & correctly. No wiring reverses protection for this device.
Package Included:

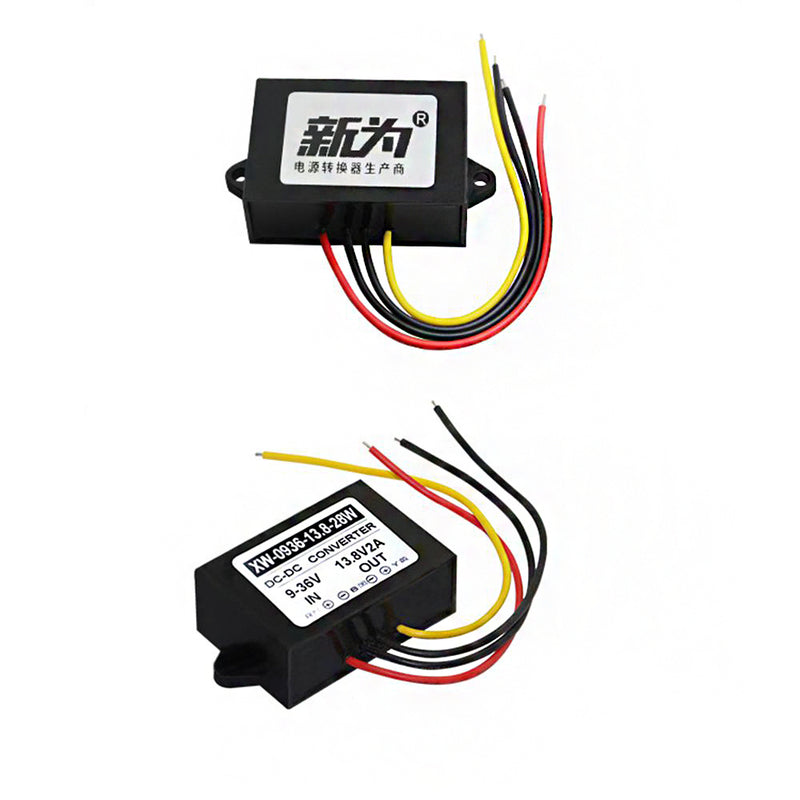

1 x 9-36V to 13.8V 2A 28W Boost Buck Regulator
