Specification:
Work voltage: AC or DC 5~32V, total current rating 40Amp.
Dimensions: 150mm x 72.5mm x 29mm (W x L x H).
Input terminals: pitch - 7.62mm/0.3", current 30A for per position, wire size 26~10 AWG, stripping length 8mm, Metric M3 slotted screw.
P1 output terminals: pitch - 5.08mm/0.2", maximum current 10A for per position, wire size 26~12 AWG, stripping length 7mm, Metric M2.5 slotted screw.
P2-1 to P2-10 output terminals: pitch - 7.5mm/0.295", maximum current 10A for per position, wire size 26~12 AWG, stripping length 7mm, Metric M2.5 slotted screw.
Features:
- Fuse holders for Medium Blade ATO/ATC Fuse, installed fuses 5Amp.
- With fuse fail indication function
- FR-4 fiber glass PCB, dual copper layers
Package Included:

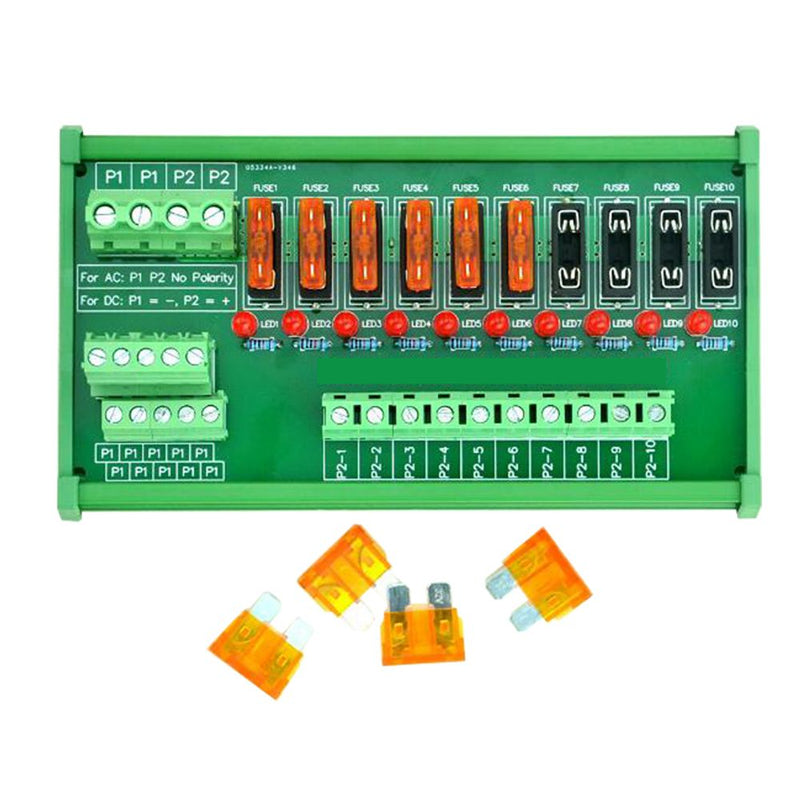

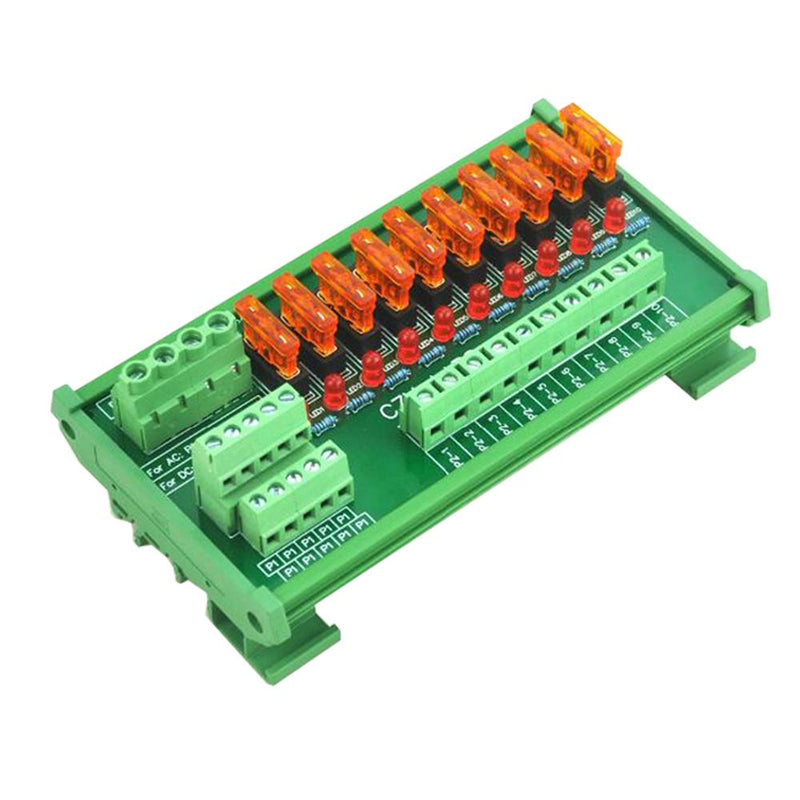

1 x DIN Rail Fuse Holder With Base
