Feature:
Small size, high power, suitable for industrial electrical power supply,
but also for small space and the need for high-power equipment power supply.
Function:
With short circuit protection.
With over-voltage protection.
With over-current protection.
Specification:

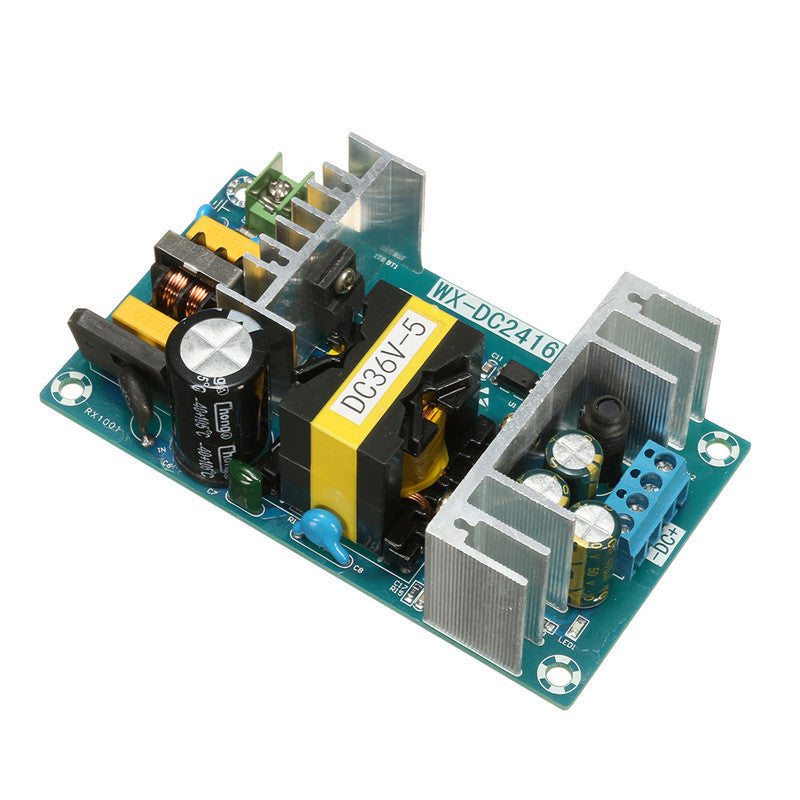

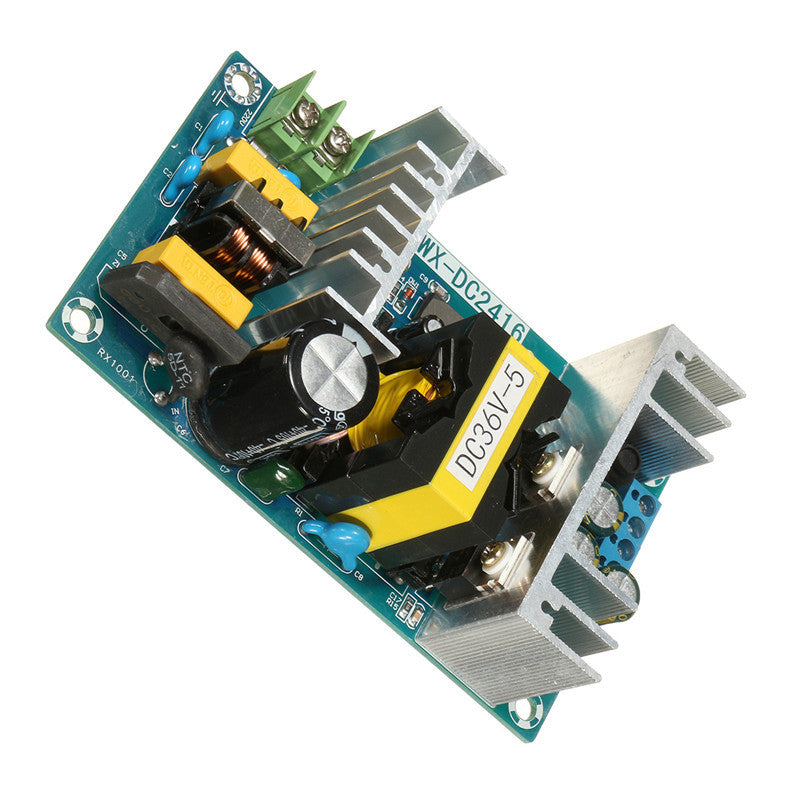

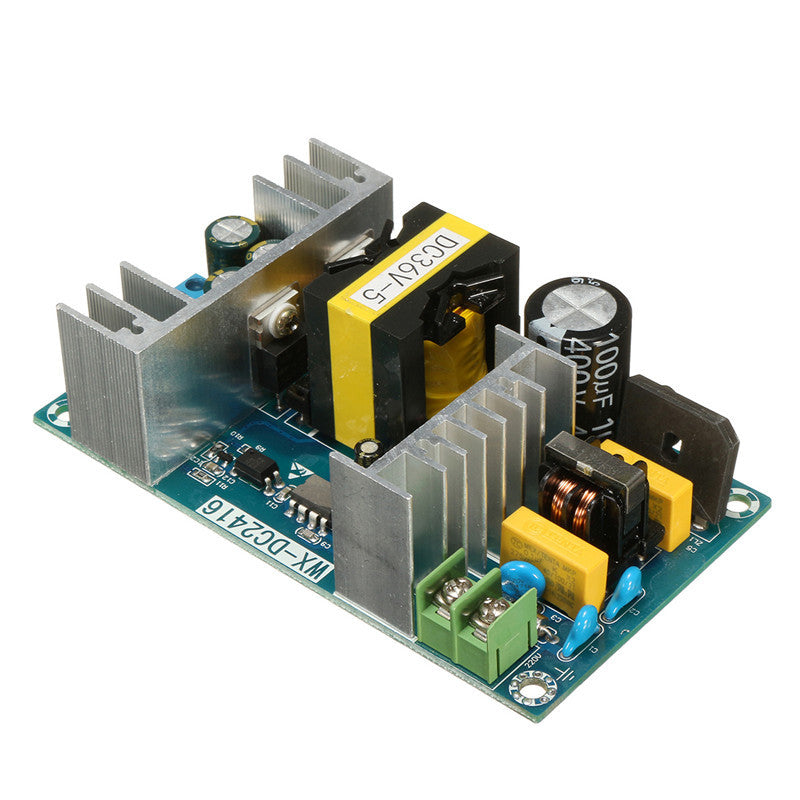

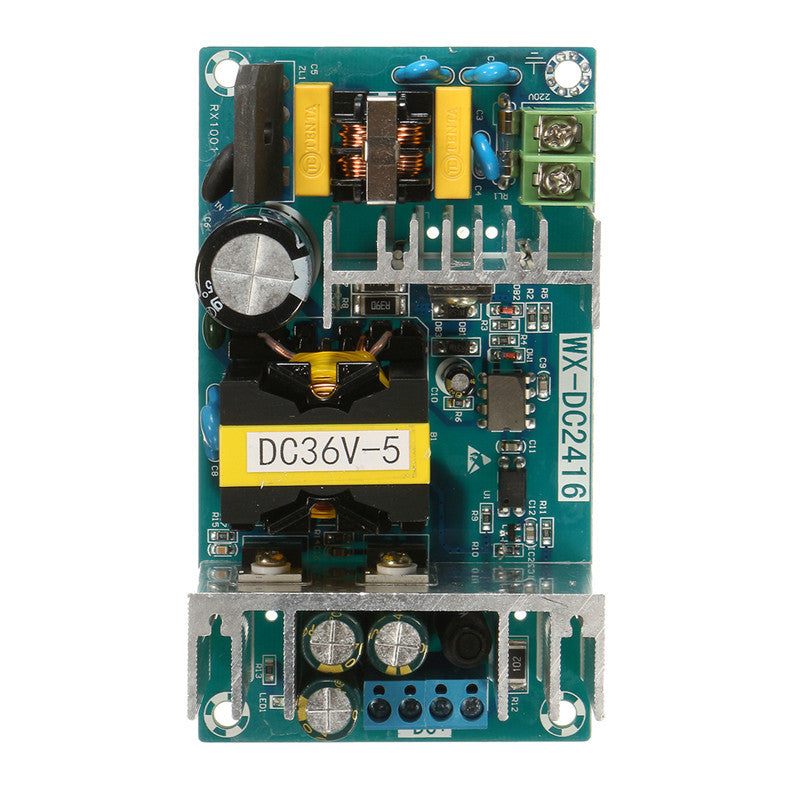

Name: AC-DC Inverter Converter Module
Model: WX-DC2416
Input voltage: AC 100-240V 50/60HZ
Output voltage: DC 36V
Output current: 5-6.5A (Without any Voltage drop)
Rated power: 180W (Max 220W)
Ripple noise: ≤150MV

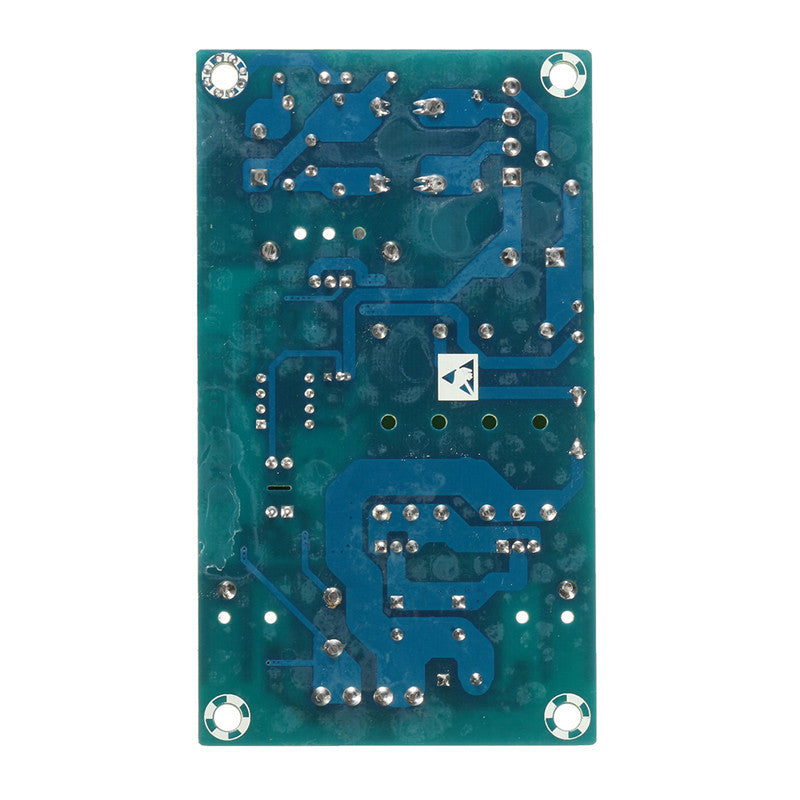

Board size: 11.5 x 6.5cm
Positioning hole size: 10.58 x 5.57cm
Package included:
1 x AC-DC Inverter Converter Module
