Features:
1. The AD8232 Single Lead Heart Rate Monitor is a cost-effective board used to measure the electrical activity of the heart.
2. This electrical activity can be charted as an ECG or Electrocardiogram and output as an analog reading.
3. ECGs can be extremely noisy, the AD8232 Single Lead Heart Rate Monitor acts as an op amp to help obtain a clear signal from the PR and QT Intervals easily.
4. The AD8232 is an integrated signal conditioning block for ECG and other biopotential measurement
5. It is designed to extract, amplify, and filter small biopotential signals in the presence of noisy conditions, such as those created by motion or remote electrode placement.

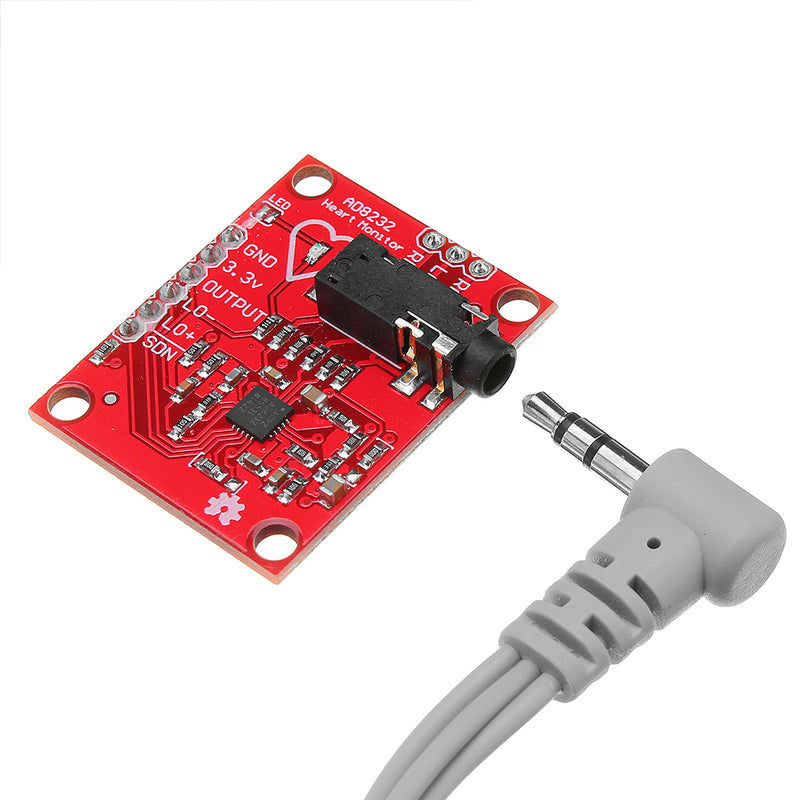

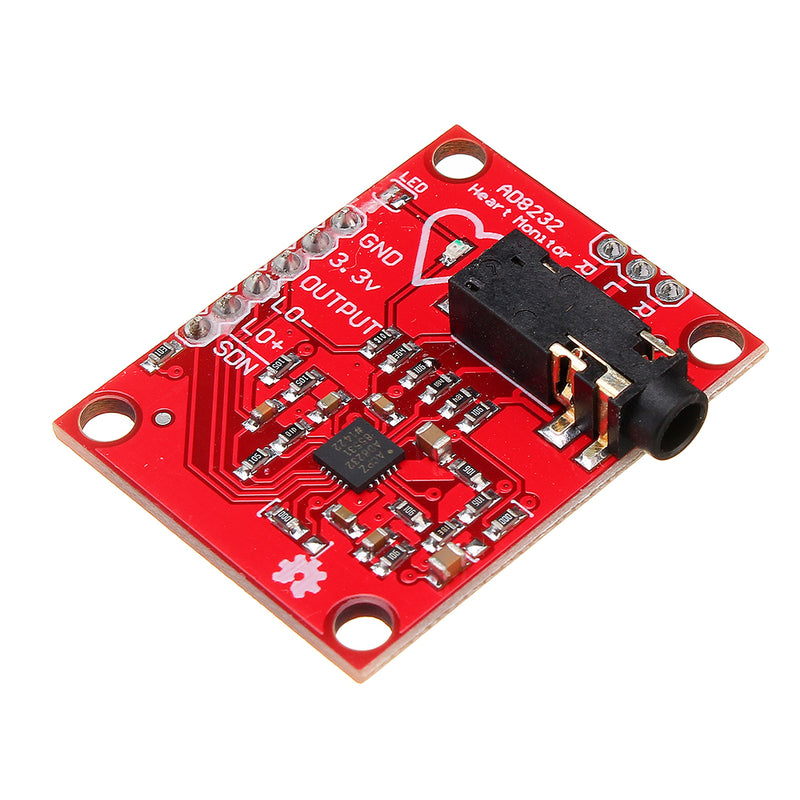

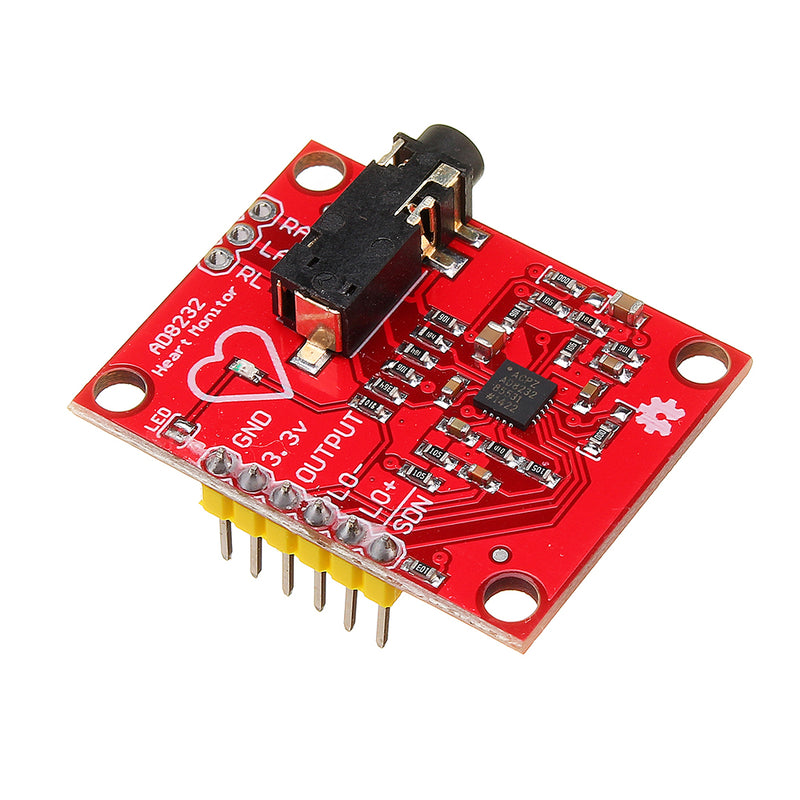

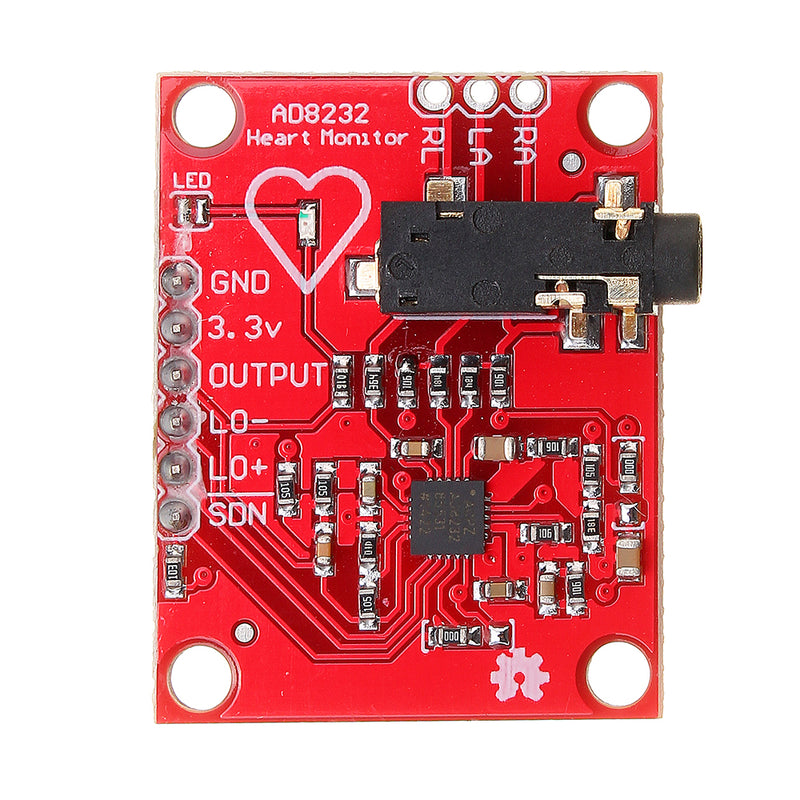

6. The AD8232 Heart Rate Monitor breaks out nine connections from the IC that you can solder pins, wires, or other connectors to.

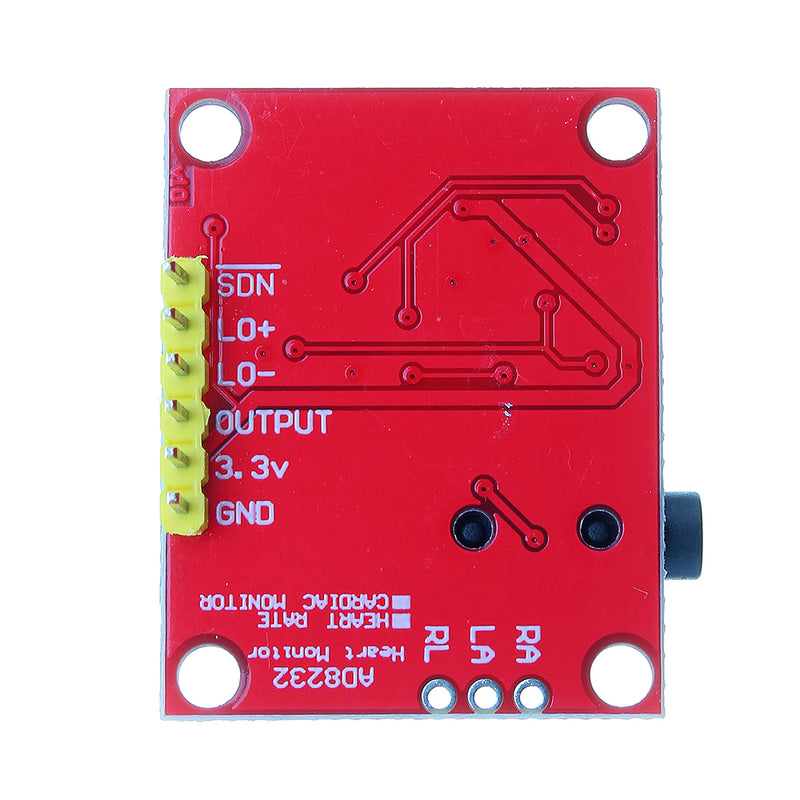

7. SDN, LO+, LO-, OUTPUT, 3.3V, GND provide essential pins for operating this monitor with an for or other development board.
8. Also provided on this board are RA (Right Arm), LA (Left Arm), and RL (Right Leg) pins to attach and use your own custom sensors.
9. Additionally, there is an LED indicator light that will pulsate to the rhythm of a heart beat.

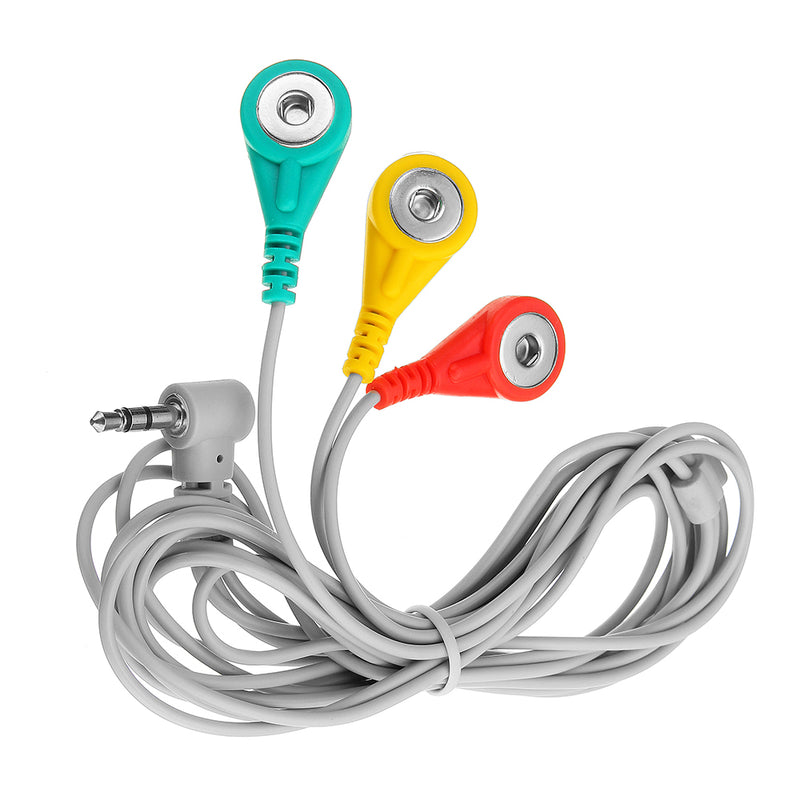

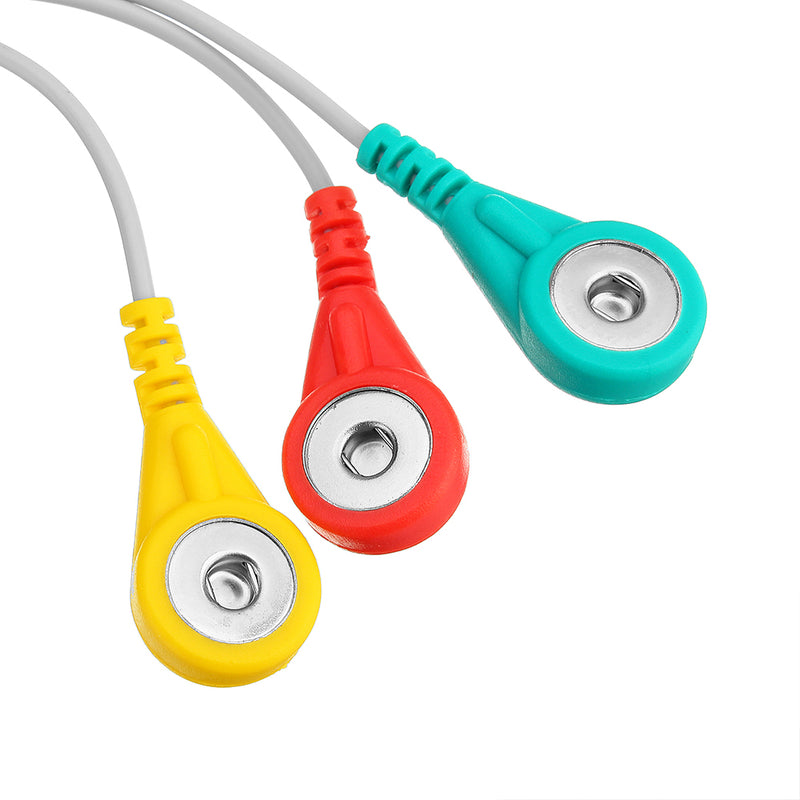

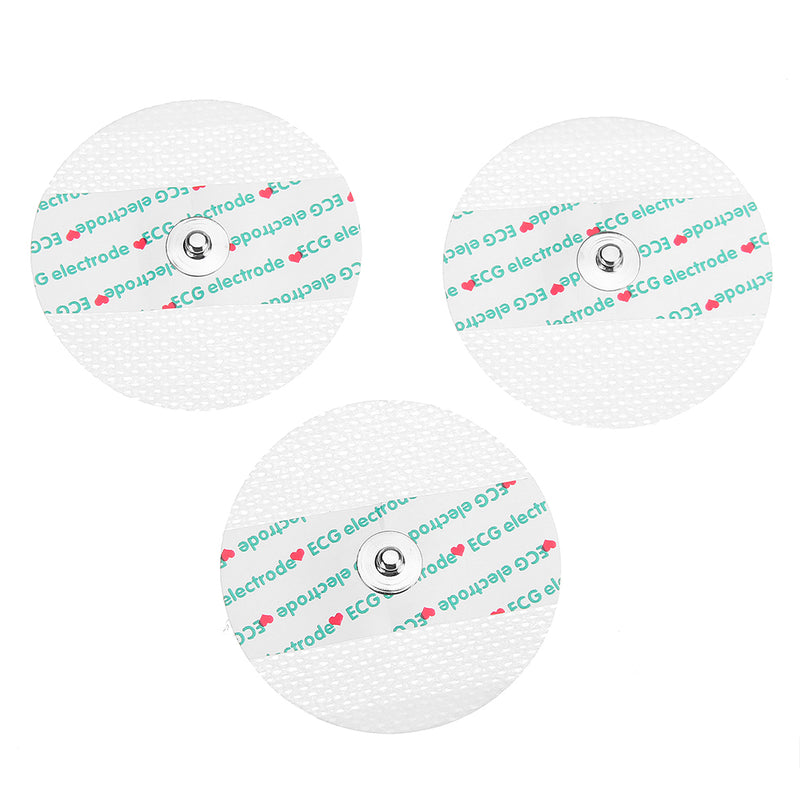

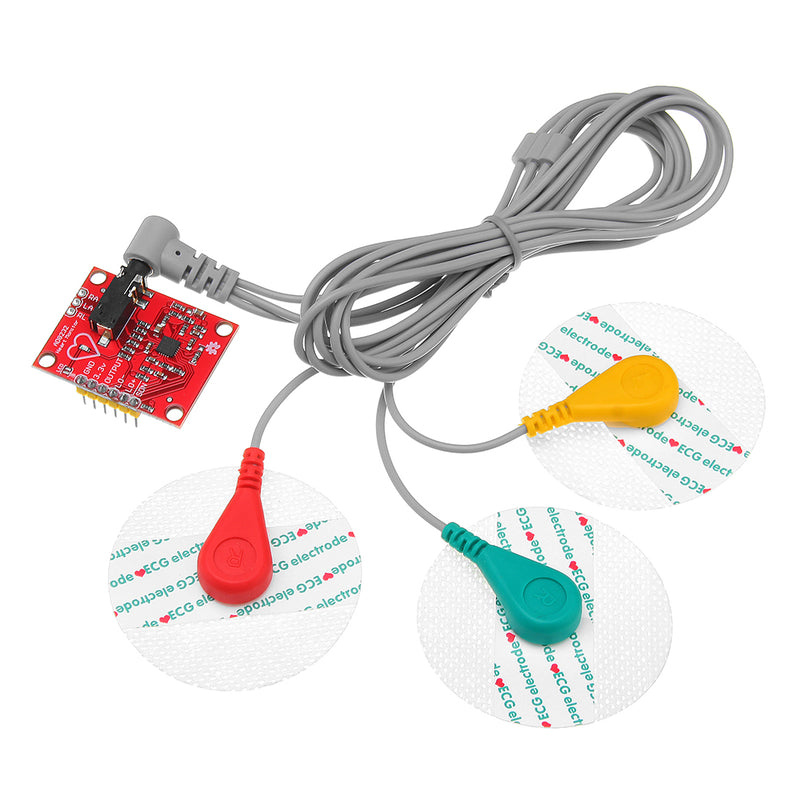

10. Biomedical Sensor Pads and Sensor Cable are required to use the heart monitor and can be found in the Recommended Products section below.
10.AD8232 Adopts an operational amplifier that is without using constraint to build a three pole low pass filter, eliminating extra noises
Rated Temp Range : 0--------70degree
Working Temp Range: -40-----85degree
Application:
Fitness and Sports Heart Rate Monitoring
Portable ECG
Remote Health Monitor
Game Peripheral Equipment
Bioelectricity Signal Collection
Package Included:
1 x AD8232 Monitor
