Features:

AD835 is a first single-chip 250 MHz four-quadrant voltage output analog multiplier, a full-scale (1 V to +1 V) rising to falling time of 2.5 ns (using 150 Ω standard RL), 0.1% up time is typically 20 ns. Its differential multiplication inputs x and y, z are the adding input high input impedance (100 kΩ || 2 pF). W low impedance output voltage can provide ± 2.5v voltage and output load driven a minimum of 25Ω. The product of a very low noise AD835 chip (50 nV / √Hz), far better than earlier products. AD835 only has outstanding speed performance, and easy to use, feature-rich. The main application areas: high-speed multiplication, division, squaring; broadband modulation and demodulation; phase detection and measurement; sine wave frequency doubling; video gain control and keying; voltage-controlled amplifiers and filters, with shielding shell and anti-reverse protection diode.

Technical indicators:

1, power supply voltage: + - 5V DC (typical current 5mA)
2, the operating frequency: DC-250MHZ; input and output impedance: 50 ohms; input signal range: + - 1VPP
3, the multiplier formula: W = (X1-X2) * (Y1-Y2) + Z

Different application configurations:

Since the AD835 is four-quadrant analog multiplier, the formula is: W = (X1-X2) * (Y1-Y2) + Z;
X2, there are two choices: short circuit J2, J1 is disconnected when X2 = 0; short circuit J1, J2 disconnected when X2 = RP1 potentiometer tuned voltage value, in this case the signal can be subtracted by X1-X2 X2 contained in the DC signal DC component can also be added as X2 signal;
Y2 has two choices: short circuit J7, disconnect J4 when Y2 = 0; short circuit J4, J7 disconnected when Y2 = RP3 potentiometer tuned voltage value, in this case can be subtracted signal Y2 Y1-Y2 contained in the DC signal DC component can also be added as a Y2 signal;
Z signal input has three modes: short circuit J5, J3 J6 disconnected when, Z Z signal is input from the outside; short circuit J3, J5 J6 disconnected when, Z is RP2 unit is tuned by the voltage value; short circuit J6, disconnect J5 J3, Z signal is = 0 .
Default: X2=Y2=Z2=0.

Application:

1, high-speed multiplication, division, squaring
2, broadband modulation and demodulation
3, phase detection and measurement
4, the sine wave frequency doubling
5, the video gain control and keying
6, programmable voltage-controlled amplifiers and filters

Package included:

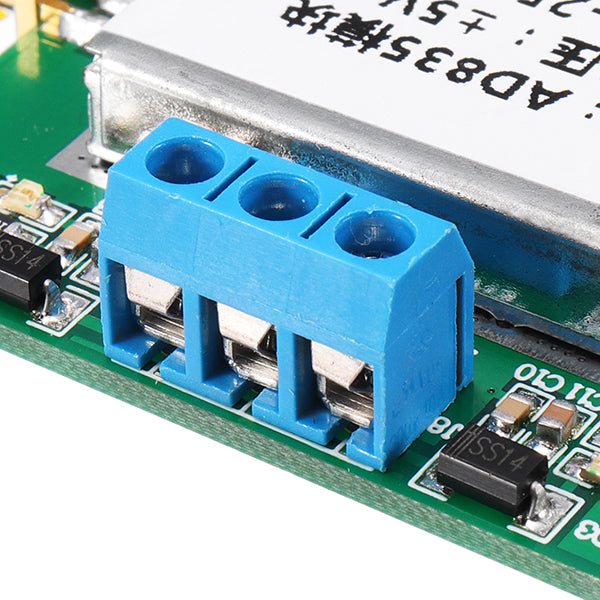

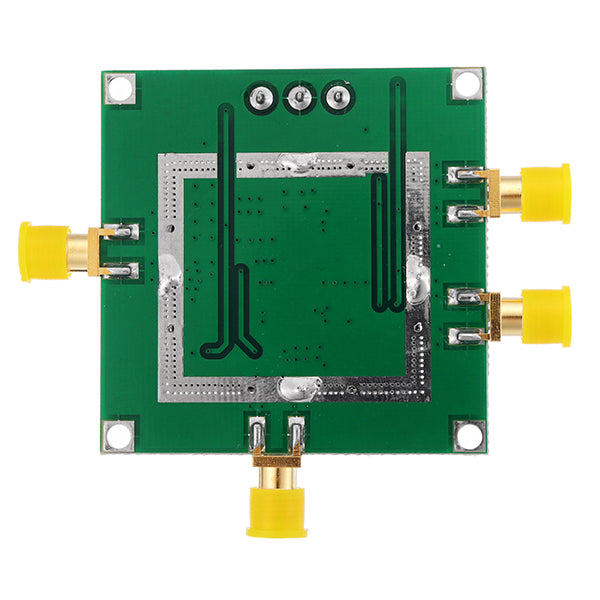

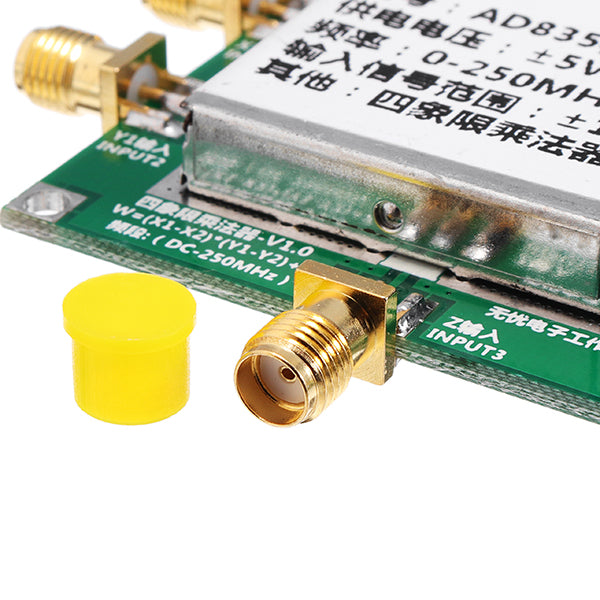

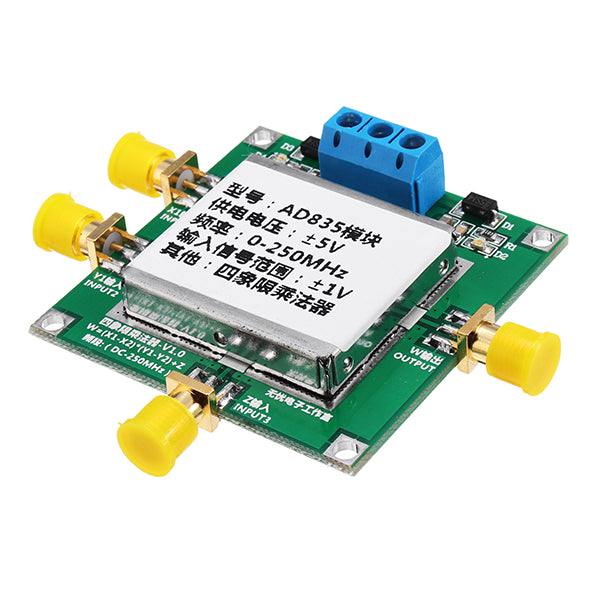

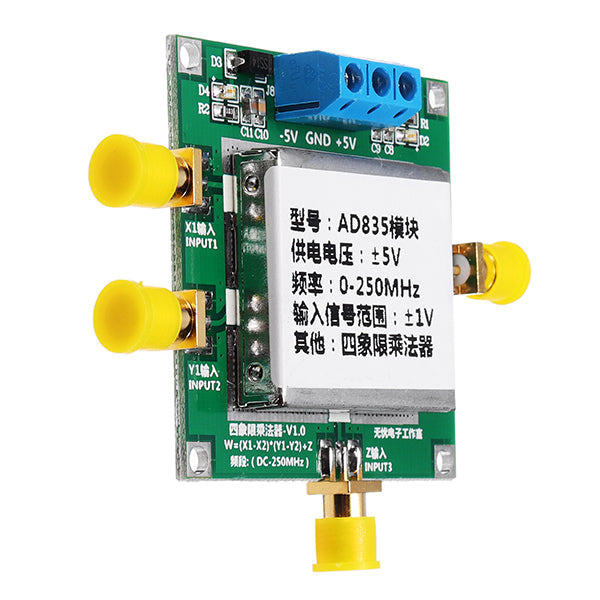

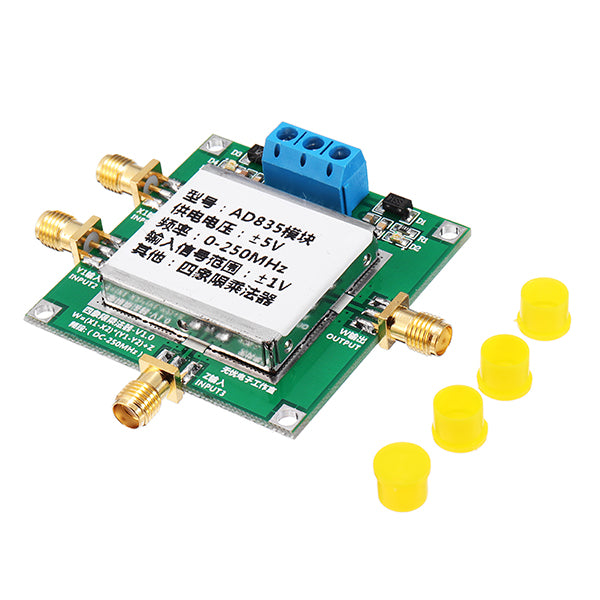

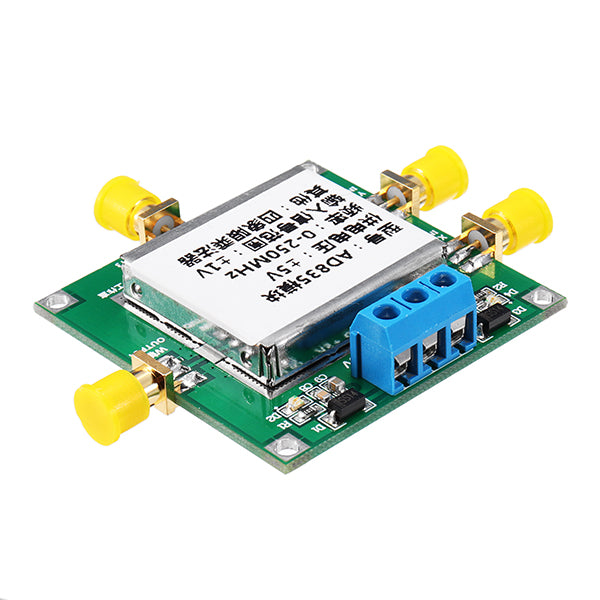

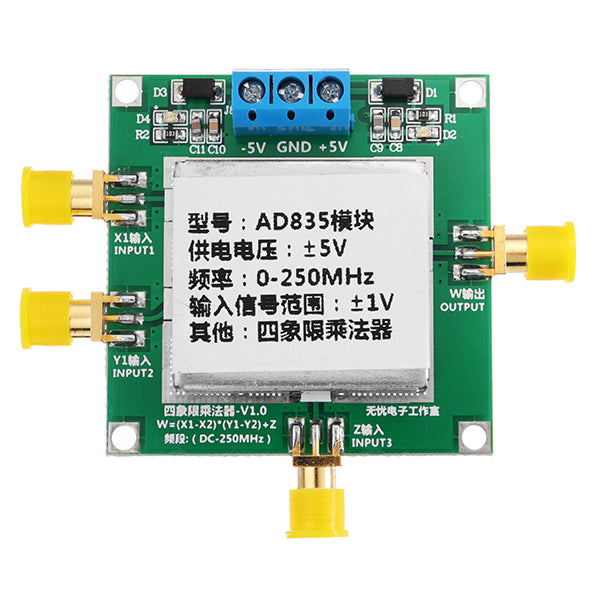

1 x AD835 Multiplier Module
