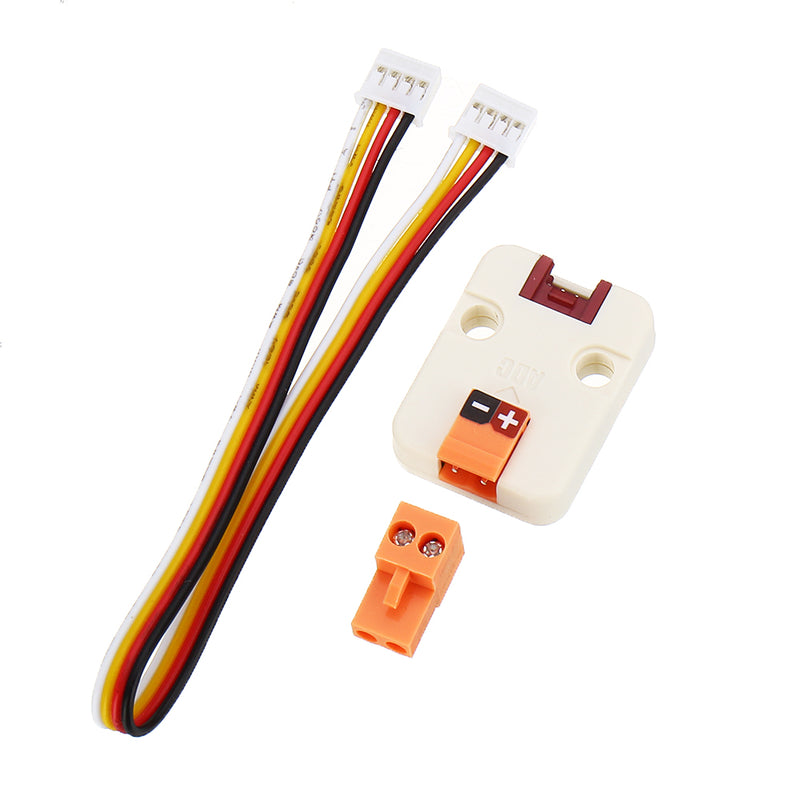

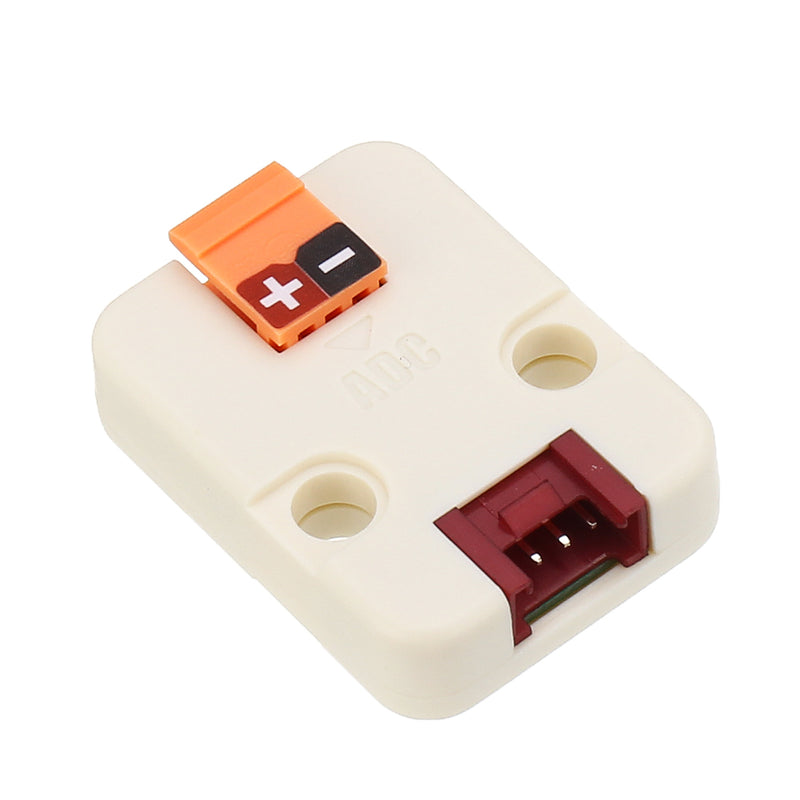

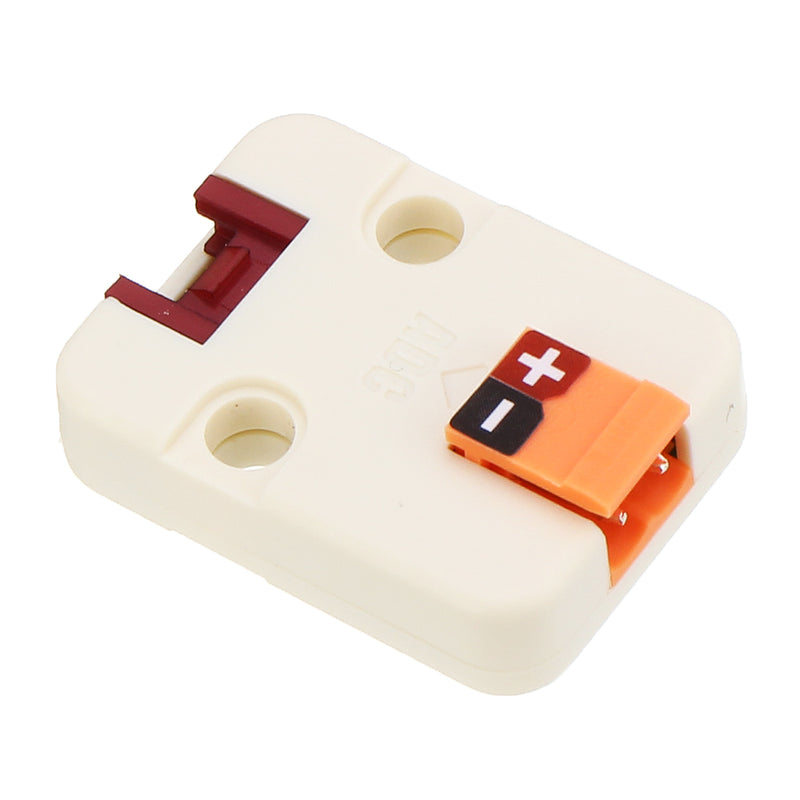

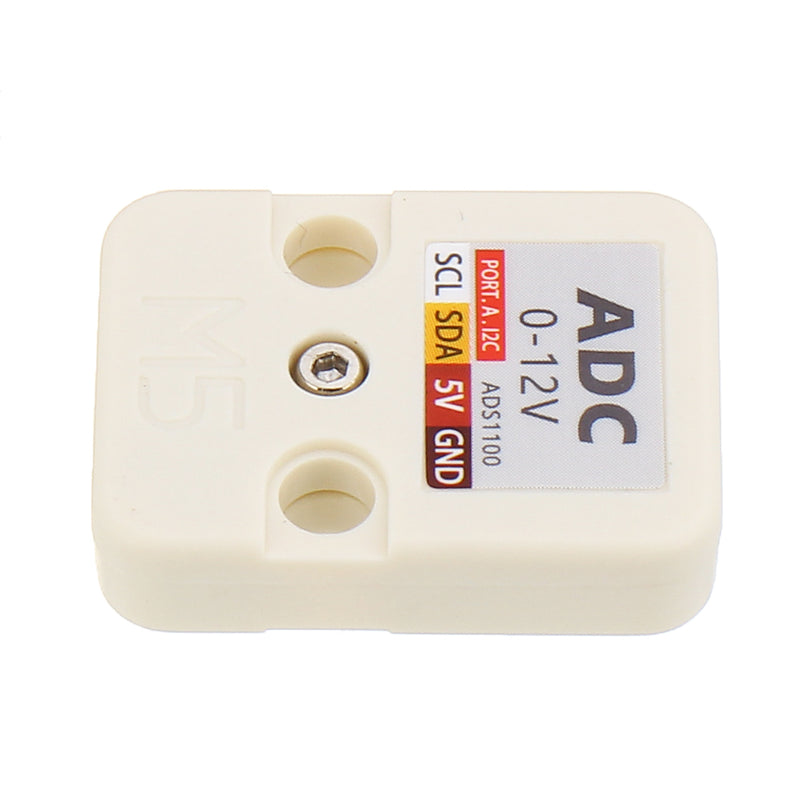

ADC Module 16 Bit I2C GROVE ADS1100 Module 0V to 12V Analog to Digital Converter Development Board
Save 0
SKU: U2I-BG-1549746
Share this product
Description
Description:
ADC integrated with ADS1100 which is a fully differential, 16-bit, self-calibrating,del ta-sig ma A/D converter. It communicates through an I2C interface,which means you can collect AD data thru PortA on M5 core from this unit to enhence your A/D performance.
The I2C address is 0x48.
Product Specification:
COMPLETE DATA ACQUISITION SYSTEM IN A TINY SOT23-6 PACKAGE
1.EasyLoader is a simple and fast program burner. Every product page in EasyLoader provides a product-related case program. It can be burned to the mas ter through simple steps, and a series of function verification can be performed
2.After downloading the software, double-click to run the application, connect the M5 device to the computer through the data cable, select the port parameters, click "Burn" to start burning. (For M5StickC burning, please Set the baud rate to 750000 or 115200)
3. Currently EasyLoader is only suitable for Windows operating system, compatible with M5 system adopts ESP32 as the control core host. Before installing for M5Core, you need to install CP210X driver (you do not need to install with M5StickC as controller)Click here to view the driver installation tutorial
Example:
1. for IDE
The below code is incomplete(just for usage). If you want the complete code, please click here.
