Product Introduction:
The BNO080 / 085 is a 9-axis system-in-package (SiP) that enables rapid development of sensor-enabled augmented reality (AR), virtual reality (VR), robotics and IoT devices.
Featuring high-performance accelerometers, magnetometers and gyroscopes, the low-power 32-bit ARM Cortex M0 + MCUs are available in a small package.
Interfaces:
The BNO080 can communicate through a variety of interfaces. The Qwiic VR IMU has two jumpers that allows the user to select their interface of choice.
I2C (Default): Up to 400kHz
SPI: Up to 3MHz
UART: 3Mbps
UART-RVC (Robot Vacuum Cleaners): 115200kbps
Performance Characteristics:
Rotation Vector
Dynamic Error: 3.5°
Static Error: 2.0°
Gaming Rotation Vector
Dynamic Error: 2.5°
Static Error: 1.5°
Heading Drift: 0.5° / min
Geomagnetic Rotation Vector
Dynamic Rotation Error: 4.5°
Static Rotation Error: 3.0°
Gravity Angle Error: 1.5°
Linear Acceleration Accuracy: 0.35m/s2
Accelerometer Accuracy: 0.3m/s2
Gyroscope Accuracy: 3.1° / sec
Magnetometer Accuracy: 1.4μT
Package Included:

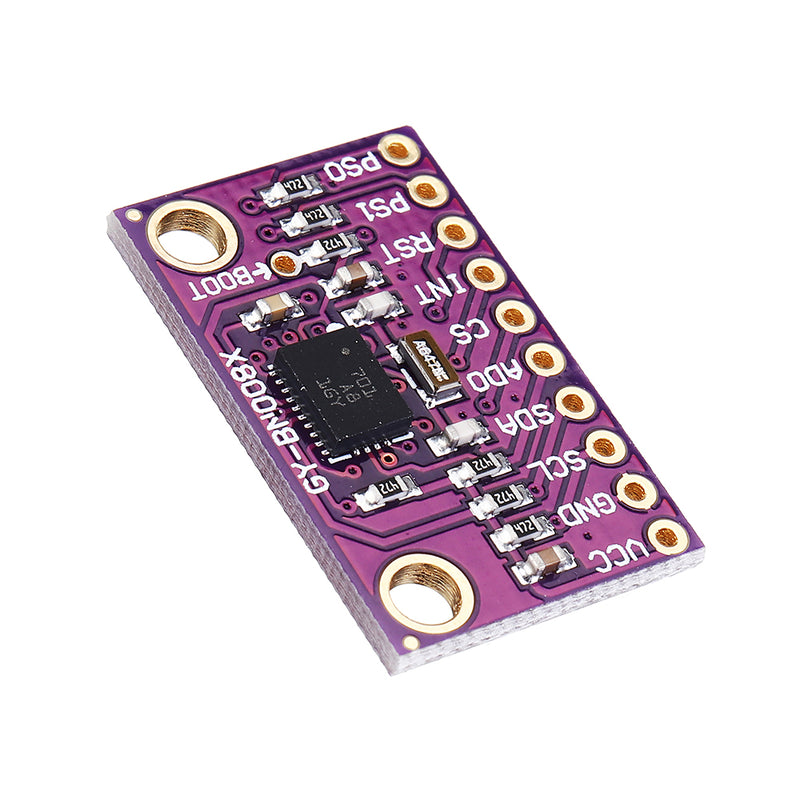

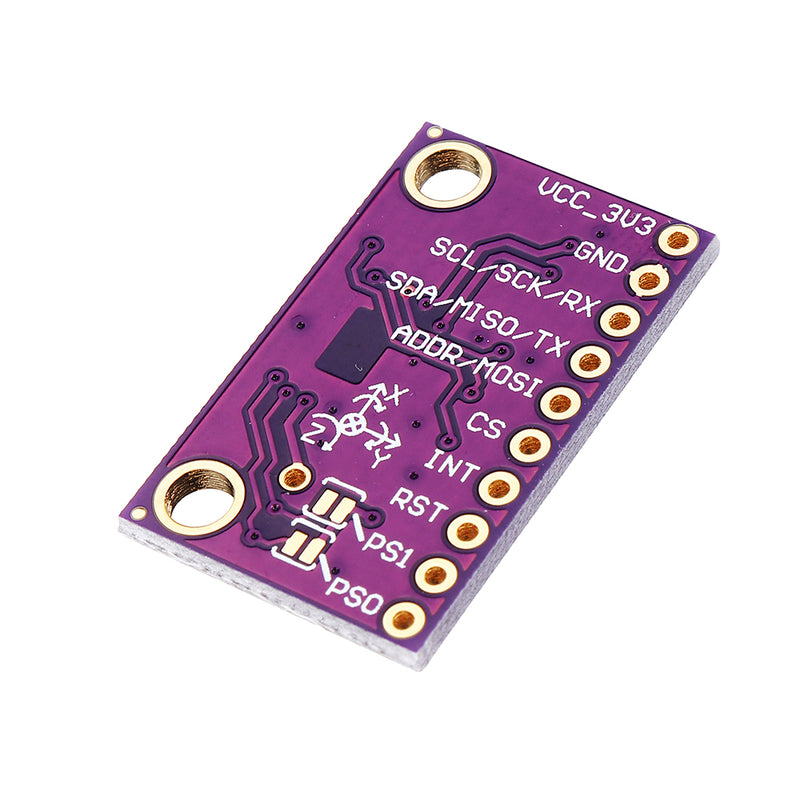

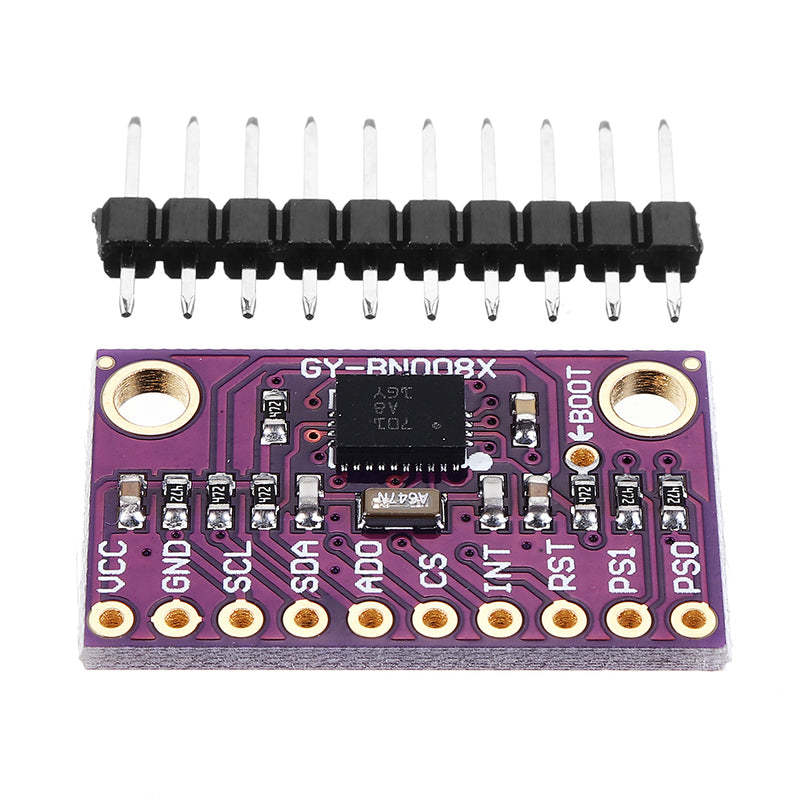

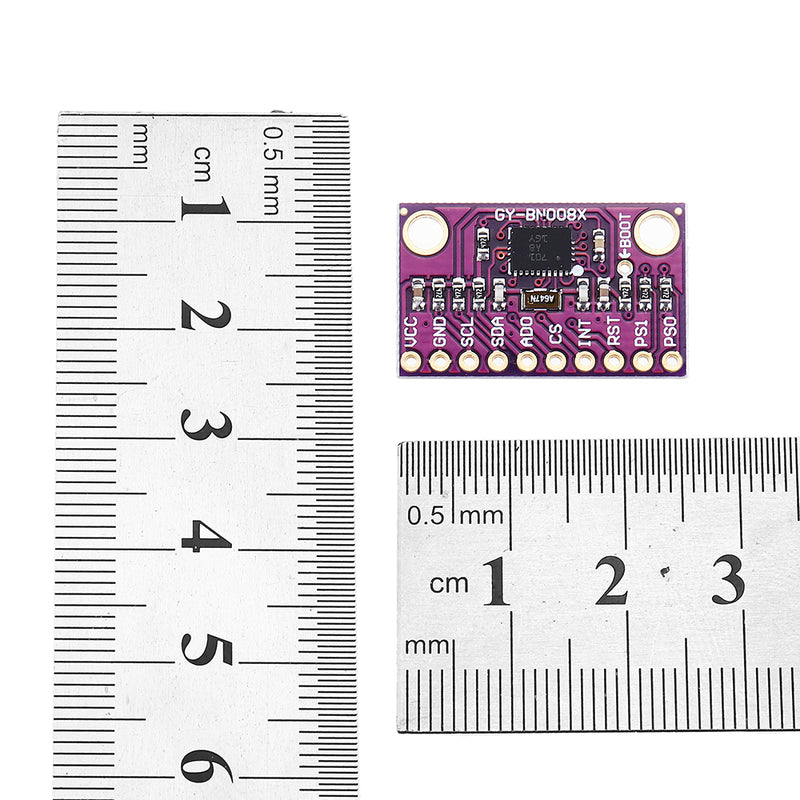

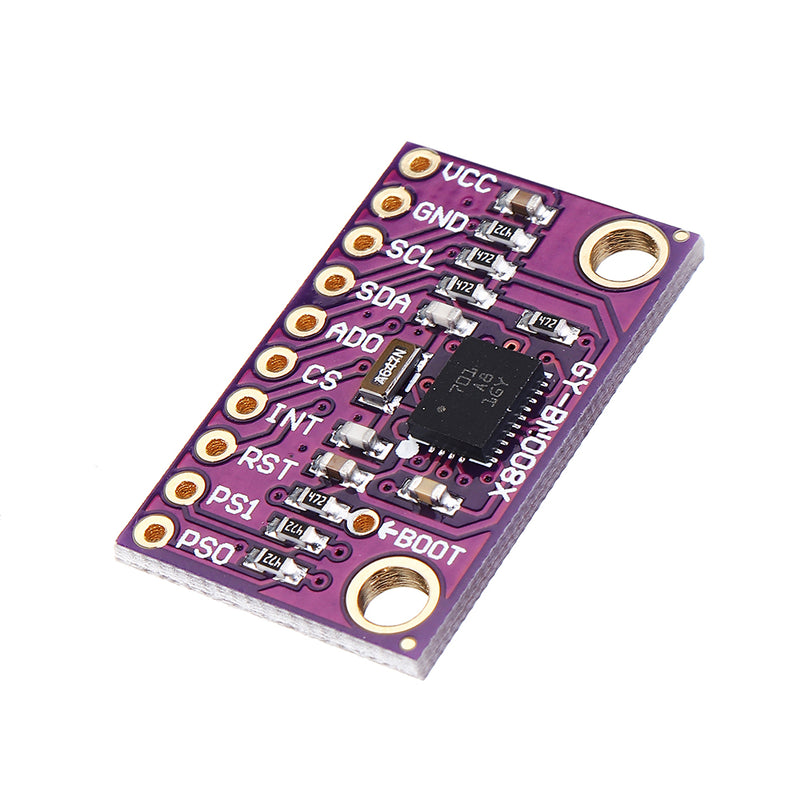

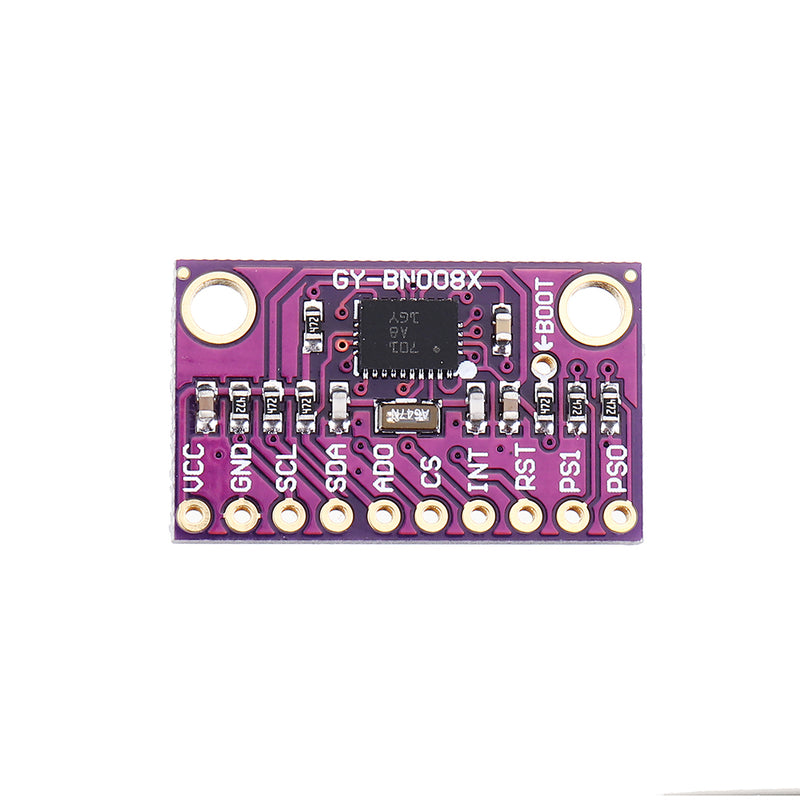

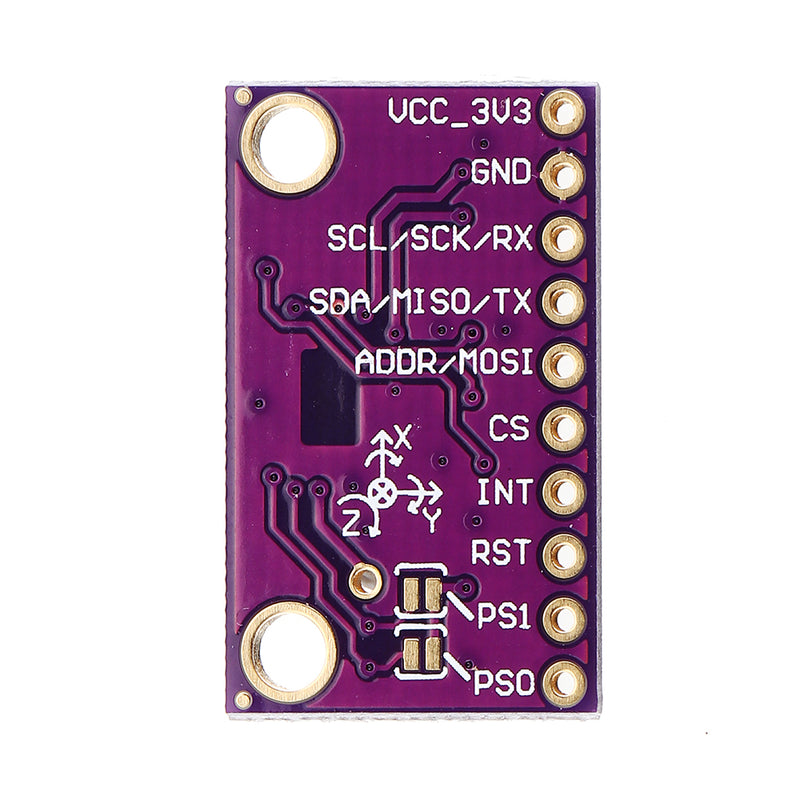

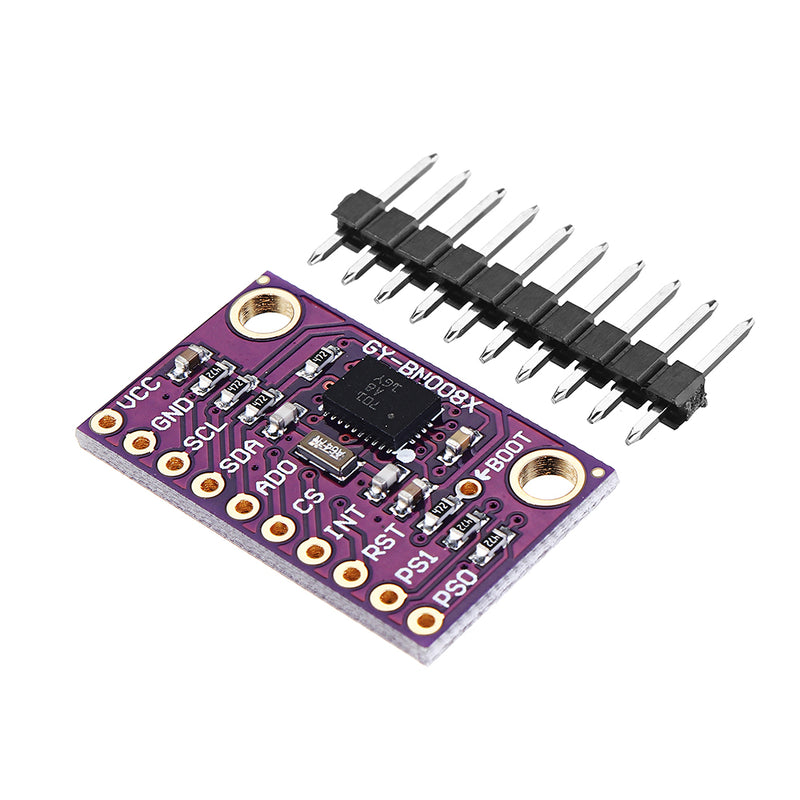

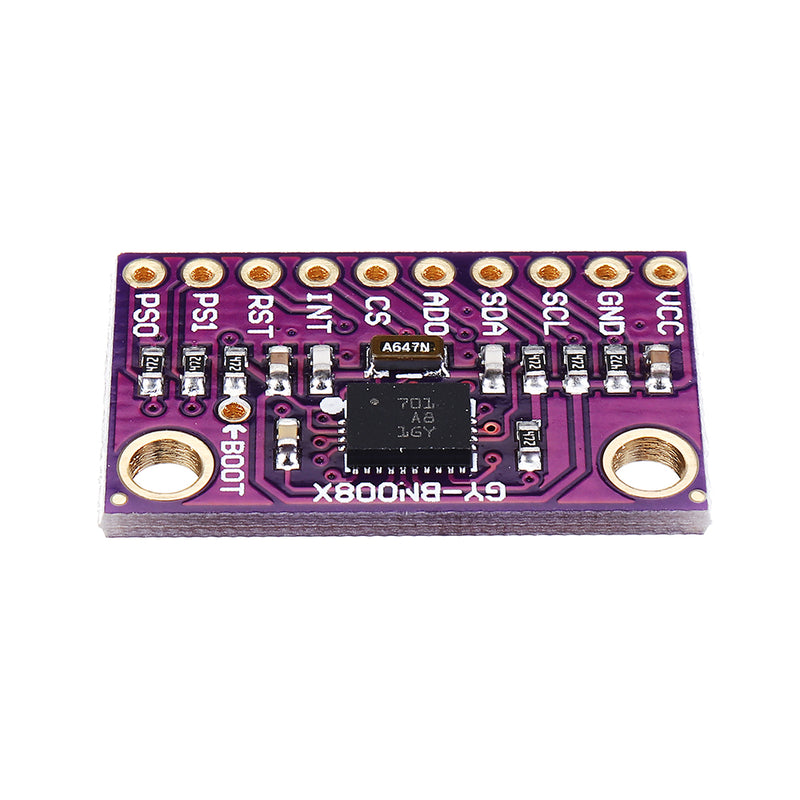

1 x BNO080 AR VR IMU Nine Axis 9DOF AHRS/IMU Sensor Module
