Features:RF/Layout.
2.4-GHz IEEE 802.15.4 Compliant RF Transceiver.
Excellent Receiver Sensitivity and Robustness to Interference.
Programmable Output Power Up to 4.5 dBm.
Very Few External Components.2.4-GHz IEEE 802.15.4 Systems.
RF4CE Remote Control Systems (64-KB Flash and Higher).
Zig Bee Systems (256-KB Flash).
Home/Building Automation.
Lighting Systems.
Industrial Control and Monitoring.
Low-Power Wireless Sensor Networks.
Consumer Electronics.
Health Care .
Specification:Frequency:24MHz
Flash:Up to 256KB
SRAM:8kB
GPIO:21
SPI:1
UART:1
ADC:12-bit,8 channel
Min VCC:2V
Max VCC:3.6V
Standby Power:0.4uA
Wakeup Time From Standby:500us
Operating Temperature Range:-40℃~125℃
RF Standard Supported:Zig Bee/6LoWPAN/802.15.4 MA C
CPU Core:8051
Security:128-bit AES
Antenna Connection:yes
RX Current:20.5mA (Lowest)
Frequency Bands:2394-2507MHz
Package included:

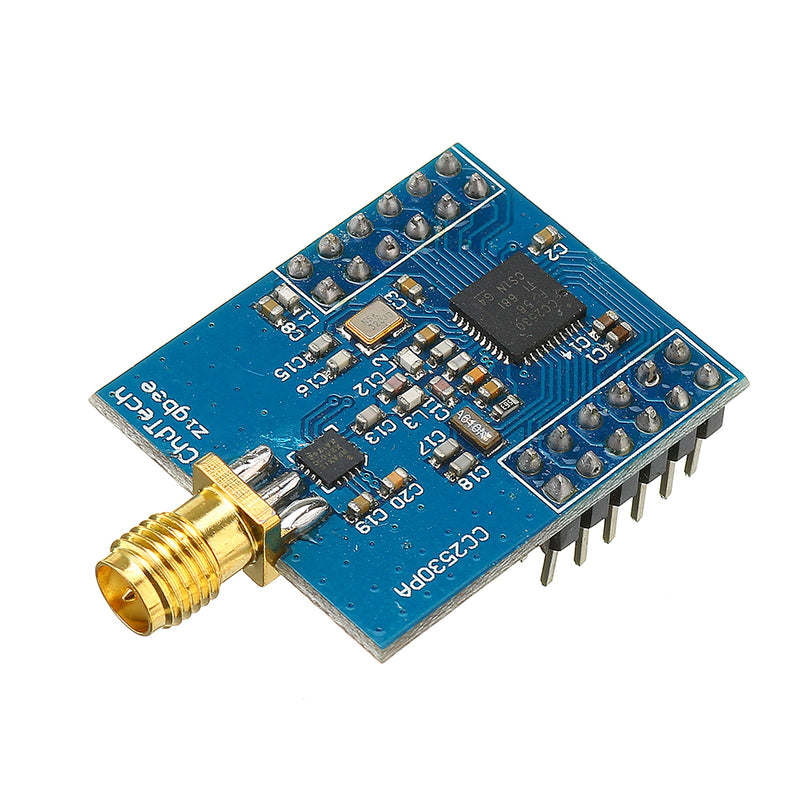

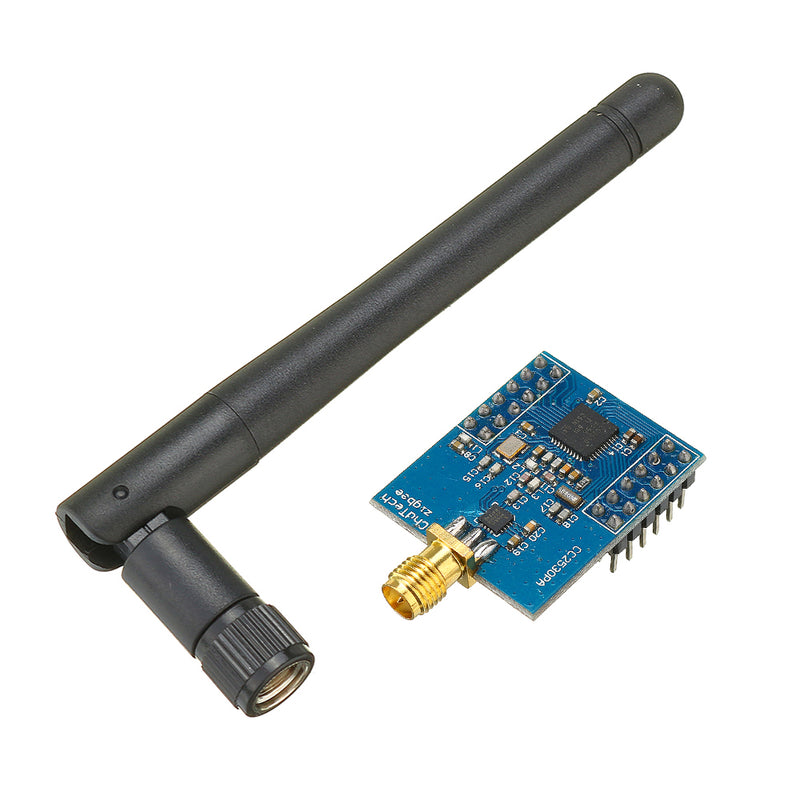

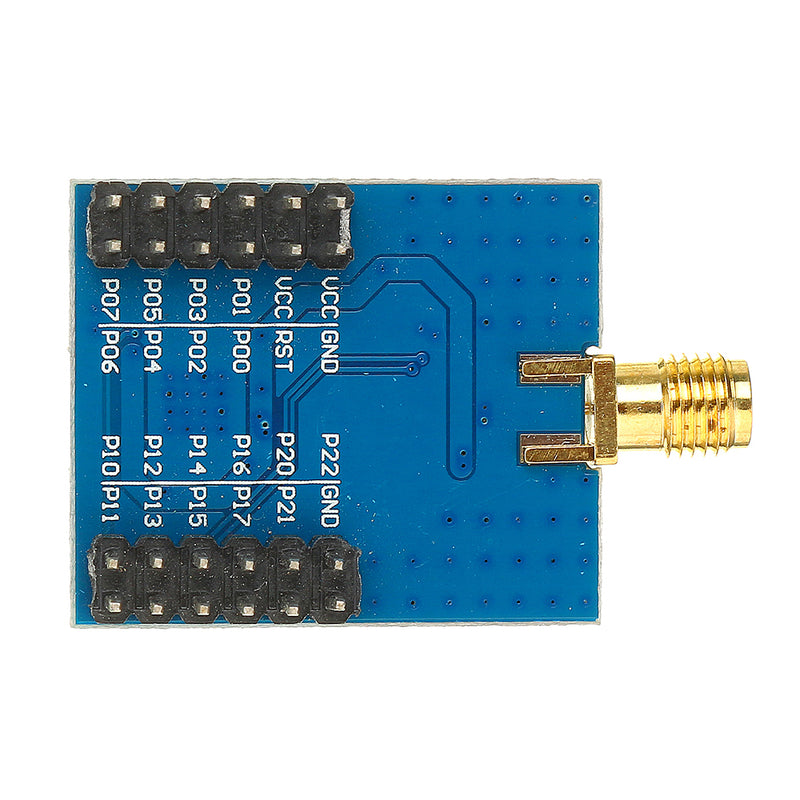

1 x Development Board
