Specifications:
Potentiometer: resistance B100K; opening 8mm
Working voltage: DC24V-40V
Control power: 12V*3A=36W, 24V*3A=72W,...40V*3A=120W
Rated current: 3A
Maximum current: 5A
Speed range: 10%-99.9%
PWM frequency: 15kHz
Size: 73x39x31mm
Features:
1. High-performance DC motor governor, without squeaking and whistling sound, the product uses sufficient material, high power, small heat, high efficiency and large torque.
2. The governor adopts high-grade sealed potentiometer with switch function and with positive and negative control. The price is 3 times that of ordinary potentiometer. Ordinary potentiometer is not dustproof. After a period of time, the speed regulation is easy to jump unstable. .

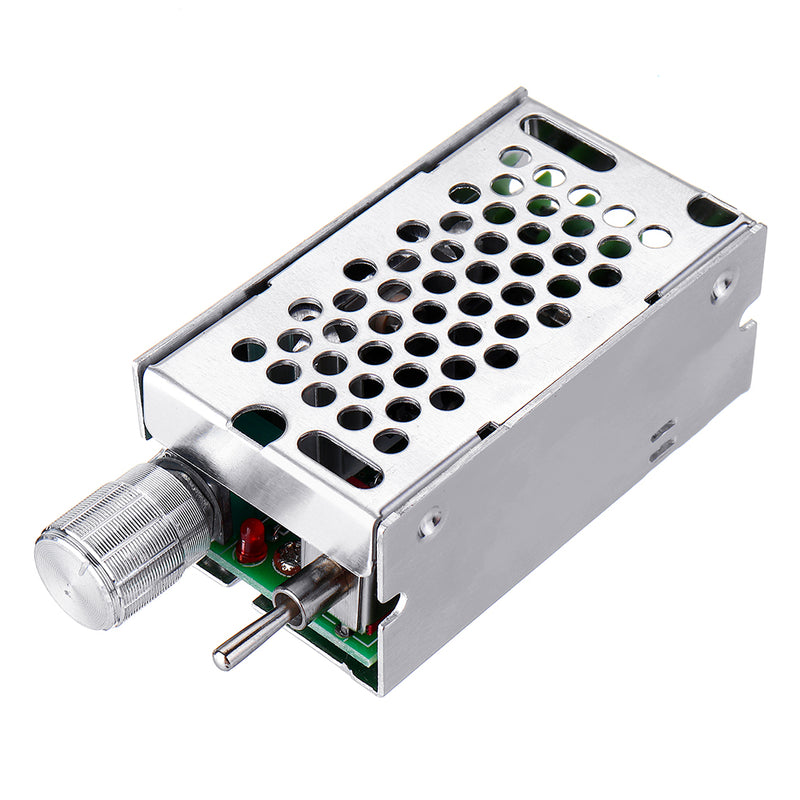

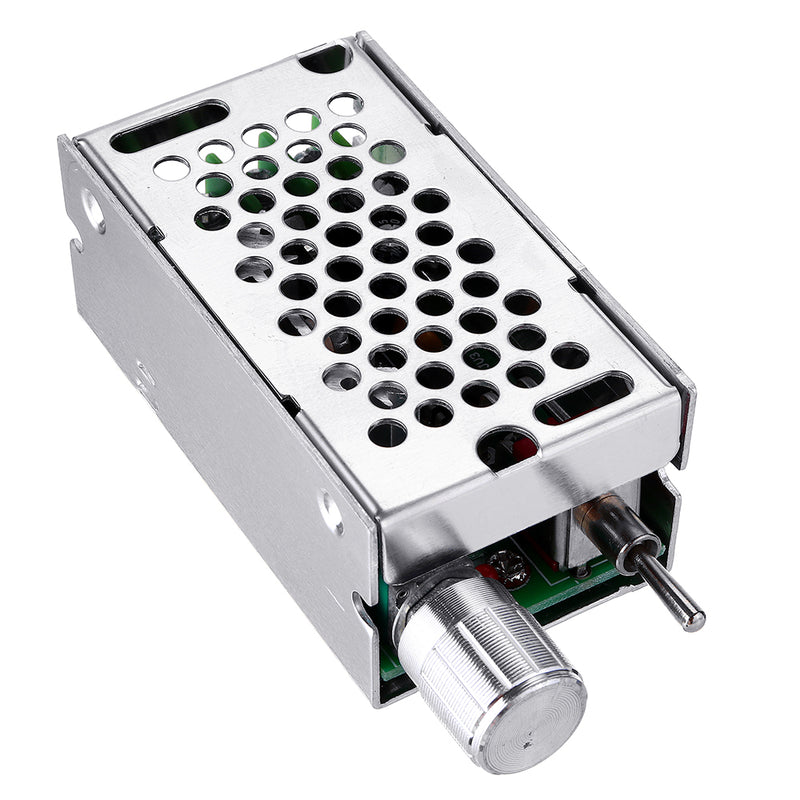

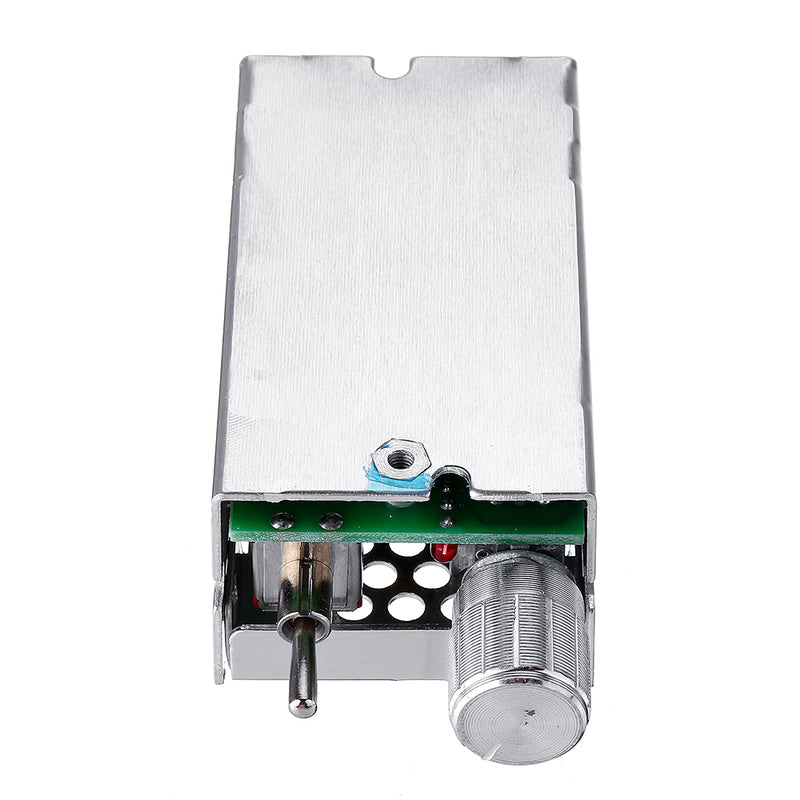

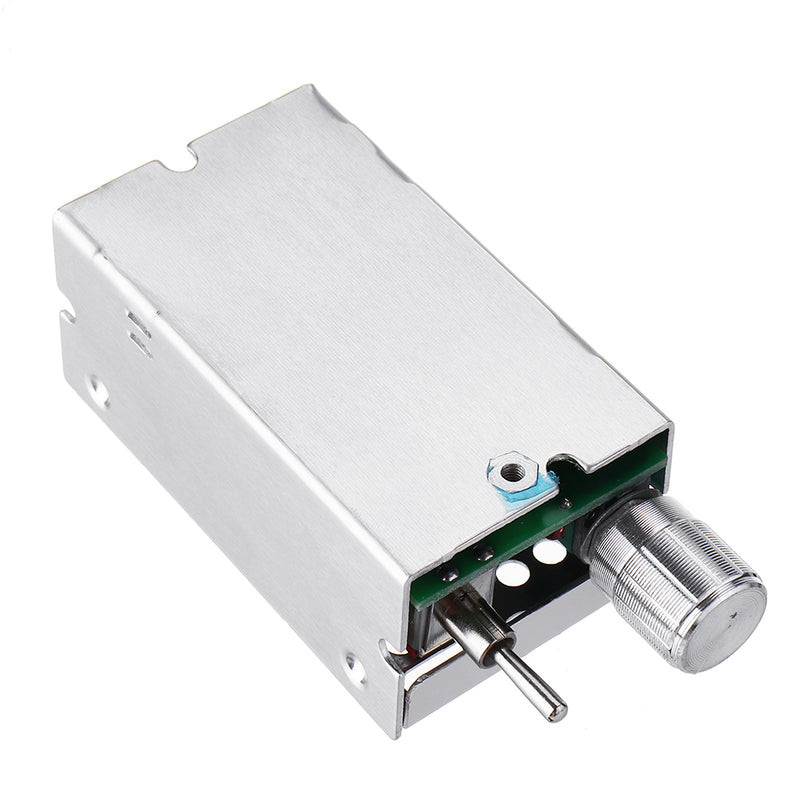

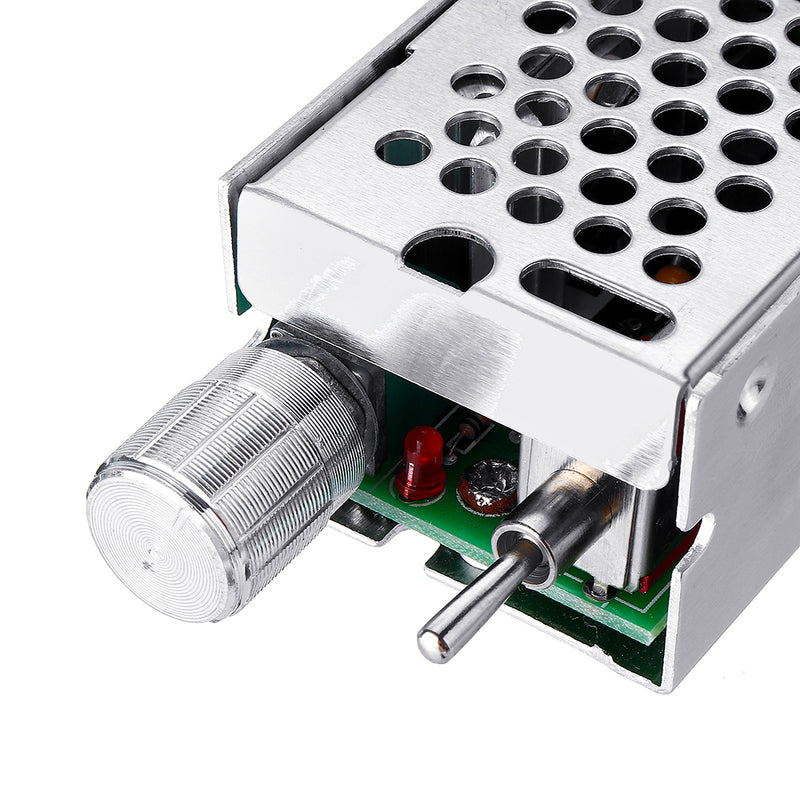

3. Positive and negative control switch with power indicator and speed control knob with switch function
4. With 10A fuse, reverse power supply, control voltage overvoltage, high current protection
Note:

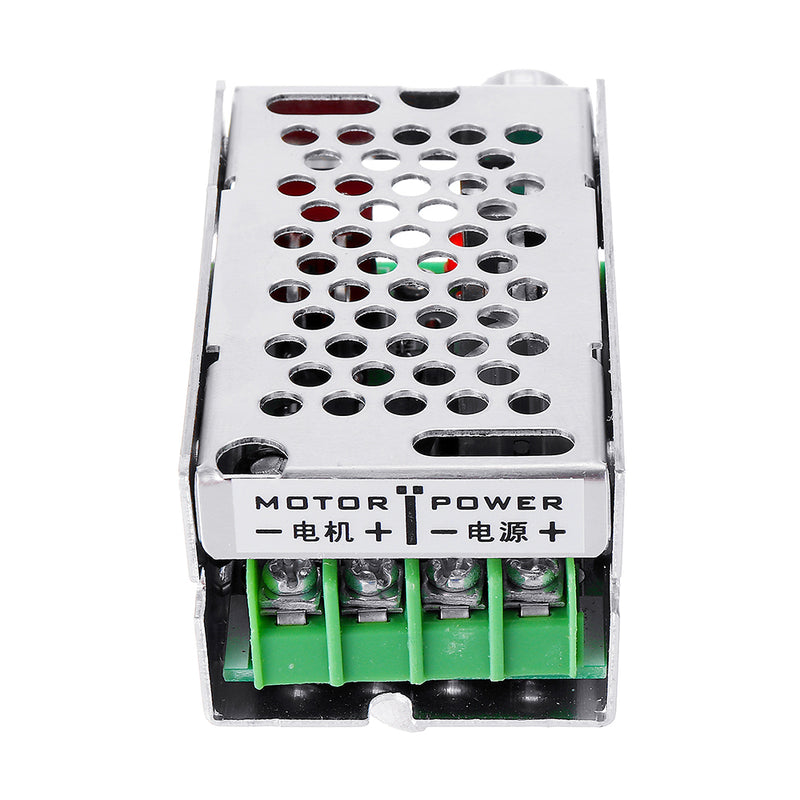

The positive and negative power supply cannot be reversed. When wiring, be careful that the terminal must not touch the heat sink. It is best not to bring electricity to the wiring.
Package Included:

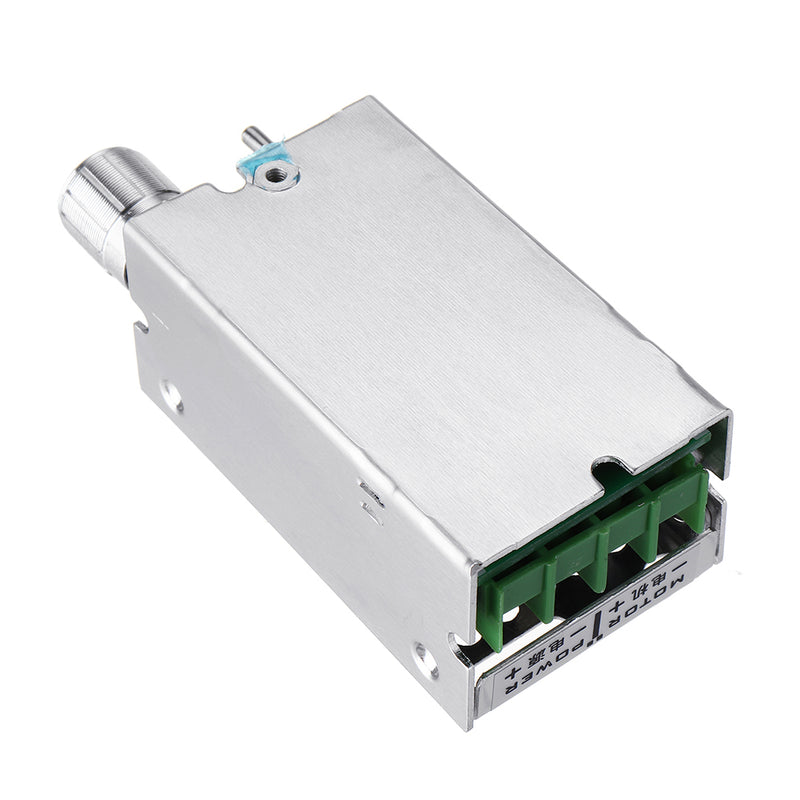

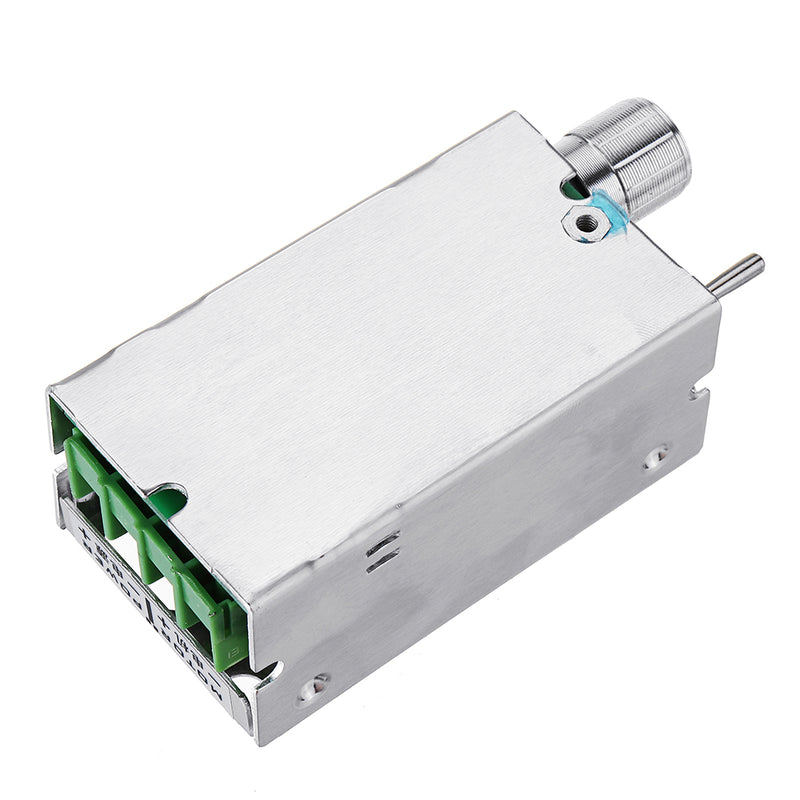

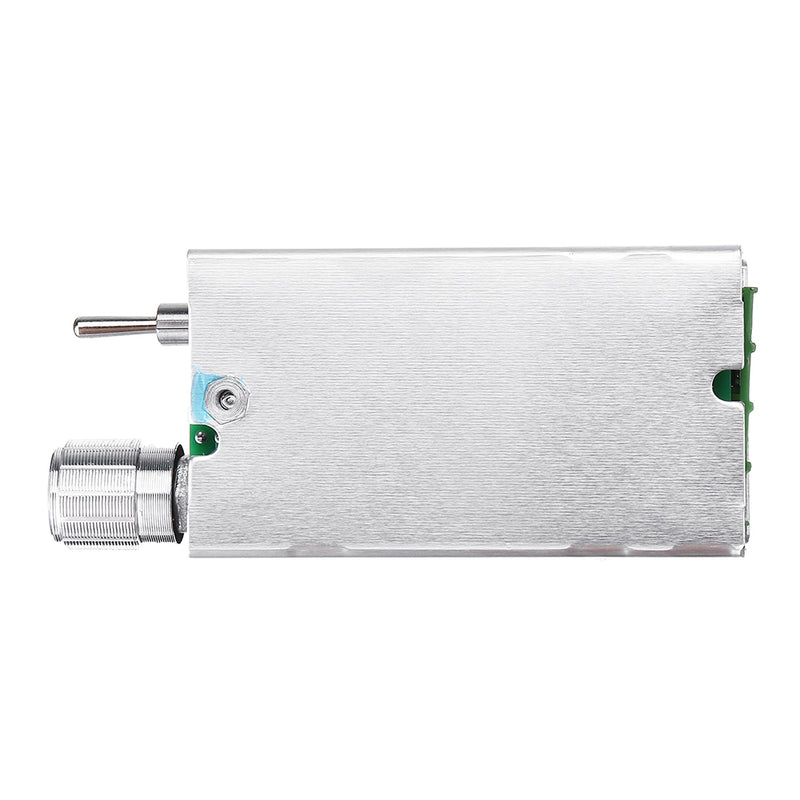

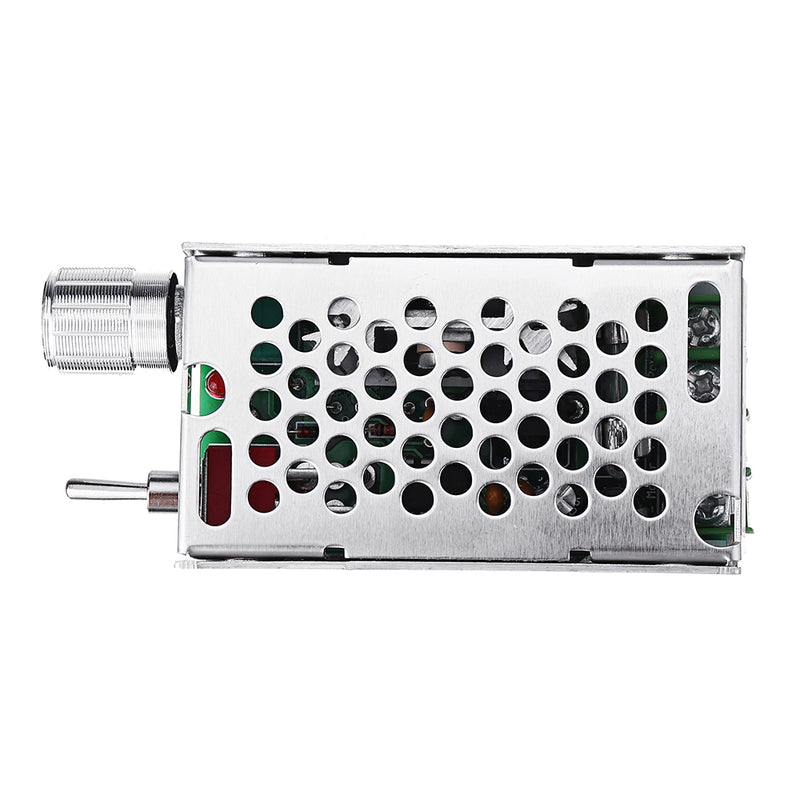

1 x CCM2NJ DC 12V-40V 3A DC Motor Speed Controller
