Specifications:
Model: CCM6DS
Potentiometer: resistance B100K, opening 8mm
Work voltage: 12V-50VDC (wide range)
Work current: 30A
The power range: maximum 1500W, recommended 12V250W, 24V350W, 48V500W use.
Speed range: 0% -100%
The product frequency: 21KHz

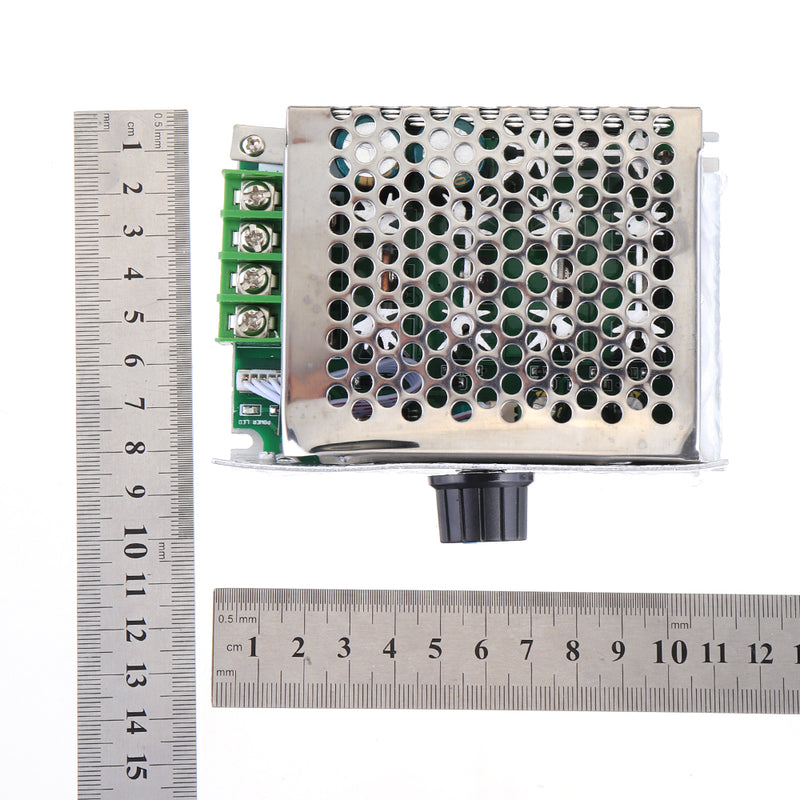

Size:110x76x35mm
Net weight: 203g
Warmly Noted:
1. DC motor controller input is connected to direct current, can not be connected to alternating current, or it will be burnt.
2. Make sure the positive and negative polarity is connected correctly, otherwise the controller will be damaged.
3. The motor can be divided into positive and negative poles. When the running direction is inconsistent with the desired direction, the direction can be changed by adjusting the thread se quence.
4. The potentiometer knob can change the governor output duty cycle to change the motor speed.
Package Included:

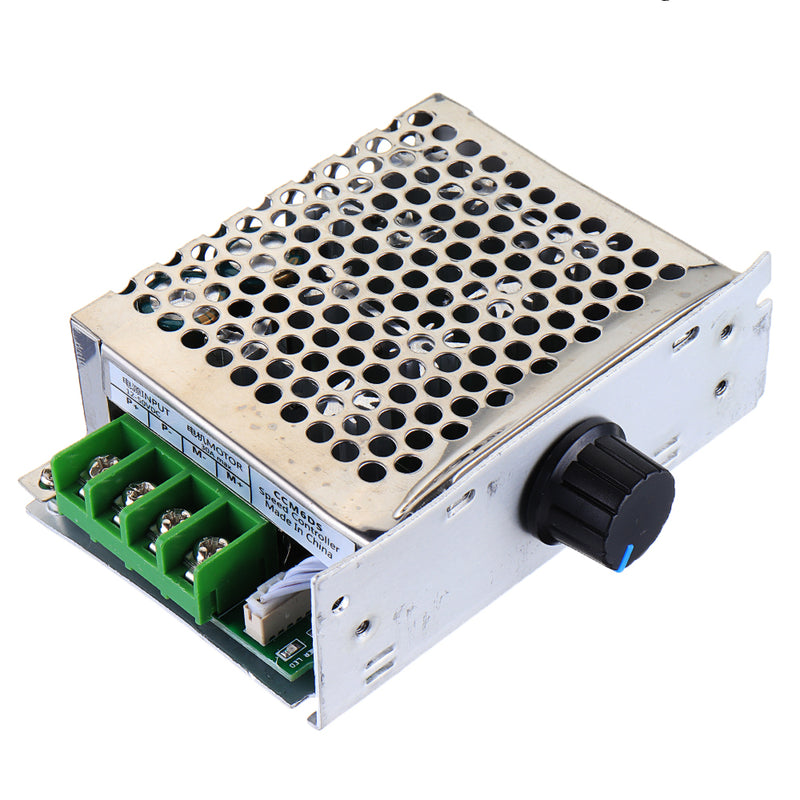

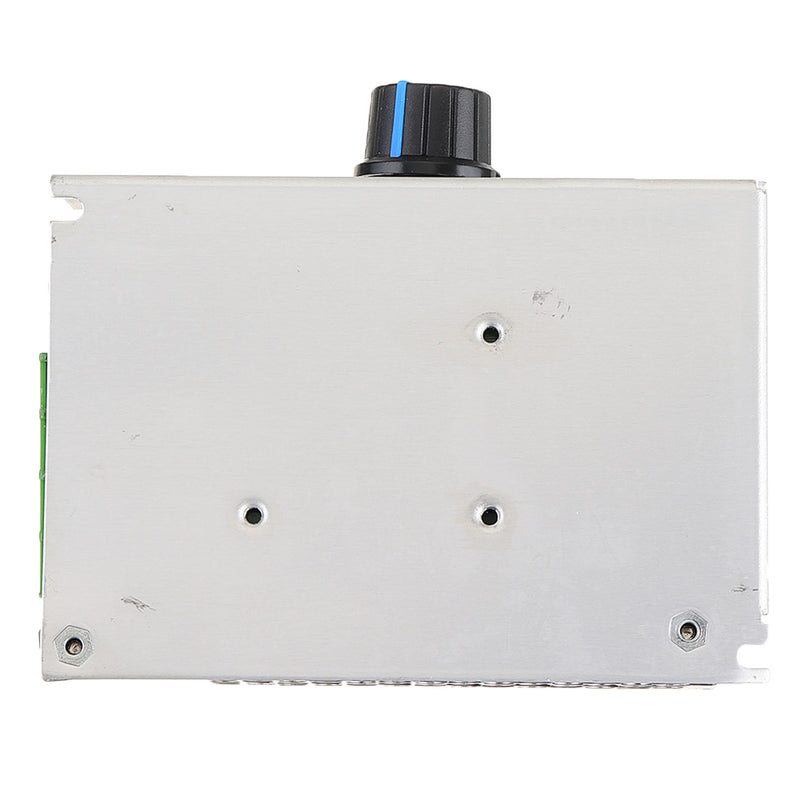

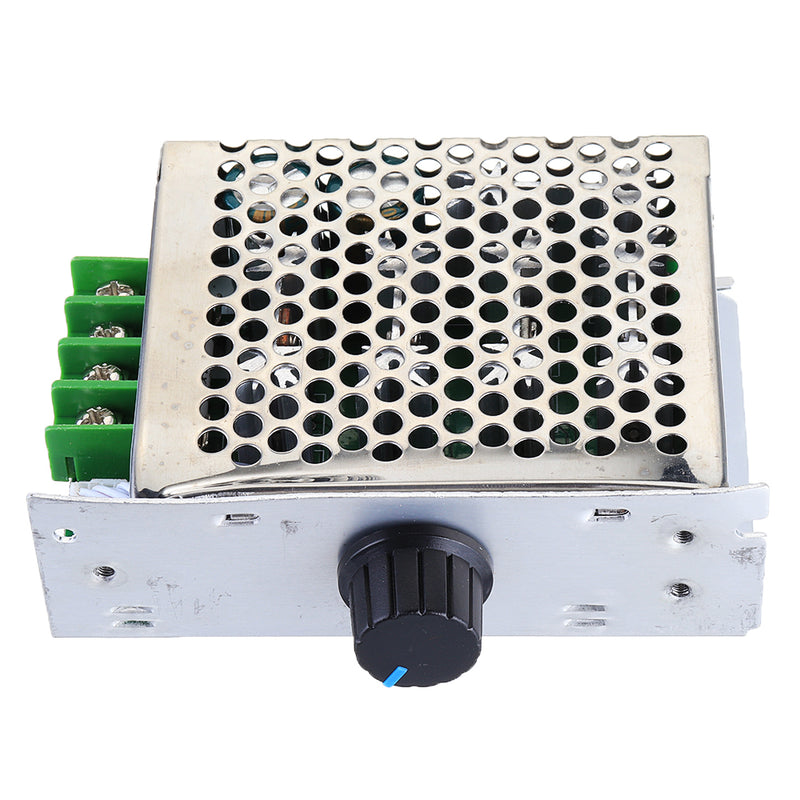

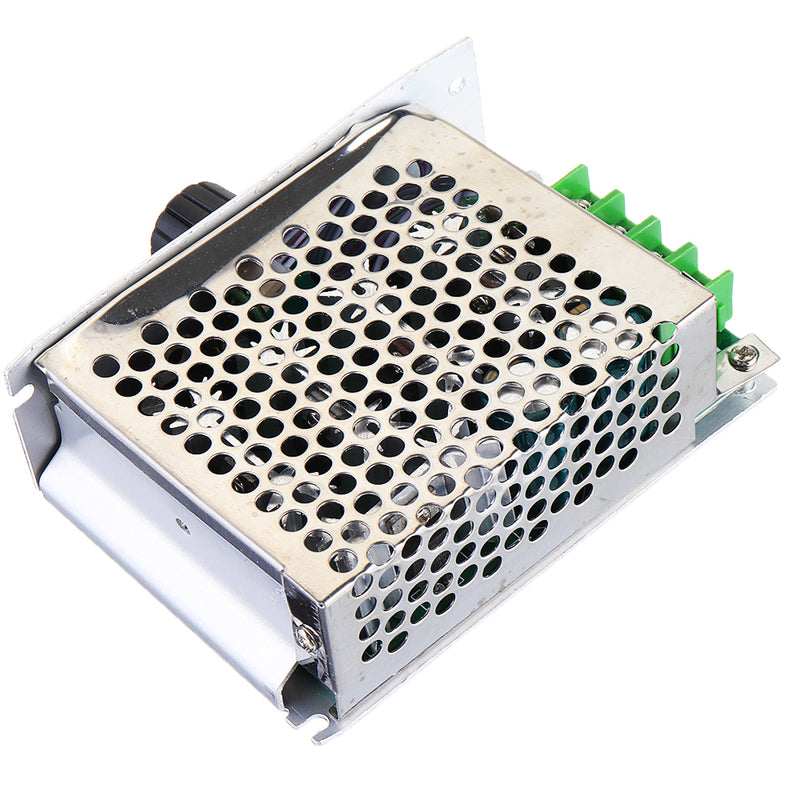

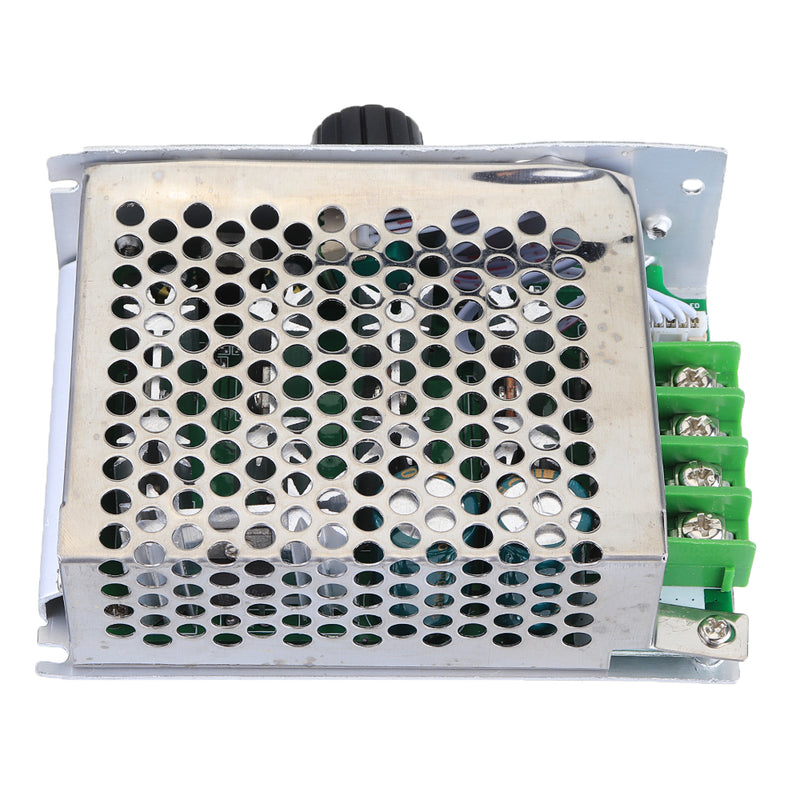

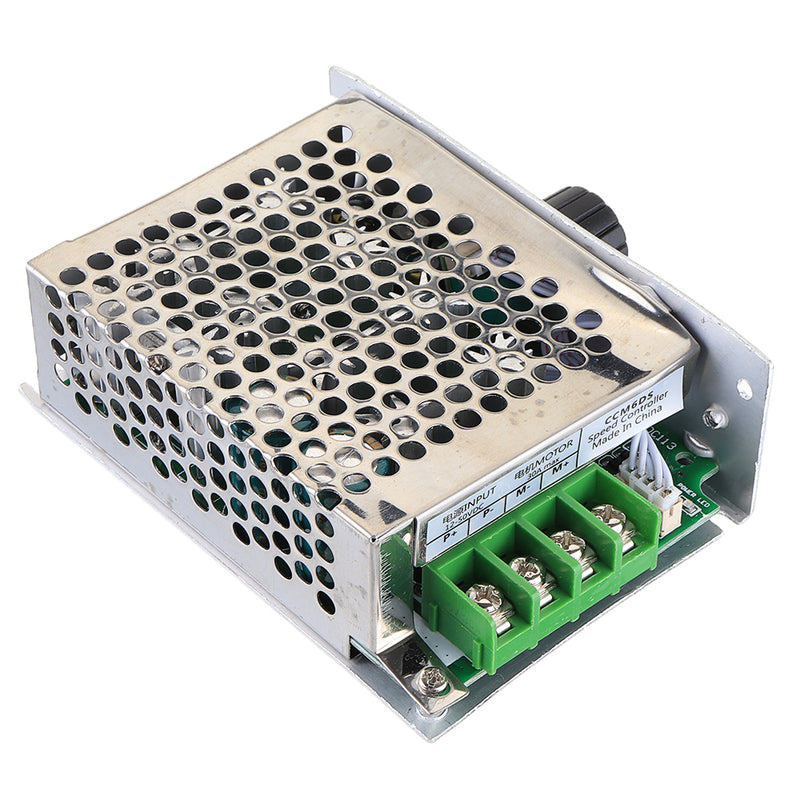

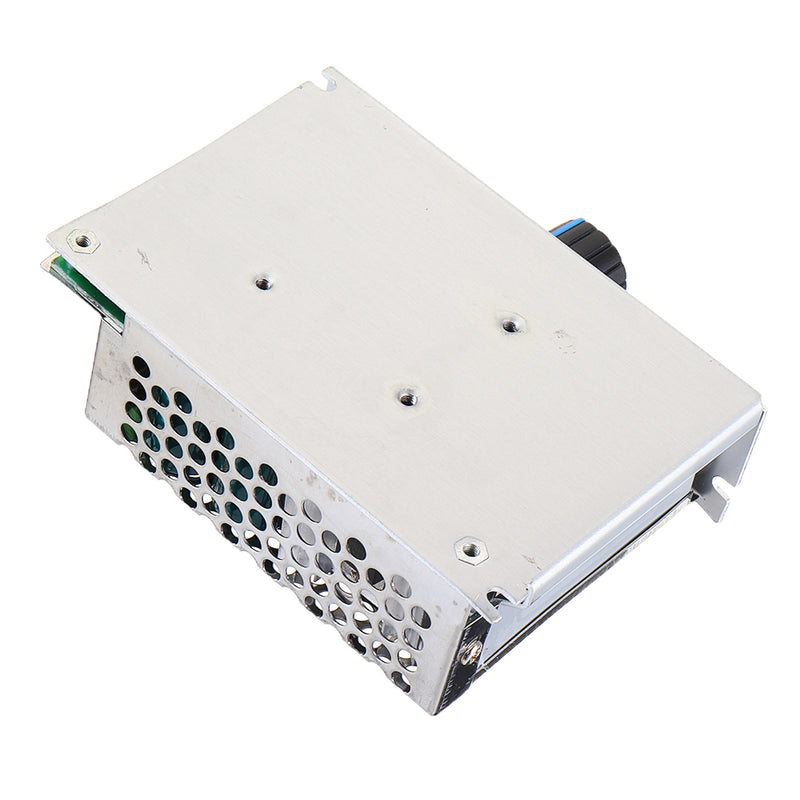

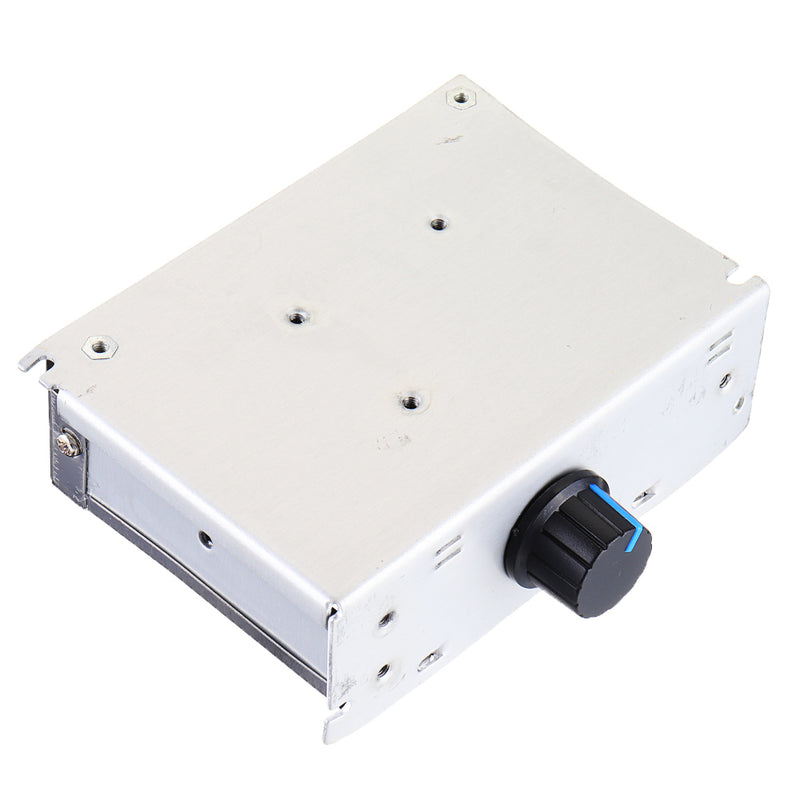

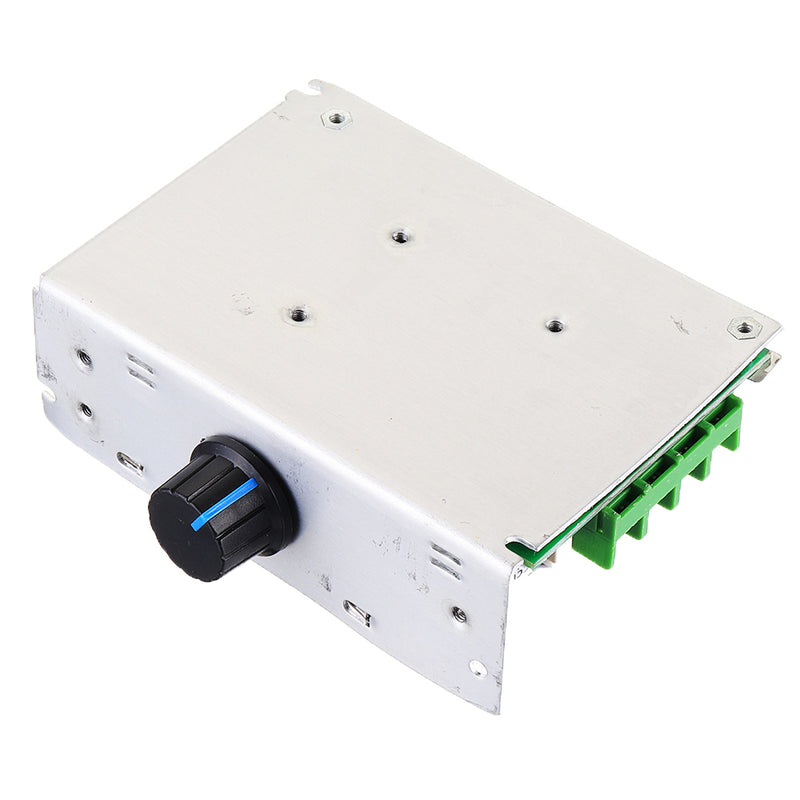

1 x CCM6DS PWM DC Motor Governor 12V 24V 36V 30A
