Characteristic:
Three high-resolution digital ECG channels with synchronized pacing output
Anti-electromagnetic interference (EMI) input
Low power consumption: 0.3mW per channel
Input incoming noise: 7uVpp (40Hz bandwidth)
Input bias current: 175pA
Data rate: up to 25.6ksps
Differential input voltage range: ± 400mV
Analog supply voltage: 2.7 ~ 5.5V Digital input / output (I / O) Supply voltage: 1.65V ~ 3.6V
Right leg drive amplifier
AC and DC lead disconnection detection
Wilson and Goldberger terminals
ALARMB pin for interrupt-driven diagnostics
Battery voltage monitoring
Built-in oscillator and reference
Flexible power-off and standby mode
Application:
Portable 1/2/3/5/6/7/8/12 Lead ECG
Patient vital signs monitoring: Holter, events, stress and telemedicine.
Package included:

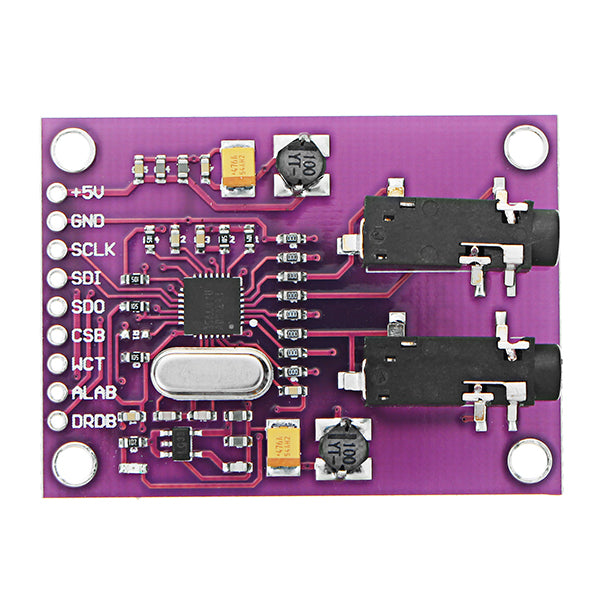

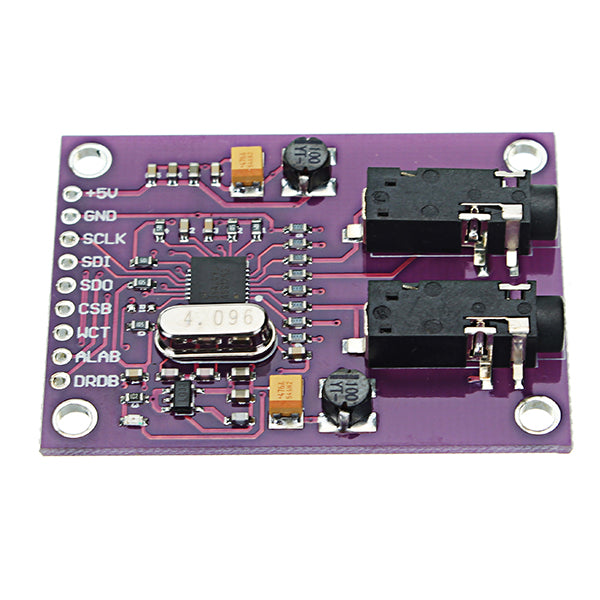

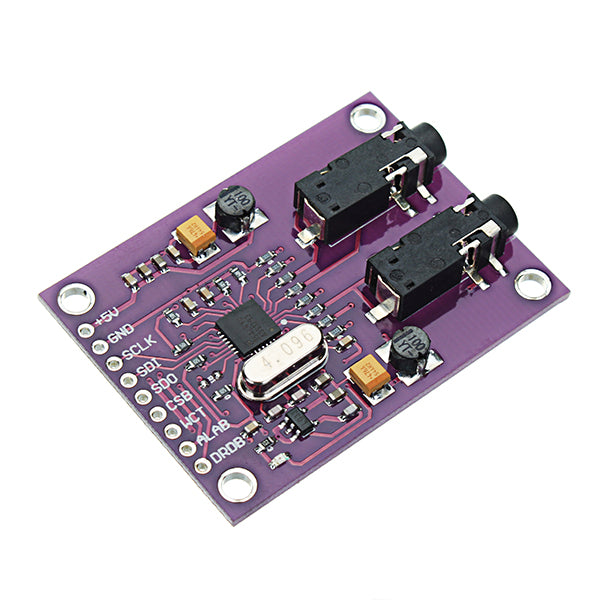

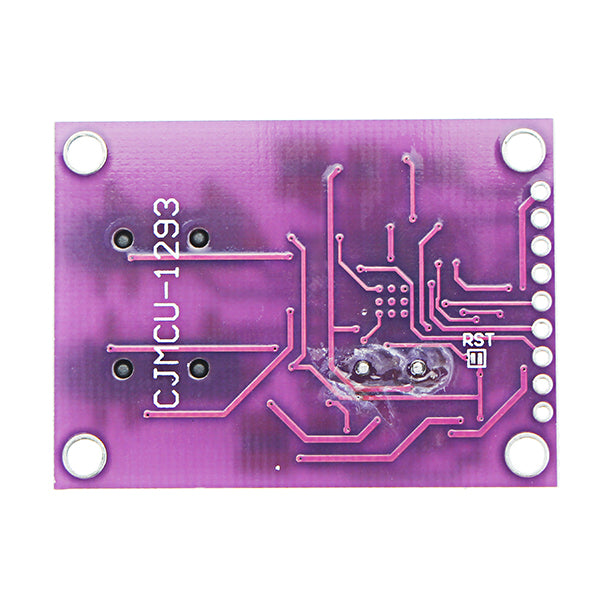

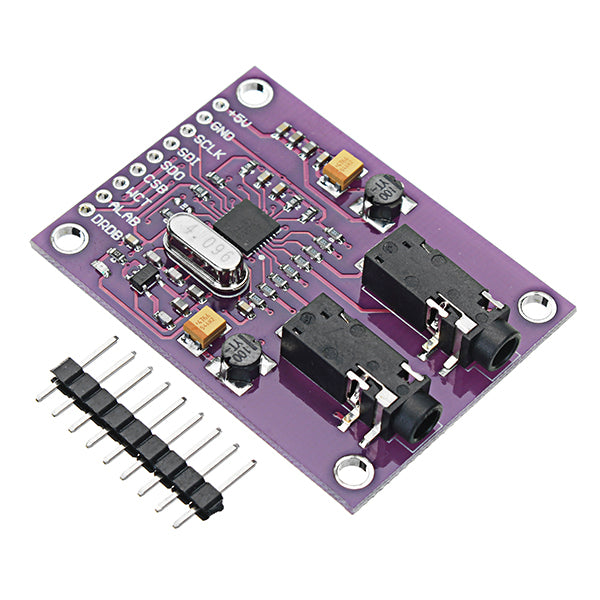

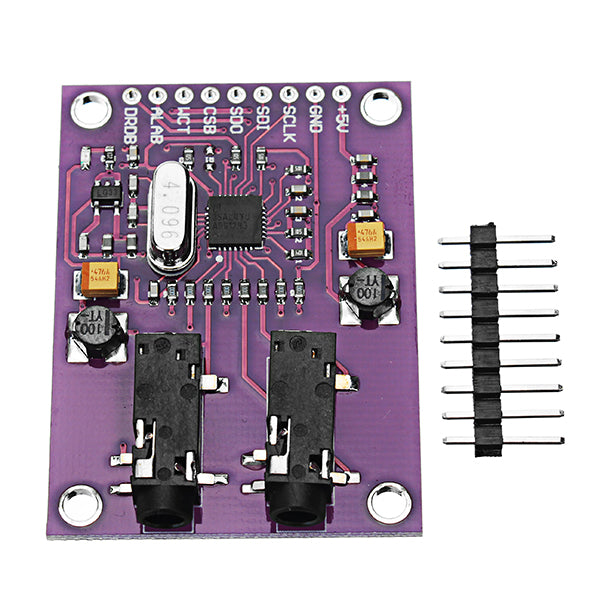

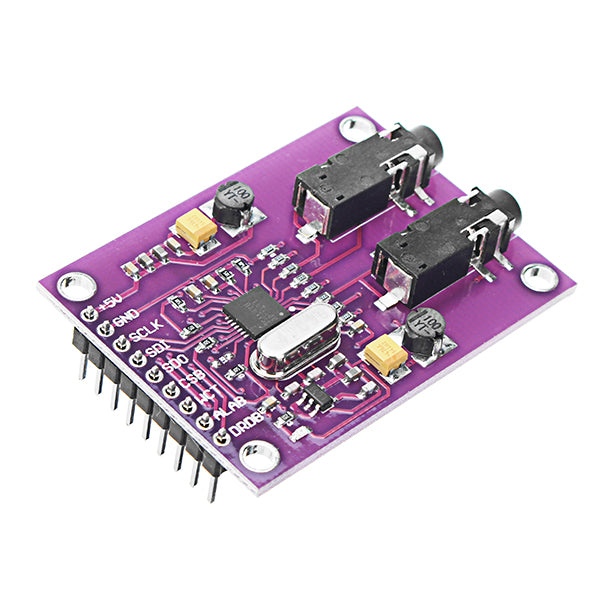

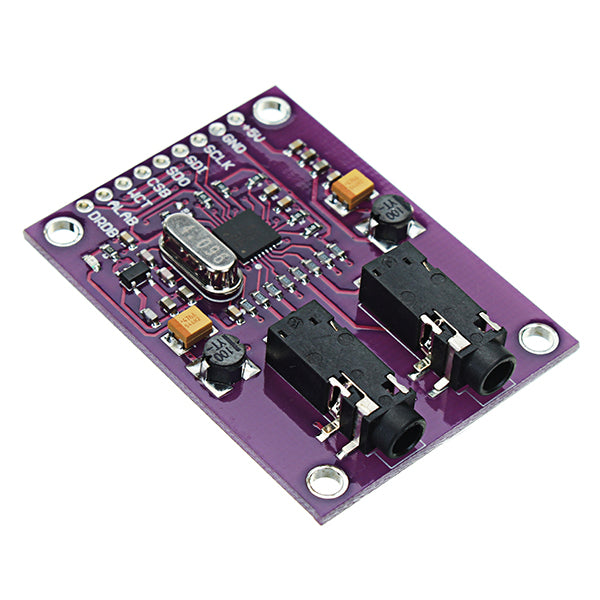

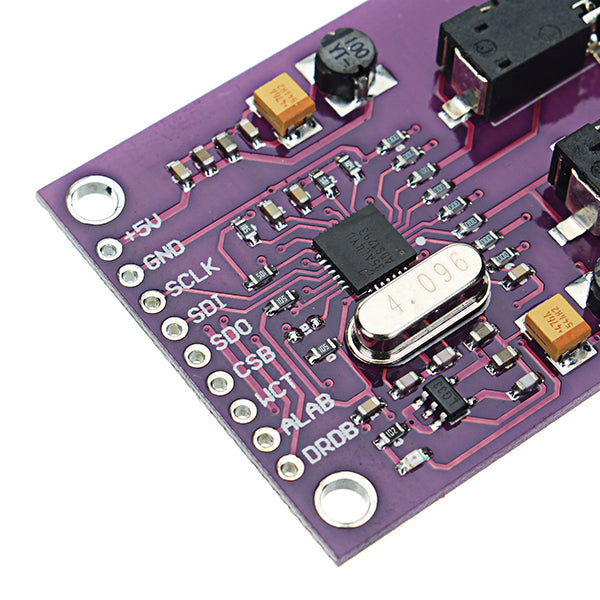

1 x CJMCU-1293 ADS1293 Electrocardiogram (ECG) Physiological Signal Measurement
