Features:
- Industry-leading noise performance through proprietary amplifier and filter design techniques
- Integrated shield greatly reduces capacitive coupling from current conductor to die due to high dV/dt signals, and prevents offset drift in high-side,
high voltage applications
- Total output error improvement through gain and offset trim over temperature
- Small package size, with easy mounting capability
- Monolithic Hall IC for high reliability
- Ultra-low power loss: 100 μΩ internal conductor resistance
- Galvanic isolation allows use in economical, high-side current sensing in high voltage systems
Electrical characteristics (X050):
1. Operating voltage: 3V - 5 V (MAX 8 V)
2. Static output voltage: VCC/2
3. Operating current: 13.5 mA (MAX)
4. Storage temperature range: -65 °C – 165 °C
5. Maximum output current (VIOUT-GND): 3 mA
6. Internal bandwidth: 120 KHz7. Detection current range (A): ±50
8. Linearity (mV/A): 40
9. Working temperature (°C): -40 to 150
10. Module size: 37mm x 18mm
11. Module weight: 8.8 gThe relationship between voltage output and current input:
VOUT = VOUT(Q) + Vsens x I VOUT(Q) is the quiescent output voltage, which is VCC/2, which is the output voltage when there is no input. Vsens is a sensor-sensitive scale, also known as a coefficient. I is the current flowing from IP+ to IP-.
For example, suppose the sensor model is 050B, VCC is 5V, and I current is 10A, then the output is 5V / 2+40mV/A x10A=2.9V.
Package included:

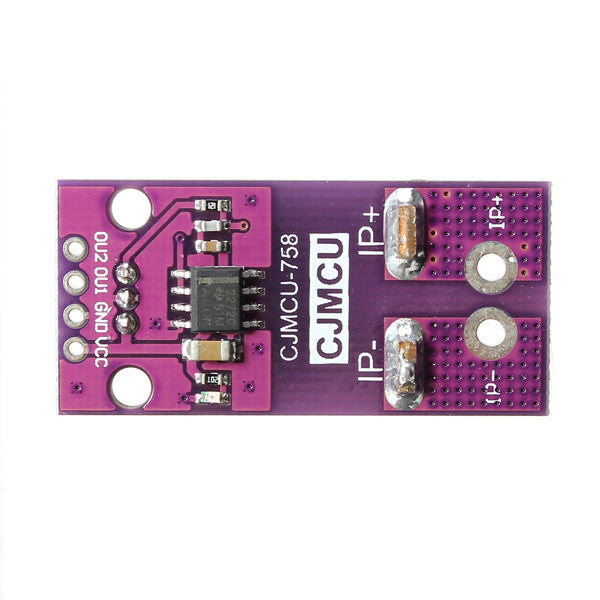

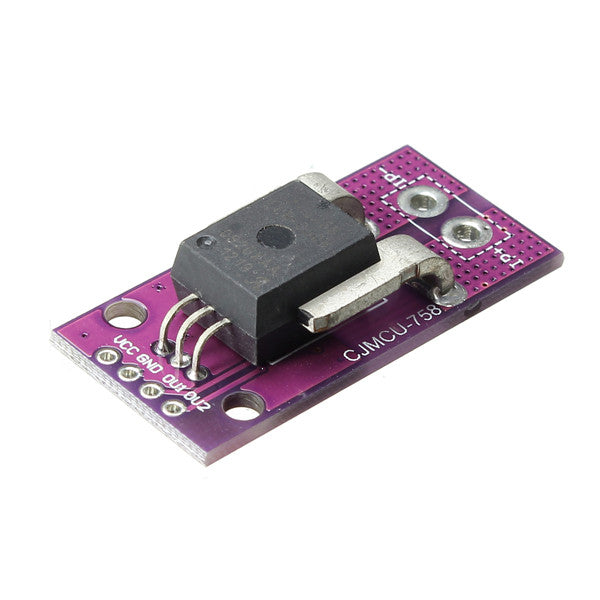

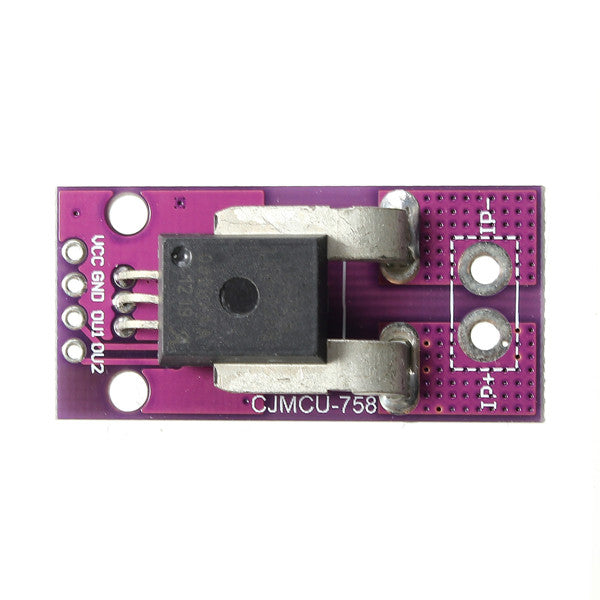

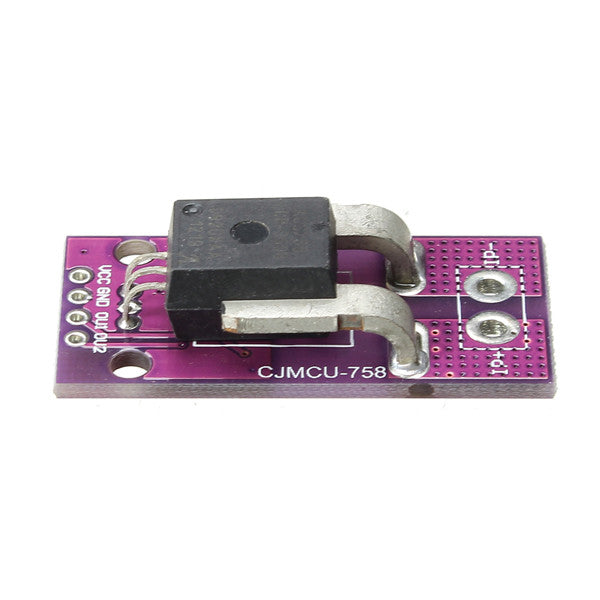

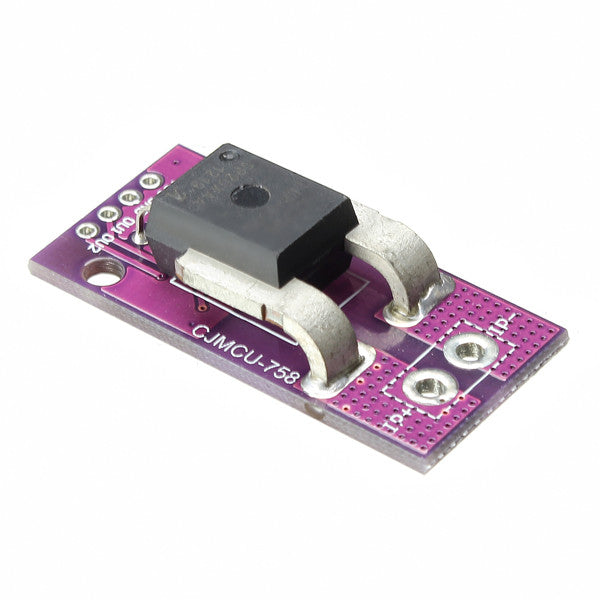

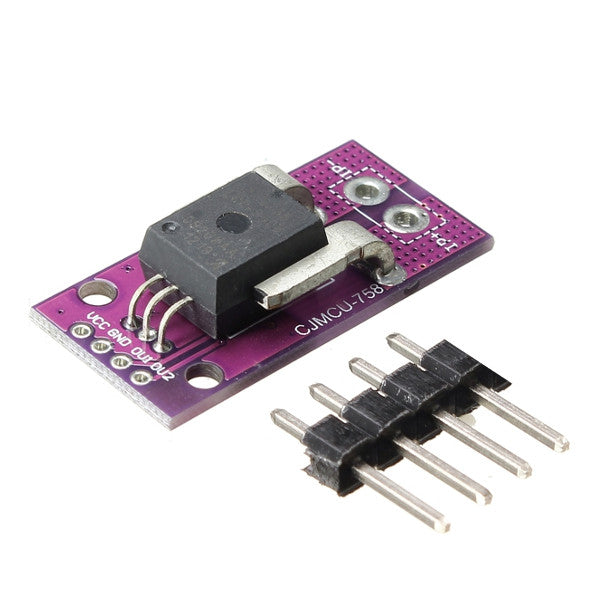

1 x Linear Current Sensor Hall Current Module
,,
