Feature:

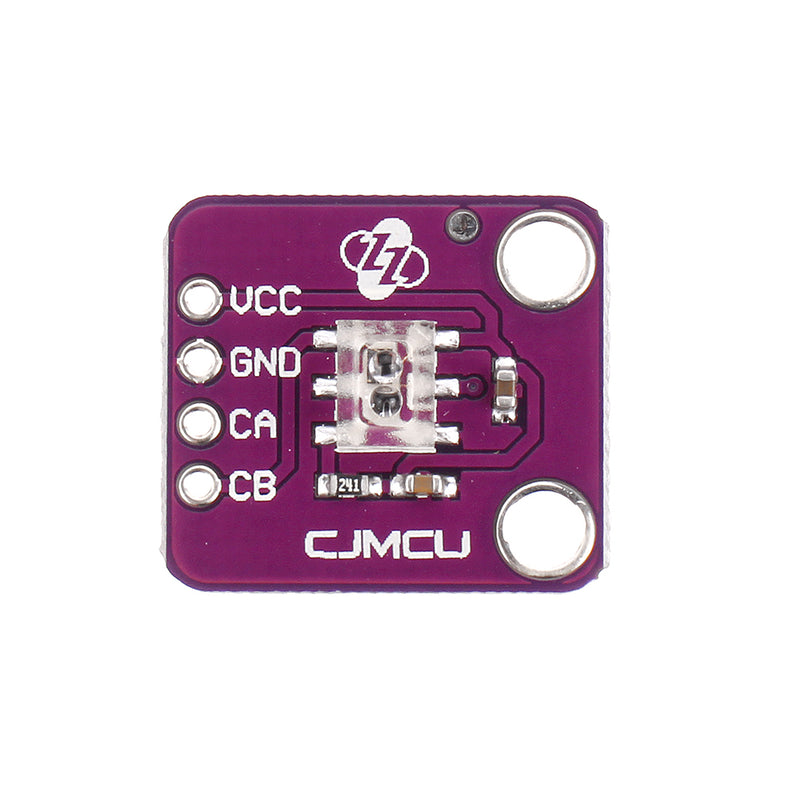

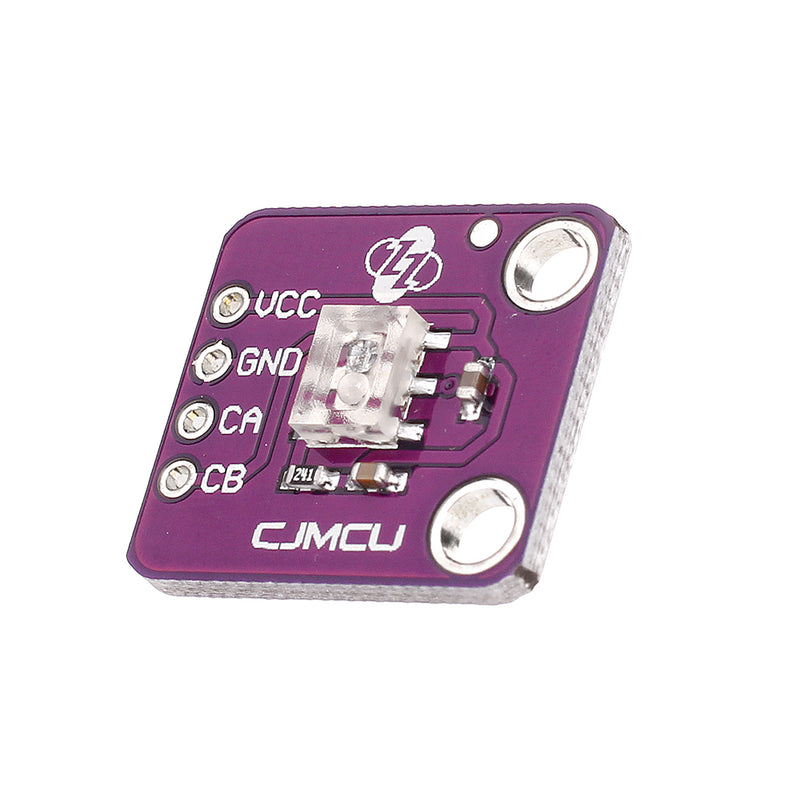

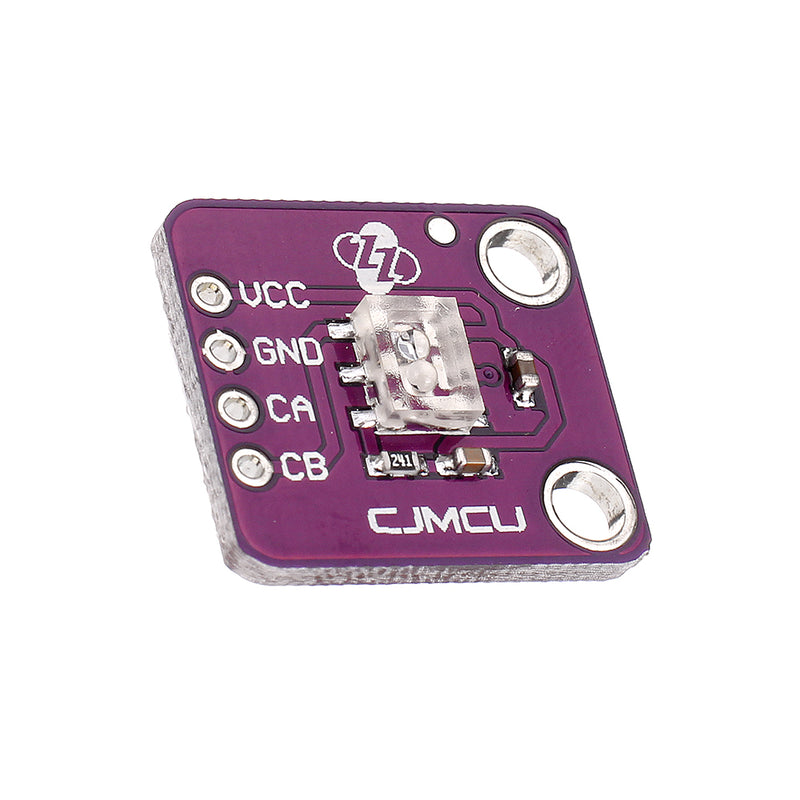

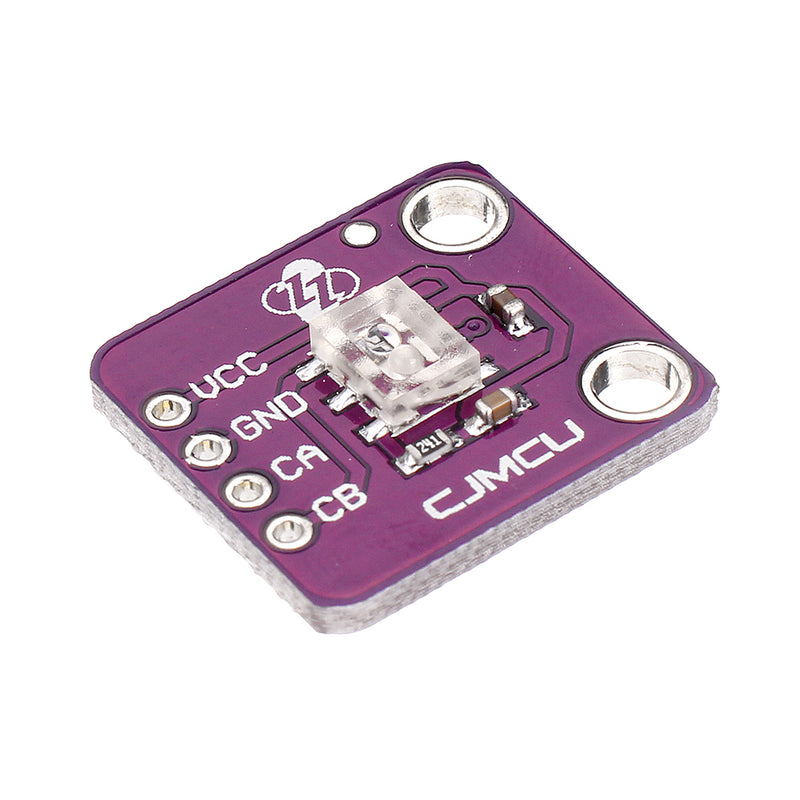

The AEDR-8300 is currently the smallest optical encoder product for motion control applications using reflective technology. When used with a code wheel or linear bar, it can convert rotary or linear motion into a digital output. It consists of an LED illumination source, a detection IC with a photodiode, and a lens.
The AEDR-8300 Series can output TTL level compatible quadrature signals, so it can interface directly with most signal processing circuits.
Specification:
- Reflective technology
- Surface mount small outline
Leadless package
- Single channel incremental output
- Two channel quadrature for for
Direction sensing
- TTL compatible output
- Single 5V supply
- -20°C to 85°C absolute operating
Temperature
- Encoding resolution options:
36, 75, 150, 180 (lines / inch) or 1.42, 2.95, 5.91, 7.09 (lines / mm)
Parameters:
Module supply voltage: DC4.5V-5.5V
Working environment temperature: 0 °C ~ 85 °C
Maximum counting frequency: 15KHz Counting frequency = speed (r/m) * N / 60

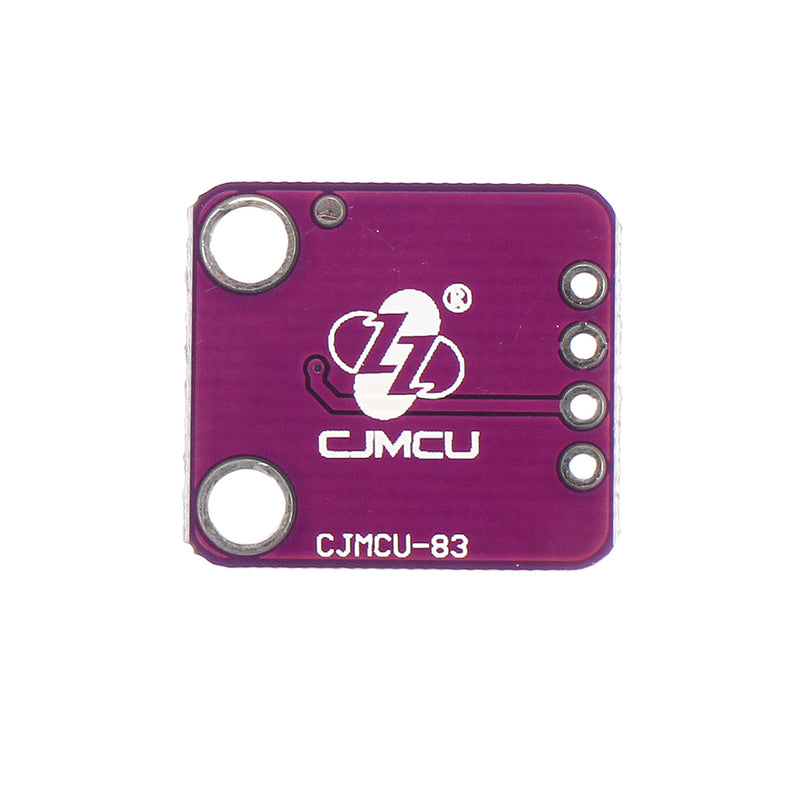

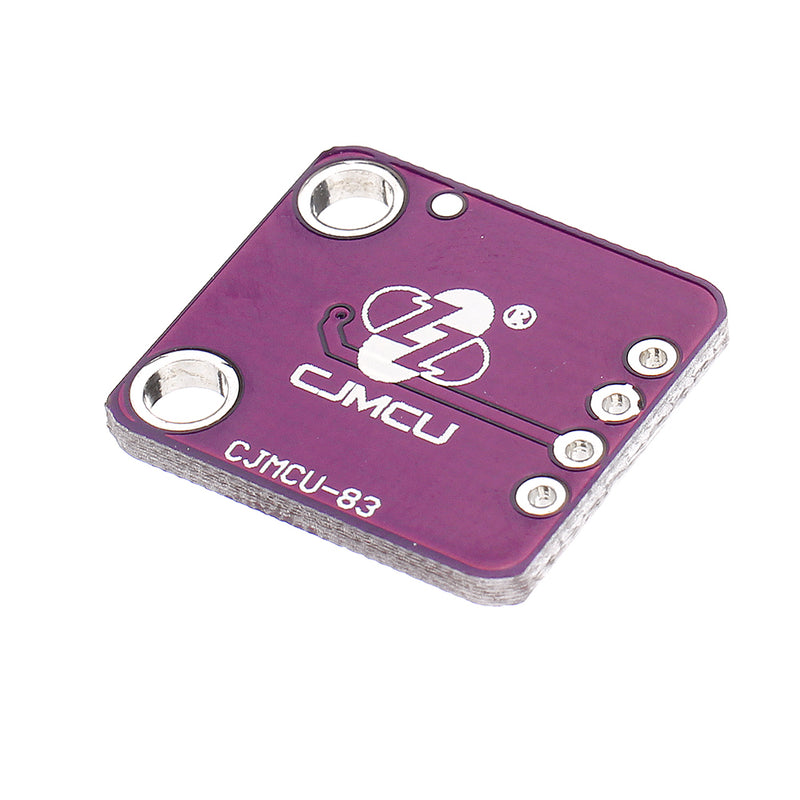

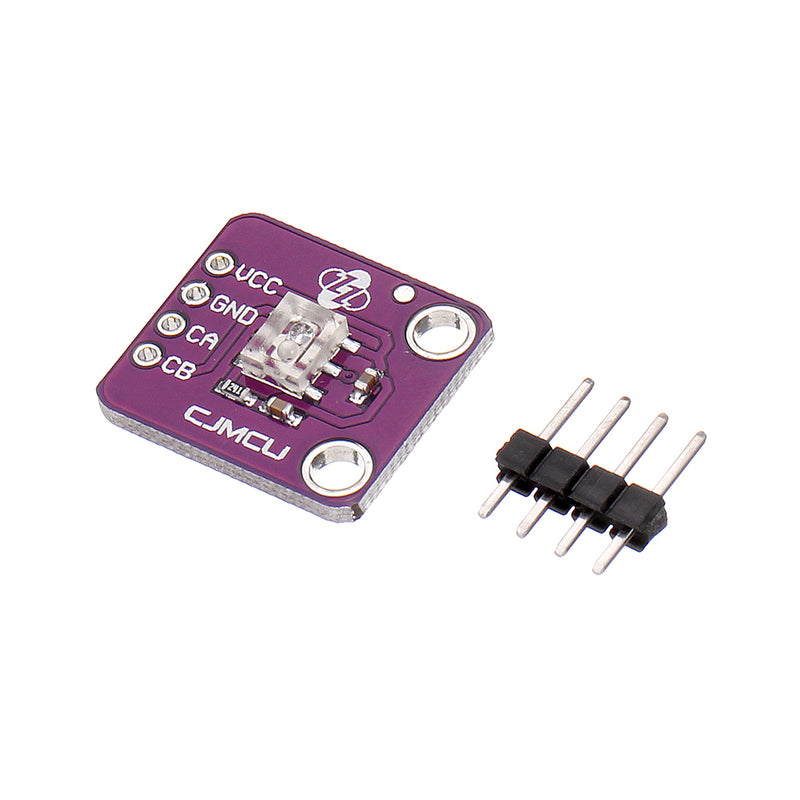

Module size: 18.5mm*16.4mm*3.45mm with two M3 mounting holes

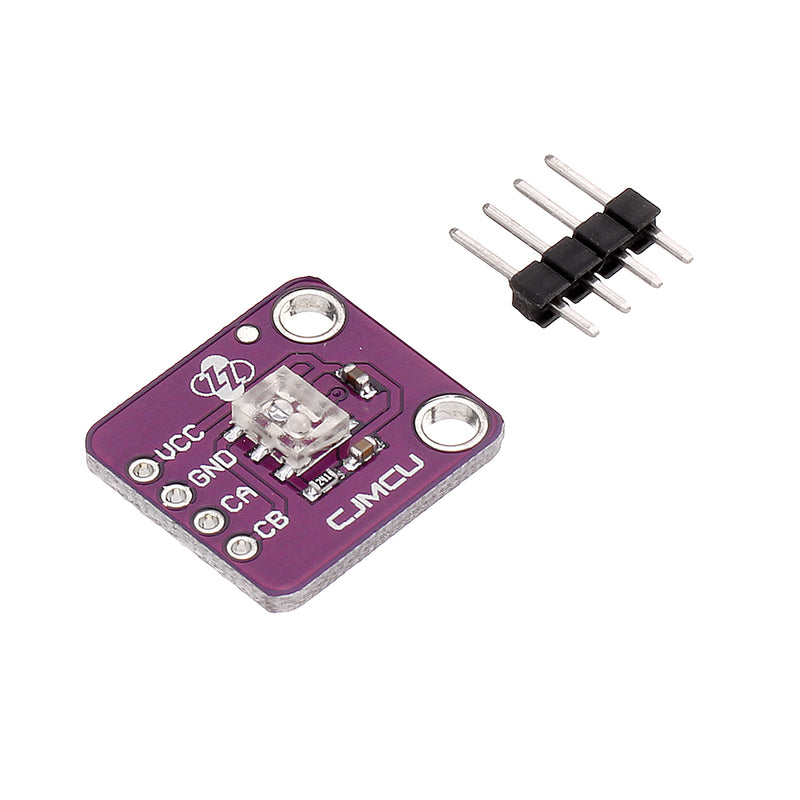

Package includes:
1 x Sensor Module
