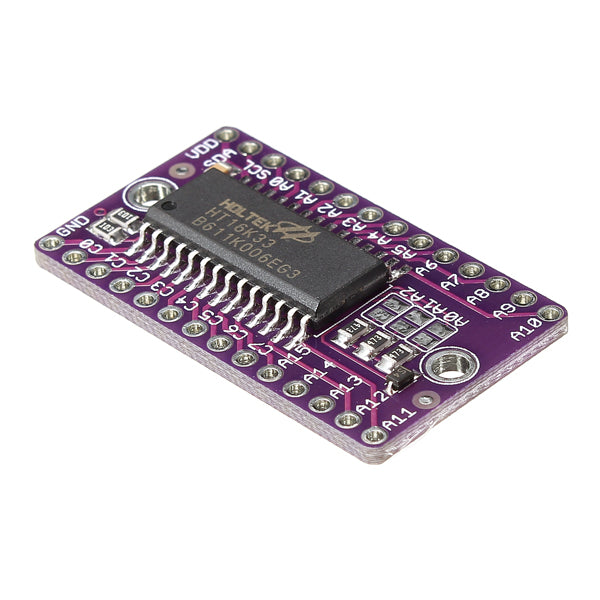

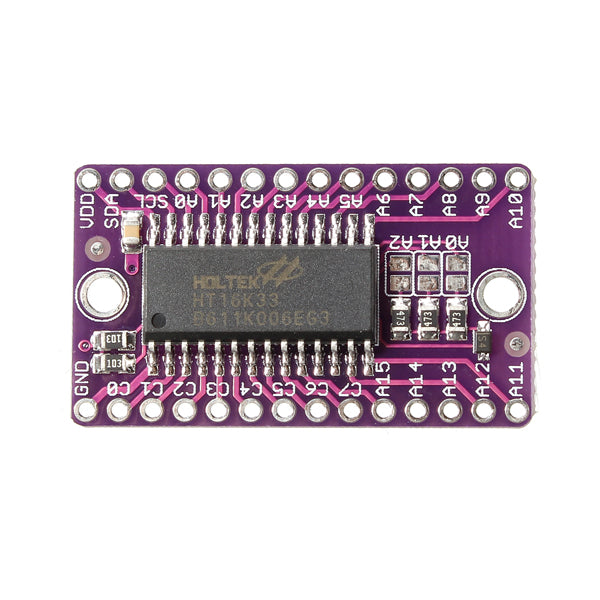

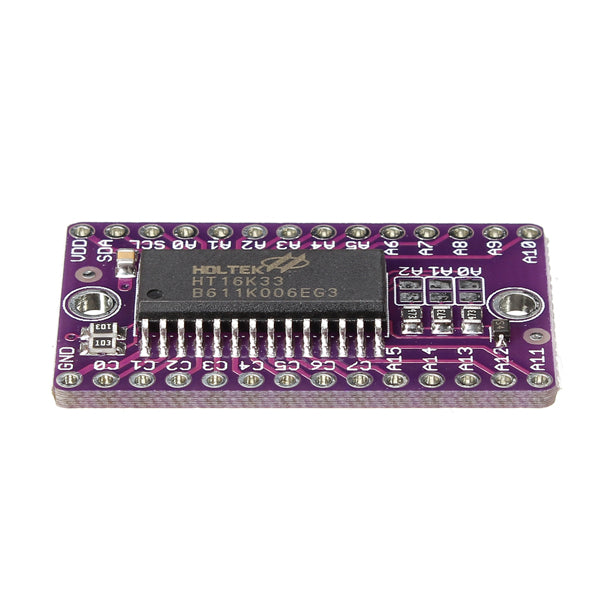

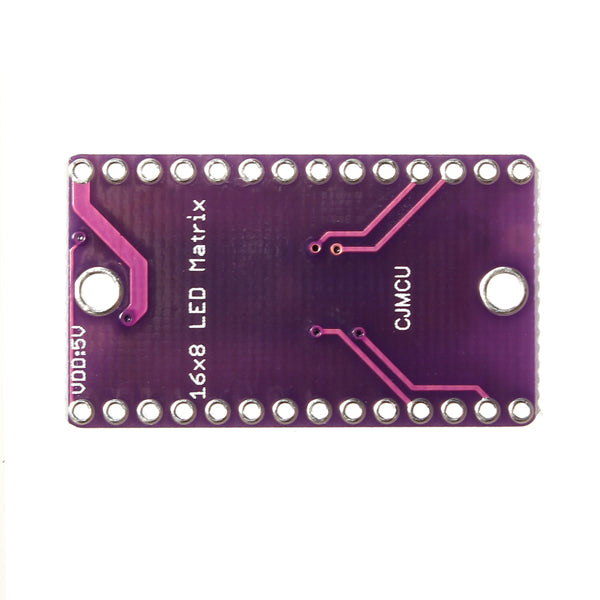

Name: CJMCU HT16K33 LED Dot Matrix Drive Control Module Digital Tube Driver Development Board For
Brand: Banggood
SKU: U2I-BG-1103108
Price: 1,284.00 INR
Availability: InStock

SKU: U2I-BG-1103108

Share this product

Description:

The HT16K33 is a memory mapping and multi-function LED controller driver. The max. Display segment numbers in the device is 128 patterns (16 segments and 8 commons) with a 13*3 (MAX.) matrix key scan circuit. The software configuration features of the HT16K33 makes it suitable for multiple LED applications including LED modules and display subsystems. The HT16K33 is compatible with most microcontrollers and communicates via a two-line bidirectional I2C-bus.

Feature:

Operating voltage: 4.5V~5.5V.
Integrated RC oscillator.
I2C-bus interface.
16*8 bits RAM for display data storage.
Max. 16 x 8 patterns, 16 segments and 8 commons.
R/W address auto increment.
Max. 13 x 3 matrix key scanning.
16-step dimming circuit.
Selection of 20/24/28-pin SOP package types.

Applications:

Industrial control indicators.
Digital clocks, thermometers, counters, multimeters.
Combo sets.
VCR sets.
Instrumentation readouts.
Other consumer applications.
LED Displays.

Package included:

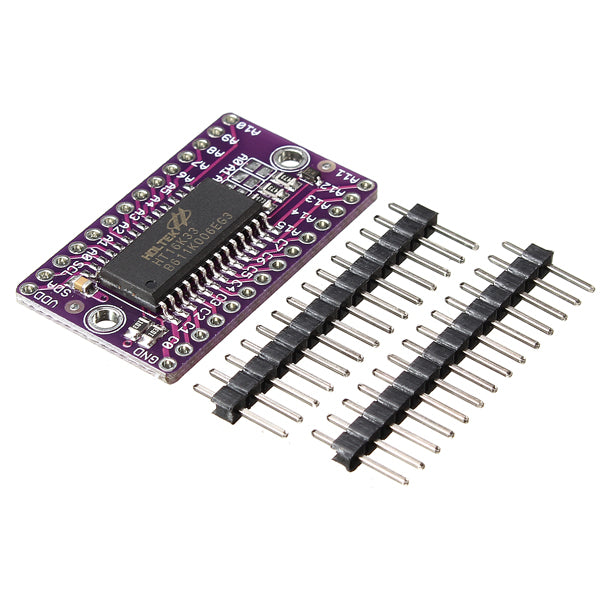

1 x Module
