Feature:
1. Applicable to all versions of mach3 software;
2. The power of control card: voltage 12-24VDC, current more than 500MA.
3. Support for CNC controlled 5-Axis can connect five stepper motor drivers or servo drivers.
4. Add the enable signal interface, which can be used to control the driver enable signal.
5. Support for Windows XP, Windows 7 32/64bit, Windows8, Windows10 operating system.
6. Support for external connect electronic handwheel, use HDR15 interface to connect electronic handwheel, used for manual control of machine tools.
7. Five optocoupler isolation input signal interfaces: limit switch, emergency stop switch, auto tool zero sensor, home switch, NPN sensor switch can be connected.
8. Four universal output signal interfaces, the maximum output 500MA current, can drive relays, solenoid valves, used to control mist, pumps, cylinders, and other equipment.
9. The maximum output pulse frequency is 100KHz, and the pulse width can automatically change with the pulse frequency, which can be applicable to the closed-loop driver of strict requirements on the pulse.
10. Inverter control signal interface (optocoupler isolation): Output 0-10V speed control signal, PWM speed control signal, spindle start control signal, used for mach3 software to control spindle's speed, start and stop.
11. Size:11x7.4cm/4.33x2.91inch

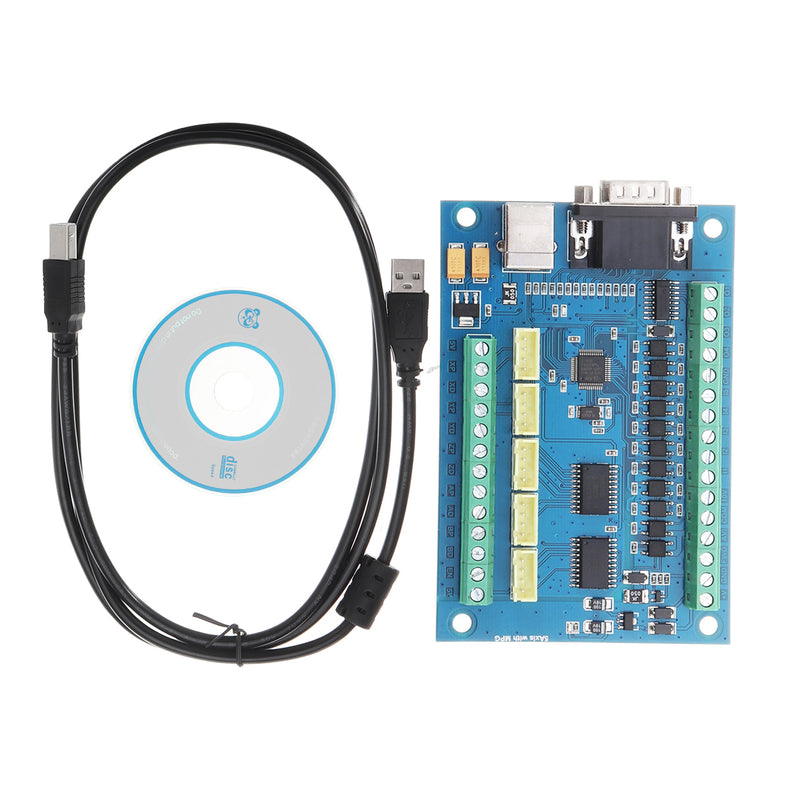

Package Includes:

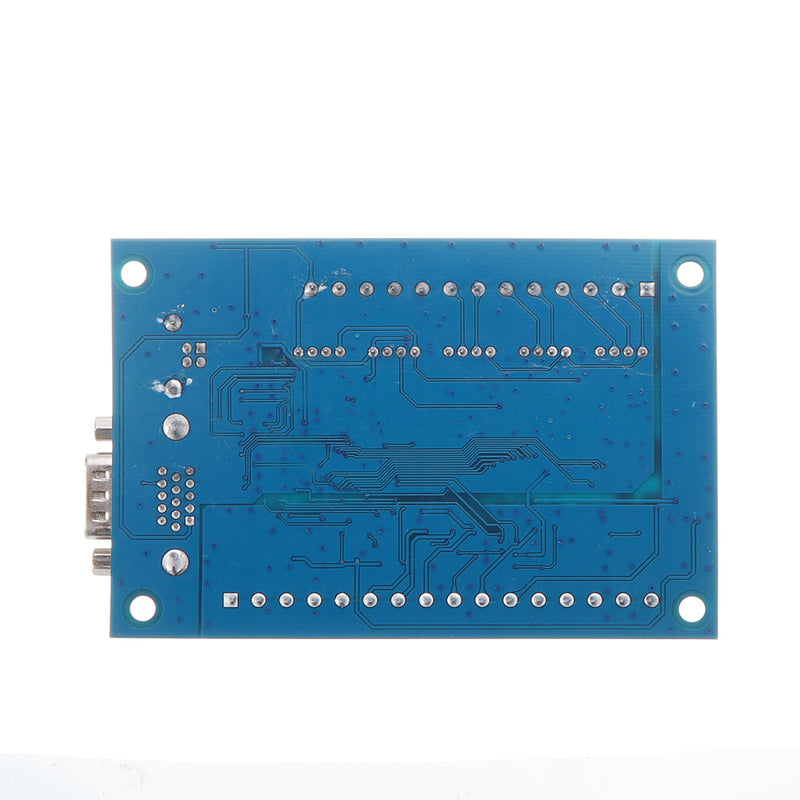

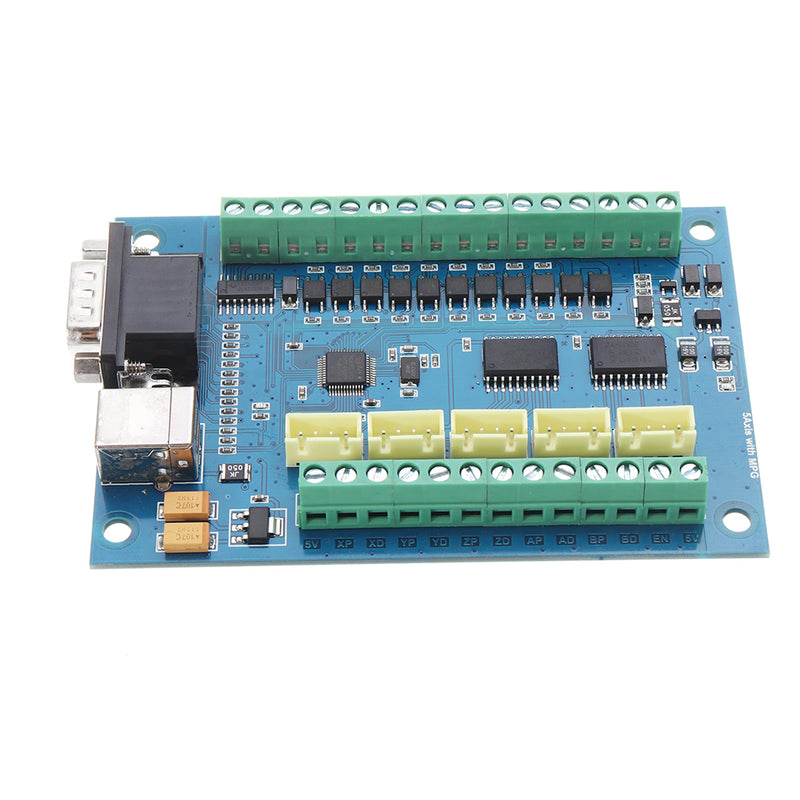

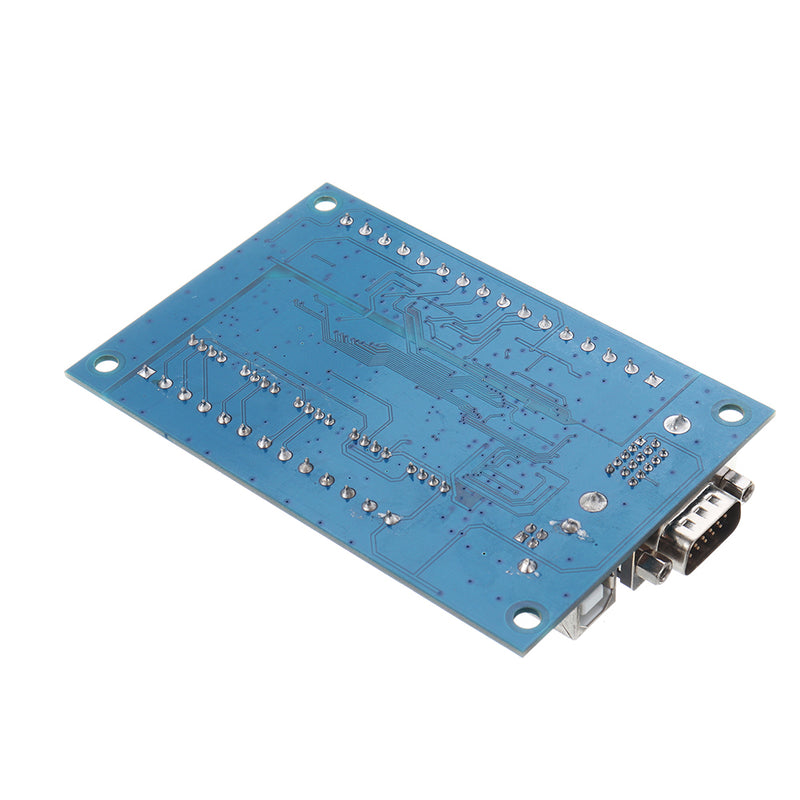

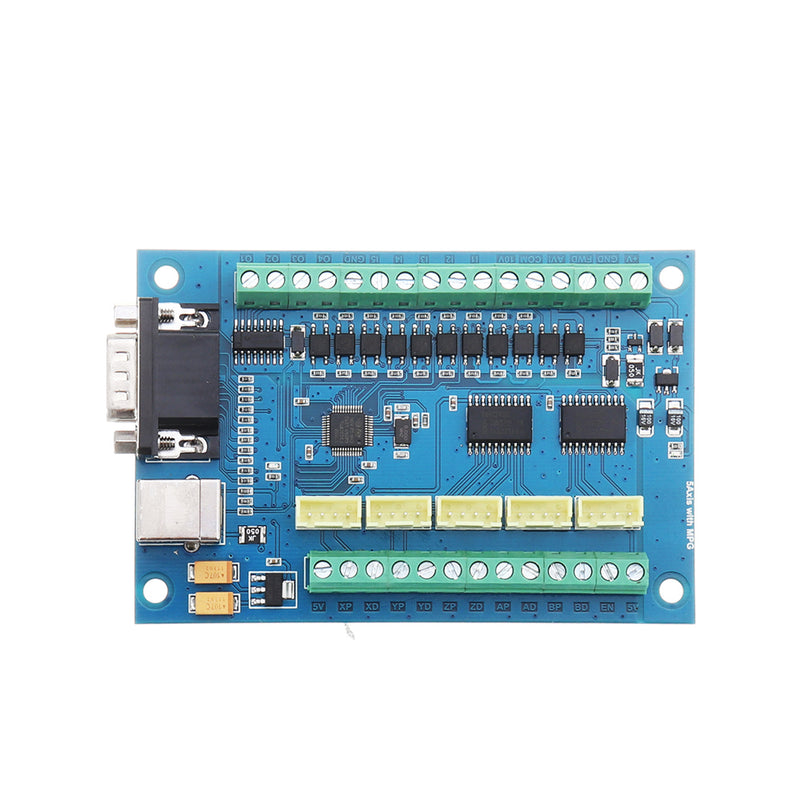

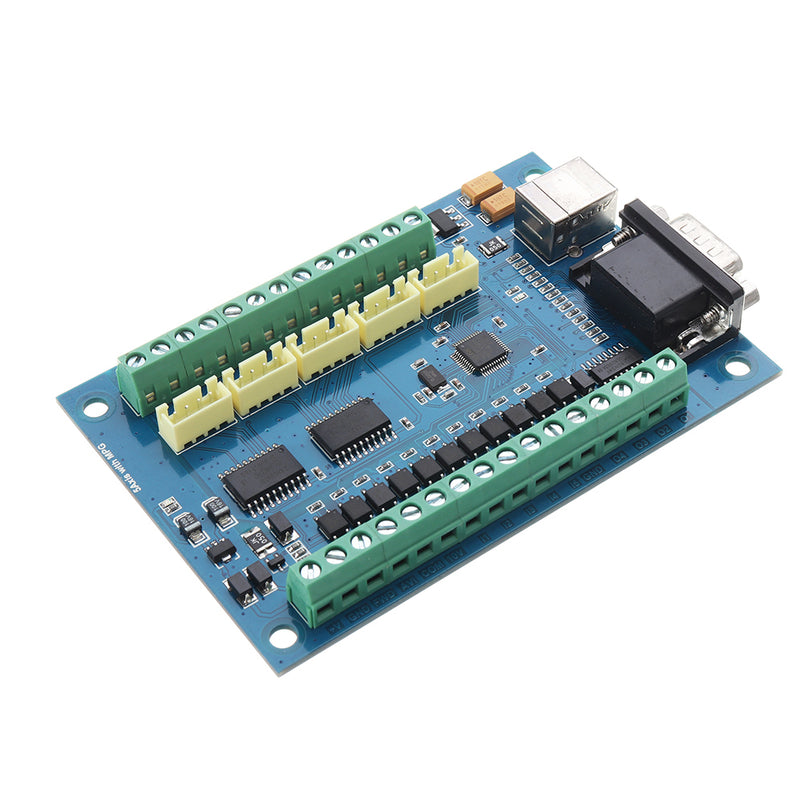

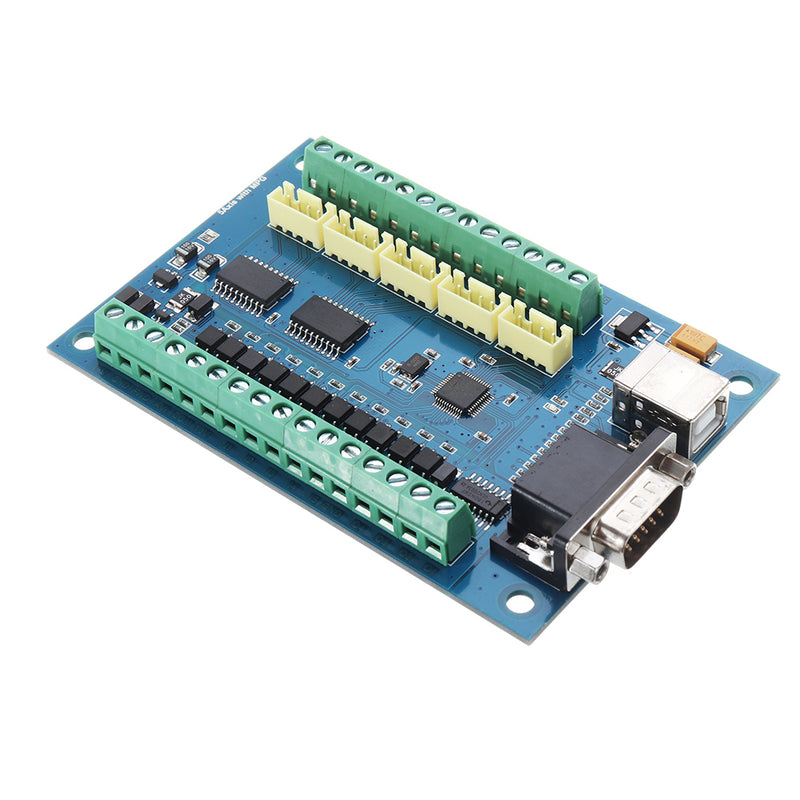

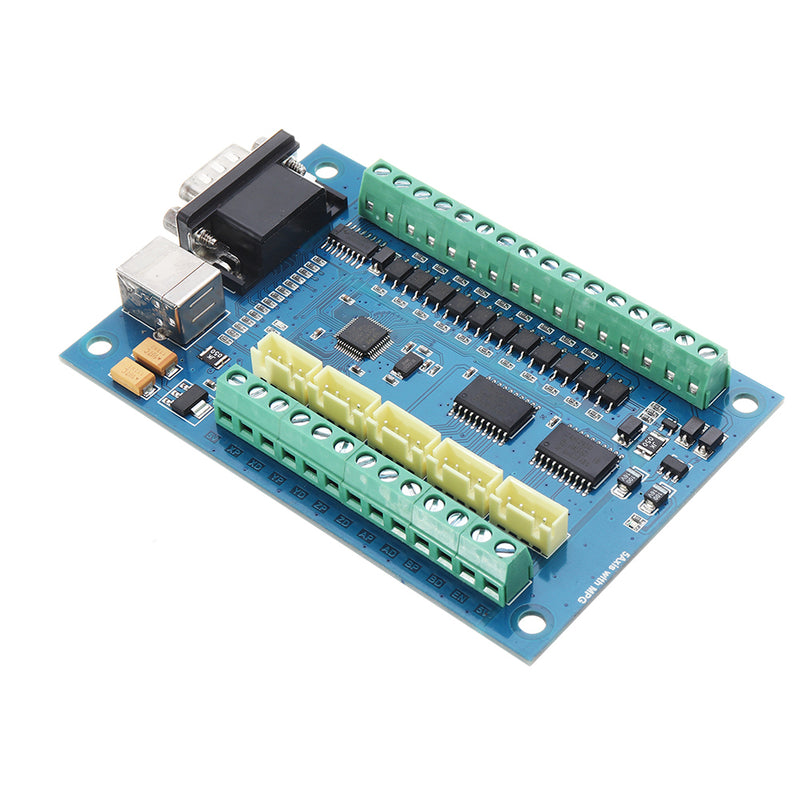

1 x Driver board

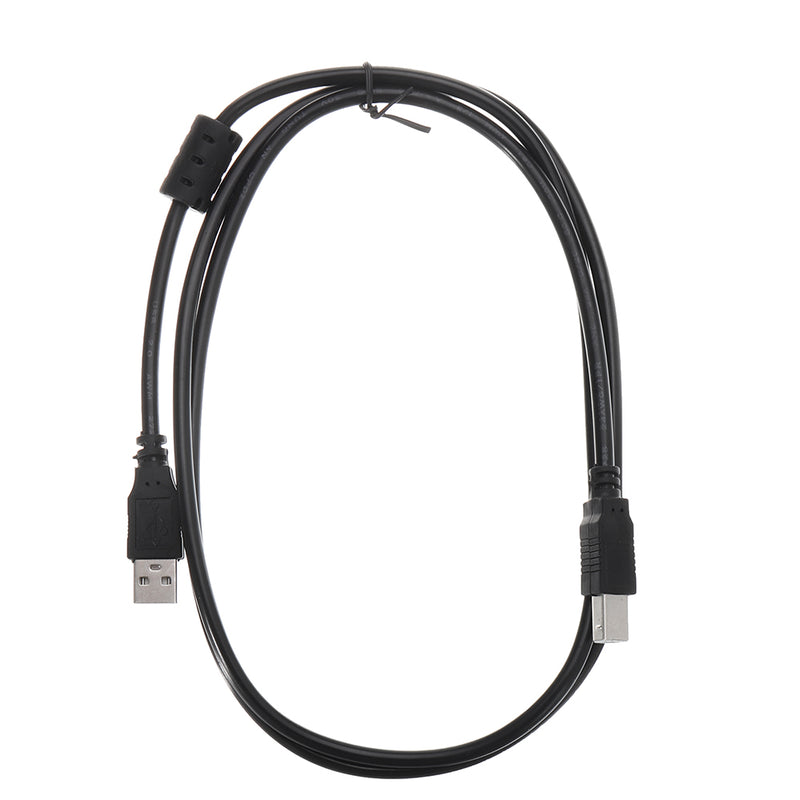

1 x USB cable
1 x CD
