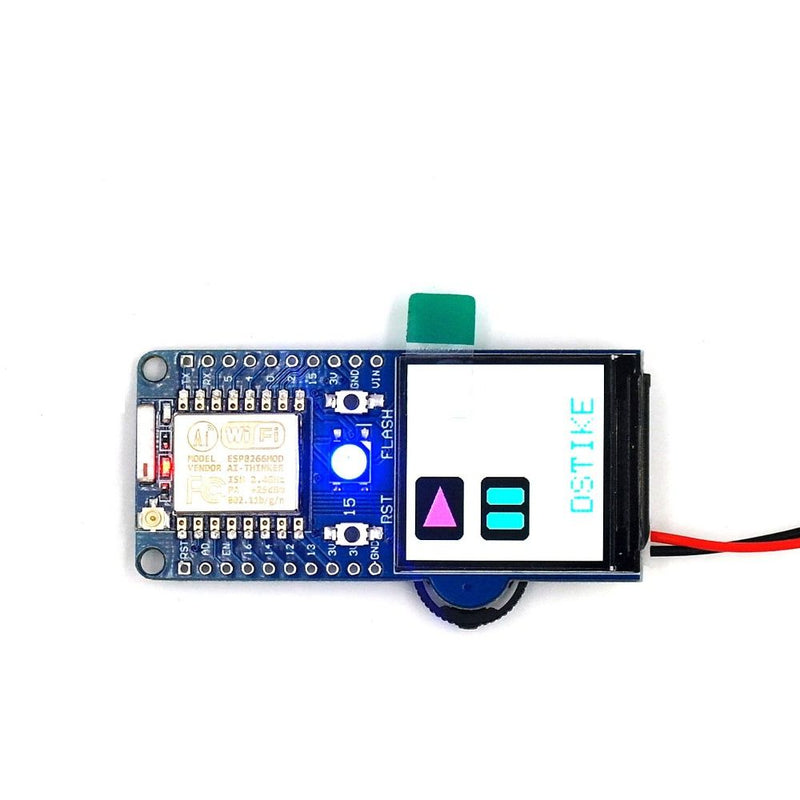

What is it?
- D-duino means "Display Duino"
- D-duino-V6 = ESP8266 + TFT screen
- It is a esp8266 development board.

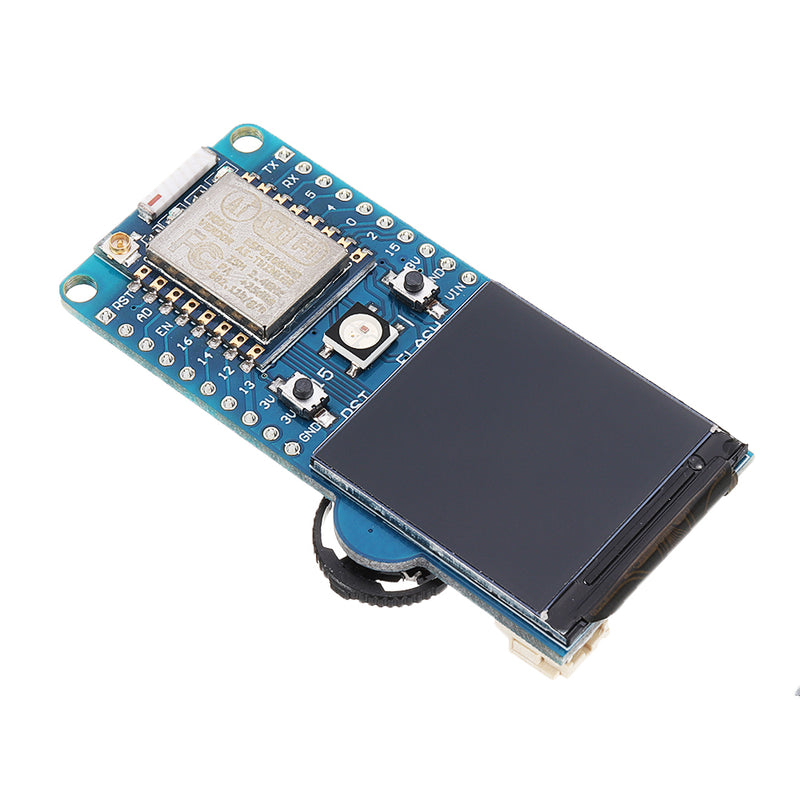

GPIOs and hardware info:

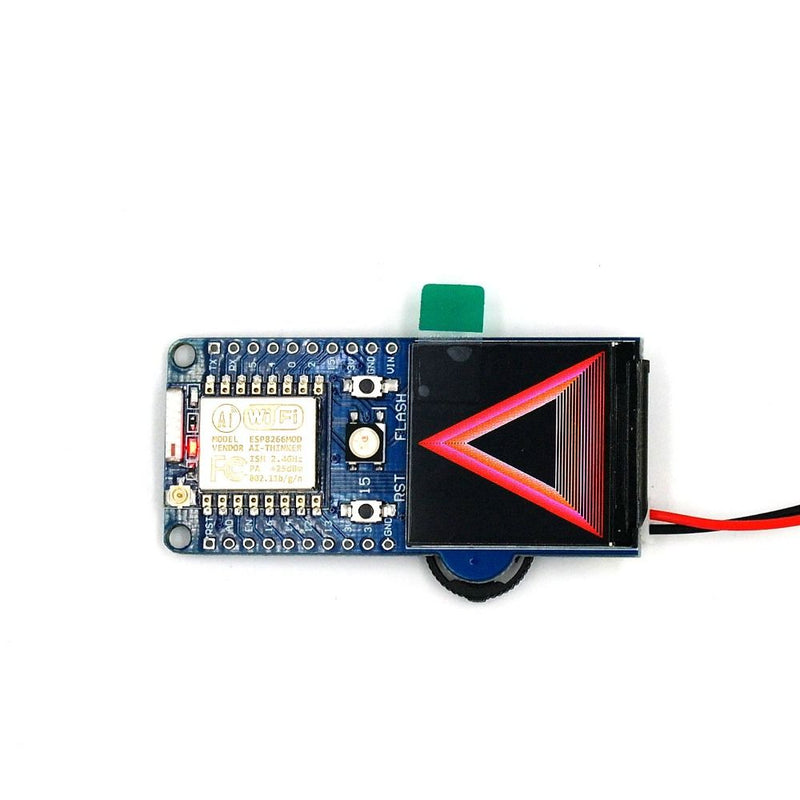

- Display: ST7789 1.3" Screen
- Display SDA(MOSI): GPIO 4
- Display SCL/SCK: GPIO 5
- Display DC: GPIO 0
- Display RST: GPIO2
- Display Background LED : GPIO16 (Low will close BackGround)
- Resolution: 240*240
- WS2812b LED: GPIO 15
- Button Up: GPIO 12
- Button Down: GPIO 13
- Button Select: GPIO 14

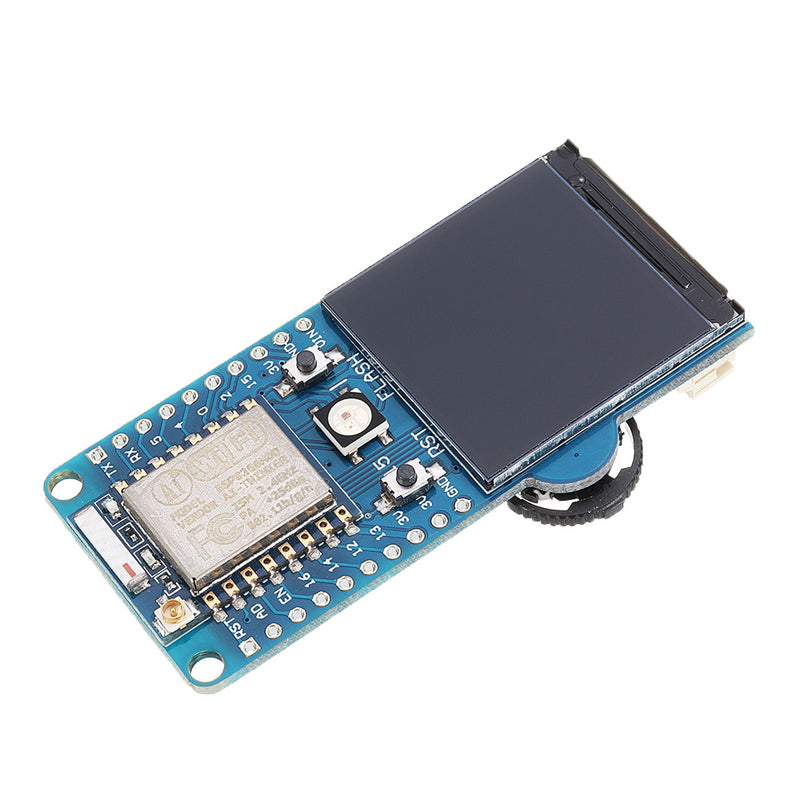

All ESP8266 pins break out.
What makes it special?
- ~120mA power usage
- LM39100 Low Voltage Low-Dropout Regulator
- All GPIO breakouts and 3.3 and 5V output
- 2 LEDs to indicate battery charging status (Red:Charging,Green:Full)
- Protection: short, over charging, over discharging, temperature, reverse
Tutorial:
1.Install environment for Dstike board
2.Install OLED library
3.Install Adafruit NeoPixel Library
4.Upload code example

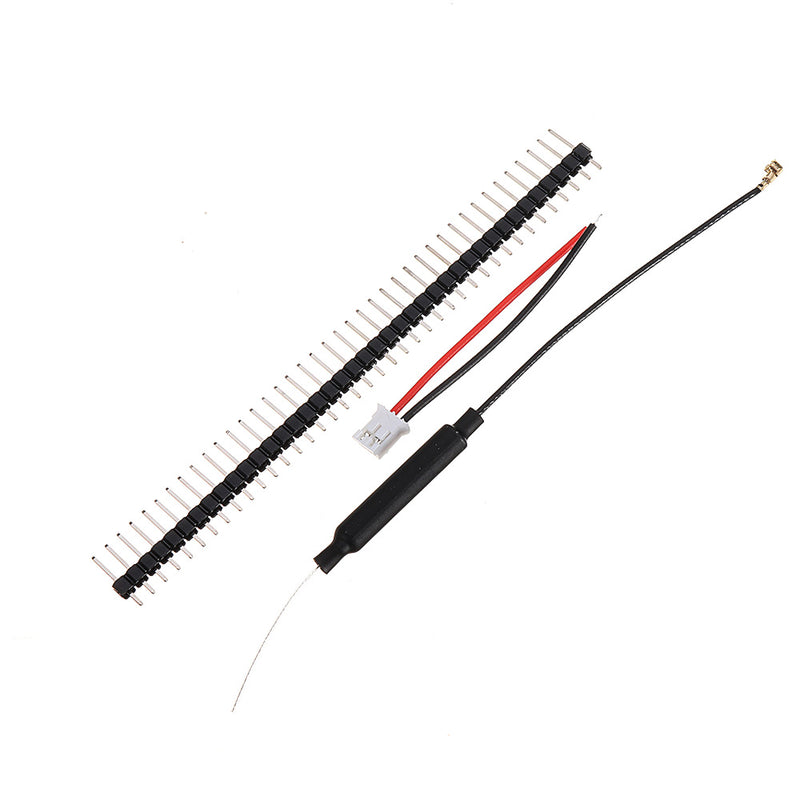

Package Included:
1 x DSTIKE D-duino V6 ESP8266 TFT Color LCD Delopment Board
