Description:
Gain:32dB

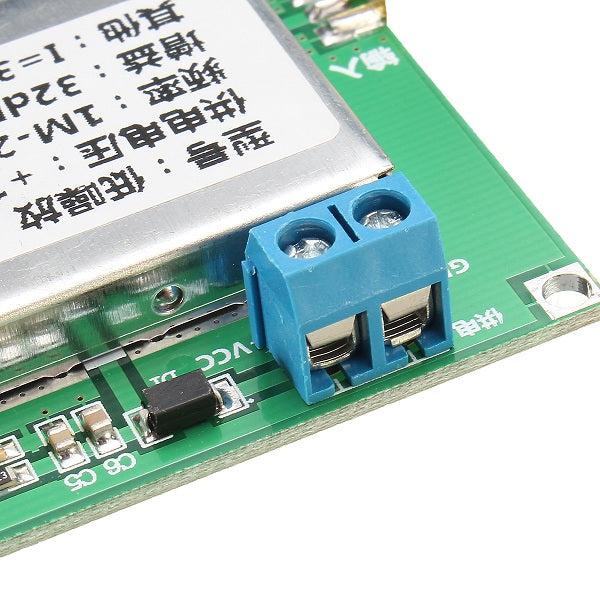

Power supply voltage: DC 12V (Current 35mA) with shielded enclosure
Input Output Impedance: 50 Ohm
Maximum output power: 10 dBm (2VPP50Ohm load)
Input signal: ≤-22 DBM ( >-22 DBM Input,the output signal has been distorted)
Bandwidth: 1 MHZ ~2 GHZ (gain is different under different frequency, specific please refer to the curve of S21 indicators)
Noise factor: 2 dB (0.5 GHz case measurement)
Other:Whenever you need a different gain value, can reduce the supply voltage.
Size(L*W*H):50 x 70 x 12 mm
Package included:

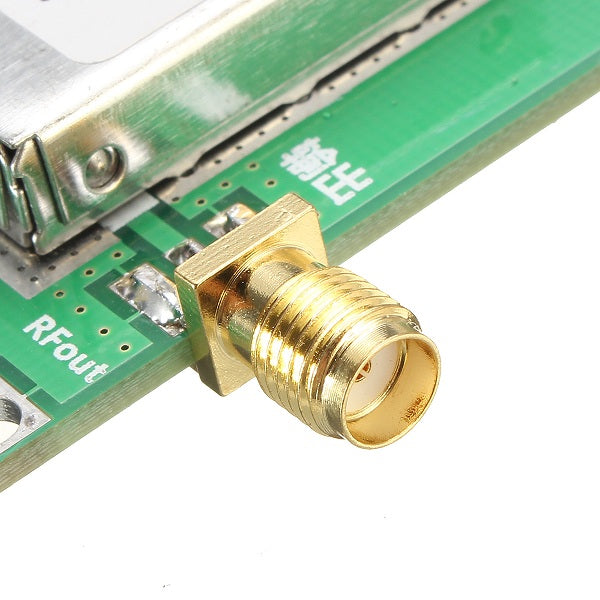

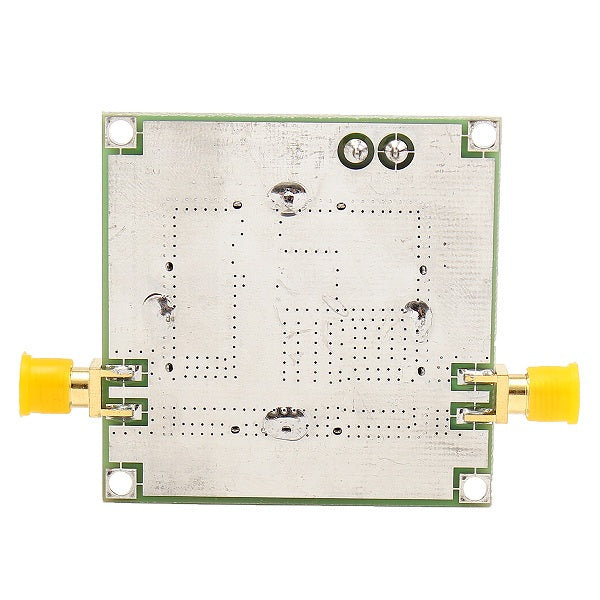

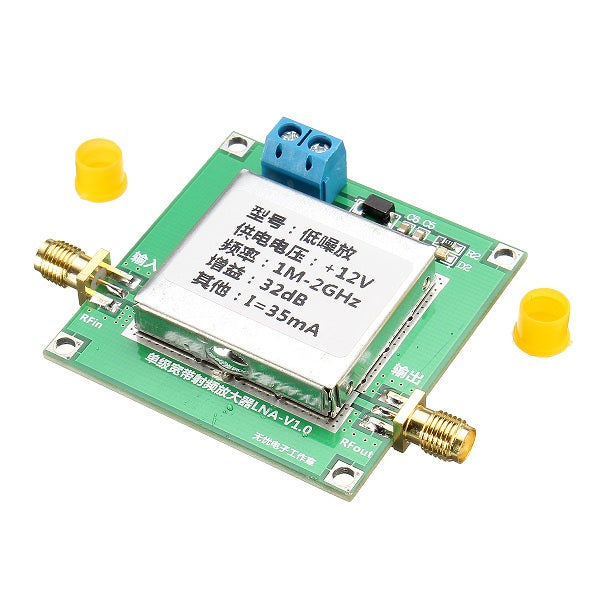

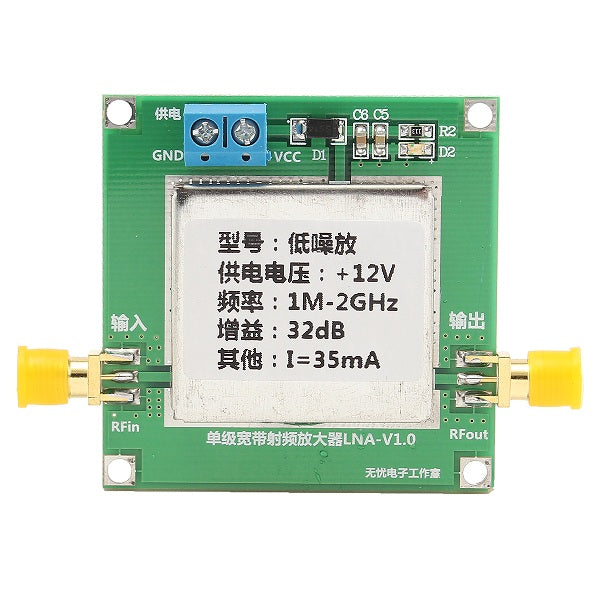

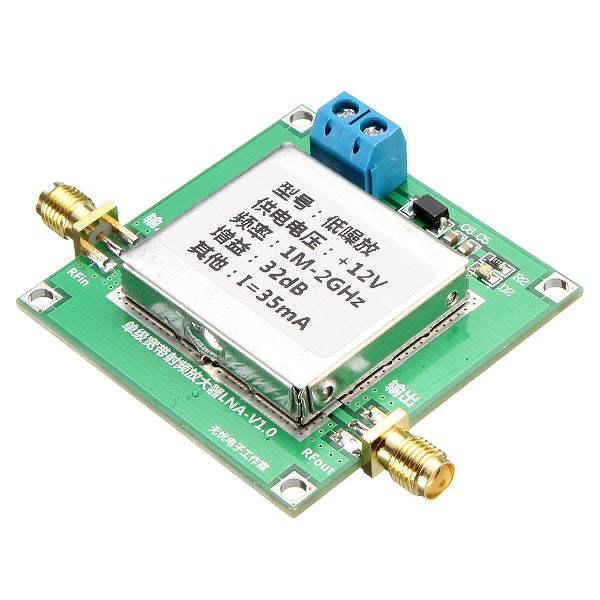

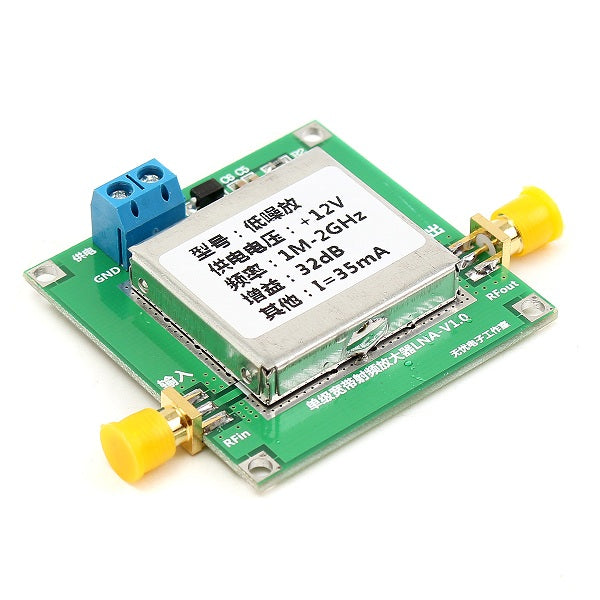

1 x Low Noise LNA RF Broadband Amplifier Module
